SolarMax MaxConnect 16 Plus | DC Combiner Box | 16 Inputs | 900 VDC | IP65 | Made in Switzerland

(4.47)

31 verified purchases

€520,00 EUR

Tax included.

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock

Quantity Discount

2 or more items	5% OFF
5 or more items	10% OFF
10 or more items	20% OFF

Warranty Included

Smooth and stress-free — we handle issues, without bureaucracy.

After-Sale Care

From setup to questions — we’ve got your back after the sale.

Description

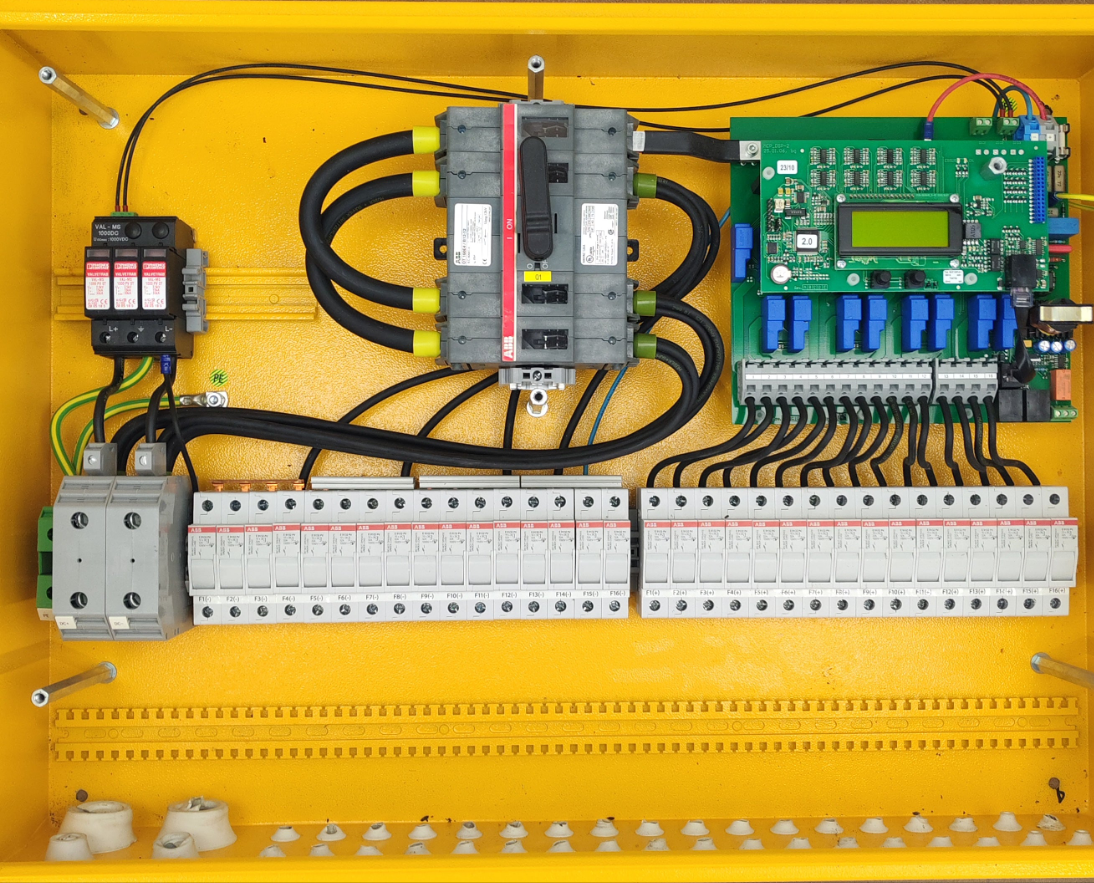

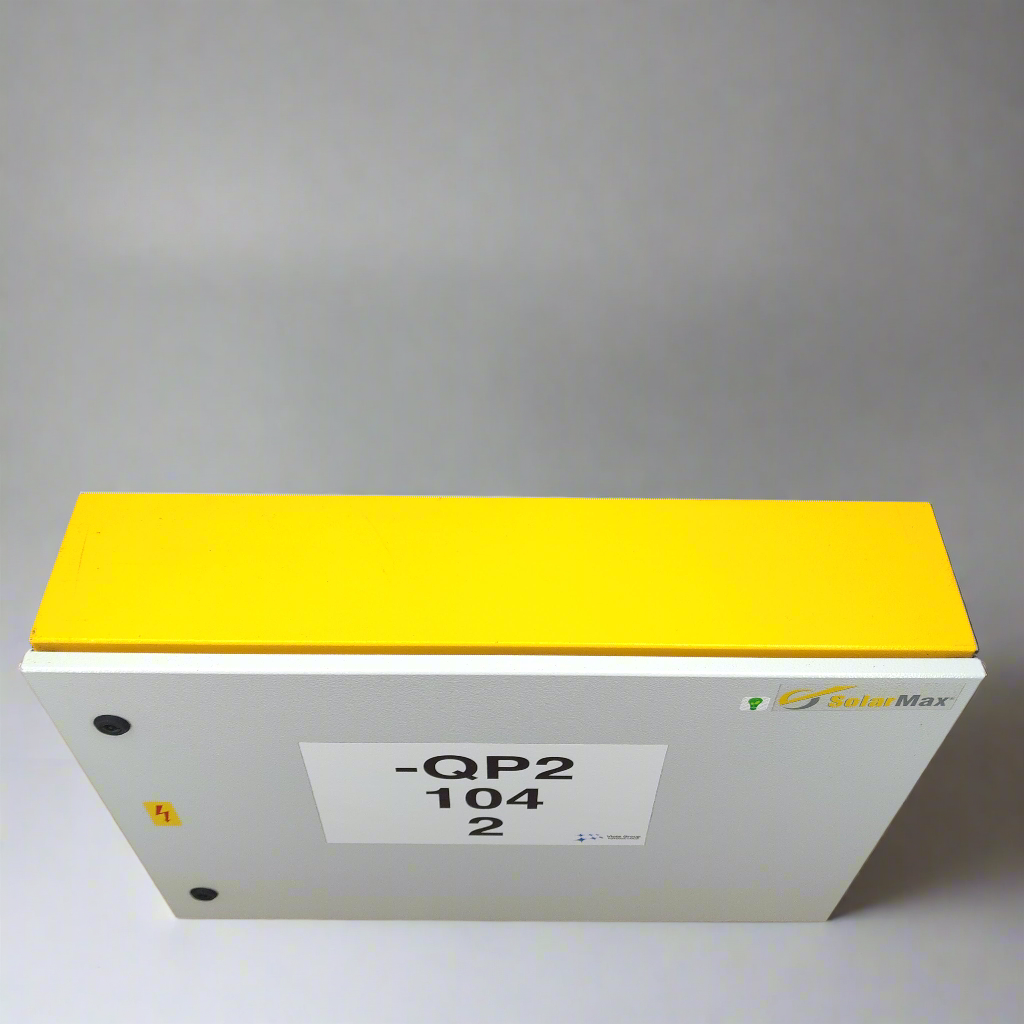

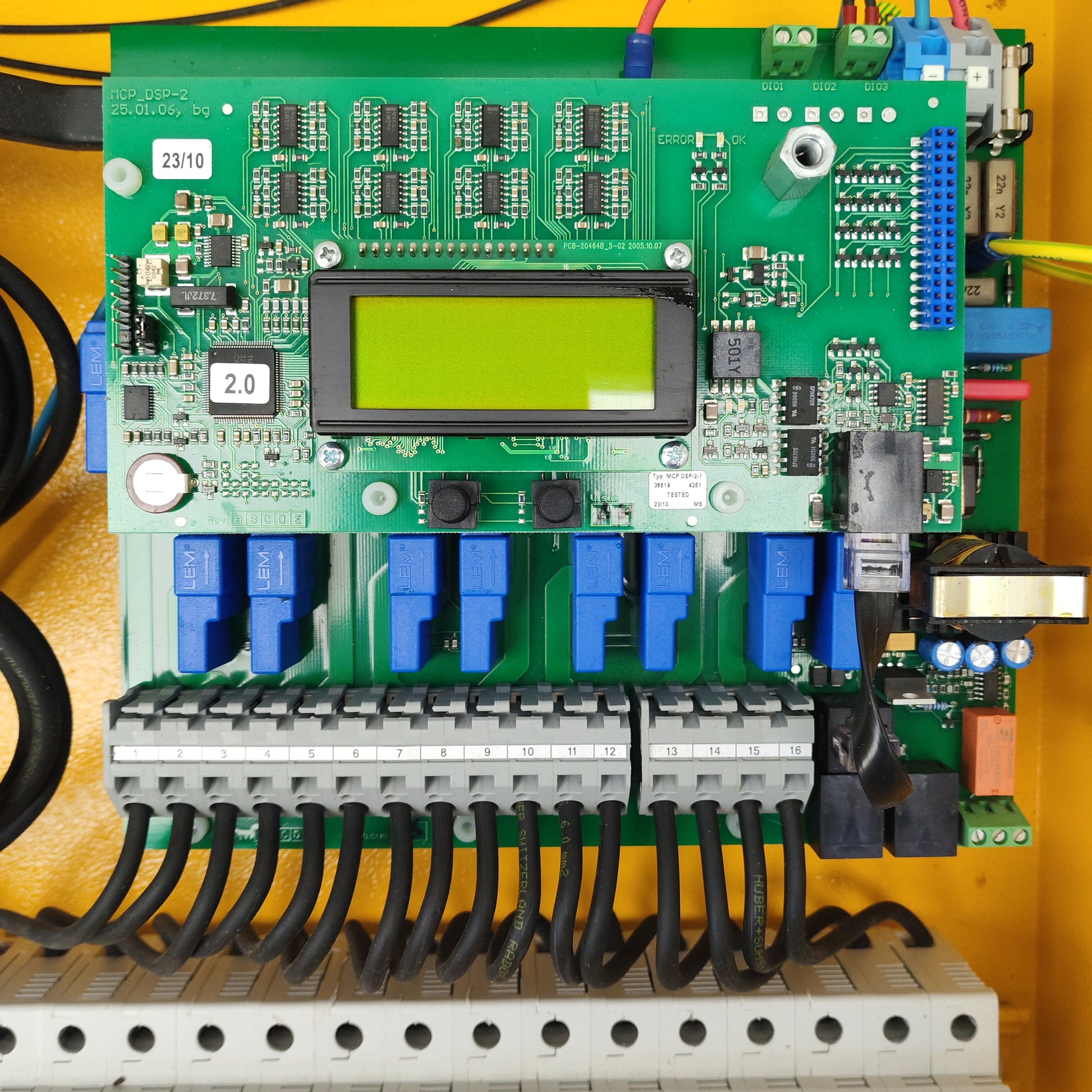

The SolarMax MaxConnect 16 Plus is a professional DC combiner box engineered for connecting up to 16 PV string inputs in high-power photovoltaic systems. Designed and built by Sputnik Engineering AG (Switzerland), it ensures safe current collection, overcurrent protection, and efficient distribution to SolarMax central inverters.

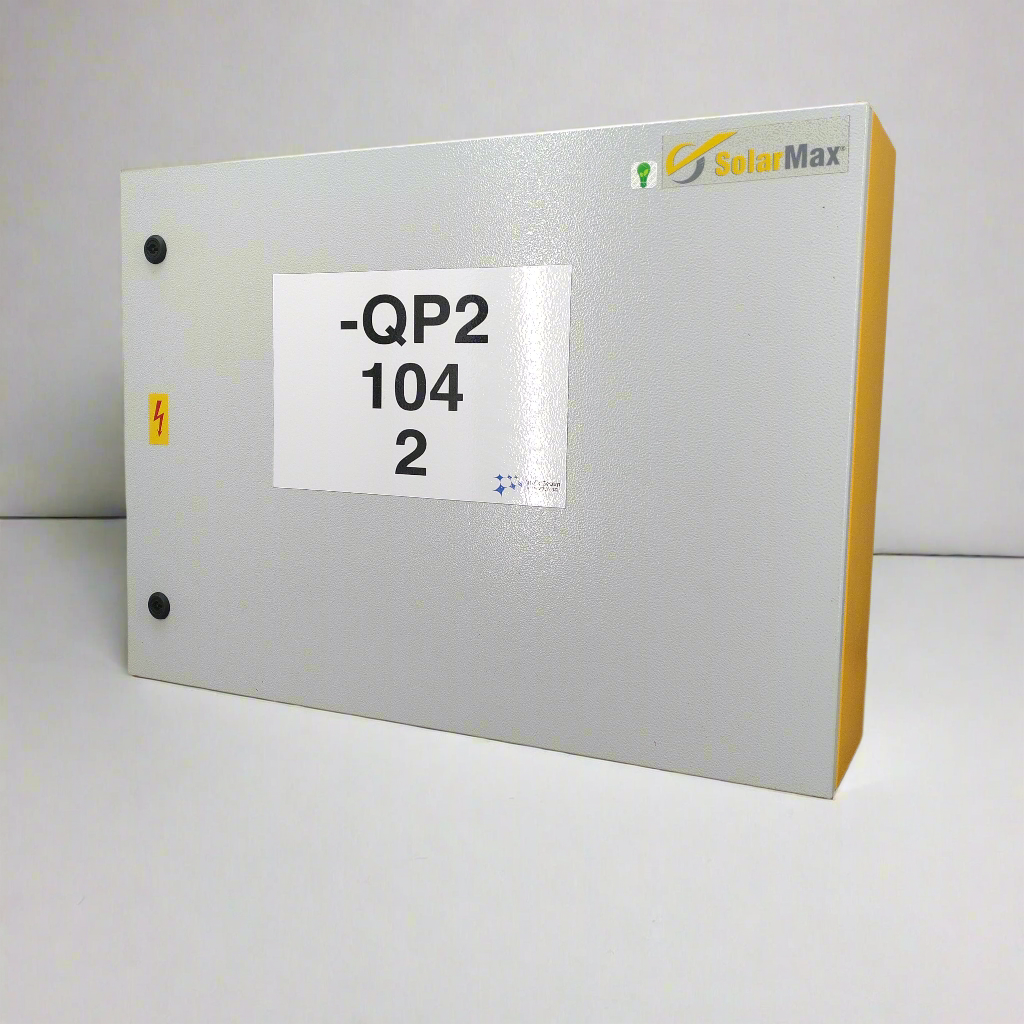

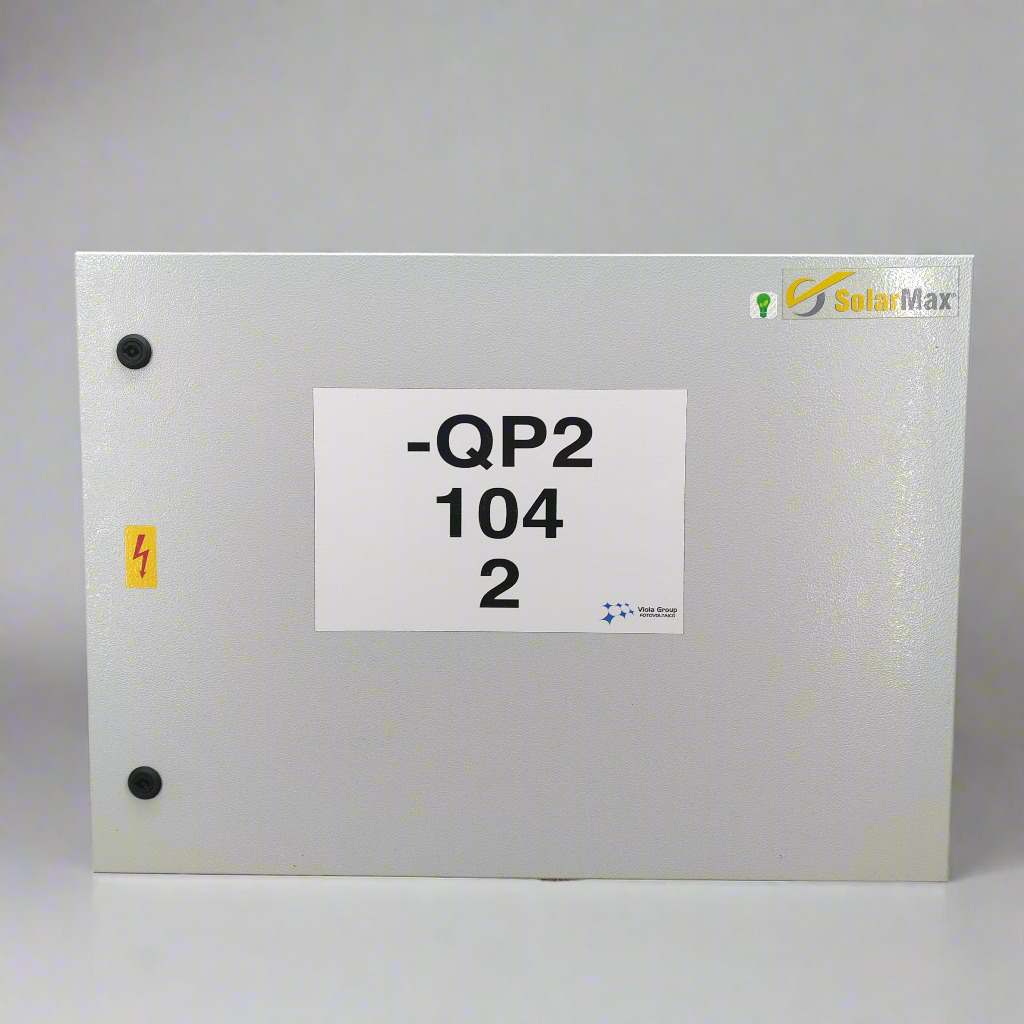

The enclosure is based on the ASS AS160 aluminum cabinet with IP65 protection, delivering excellent resistance against dust, humidity, and mechanical stress. Fully TÜV-certified and compliant with EN 50298, it provides Swiss-grade reliability for industrial solar installations.

🔄 Condition: Used, tested
🛠 Warranty: 6 months by Green Energy

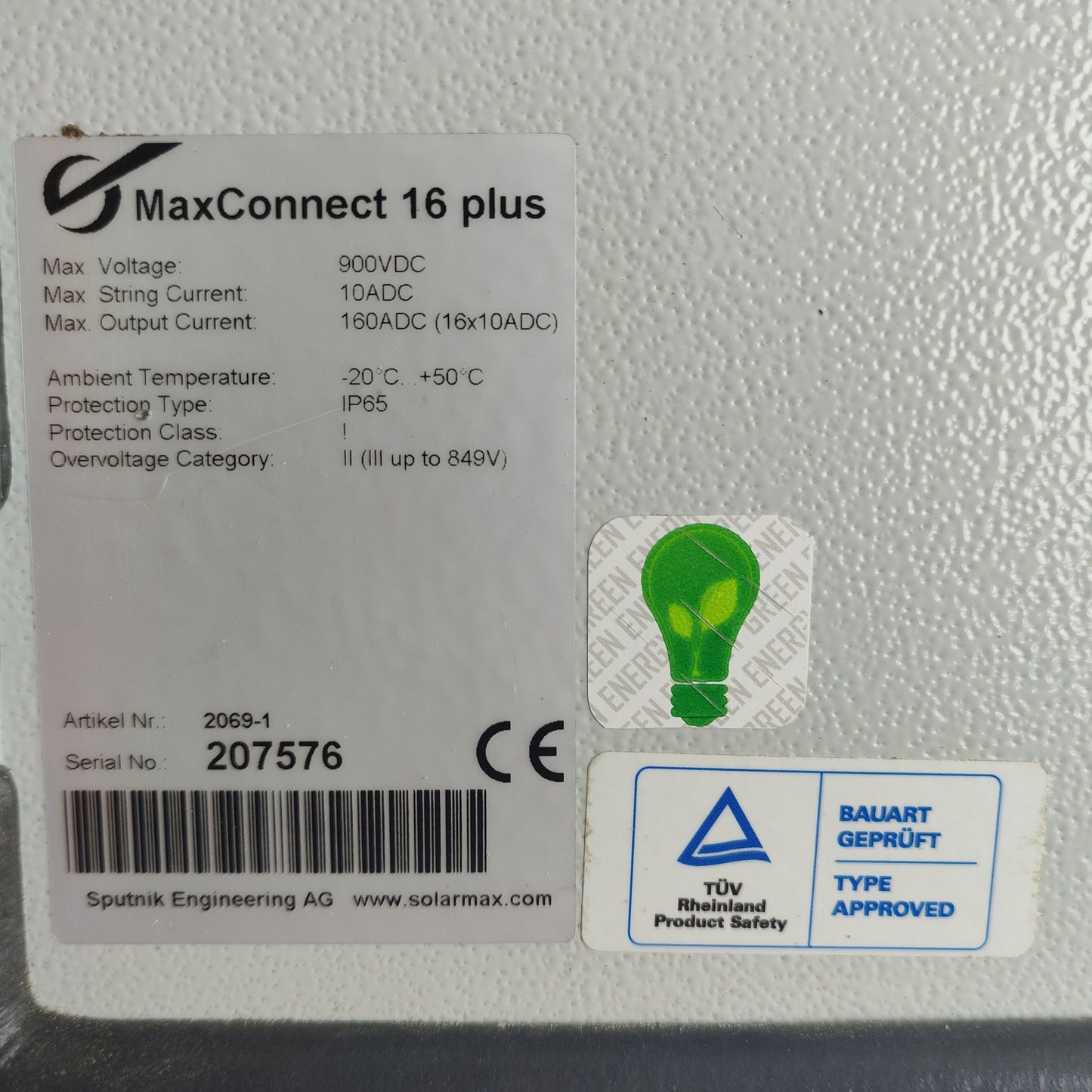

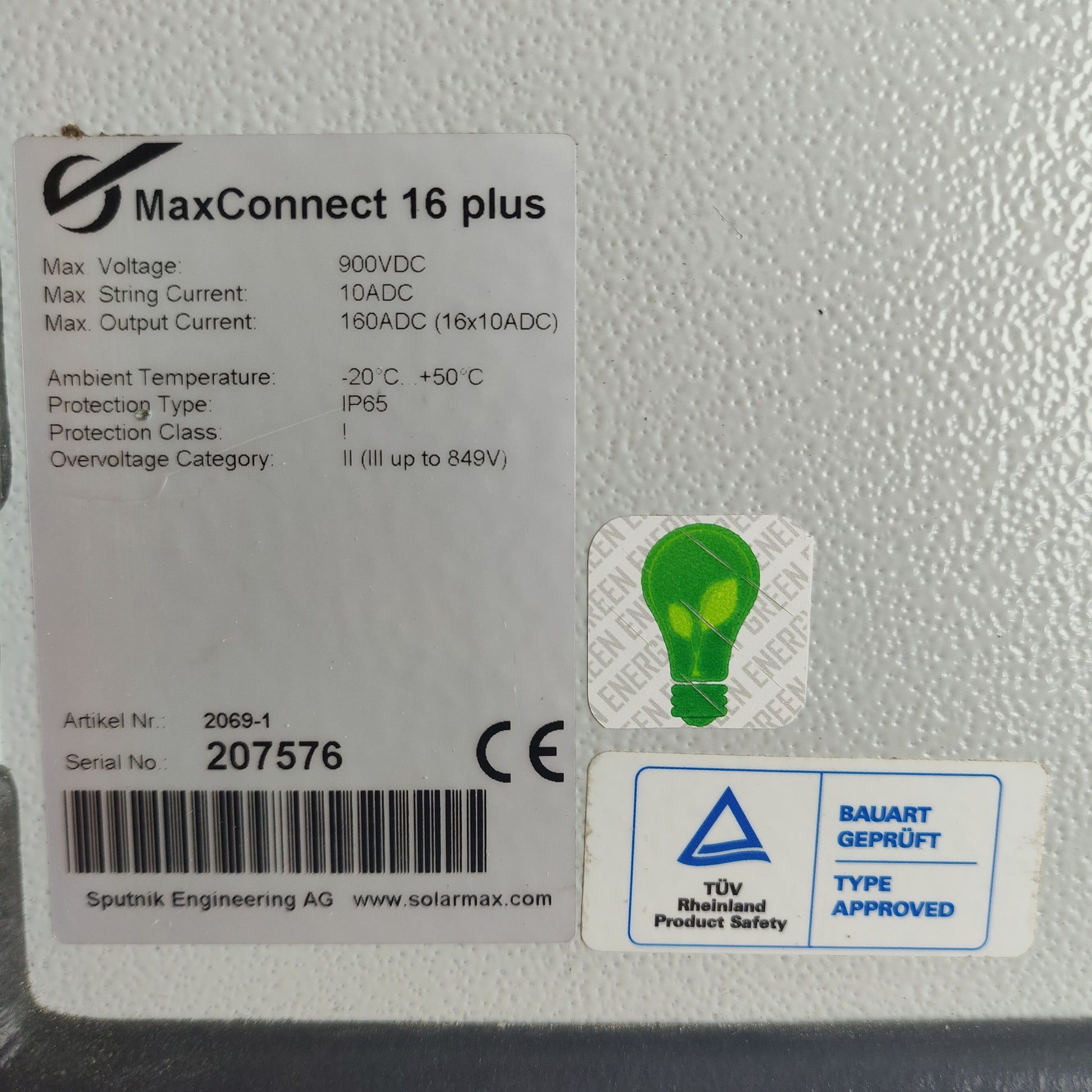

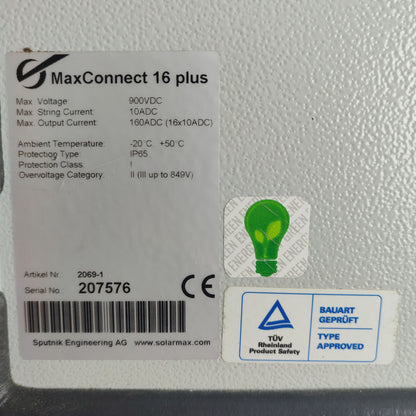

⚙️ Technical Specifications:

Model: MaxConnect 16 Plus
Manufacturer: Sputnik Engineering AG / SolarMax
Max Voltage: 900 VDC
Max String Current: 10 ADC per input
Total Output Current: 160 ADC (16 × 10 A)
Protection Type: IP65
Protection Class: I
Overvoltage Category: II (up to 849 V)
Ambient Temperature: –20 °C to +50 °C

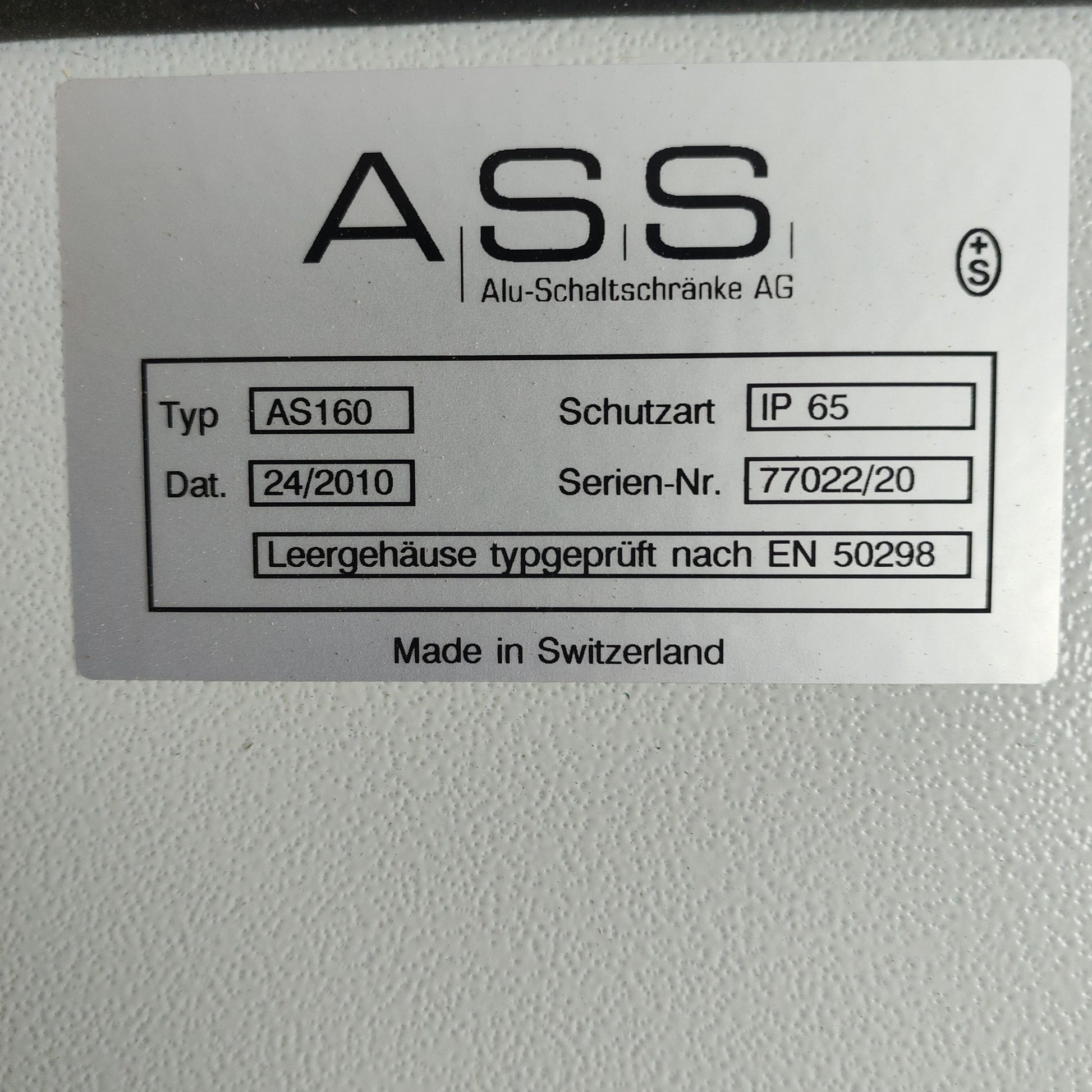

Enclosure Type: ASS AS160 (Made in Switzerland)

📦 Compatibility:
The MaxConnect 16 Plus is designed for direct integration with the following SolarMax central inverter series:

SolarMax TS-Series (50TS,80TS,100TS,300TS,)
SolarMax TS-SV-Series (330TS-SV,360TS-SV)
SolarMax S-Series (20S, 35S)
SolarMax Central Series used in commercial and utility-scale PV plants

📌 Key Features:
✔️ 16-string DC combiner for large PV systems
✔️ Optimized for SolarMax central inverters and SolarMax TS
✔️ High-quality Swiss-made aluminum housing (IP65)
✔️ TÜV Rheinland Type Approved
✔️ Reliable performance in harsh outdoor conditions

🚀 Enhance the safety and efficiency of your SolarMax inverter system with the MaxConnect 16 Plus DC Combiner Box, tested and guaranteed by Green Energy.
