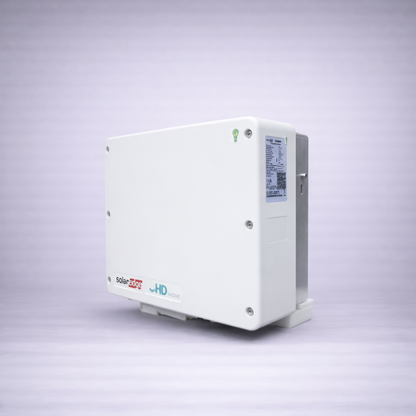

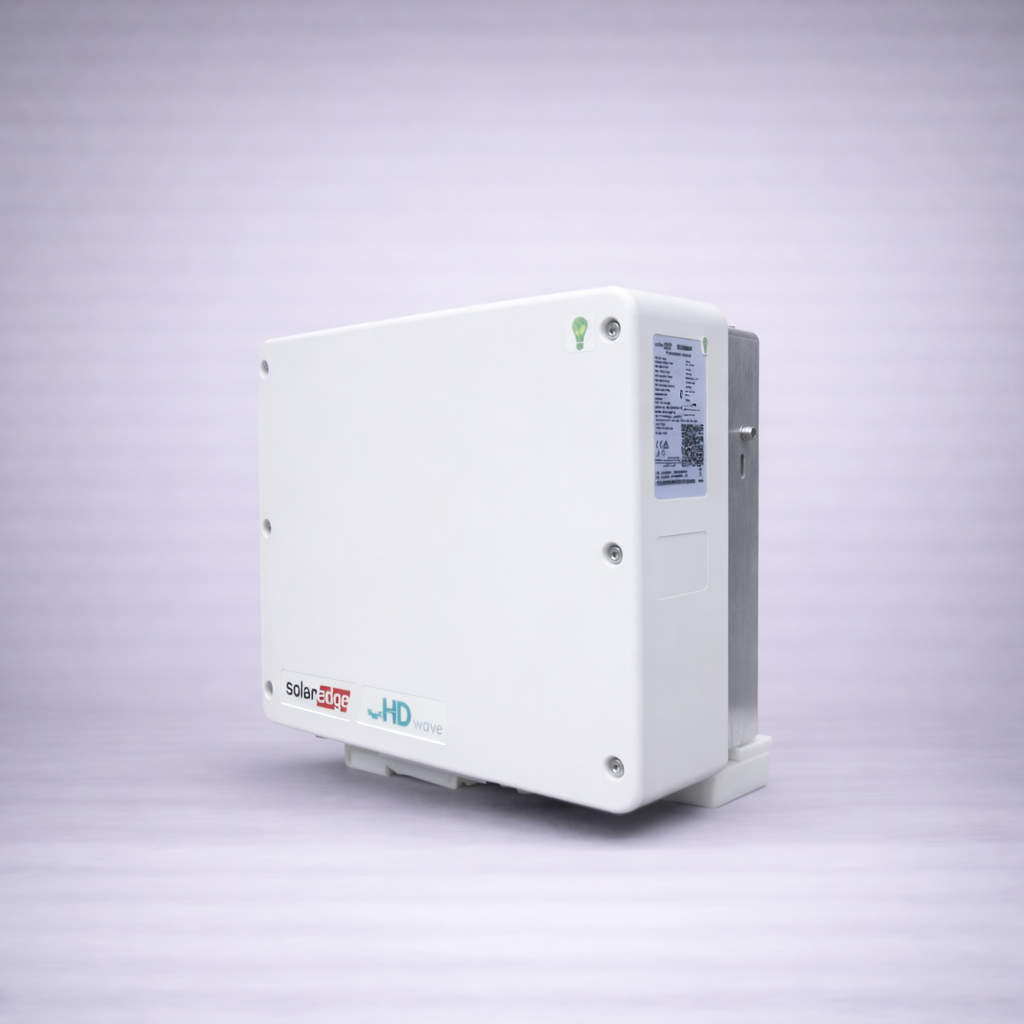

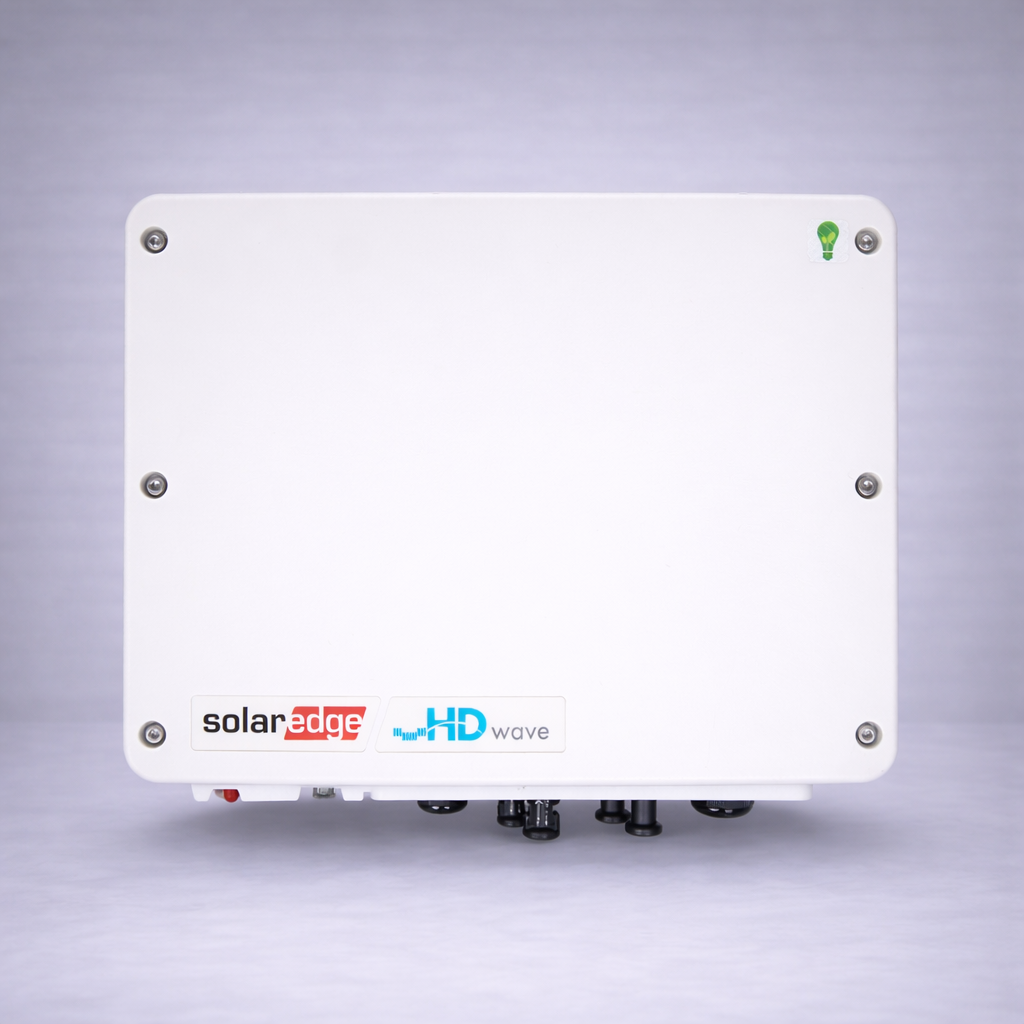

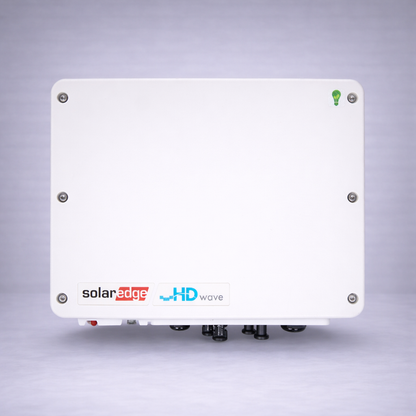

The SolarEdge SE6000H HD-Wave is a high-efficiency single-phase photovoltaic inverter designed for residential and small commercial solar systems up to 6 kW. Based on advanced HD-Wave technology, it offers superior energy conversion efficiency, compact dimensions, and reduced weight compared to conventional inverter designs.

The inverter is designed to operate with SolarEdge power optimizers, enabling module-level control, enhanced safety, and detailed system monitoring. This architecture improves energy yield, especially in installations affected by shading or module mismatch.

Its fanless design ensures silent operation and increased reliability over time, making it suitable for both indoor and outdoor installations.

⚙️ Main Technical Specifications

🔹 DC Input (PV Side)

• Maximum DC voltage: 480 Vdc
• MPPT operating range: 270 – 480 Vdc
• Maximum input current: 16.5 A
• Designed for use with SolarEdge power optimizers

🔹 AC Output (Grid Side)

• Rated output power: 6000 VA
• Nominal voltage: 220 / 230 Vac (L–N)
• Maximum output current: 27.5 A RMS
• Frequency: 50 / 60 Hz
• Adjustable power factor: ±0.9 to 1

🛡 Protection & Construction

• Protection rating: IP65 (indoor / outdoor installation)
• Protection class: Class I
• Compliance: VDE-AR-N 4105

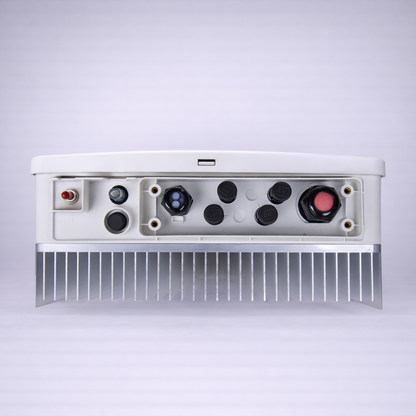

• Cooling system: Natural convection (fanless)

The sealed aluminum enclosure ensures durability and resistance to environmental conditions.

🌐 Communication & Monitoring

• Integrated Wi-Fi
• Communication interfaces (Ethernet, optional ZigBee)
• Remote monitoring via SolarEdge platform
• QR code for fast commissioning

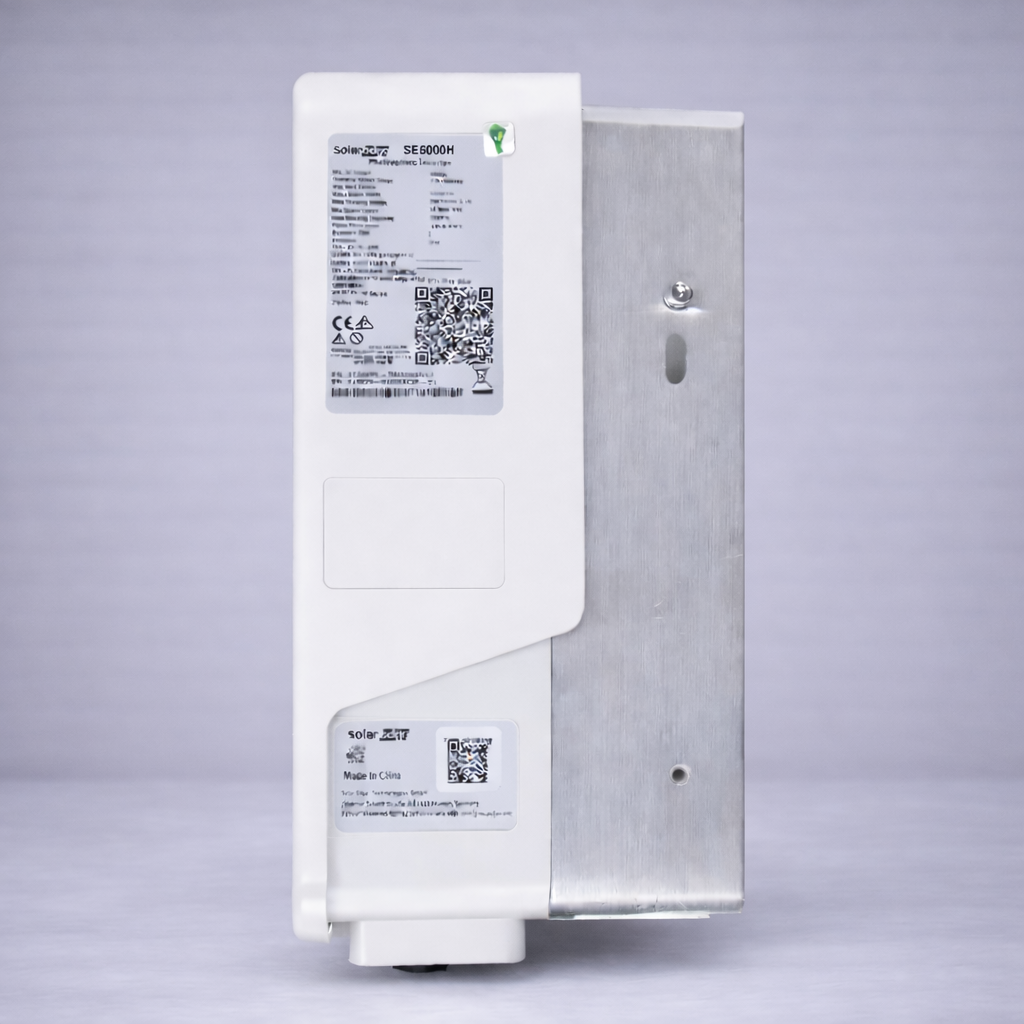

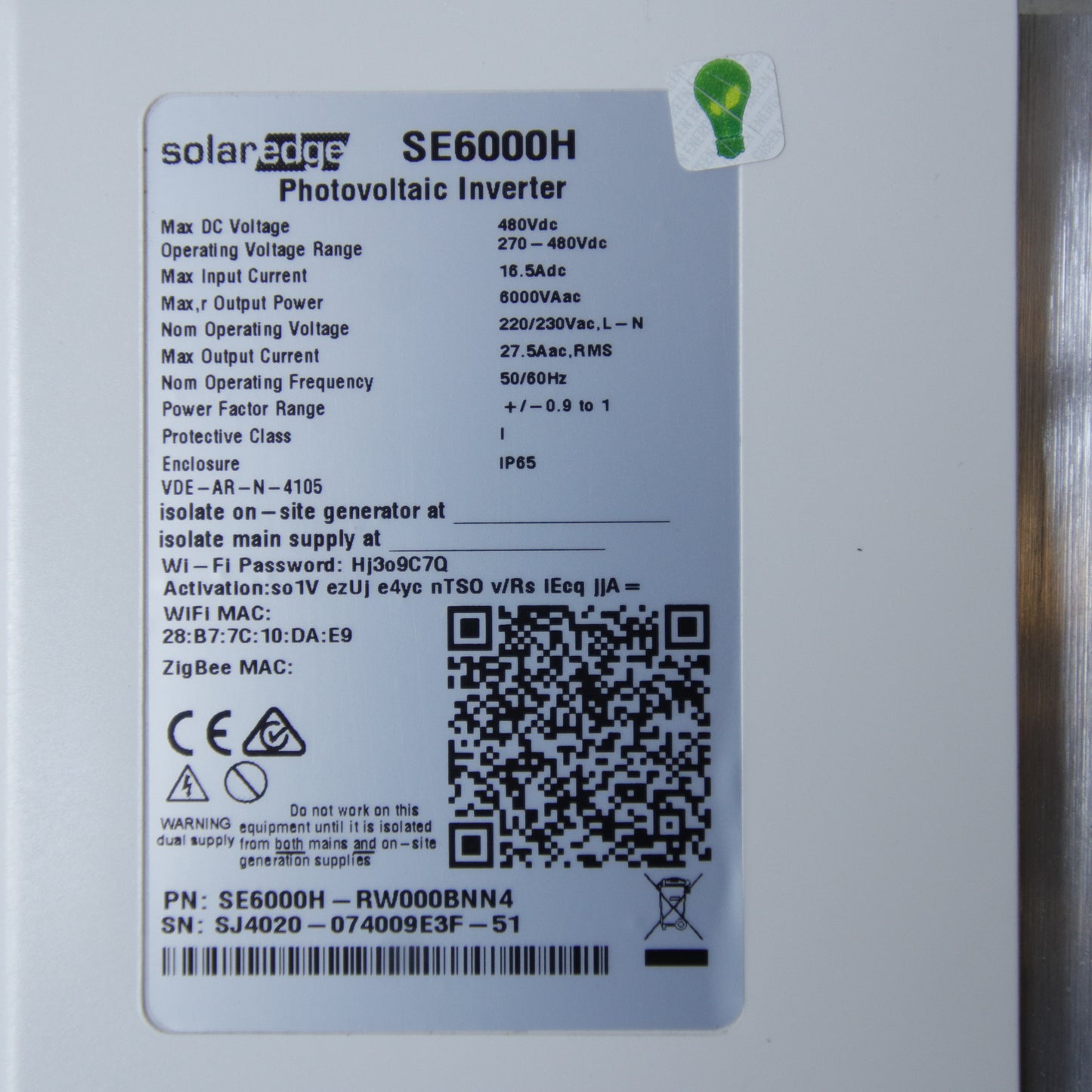

• MAC address and activation codes on nameplate

🏗 Applications

• Residential photovoltaic systems up to 6 kW
• Small commercial installations
• Systems with SolarEdge power optimizers
• Integration with SolarEdge storage solutions

📦 Physical Characteristics

• Type: Compact single-phase inverter
• Installation: Wall-mounted
• Lightweight and compact design
• Housing: Aluminum body with front panel

💡 Key Advantages

✔ High-efficiency HD-Wave technology
✔ Compact and lightweight design
✔ Advanced module-level monitoring
✔ Integrated wireless communication
✔ IP65 protection for outdoor use
✔ Silent operation (fanless)
