The SolarEdge SE5000H HD-Wave is a high-efficiency single-phase photovoltaic inverter designed for residential solar systems up to 5 kW. Based on innovative HD-Wave technology, it delivers superior energy yield, compact dimensions, and significantly reduced weight compared to traditional inverter designs.

The SE5000H operates in combination with SolarEdge power optimizers, enabling module-level management and advanced monitoring for enhanced system performance, safety, and flexibility.

Its fanless design ensures silent operation and improved long-term reliability, making it ideal for indoor and outdoor residential installations.

⚙️ Main Technical Specifications

🔹 DC Input (PV Side)

• Maximum DC voltage: 480 Vdc

• MPPT operating range: 270 – 480 Vdc

• Maximum input current: 13.5 A

• Designed for use with SolarEdge power optimizers

🔹 AC Output (Grid Side)

• Rated output power: 5000 VA

• Nominal voltage: 220/230 Vac (L–N)

• Maximum output current: 23 A RMS

• Frequency: 50/60 Hz

• Adjustable power factor: ±0.9 … 1

🛡 Protection & Construction

• Protection rating: IP65 (suitable for indoor and outdoor installation)

• Protection class: Class I

• Compliance: VDE-AR-N 4105

• Cooling system: Natural convection (fanless)

The sealed IP65 aluminum enclosure ensures durability and environmental resistance.

🌐 Communication & Monitoring

• Integrated WiFi

• Communication port compatible with SolarEdge systems

• Remote monitoring via SolarEdge platform

• QR code for rapid commissioning

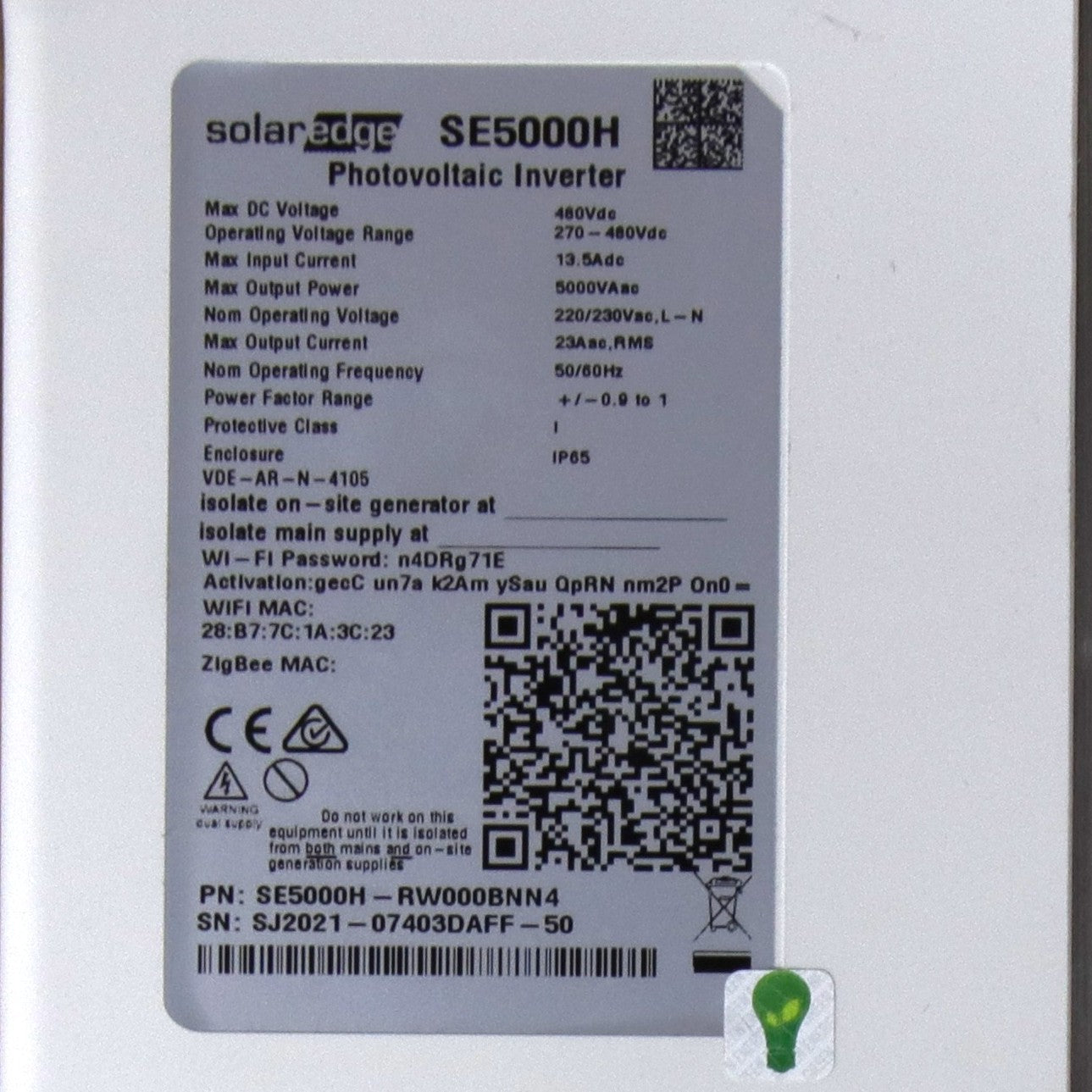

• WiFi MAC address and activation codes displayed on nameplate

🏗 Applications

✔ Residential photovoltaic systems up to 5 kW
✔ Indoor and outdoor installations
✔ Systems with SolarEdge power optimizers
✔ Integration with compatible SolarEdge storage solutions

📦 Physical Data (Indicative)

• Type: Compact single-phase inverter

• Installation: Wall-mounted

• Weight: Approx. 11–12 kg

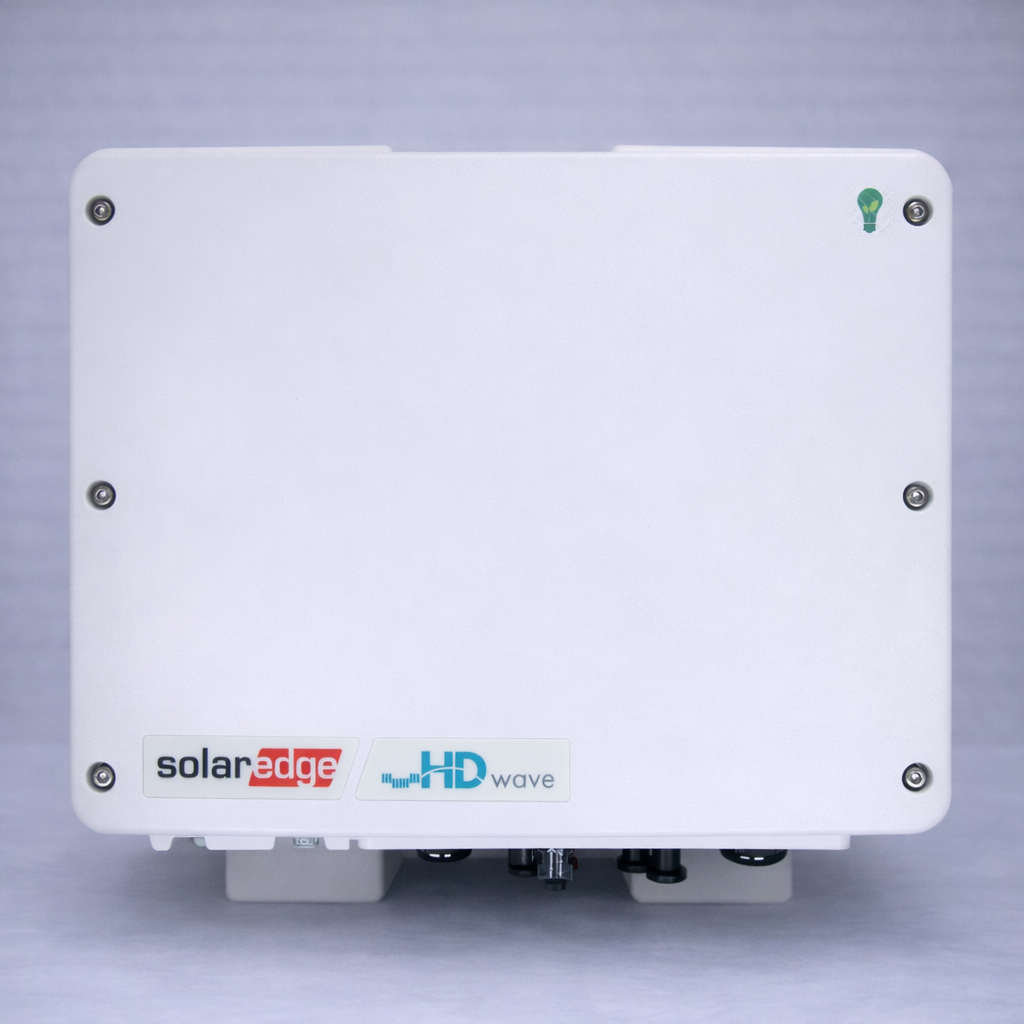

• Housing: Aluminum body with white front panel

✅ Key Advantages

✔ High-efficiency HD-Wave technology
✔ Compact and lightweight design
✔ Advanced module-level monitoring
✔ Integrated wireless communication
✔ IP65 protection rating
✔ Silent fanless operation

🚀 Commercial Summary

The SolarEdge SE5000H HD-Wave is a compact, lightweight, and highly efficient 5kW single-phase inverter designed for optimized residential photovoltaic systems. With integrated WiFi, module-level monitoring, and IP65 protection, it represents a professional and future-ready solution for modern solar installations.
