The SolarEdge P500-5RM4MRM is a high-performance photovoltaic power optimizer designed to maximize the energy output of individual solar modules through advanced module-level MPPT (Maximum Power Point Tracking) technology.
By optimizing each panel independently, the P500 significantly reduces energy losses caused by partial shading, module mismatch, dirt accumulation, aging, and varying environmental conditions. When used with compatible SolarEdge inverters, it enables advanced module-level monitoring and enhances the overall efficiency of the photovoltaic system.

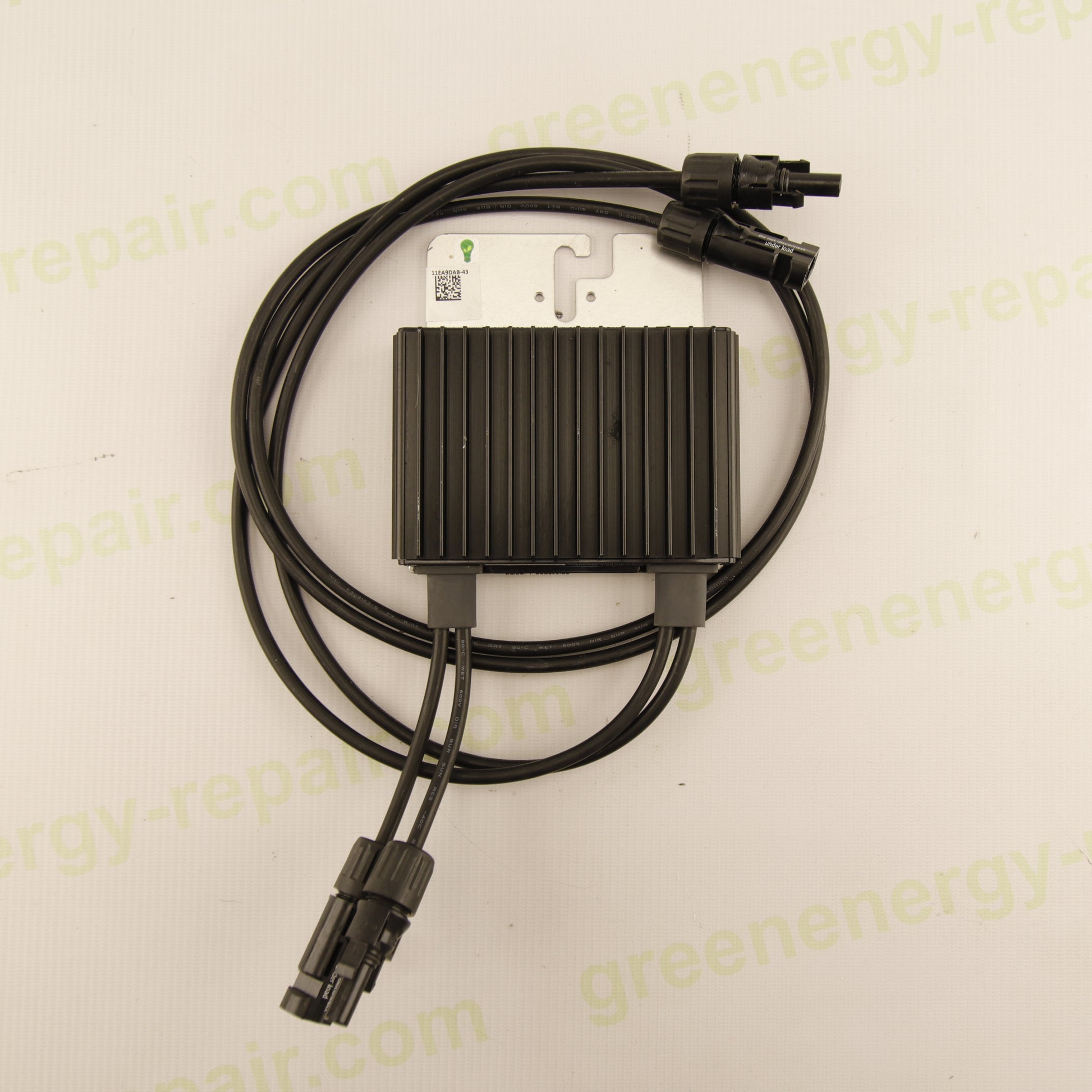

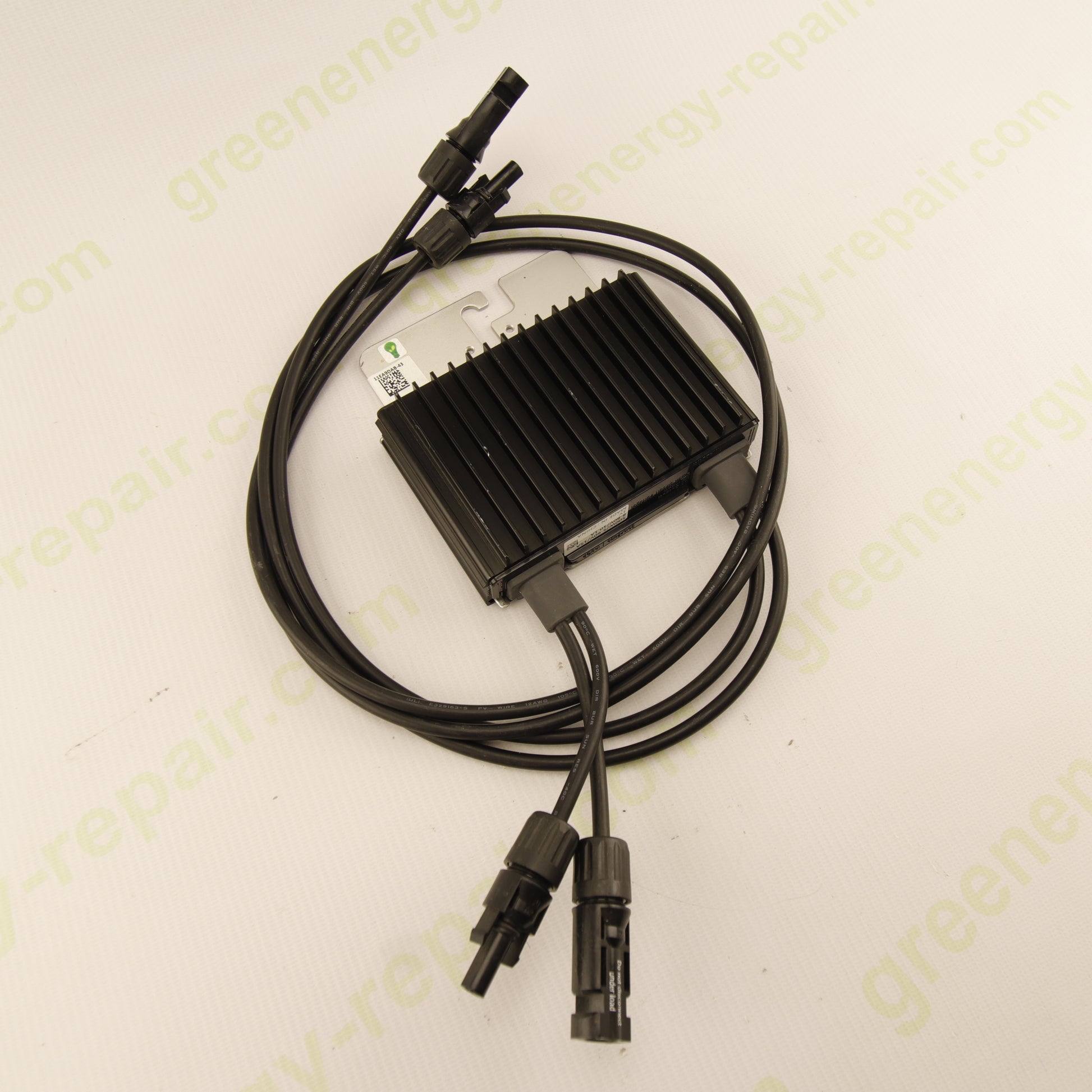

The unit features a robust aluminum heat sink for efficient passive cooling and comes with integrated photovoltaic connectors and pre-assembled cabling for quick and reliable installation.
⚙️ Technical Specifications

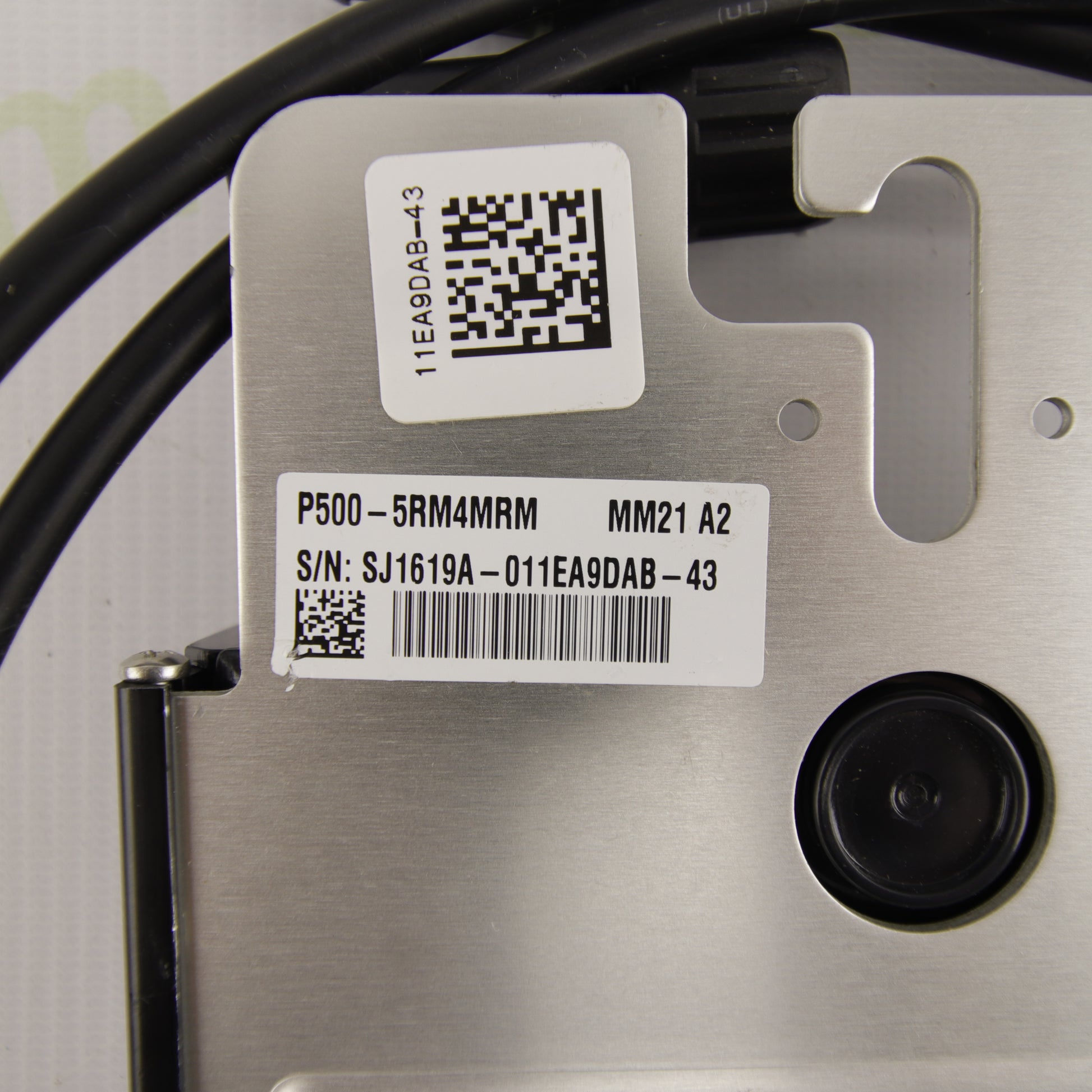

Identification Data
- Manufacturer: SolarEdge
- Model: P500-5RM4MRM
- Variant Code: MM21 A2
- Product Type: Photovoltaic Power Optimizer
- Technology: Module-Level MPPT
- Country of Manufacture: China
- Serial Number: SJ1619A-011EA9DAB-43

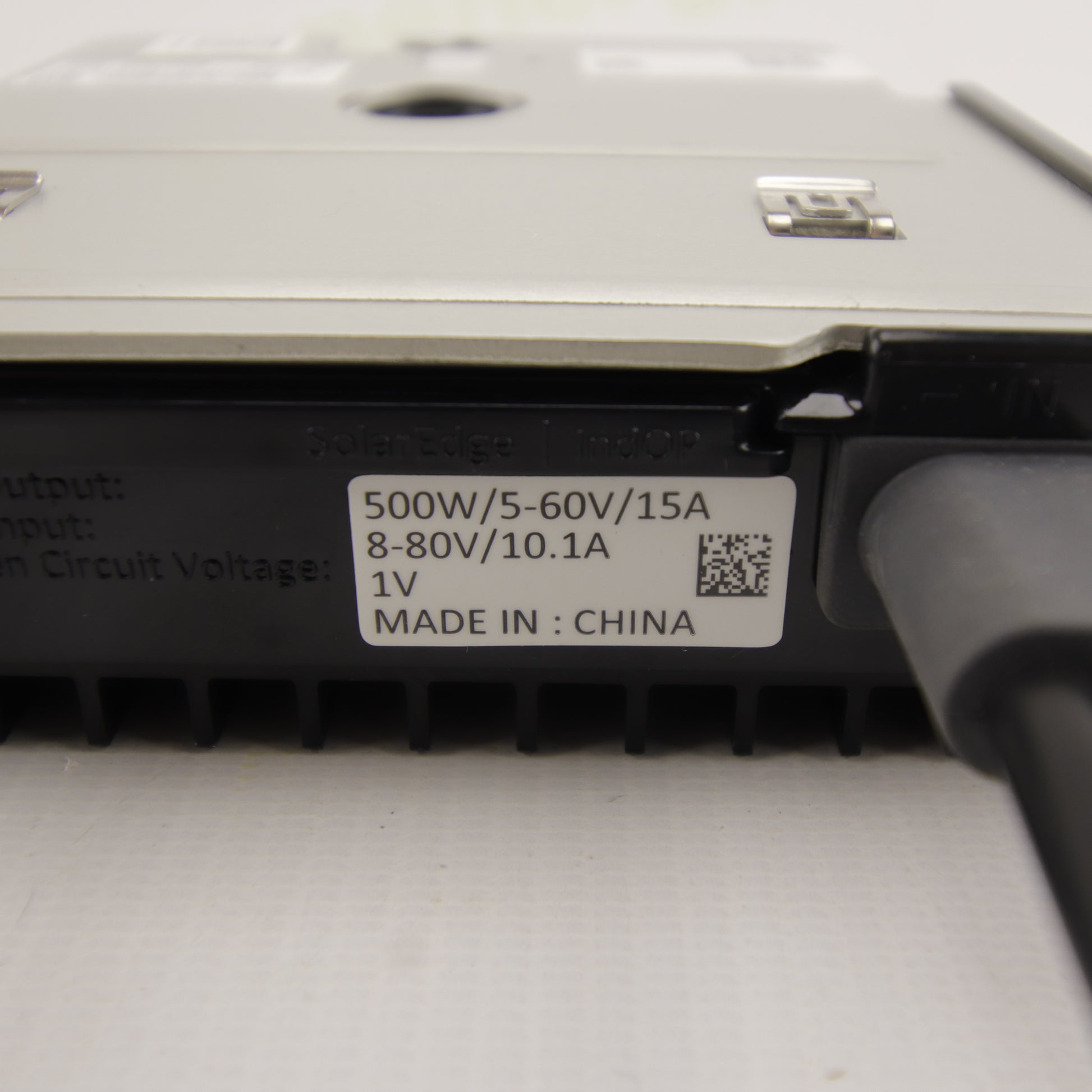

Input (DC)
- Input Voltage Range: 8 – 80 VDC
- Maximum Input Current: 10.1 A
Output (DC)
- Maximum Output Power: 500 W
- Output Voltage Range: 5 – 60 VDC
- Maximum Continuous Output Current: 15 A
Additional Specifications
- Open Circuit Voltage: 1 V
- Integrated Photovoltaic Connectors
- Pre-Assembled Cabling

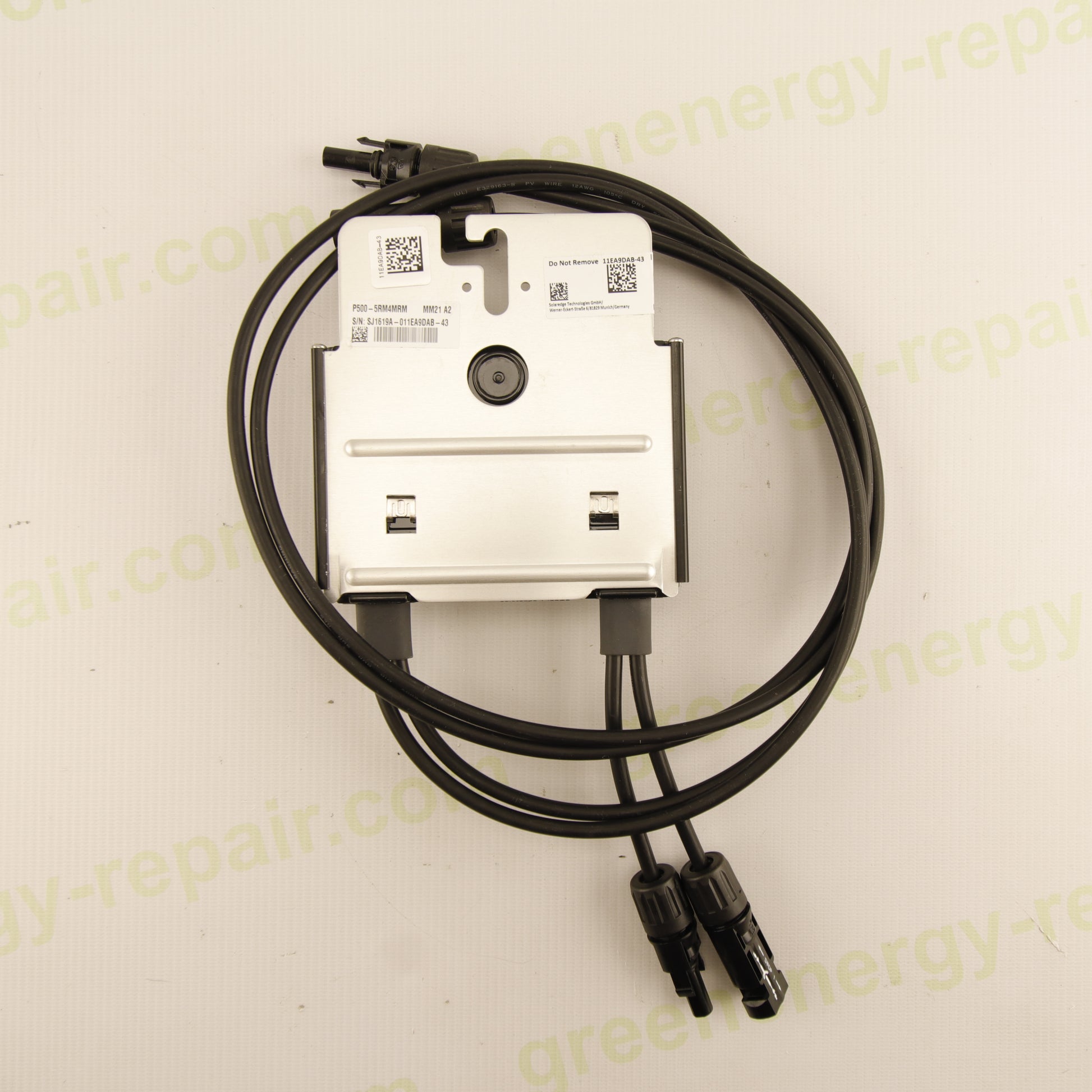

- Integrated Mounting Bracket
- Passive Aluminum Heat Sink Cooling
🔧 Main Features
✔ Module-level power optimization
✔ Increased photovoltaic system energy production
✔ Reduced losses from partial shading
✔ Compensation for module mismatch
✔ Individual panel performance monitoring
✔ Compatible with SolarEdge inverter systems
✔ Greater flexibility in PV string design
✔ Intelligent DC power management and protection
✔ Maintenance-free passive cooling
🔌 Purpose and Operation
The SolarEdge P500 optimizer continuously tracks the maximum power point of the connected solar module, ensuring optimal energy production under varying environmental conditions.
Unlike conventional string inverter systems, each panel operates independently, allowing the photovoltaic array to maintain higher efficiency even when some modules are affected by shading, dirt, orientation differences, or aging.
Benefits include:
- Increased energy harvest
- Improved system efficiency
- Enhanced module-level monitoring
- Reduced mismatch losses
- Greater design flexibility
- Improved long-term performance
☀️ Applications
Ideal for:
- Residential photovoltaic systems
- Commercial solar installations
- Rooftops with multiple orientations
- Systems affected by partial shading
- SolarEdge system upgrades and retrofits
- Maintenance and replacement of existing SolarEdge optimizers
- Advanced module-level monitoring installations
⚠️ Common Fault Symptoms
A defective optimizer may cause:
Reduced Module Output
Symptoms:
❗ Lower energy production from the connected module
❗ Reduced overall system performance
Communication Failure
Symptoms:
❗ Optimizer not detected by the SolarEdge inverter
❗ Missing module data in monitoring platform
❗ Intermittent communication errors
String Voltage Anomalies
Symptoms:
❗ Abnormal voltage readings
❗ Startup issues
❗ Performance instability
Production Interruption
Symptoms:
❗ Connected panel stops producing energy
❗ Reduced string power output
❗ Module-level performance alarms
Internal Electronic Failure
Symptoms:
❗ Complete optimizer shutdown
❗ Persistent fault conditions
❗ Monitoring system warnings
🚨 Possible Associated Errors
A faulty optimizer may contribute to:
- Optimizer Communication Error
- Power Optimizer Failure
- Module Not Detected
- String Voltage Fault
- DC Input Error
- Performance Mismatch Warning
- Monitoring Communication Loss
- PV String Fault
- Reduced Energy Production
- Optimizer Pairing Error
Actual error messages may vary depending on the inverter model and firmware version.
🛠 Applications
Suitable for:
✔ SolarEdge residential systems
✔ Commercial photovoltaic installations
✔ Partially shaded solar arrays
✔ Multi-orientation rooftop systems
✔ System upgrades and refurbishments
✔ SolarEdge maintenance and repair projects
✔ Advanced PV monitoring solutions
📦 Package Contents
- 1 × SolarEdge P500-5RM4MRM Power Optimizer
- Original integrated cables and photovoltaic connectors
- Integrated mounting bracket
- Product condition as shown in the photographs
✅ Advantages
✔ Original SolarEdge component
✔ 500W module-level optimization
✔ Improved energy production
✔ Reduced shading and mismatch losses
✔ Advanced module monitoring
✔ Enhanced system flexibility
✔ Reliable passive cooling design
✔ Long operational lifespan
✔ Easy installation with integrated connectors
🔄 Compatibility
Compatible with:
- SolarEdge inverter systems
- SolarEdge monitoring platforms
- Residential photovoltaic installations
- Commercial solar systems
- Existing SolarEdge optimizer-based arrays
Always verify inverter compatibility and system design requirements before installation.
🟢 Summary
The SolarEdge P500-5RM4MRM is a 500W photovoltaic power optimizer designed to maximize solar module performance through module-level MPPT technology. Featuring an 8–80V input range, 5–60V output range, 10.1A maximum input current, and 15A maximum output current, it increases energy production, minimizes shading and mismatch losses, and enables advanced monitoring of individual solar modules within compatible SolarEdge photovoltaic systems.
