Description

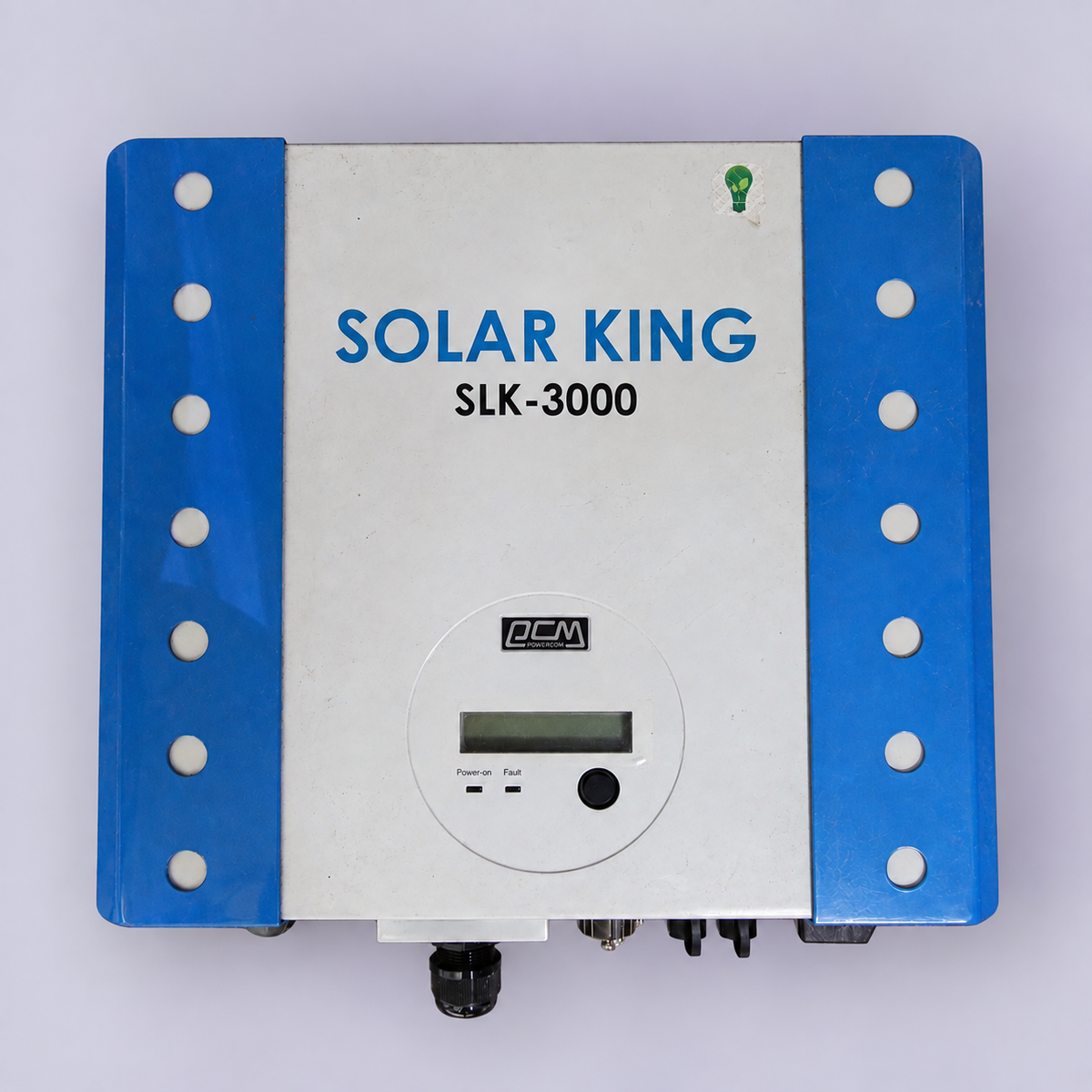

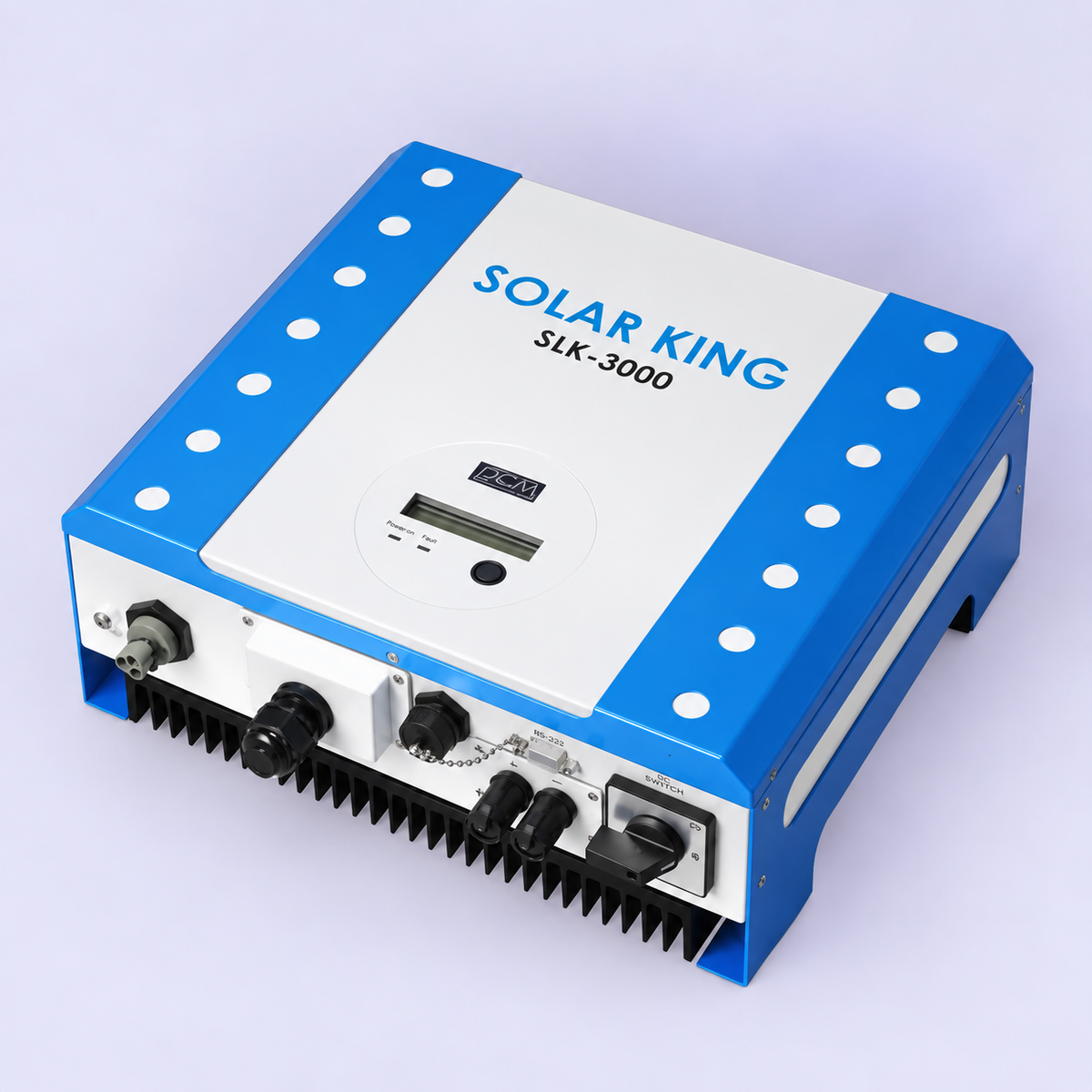

New product. Solar King SLK-3000 photovoltaic inverter, model SLK-3000, PV Grid Inverter for connection to the electrical grid. The photographed component shows 360 V DC nominal voltage, operating range 100–500 V DC, maximum input current 15.2 A, 230 V AC output, 3,000 W nominal power and 3,300 W maximum power. The technical documentation identifies the model as a single-phase ON-GRID inverter with 1 MPPT.
⚙️ Technical Specifications
-
Type: ON-GRID / Grid-Tie
-
Phasing: Single-phase
-
Power: 3.0 kW
-
MPPT: 1
-
DC Voltage: 100–500 V DC operating range
-
DC MPP Voltage: 150–500 V DC
-
DC Nominal Voltage: 360 V DC
-
DC Max Voltage: 500 V DC
-
DC Max Current: 15.2 A
-
AC Voltage: 230 V AC
-
Frequency: 50/60 Hz
-
Maximum AC Power: 3,300 W
-
AC Max Current: 15 A
-
Operating Temperature: −20…+55 °C
-
Protection: IP65
-
Cooling: natural convection
-
Dimensions: approx. 352 × 300 × 143 mm
⚡ Function in the Photovoltaic System
The Solar King SLK-3000 converts electrical energy DC from the photovoltaic modules into 230 V AC energy synchronized with the electrical grid. It is therefore a grid-connected inverter, not a hybrid system and not an off-grid inverter. The SLK-3000 model is specifically documented as a PV Grid Inverter and features a single MPPT tracker.
🔌 PV Input and MPPT

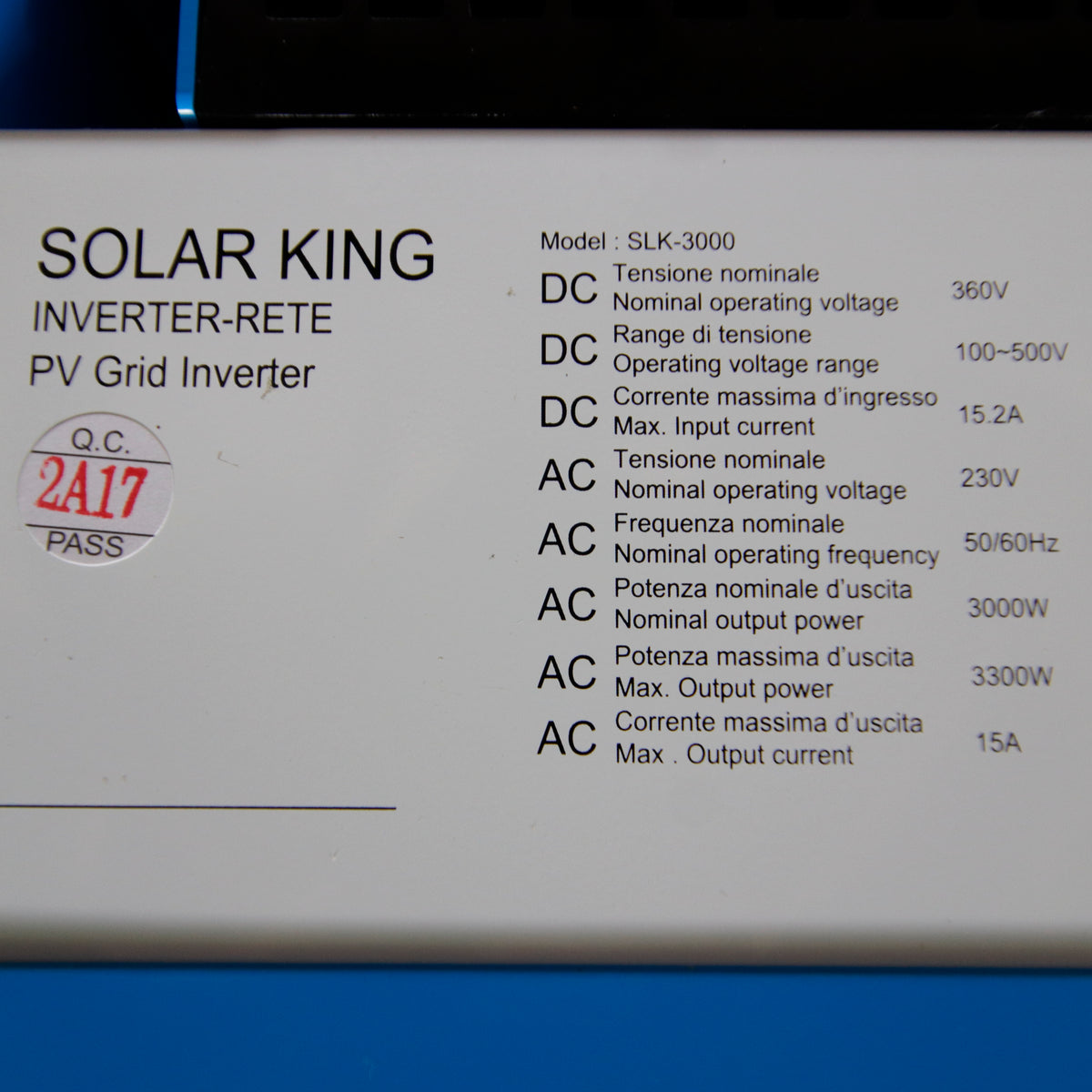

The unit label indicates 360 V DC nominal, with an operating range of 100–500 V DC and maximum input current of 15.2 A. The technical documentation for the model indicates an MPPT range of 150–500 V DC, a maximum open-circuit voltage of 500 V DC and a maximum PV power of approximately 3,510 W.
🏭 Construction and Installation

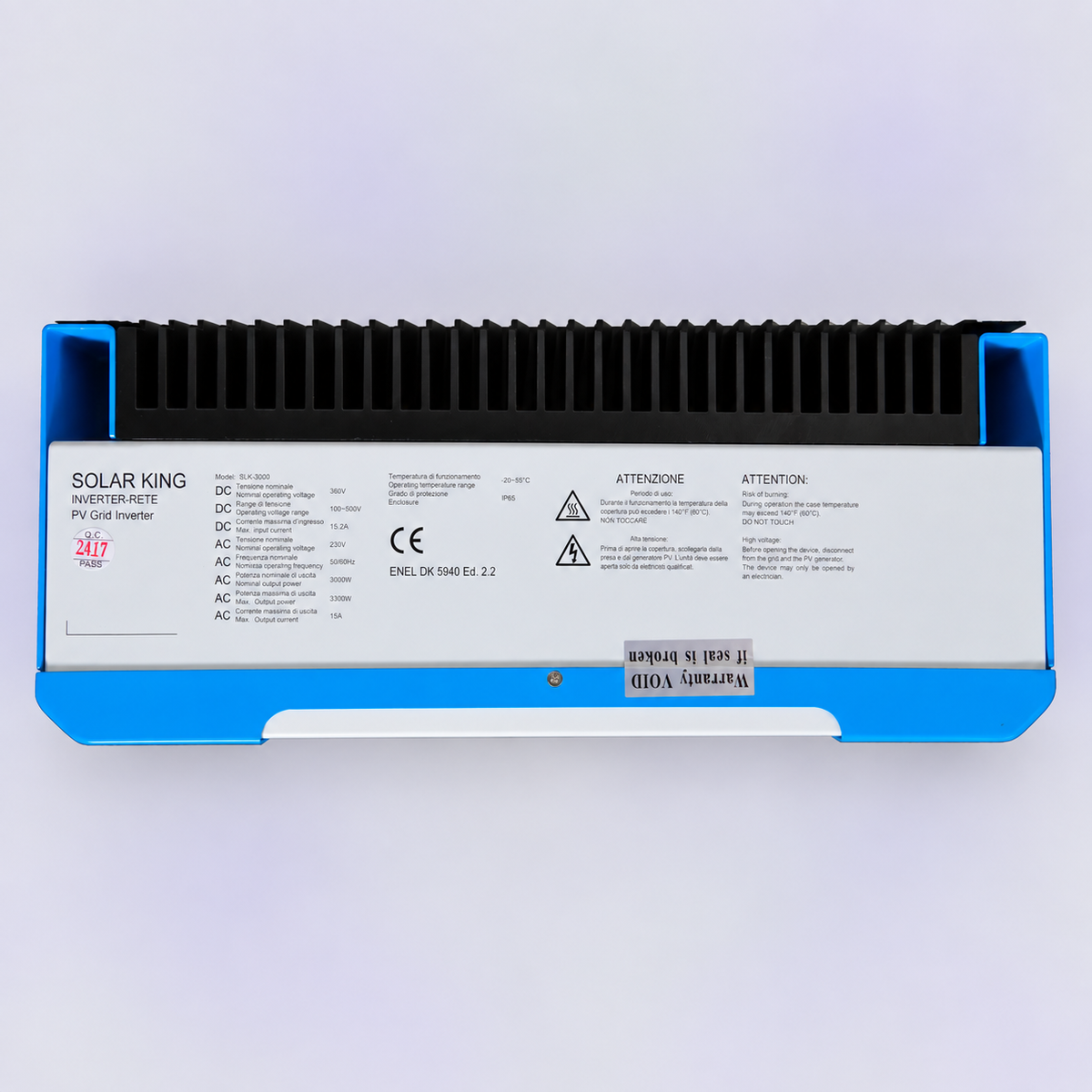

The Solar King SLK-3000 is designed for photovoltaic installations with grid connection, with an IP65 enclosure and natural convection cooling. The documentation also reports an ambient range of approximately −25/+55 °C for the family; the nameplate of the photographed unit indicates −20…+55 °C, which should be considered the priority data for this specific product.
⚠️ Main Faults
The faults documented for the SLK-3000 include:
-
DC Overvoltage: PV voltage above the 500 V limit.
-
High/Low DC Bus: internal DC bus voltage fault.
-
Grid Relay Fault: problem in the AC coupling circuit.
-
Device Fault: internal inverter fault.
-
Overtemperature: excessive internal temperature.
-
No Grid Voltage: absence or fault of the AC grid.
🛡️ Safety and Product Condition
New product, as indicated for the listing. The inverter operates with voltages up to 500 V DC and 230 V AC; connection and commissioning must be carried out by qualified personnel. Before working on the device, it is necessary to verify the absence of voltage on both the PV side and the grid side.
📦 Package Contents

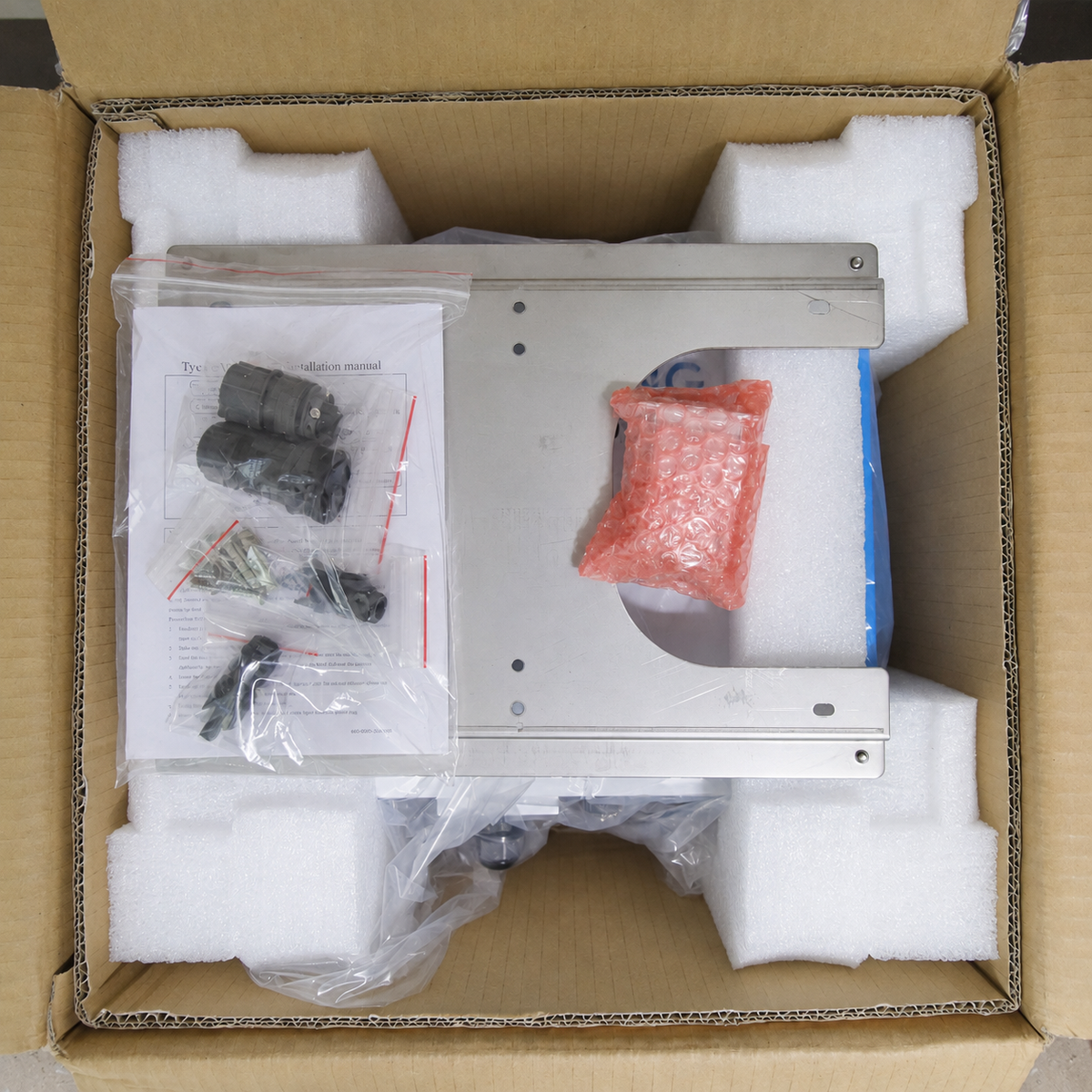

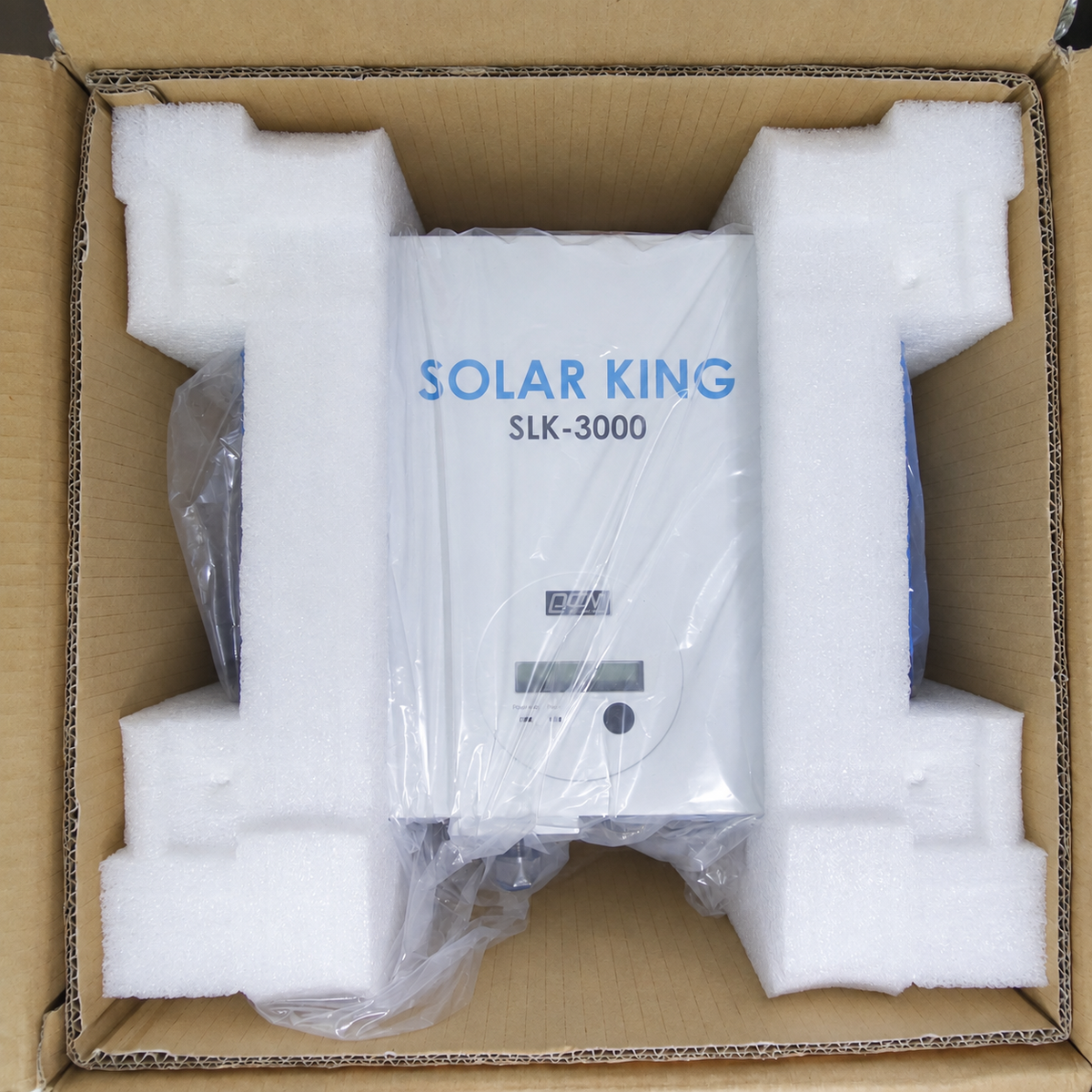

1 × Solar King SLK-3000 – 3 kW – 230 V AC, as shown in the photographs.
🚀 Final Description
Solar King SLK-3000, 3 kW single-phase ON-GRID photovoltaic inverter, with 1 MPPT, 360 V DC nominal voltage, 100–500 V DC operating range, 150–500 V DC MPPT range, 500 V maximum DC voltage, 15.2 A maximum input current and 230 V AC / 50–60 Hz output. Nominal power 3,000 W, maximum power 3,300 W, maximum AC current 15 A, IP65 protection. Model suitable exclusively for grid-connected applications, without hybrid or off-grid function.
