The DC Input Connector Board (String Input Interface) for SMA Sunny Tripower TL inverters (8 kW – 17 kW) is a dedicated module designed to manage the connection and distribution of photovoltaic DC strings داخل the inverter.

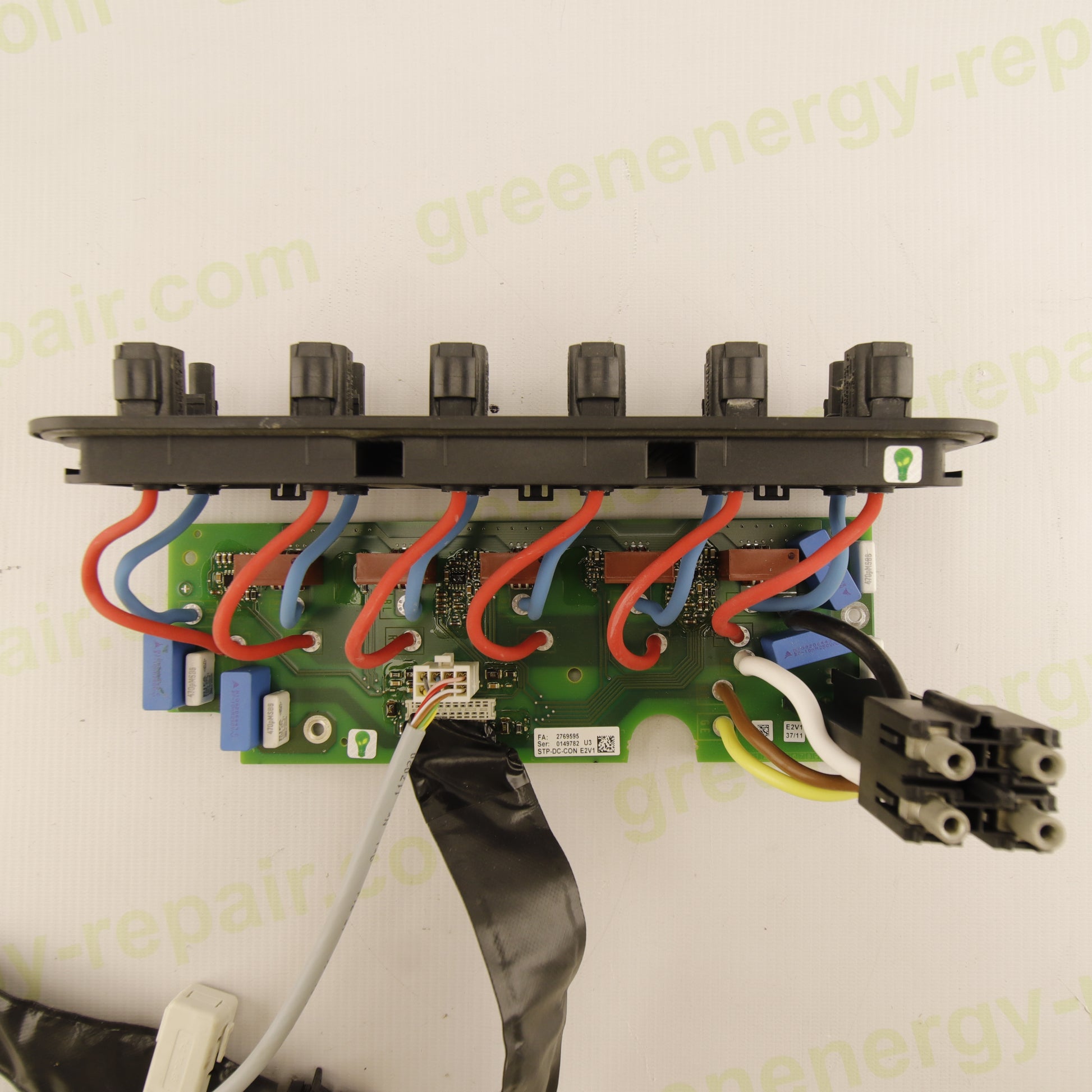

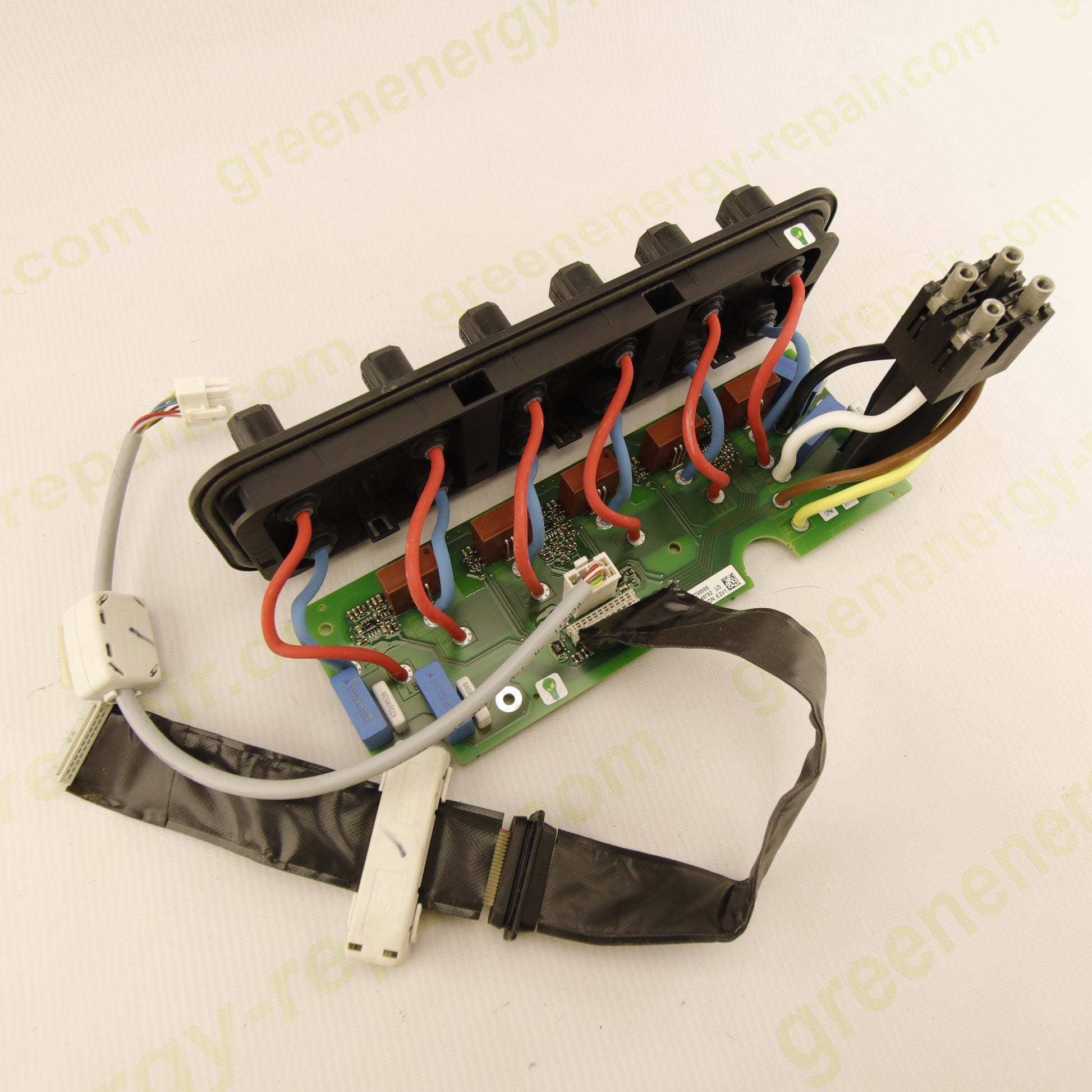

This PCB integrates a multi-input connector panel (A1–A5, B), corresponding to different MPPT channels, allowing multiple PV strings to be connected and managed independently. It acts as the entry point for DC energy, routing power safely toward the internal conversion stage.
In addition to connection functionality, the board includes filtering and protection components, ensuring electrical safety, signal integrity, and long-term reliability.
⚙️ Main Functions
- Physical connection of photovoltaic DC strings
- Distribution of DC current to internal inverter circuits
- Separation of MPPT input channels
- EMI filtering and noise suppression
- Protection against overvoltage and transients
- Interface between external cabling and inverter electronics
🔌 Role Inside the Inverter
Within SMA Sunny Tripower TL inverters, this module:
- Receives DC voltage from PV strings
- Routes power to internal DC/DC and DC/AC stages
- Keeps MPPT channels electrically separated
- Contributes to electrical protection and isolation
- Simplifies installation and maintenance via plug-in connectors
👉 It is effectively the entry point of solar energy into the inverter.
🔧 Technical Features

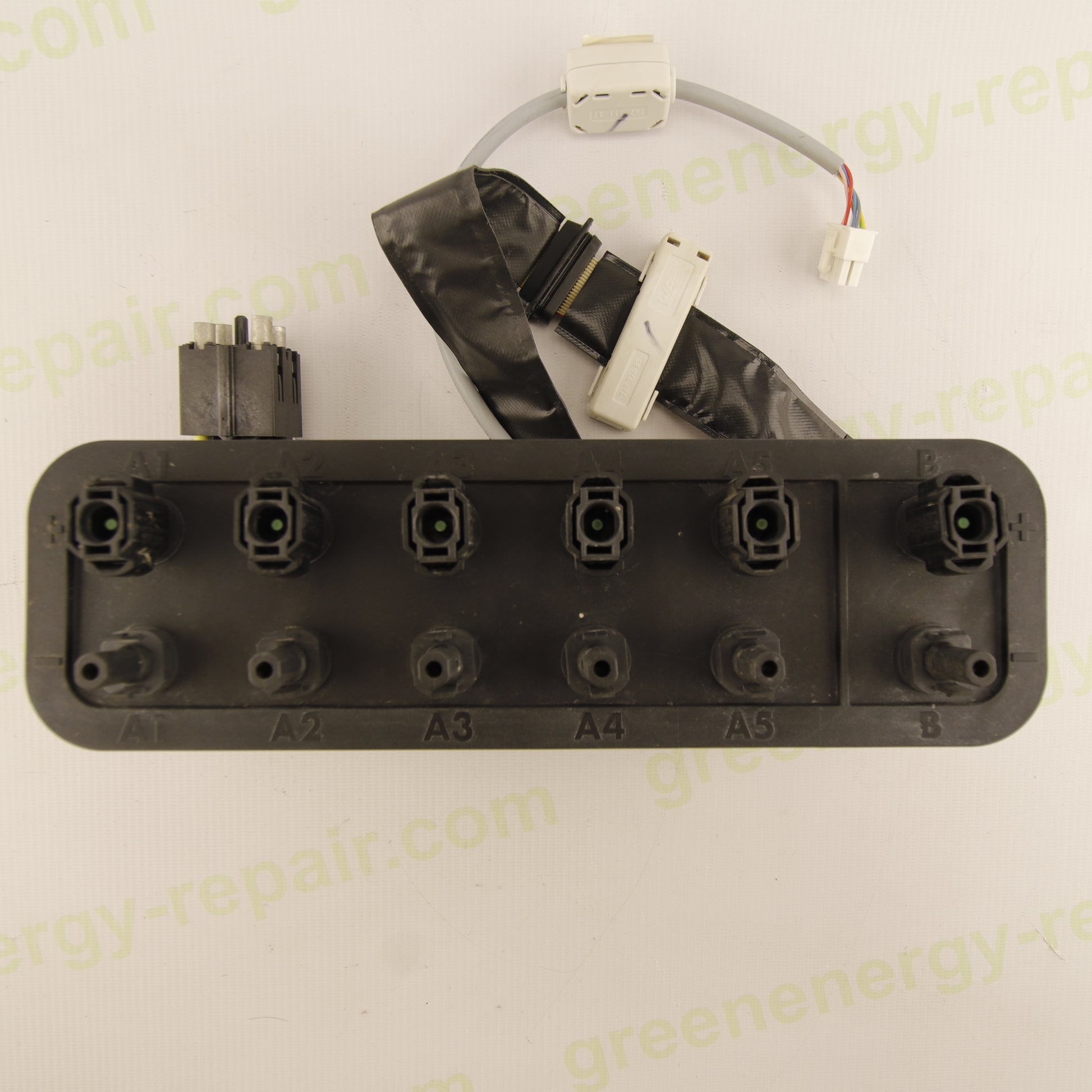

- Connector panel with 6 DC inputs (A1–A5, B)
- High-current wiring (color-coded, typically red/blue)
- EMI filter capacitors (film and ceramic types)

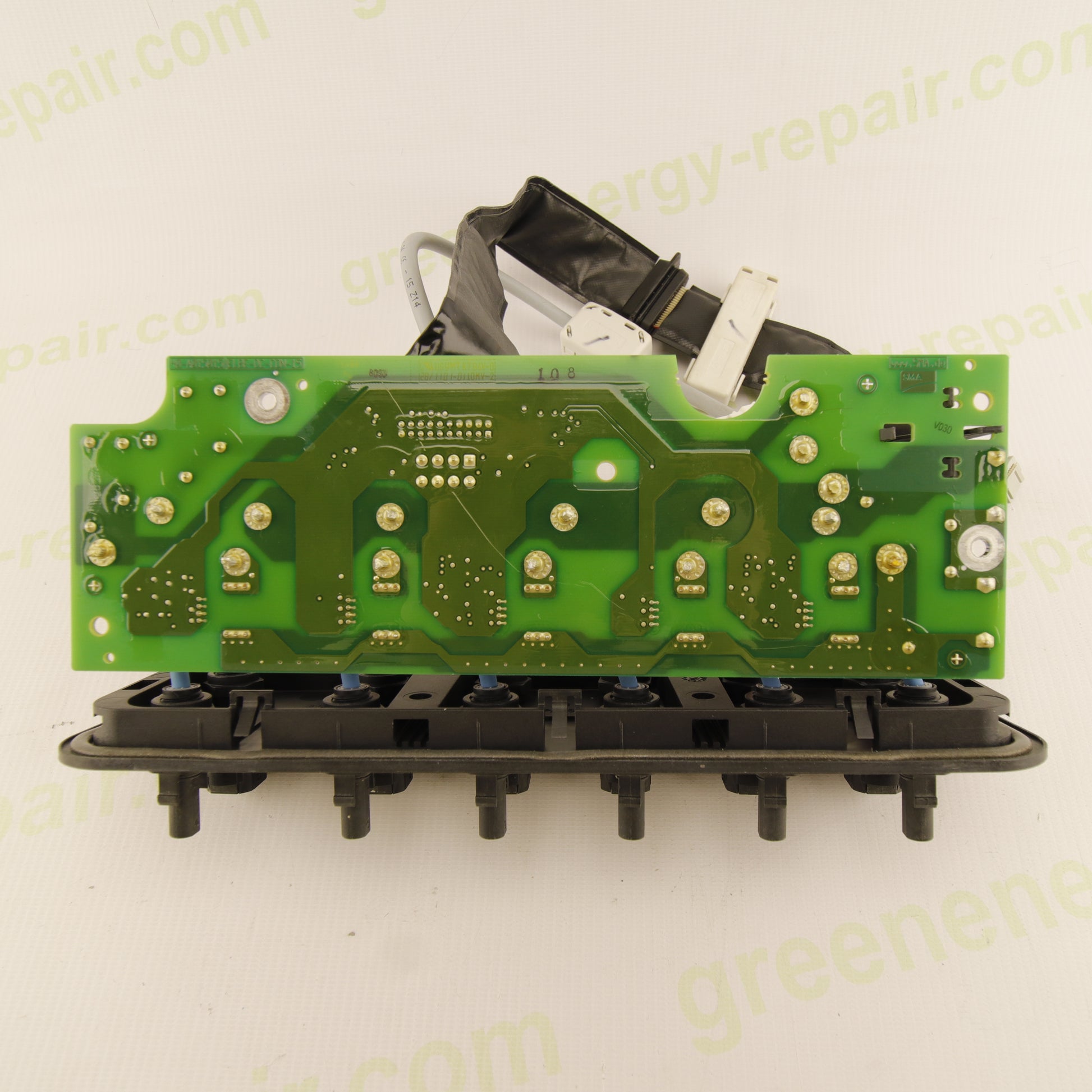

- Reinforced PCB tracks for high current handling
- Multipole connectors for internal interfacing
- Flat cable connection to control/power boards
- Modular design with chassis mounting
- Plug & play architecture for fast servicing
🔩 Main Components
- DC string connectors (SMA proprietary / MC4-like)
- EMI filter capacitors (blue and white)
- Balancing and discharge resistors
- High-current PCB traces
- Heavy-duty wiring harness
- Flat cable for control/monitoring signals
- Internal interface connectors
⚠️ Typical Faults & Symptoms
- Inverter not detecting one or more strings
- DC isolation errors
- Inactive or unstable MPPT channels
- Overheating at connection points
- Electrical arcing or poor contacts
- Reduced production on specific inputs
🛠 Product Specifications
-
Manufacturer: SMA Solar Technology
-
Compatibility: Sunny Tripower TL 8000 / 10000 / 12000 / 15000 / 17000
-
Type: DC Input Connector Board / String Interface Module
-
Application: Three-phase photovoltaic inverters
-
Function: DC input connection and distribution
📊 Applications
- Replacement of damaged DC input modules
- Repair of inverters with string detection issues
- Maintenance of photovoltaic systems
- Restoration of safe and reliable DC connections
💡 Key Advantages
- Ensures safe and stable DC input connection
- Enables independent MPPT channel management
- Improves system reliability and performance
- Simplifies installation and maintenance
📌 Summary
The SMA Sunny Tripower TL DC Input Connector Board is a critical interface module responsible for:
✔ Connecting photovoltaic strings to the inverter
✔ Distributing DC power across MPPT channels
✔ Providing filtering and electrical protection
👉 An essential component for ensuring efficient, safe, and reliable operation of photovoltaic systems.
