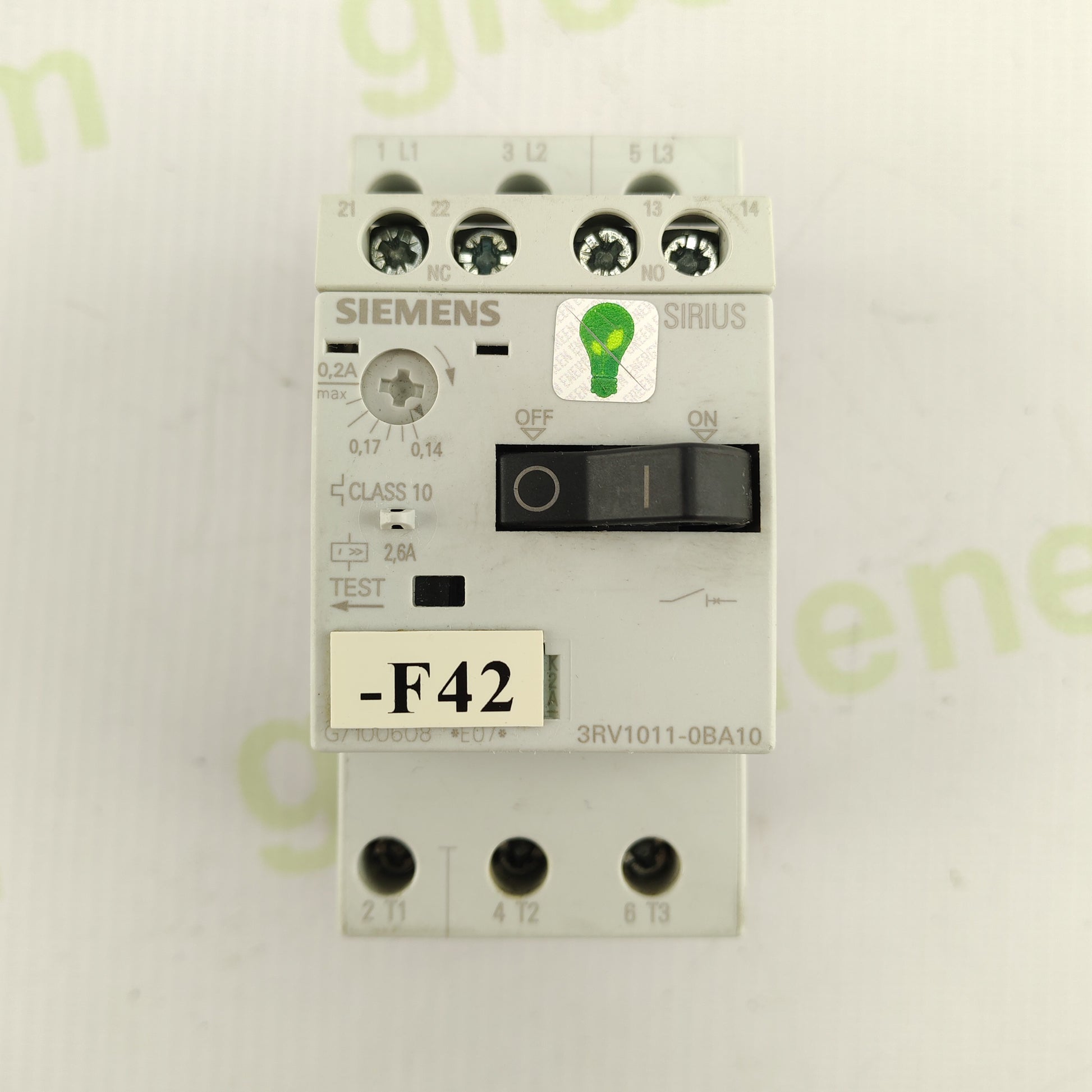

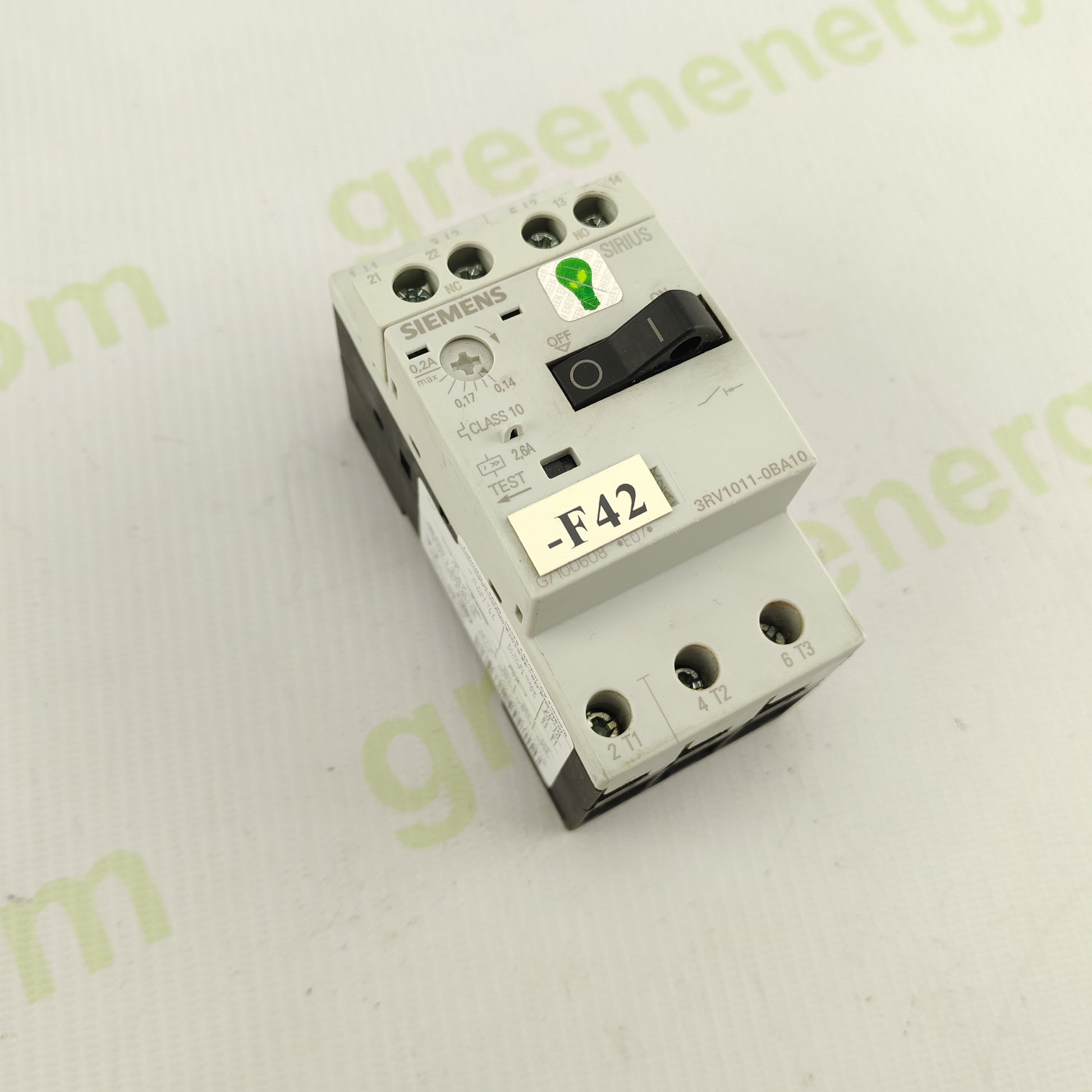

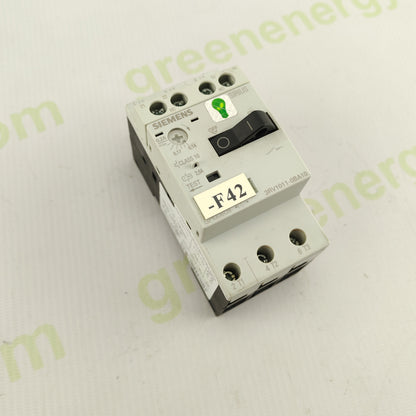

The Siemens SIRIUS 3RV1011-0BA10 is a high-performance motor protection circuit breaker designed for reliable safeguarding of 3-phase motors against overload, short-circuit, and phase failure conditions. Part of the industry-proven SIRIUS 3RV10 series, this compact breaker ensures stable operation, precise trip characteristics, and long service life in demanding industrial environments.

With a setting range of 0.63–1 A, the breaker is ideal for small motor loads, pumps, fans, conveyors, and auxiliary drives commonly used in automation and control systems. Its modular design allows easy integration into Siemens SIRIUS control gear combinations and DIN-rail panels.

🛠 Condition: Used
🛡 Warranty: 6 months by Green Energy

⚙️ Technical Specifications:

• Model: Siemens SIRIUS 3RV1011-0BA10
• Type: Motor Protection Circuit Breaker
• Rated Current (adjustable): 0.63–1 A
• Trip Class: Class 10
• Switching Capacity: IEC/EN 60947-4-1 compliant
• Operating Voltage: 690 V AC max
• Phases: 3-phase
• Short-Circuit Release: Fixed, 14 × Ie
• Mounting: Standard DIN rail
• Category: Protection + manual motor control
• Application: Industrial motors, machine panels, automation systems

📌 Key Features:

✔️ Reliable Siemens motor protection with overload & short-circuit trip
✔️ Adjustable 0.63–1 A range for small 3-phase motors
✔️ Compact SIRIUS design for easy panel integration
✔️ High endurance for industrial and automation environments
✔️ Compatible with Siemens contactors and SIRIUS modular accessories
✔️ Ideal for pumps, fans, conveyors, compressors, and drives

🚀 Ensure optimal protection and operational stability for your motors with the Siemens 3RV1011-0BA10 — a trusted solution for professional industrial systems.
