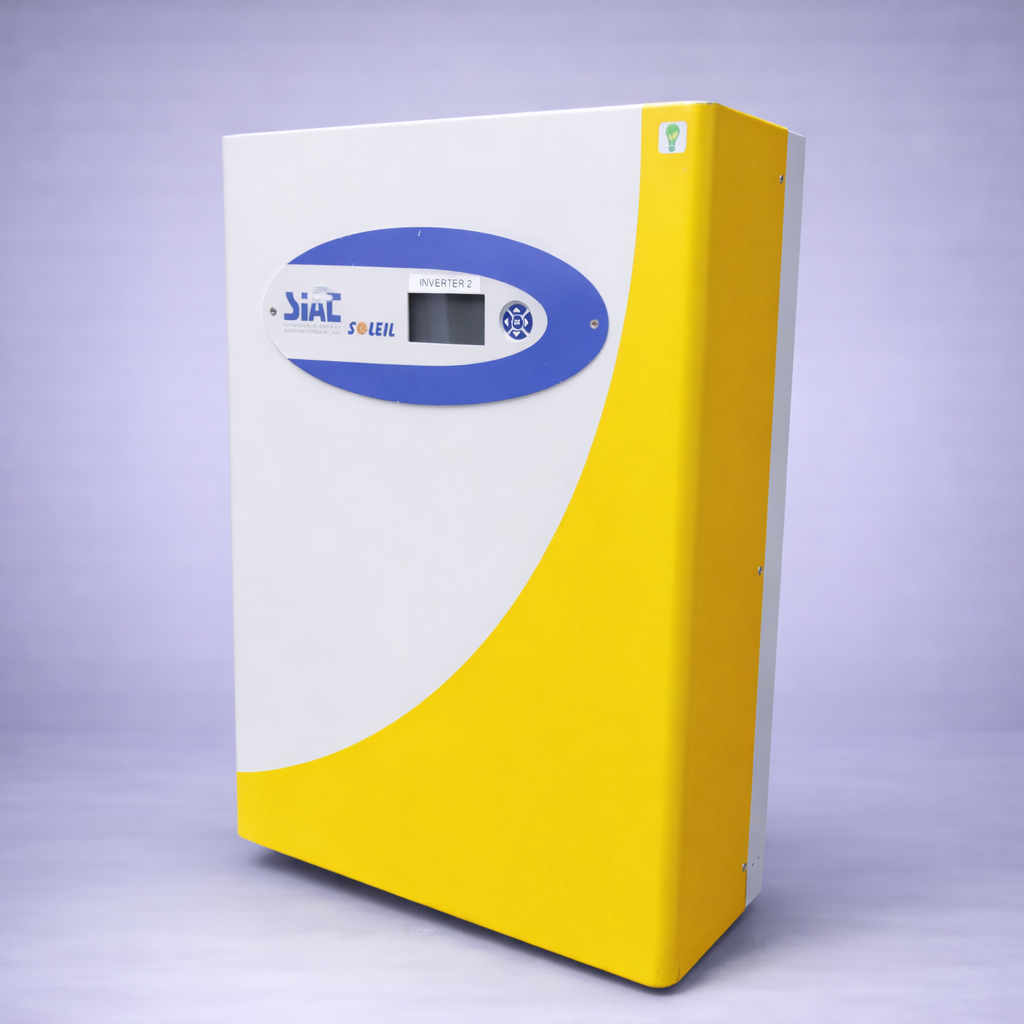

The SIAC Soleil 10TL is a three-phase photovoltaic inverter designed for grid-connected (grid-tie) systems, suitable for medium-power residential and commercial applications.

This inverter ensures efficient conversion of DC power from photovoltaic modules into AC power, delivering stable performance, reliability, and continuous operation.

Featuring a robust enclosure with IP65 protection rating, it is suitable for both indoor and outdoor installations, offering resistance to dust and environmental conditions.

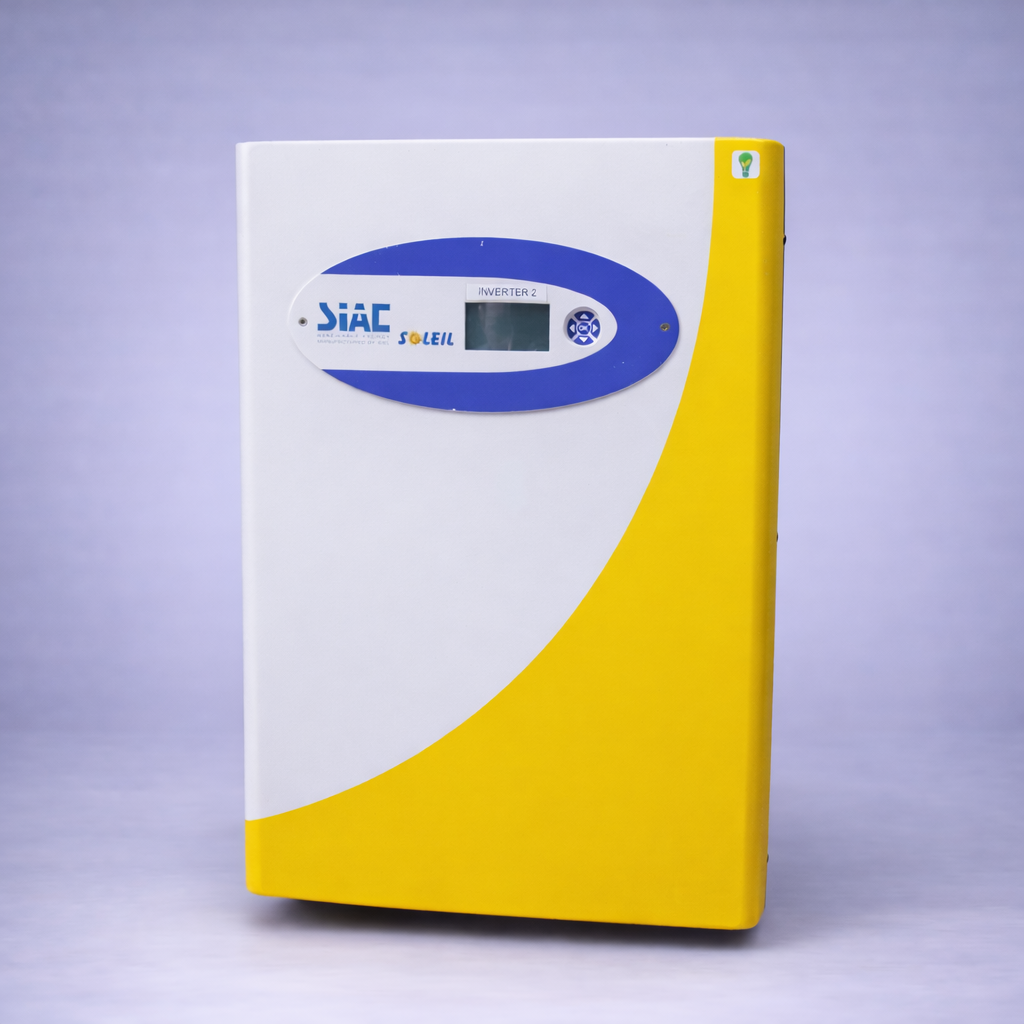

The unit includes a front LCD display with user interface, allowing real-time monitoring of operating parameters and system status.

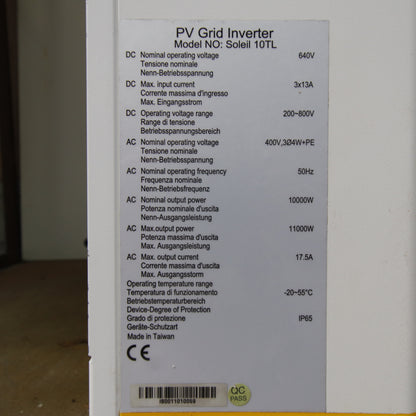

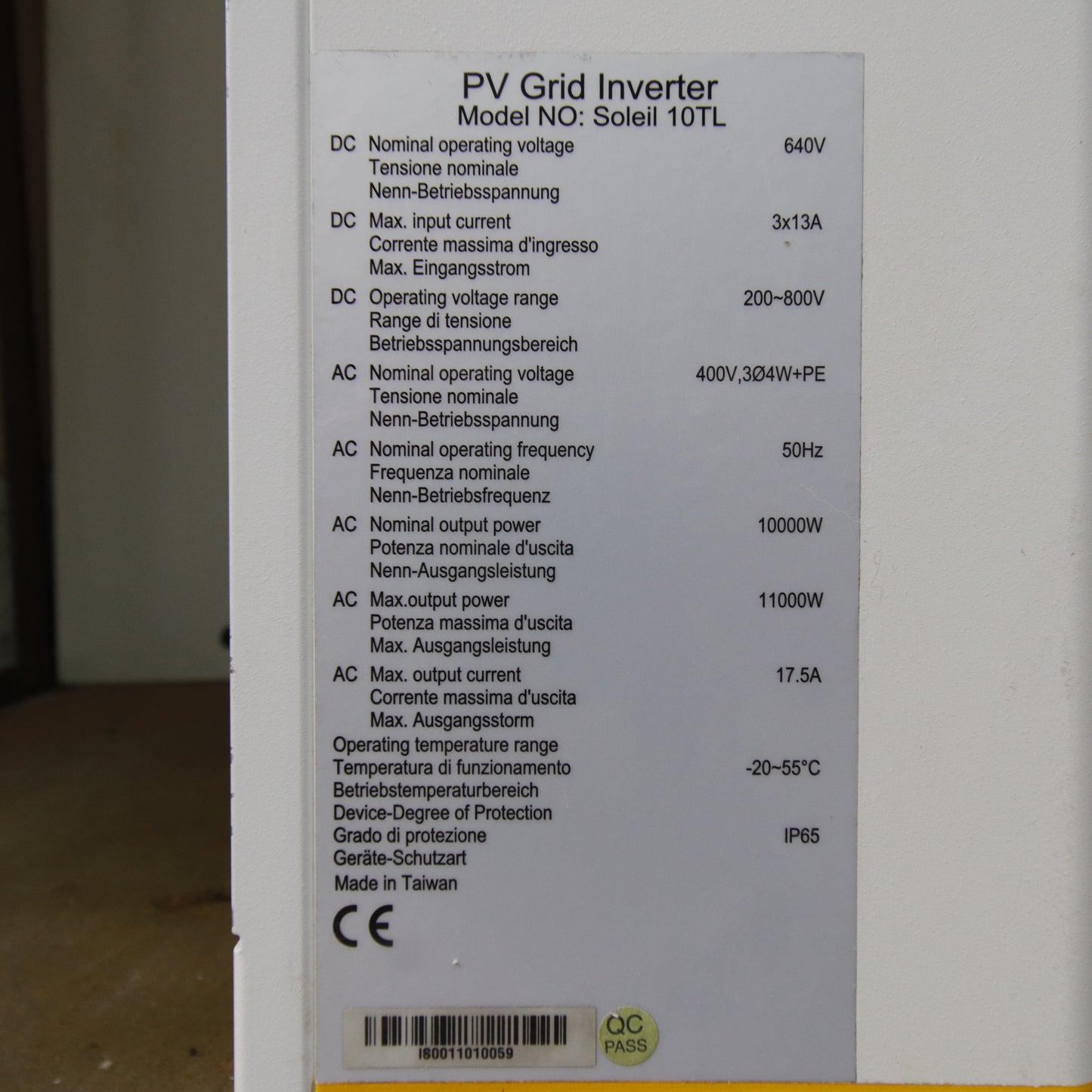

⚙️ Main Technical Specifications

• Model: Soleil 10TL
• Type: Three-phase grid-tie photovoltaic inverter

AC Output:

• Rated power: 10,000 W (10 kW)
• Maximum power: 11,000 W
• Nominal voltage: 400 V (3P + N + PE)
• Nominal frequency: 50 Hz
• Maximum output current: 17.5 A

DC Input:

• Nominal voltage: 640 V
• Operating range: 200 – 800 V
• Maximum input current: 3 × 13 A

General Data:

• Protection rating: IP65
• Operating temperature: -20°C to +55°C
• Installation: Indoor / outdoor
• Display: LCD with navigation buttons
• Certification: CE
• Origin: Made in Taiwan

🔧 Main Functions

• High-efficiency DC/AC conversion
• Real-time monitoring via integrated display
• Built-in protections (grid, overvoltage, overcurrent)
• Compatibility with three-phase systems
• Multi-string management

🔌 Applications

• Residential photovoltaic systems
• Commercial installations up to 10 kW
• Grid-connected systems
• Retrofit and replacement of existing inverters

💡 Advantages

✔ Robust and weather-resistant design (IP65)
✔ Suitable for three-phase installations
✔ Wide DC voltage operating range
✔ Simple and intuitive interface
✔ Reliable for continuous operation
