🔧 Technical Title

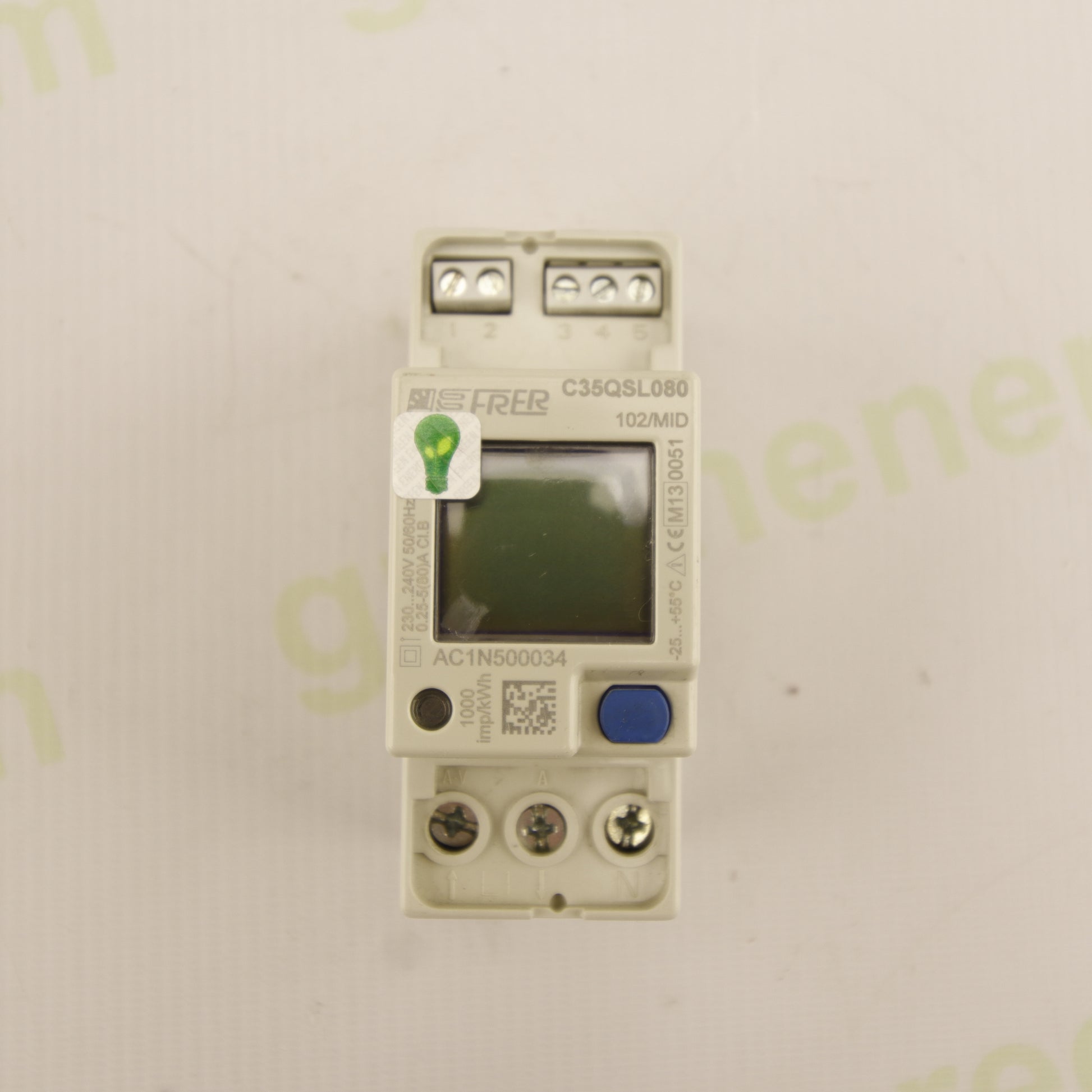

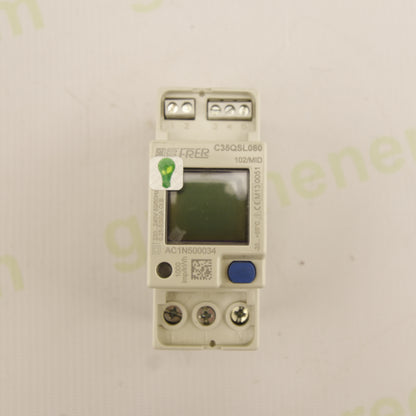

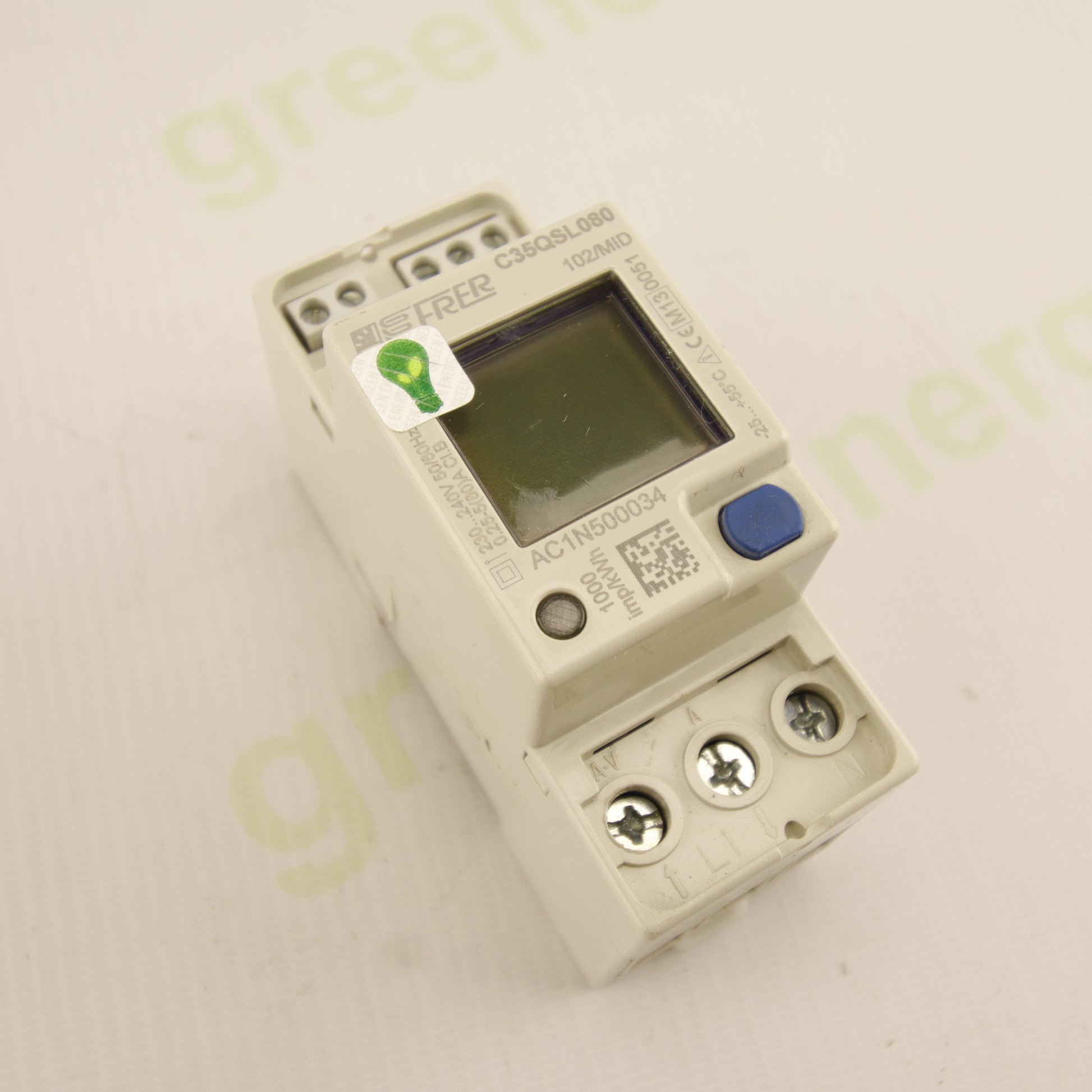

SFERA C35QSL080 MID – Single-Phase Energy Meter | 230V | 80A | LCD Display | DIN Rail | MID Certified | AC1N500034

📘 Detailed Technical Description

The SFERA C35QSL080 MID is a single-phase electronic energy meter designed for accurate energy consumption measurement in residential, commercial, and industrial applications.

Thanks to its MID certification (Measuring Instruments Directive), it is suitable for legal energy billing and fiscal metering, making it ideal for sub-metering and cost allocation.

Its compact DIN rail format ensures easy installation in electrical panels, while the LCD display and pulse output enable both local reading and remote monitoring integration.

⚙️ Electrical Characteristics

• Nominal voltage: 230 – 240 V AC
• Frequency: 50 / 60 Hz
• Maximum current: up to 80 A (direct connection)
• Accuracy class: MID compliant
• Pulse output: 1000 imp/kWh

📊 Measurement Functions

• Active energy measurement (kWh)
• Real-time consumption monitoring
• LCD display visualization
• Pulse output for remote reading systems

🔌 Connections & Installation

• Direct connection (no current transformer required up to 80A)
• Screw terminals for:
  • Line (L)
  • Neutral (N)
• DIN rail mounting (compact modular design)

⚙️ Build & Interface

• Front LCD display for energy readings
• Navigation button for menu access
• LED pulse indicator
• Robust housing for continuous operation

🛡 Certifications & Compliance

• MID certified (Measuring Instruments Directive)
• CE marking
• Suitable for fiscal metering and billing applications

🛠 Applications

Ideal for:

✔ Energy consumption billing and sub-metering
✔ Residential electrical installations
✔ Commercial and industrial systems
✔ Energy cost allocation (multi-tenant buildings)
✔ Electrical distribution panels

📦 Product Identification

• Brand: SFERA
• Model: C35QSL080
• Code: AC1N500034
• Type: Single-phase MID energy meter

🚀 Commercial Summary

The SFERA C35QSL080 MID is a reliable and accurate single-phase energy meter designed for professional energy measurement and billing. With MID certification, direct 80A measurement, and DIN rail installation, it is an ideal solution for sub-metering, energy monitoring, and cost allocation systems.
