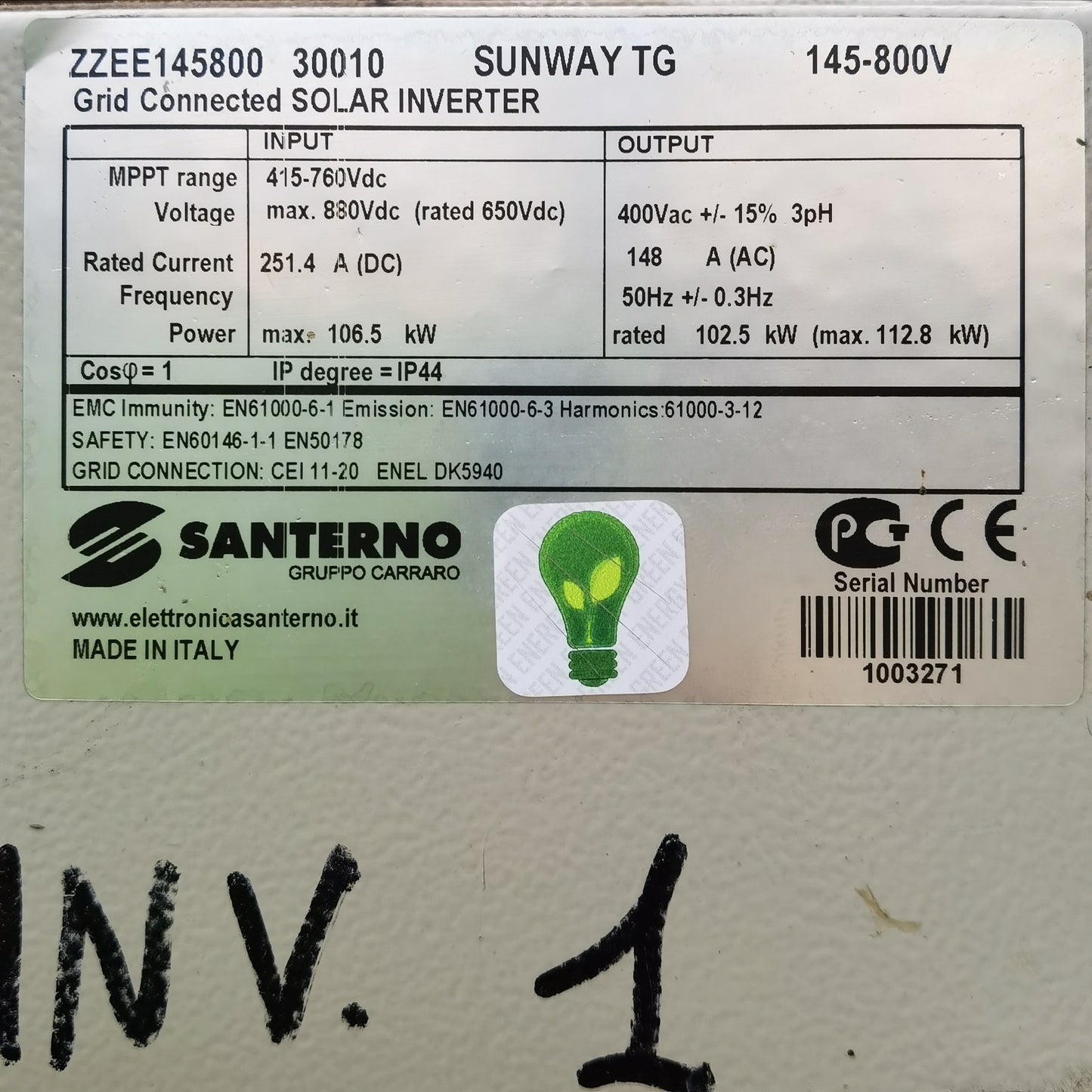

The Santerno SUNWAY TG (Code: ZZEE145800) is a high-power, grid-connected solar inverter engineered for commercial and utility-scale photovoltaic installations. Manufactured by Santerno Gruppo Carraro (Italy), this inverter is designed to deliver reliable and efficient energy conversion in demanding industrial environments.

With a rated AC output of 102.5 kW and a maximum power capacity up to 112.8 kW, the SUNWAY TG supports a wide DC input voltage range of 145–800 VDC and an MPPT operating range of 415–760 VDC, making it ideal for large PV arrays with flexible string configurations.

The inverter operates on a 3-phase 400 VAC grid with high current handling and complies with major European grid and safety standards, ensuring long-term stable operation and seamless grid integration.

🔄 Condition: Used / Refurbished,Tested, fully functional
🛠 Warranty: 12 months provided by Green Energy

⚙️ Technical Specifications:

• Manufacturer: Santerno (Gruppo Carraro)
• Model / Series: SUNWAY TG
• Code: ZZEE145800
• Inverter Type: Grid-connected solar inverter
• Rated AC Power: 102.5 kW
• Maximum AC Power: 112.8 kW
• DC Input Voltage Range: 145–800 VDC
• MPPT Range: 415–760 VDC
• Maximum DC Voltage: 880 VDC (rated 650 VDC)
• DC Rated Current: 251.4 A
• AC Output Voltage: 400 VAC ±15%
• AC Output Current: 148 A
• Grid Frequency: 50 Hz ±0.3 Hz
• Phases: 3-phase
• Power Factor: cosφ = 1
• Protection Degree: IP44
• Cooling: Industrial forced-air cooling
• Country of Origin: Made in Italy

📜 Compliance & Standards:

• EMC Immunity: EN61000-6-1
• EMC Emission: EN61000-6-3
• Harmonics: EN61000-3-12
• Safety: EN60146-1-1, EN50178
• Grid Connection: CEI 11-20, ENEL DK5940
• Certification: CE marked

📌 Key Features:

✔️ High-power inverter for large-scale PV plants
✔️ Wide DC voltage window for flexible system design
✔️ Robust industrial construction for continuous operation
✔️ Fully compatible with European grid standards
✔️ Ideal for replacement, retrofit, or plant expansion projects

🚀 Upgrade or restore your solar power plant with the reliable Santerno SUNWAY TG inverter — Italian engineering, proven performance, and professional support from Green Energy.
