The Santerno SUNWAY TG 70000 is a high-power, grid-connected solar inverter engineered for commercial and utility-scale photovoltaic systems. Manufactured by Santerno – Gruppo Carraro (Italy), this inverter delivers robust performance, advanced grid compliance, and long-term reliability in demanding solar installations.

Designed for centralized PV architectures, the SUNWAY TG series supports a wide DC input voltage range and high DC current capacity, making it ideal for large solar arrays. Its industrial cabinet design with forced ventilation ensures efficient thermal management and continuous operation in outdoor or technical room environments.

🔄 Condition: Used, tested, fully functional
🛠 Warranty: 12 months provided by Green Energy

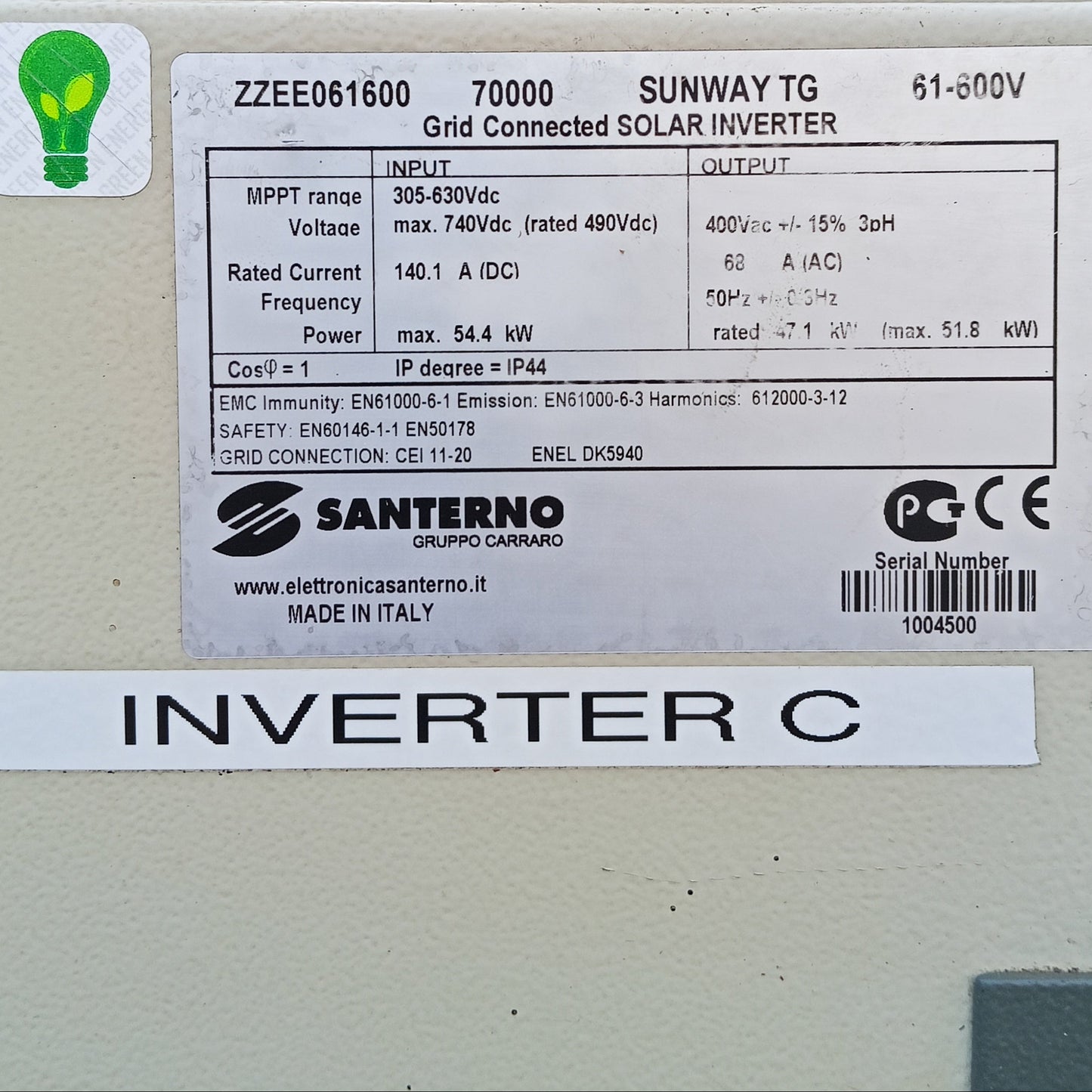

⚙️ Technical Specifications:

• Manufacturer: Santerno (Gruppo Carraro)
• Model: SUNWAY TG 70000
• Type: Grid-Connected Solar Inverter
• DC Input Voltage Range (MPPT): 305–630 VDC
• Max DC Voltage: 740 VDC (rated 490 VDC)
• Rated DC Current: 140.1 A
• Max DC Power: 54.4 kW
• AC Output Voltage: 400 V AC ±15%
• Grid Connection: 3-phase
• AC Output Current: 68 A
• Frequency: 50 Hz ±5%
• Rated AC Power: 47.1 kW
• Max AC Power: 51.8 kW
• Power Factor: cosφ = 1
• Protection Degree: IP44
• Standards: CE, EN61000, EN50438, CEI 11-20
• Country of Manufacture: Made in Italy

📌 Key Features:

✔️ High-power central inverter for large-scale PV plants
✔️ Wide DC voltage window with stable MPPT operation
✔️ Industrial cabinet with forced-air cooling
✔️ Designed for continuous grid-connected operation
✔️ Fully compliant with European grid standards
✔️ Proven Santerno reliability for utility applications

⚠️ Note:
This is a large industrial inverter. Professional installation and appropriate grid authorization are required. Transportation and handling equipment may be necessary due to size and weight.

🚀 Maximize the performance of your photovoltaic plant with the Santerno SUNWAY TG 70000 — a powerful Italian-made inverter, tested and guaranteed by Green Energy.
