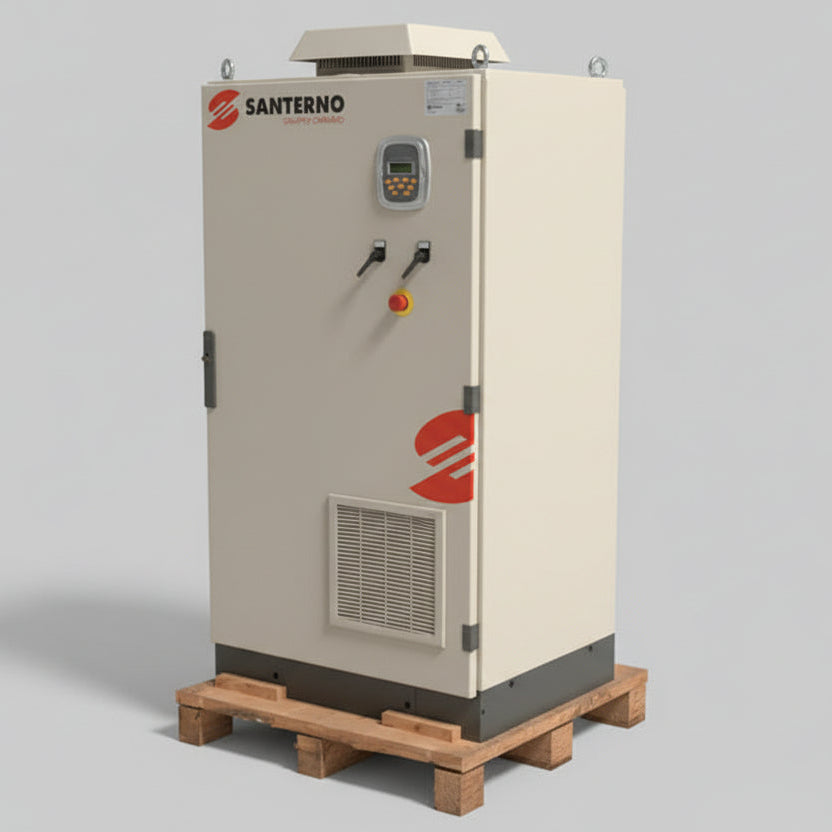

The Santerno SUNWAY TG 70000 is a robust grid-connected solar inverter designed for commercial and industrial photovoltaic installations. Manufactured by Santerno – Gruppo Carraro (Italy), this inverter delivers reliable performance, stable grid feed-in, and long-term durability in centralized PV systems.

Engineered for demanding operating conditions, the SUNWAY TG series features a wide DC input voltage range, precise MPPT tracking, and an industrial-grade cabinet with forced-air cooling. This model is ideal for medium-scale solar plants requiring proven European technology and full compliance with grid standards.

🔄 Condition: New, tested, 100% functional
🛠 Warranty: 12 months provided by Green Energy

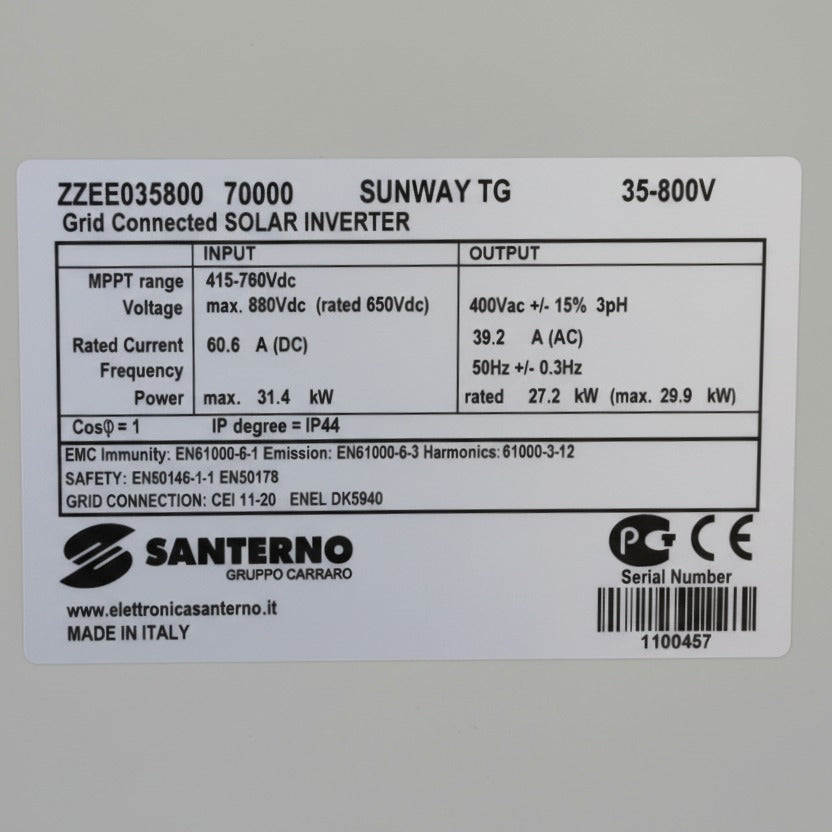

⚙️ Technical Specifications:

• Manufacturer: Santerno (Gruppo Carraro)
• Model / Series: SUNWAY TG 70000
• Type: Grid-Connected Solar Inverter
• DC Input Voltage Range (MPPT): 415–760 VDC
• Max DC Voltage: 880 VDC (rated 650 VDC)
• Rated DC Current: 60.6 A
• Max DC Power: 31.4 kW
• AC Output Voltage: 400 V AC ±15%
• Grid Connection: 3-phase
• AC Output Current: 39.2 A
• Frequency: 50 Hz ±0.3 Hz
• Rated AC Power: 27.2 kW
• Max AC Power: 29.9 kW
• Power Factor: cosφ = 1
• Protection Degree: IP44
• Standards & Compliance: CE, EN61000, CEI 11-20
• Country of Manufacture: Made in Italy

📌 Key Features:

✔️ Central inverter for commercial and industrial PV plants
✔️ Wide DC voltage range with stable MPPT operation
✔️ Industrial cabinet design with forced ventilation
✔️ Reliable 3-phase grid feed-in at 400 V
✔️ Fully compliant with European grid connection standards
✔️ Proven Santerno technology for long-term operation

⚠️ Note:
This is a large industrial cabinet inverter. Professional installation, appropriate grid authorization, and lifting equipment (forklift) are required for handling and commissioning.

🚀 Ensure stable and efficient operation of your solar plant with the Santerno SUNWAY TG 70000 — a tested, Italian-made inverter backed by Green Energy.
