Peimar PSI-2600TL – 2.5kW Single-Phase Solar Inverter | 230V AC | MPPT 185–400V | IP65 | WiFi / RS485 | 2500W AC

(4.43)

28 verified purchases

€260,00 EUR

Tax included.

Low stock! Only 1 left

Quantity Discount

2 or more items	3% OFF
5 or more items	5% OFF
10 or more items	10% OFF

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Warranty Terms and Conditions

Warranty Included

Smooth and stress-free — we handle issues, without bureaucracy.

After-Sale Care

From setup to questions — we’ve got your back after the sale.

Description

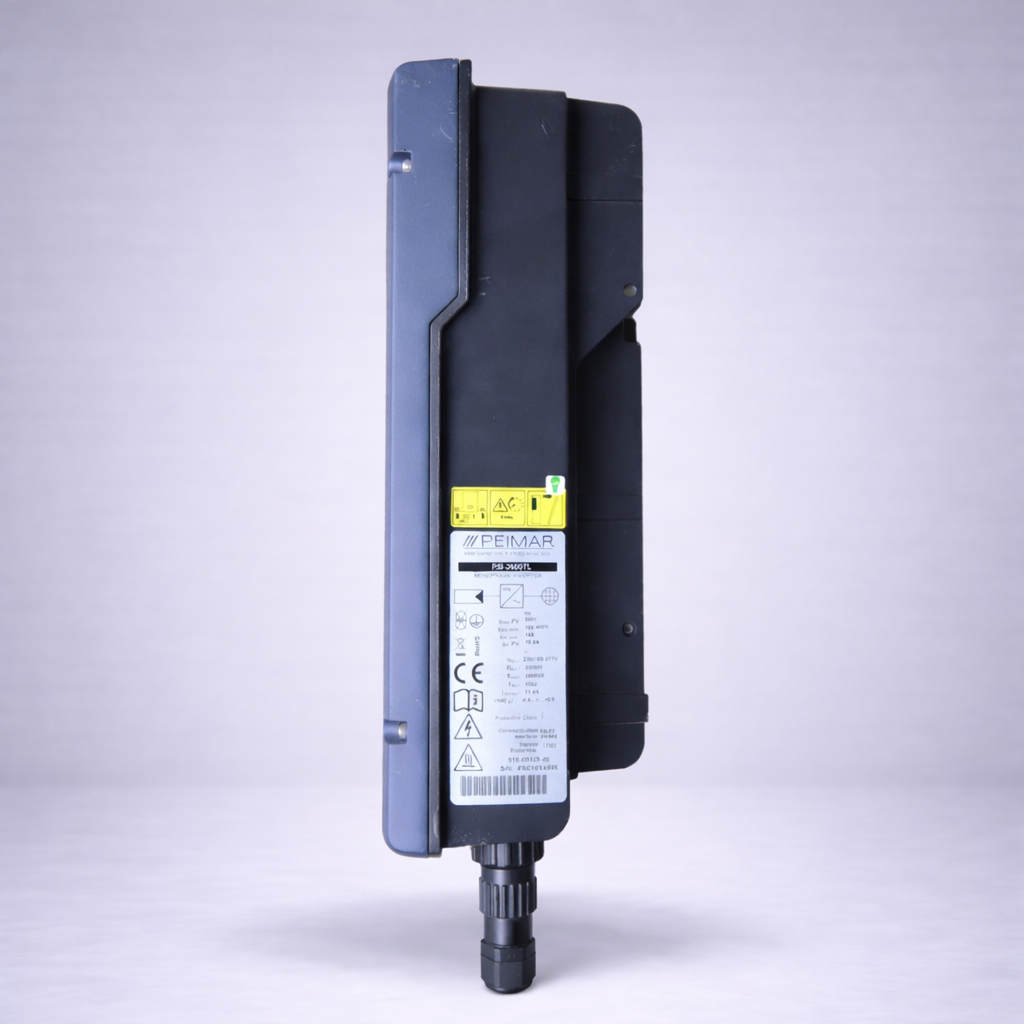

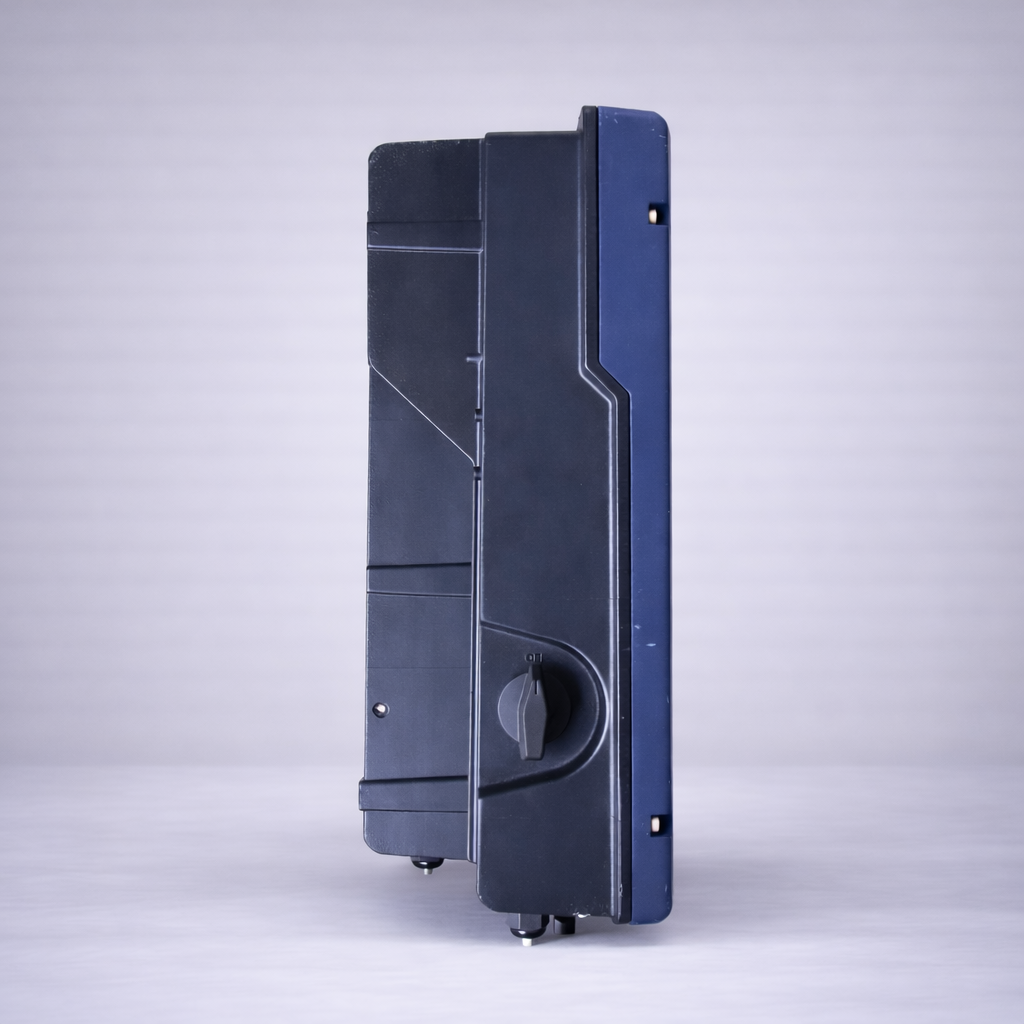

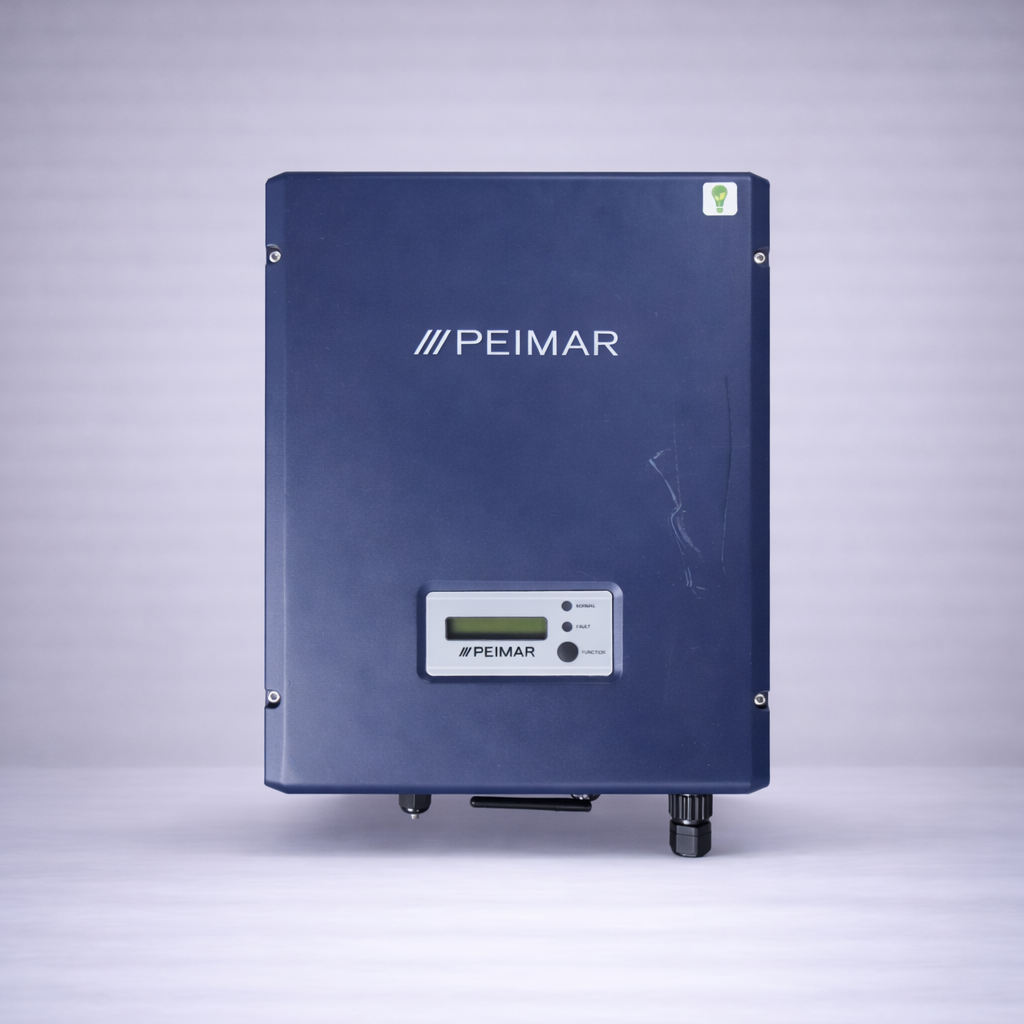

The Peimar PSI-2600TL is a single-phase photovoltaic inverter designed for small to medium-sized residential solar systems. Compact, efficient, and rated IP65, it is suitable for both indoor and outdoor installation.

The inverter converts DC power generated by photovoltaic modules into 230V single-phase AC, ready for grid injection or self-consumption in residential applications.

Equipped with integrated WiFi and RS485 communication interfaces, it enables real-time performance monitoring and integration with supervision systems.

⚙️ Main Technical Specifications

🔹 DC Side (PV Input)

Maximum PV voltage (Vmax): 500 V DC
MPPT operating range: 185 – 400 V DC
Maximum DC input current: 14 A
Short-circuit current (Isc PV): 16.8 A

🔹 AC Side (Grid Output)

Nominal AC voltage: 230 V (range 180–277 V)
Nominal AC power: 2500 W
Maximum apparent power: 2500 VA
Nominal frequency: 50 Hz
Maximum AC current: 11.4 A
Power factor (cos φ): adjustable -0.9 … 1 … +0.9

🛡 Safety & Protection

Protection class: Class I
Degree of protection: IP65 (outdoor installation permitted)
CE and RoHS compliant

Integrated protections against:

✔ Overvoltage
✔ Overcurrent
✔ Overtemperature
✔ Grid faults

🌐 Communication

Integrated WiFi for remote monitoring
RS485 interface for supervisory system integration

🏠 Applications

✔ Residential photovoltaic systems
✔ Domestic installations up to 2.5 kW
✔ Self-consumption systems
✔ Indoor and outdoor installations

🛠 Installation

Wall-mounted installation
DC connection from PV string
AC connection to household grid
Protective earth connection required (Class I)
Installation must be performed by qualified personnel only

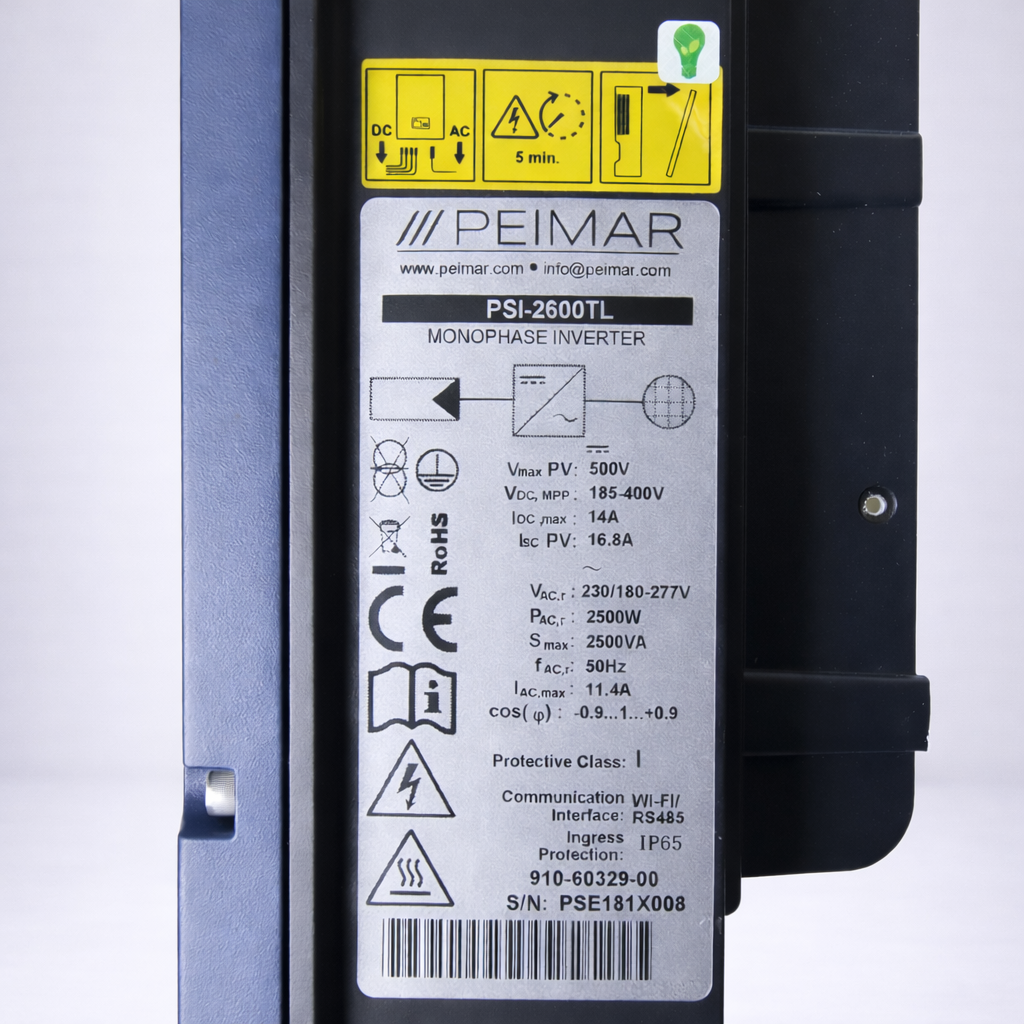

📦 Identification Data

Model: PSI-2600TL
Code: 910-60329-00
Serial Number: PSE181X008

🚀 Commercial Summary

Compact and reliable 2.5kW single-phase solar inverter with MPPT 185–400V, 230V AC output, IP65 protection, and integrated WiFi monitoring. The Peimar PSI-2600TL is an ideal solution for residential photovoltaic systems requiring efficient and dependable energy conversion.
