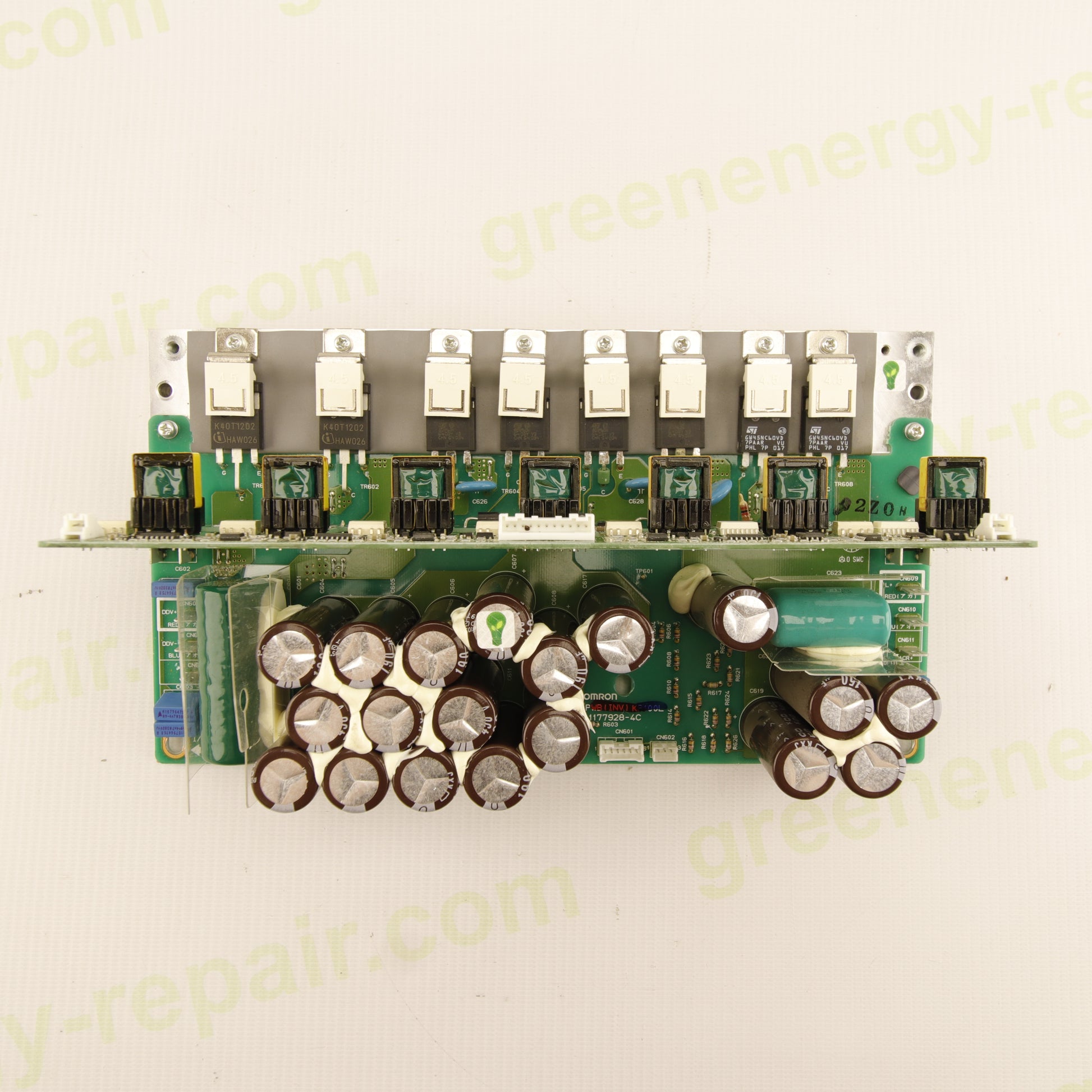

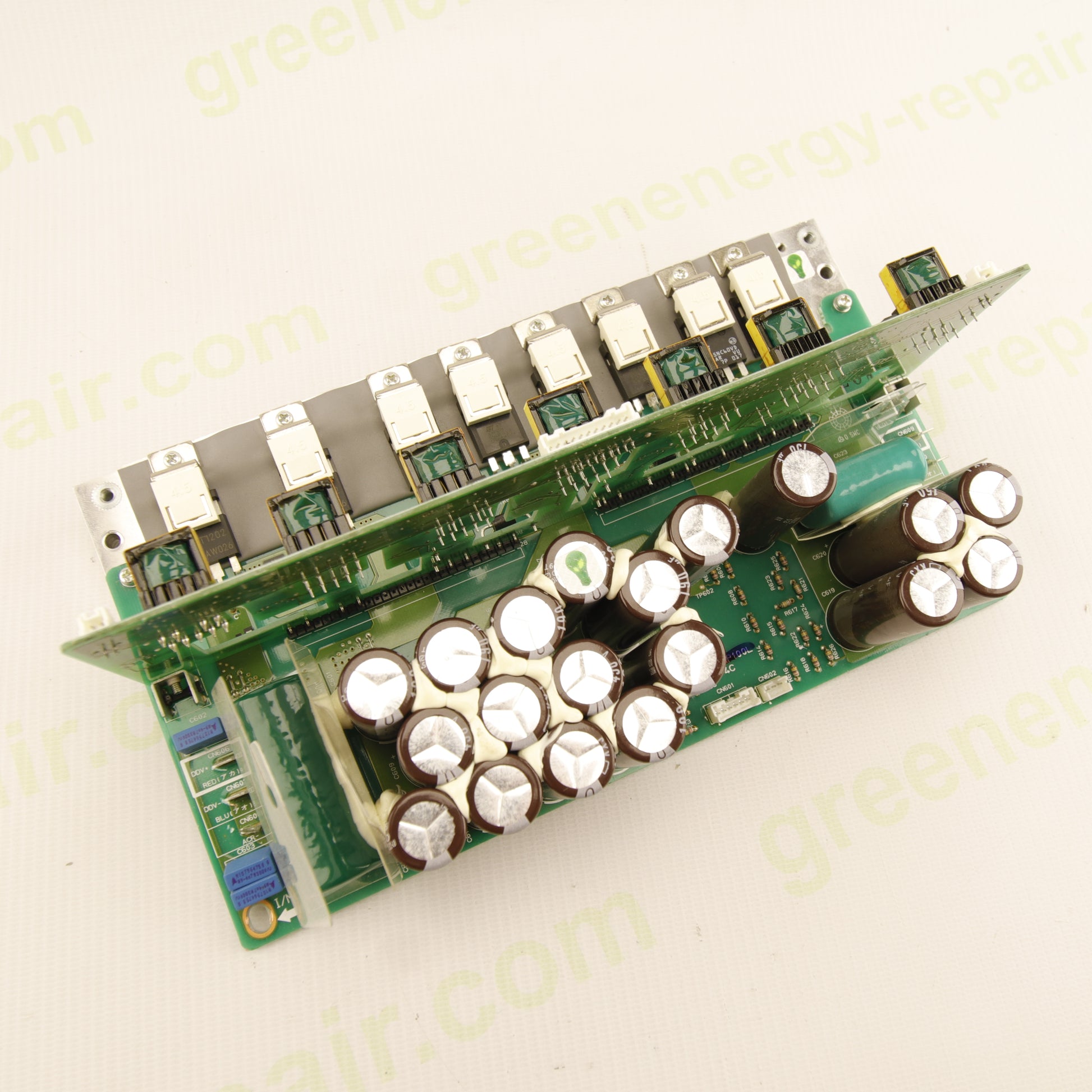

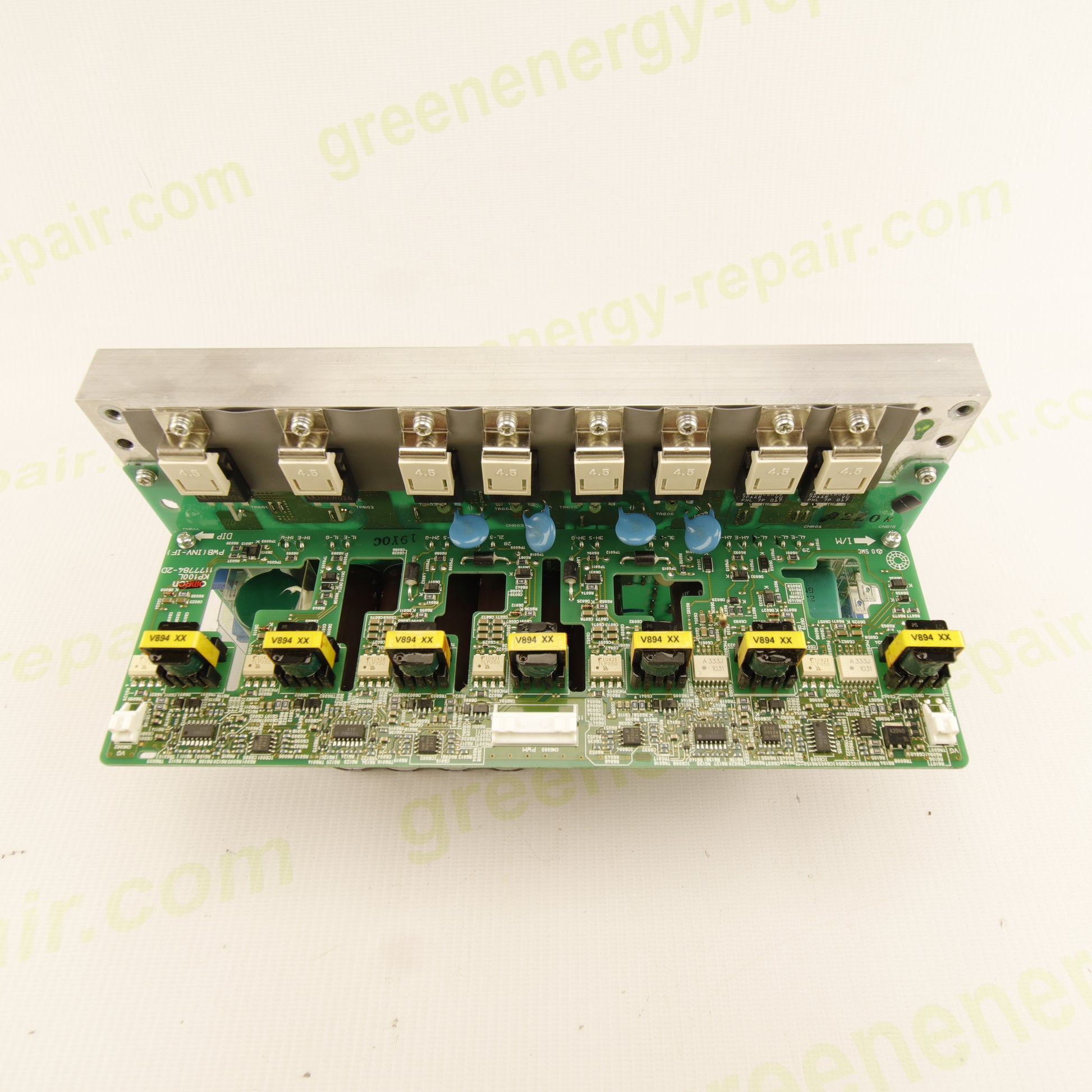

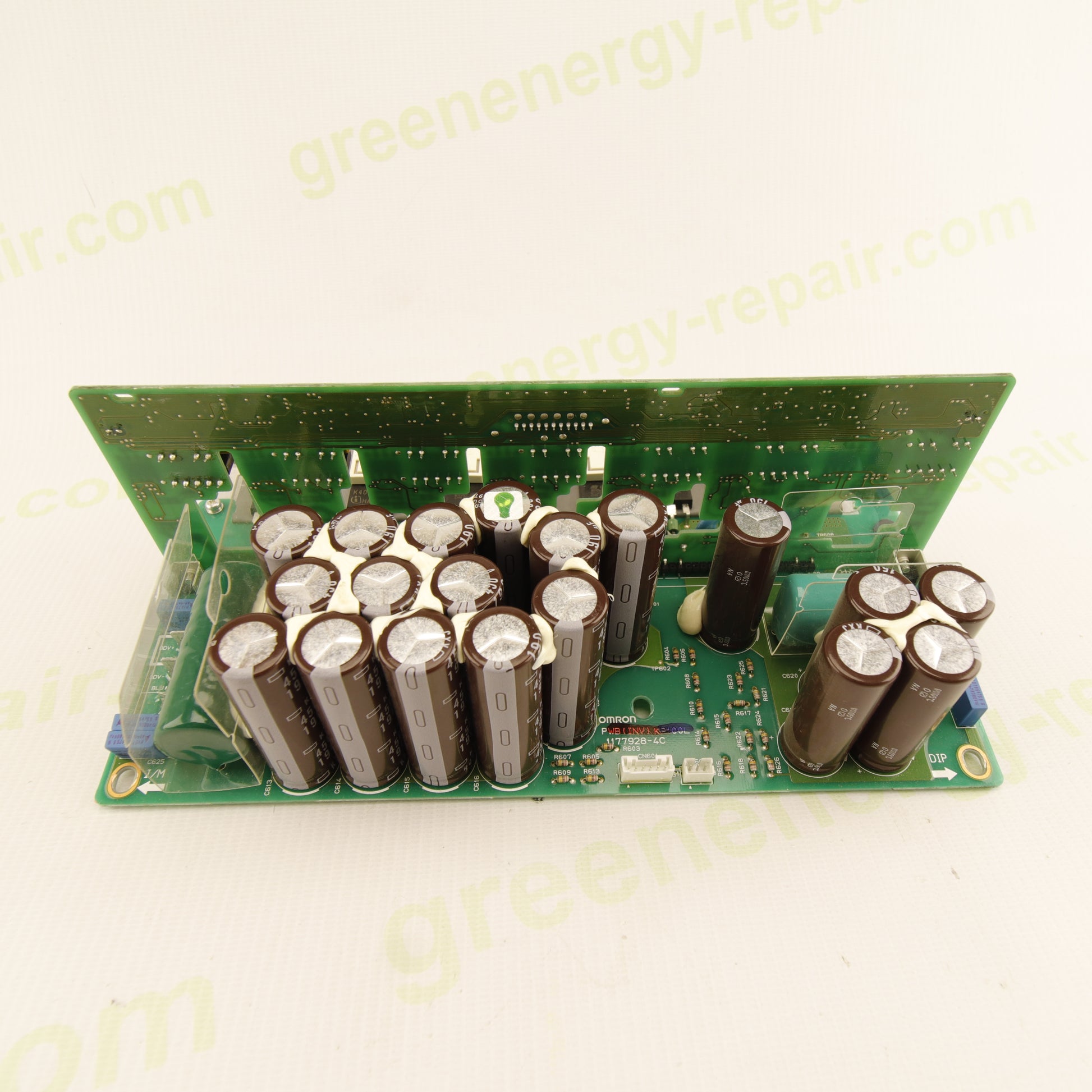

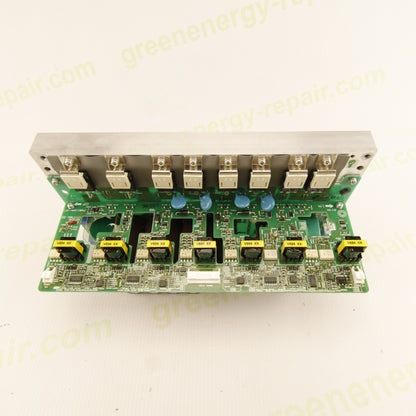

The OMRON KP100L AC Power Board is the AC-side power conversion board used in OMRON KP100L-OD-EU series 10kW three-phase photovoltaic inverters. This module is responsible for the final stage of power conversion and grid injection, ensuring proper switching, filtering, protection, and control of the inverter's AC output current.

The board integrates high-capacity electrolytic capacitors, power semiconductors, gate driver circuits, and protection components required for reliable operation of the inverter. It is one of the most critical modules within the inverter's power conversion section.

⚙️ Technical Specifications

• Manufacturer: OMRON
• Compatible Models: KP100L-OD-EU / KP100L Series
• Board Type: AC Power Board
• Function: AC-side power conversion and grid interface management
• Application: Grid-connected photovoltaic inverter
• Compatible Inverter Power: 10kW nominal
• Inverter Technology: Three-phase transformerless inverter
• Nominal AC Output Power: 10,000W
• Maximum AC Output Power: 11,000W
• Grid Voltage: 230/400Vac three-phase
• Grid Frequency: 50Hz
• Associated Inverter Efficiency: Up to 97.5%
• Interface: Connection to main control board
• Installation: Internal mounting on heatsink assembly
• Integrated Components: High-capacity electrolytic capacitors, power modules, AC protection circuitry

🔧 Main Functions

Grid Power Conversion

Receives processed energy from the DC/DC and inverter stages and delivers synchronized AC power to the electrical grid.

AC Output Filtering

Reduces:

• Harmonic distortion
• Electrical noise
• High-frequency ripple
• EMC interference

Power Semiconductor Control

Manages:

• IGBT power modules
• Power MOSFETs
• Gate driver circuits
• Switching control electronics

Inverter Protection

Provides protection against:

• Overcurrent conditions
• Overvoltage events
• Short circuits
• Grid abnormalities
• Transient disturbances

🔌 Purpose and Operation

The AC Power Board serves as the direct interface between the inverter's power conversion electronics and the utility grid.

Its primary functions include:

• Delivering photovoltaic energy to the electrical grid
• Stabilizing AC output parameters
• Supporting compliance with grid connection standards
• Maintaining high inverter efficiency

Without this board, the inverter cannot export energy to the grid.

🧩 Role Within the Inverter System

Inside the OMRON KP100L, the AC Power Board functions as:

• AC power conversion stage
• Output filter assembly
• Grid interface module
• Output protection circuit
• Three-phase current distribution system

It operates in coordination with:

• Logic control board
• DSP control board
• MPPT section
• Power driver circuits
• Grid monitoring system

⚠️ Typical Faults and Symptoms

Degraded Electrolytic Capacitors

Symptoms:

❗ Unstable power production
❗ Random inverter faults
❗ Unexpected shutdowns
❗ Excessive ripple voltage

Damaged IGBTs or MOSFETs

Symptoms:

❗ Inverter fails to start
❗ Blown fuses
❗ Internal short circuits
❗ Permanent power-stage failure

Defective Power Relays

Symptoms:

❗ Failure to connect to the grid
❗ Continuous startup attempts
❗ Immediate inverter shutdown

Cold or Cracked Solder Joints

Symptoms:

❗ Intermittent faults
❗ Irregular power generation
❗ Random error messages

Failed Driver Circuits

Symptoms:

❗ Incorrect switching operation
❗ Overcurrent faults
❗ Protective shutdown events

🚨 Possible Associated Errors

When faults occur on the AC Power Board, the inverter may display errors such as:

E1-0 – No Utility

The inverter cannot properly detect the utility grid.

Possible causes:

• AC board failure
• Grid connection issues
• Faulty sensing circuits

E1-1 – Grid Over Voltage

Grid overvoltage detected by the inverter.

Possible causes:

• AC measurement circuit faults
• Grid anomalies
• Output-stage issues

Grid UV

Utility grid undervoltage detected.

Possible causes:

• AC monitoring circuit malfunction
• Grid-side disturbances

Over AC Current

Excessive output current detected.

Often associated with:

• Failed IGBT modules
• Defective driver circuits
• Output-stage faults

Islanding Passive

Grid synchronization or anti-islanding detection failure.

Possible causes:

• AC output abnormalities
• Synchronization problems
• Grid monitoring faults

Grid Connection Errors

Potential symptoms include:

• Failure to connect to the grid
• Frequent disconnections
• Intermittent energy production
• Protective shutdowns

Error terminology may vary depending on firmware version and inverter configuration.

🔄 Compatibility

Primarily compatible with:

• OMRON KP100L-OD-EU
• OMRON KP100L-OD-EU-T
• OMRON KP100L 10kW series photovoltaic inverters

Always verify the board part number and hardware revision before replacement.

🛠 Applications

• Repair of OMRON KP100L photovoltaic inverters
• Replacement of defective AC power boards
• Restoration of grid connection functionality
• Industrial photovoltaic inverter maintenance
• Refurbishment and repair of inverter power stages
• Troubleshooting AC output and grid synchronization faults

💡 Advantages

✔ Original OMRON power conversion module
✔ Designed specifically for KP100L inverter systems
✔ Supports stable three-phase grid injection
✔ High-efficiency AC power conversion
✔ Integrated protection and filtering functions
✔ Cost-effective repair solution compared to complete inverter replacement

🟢 Summary

The OMRON KP100L AC Power Board is the AC-side power conversion module used in OMRON KP100L 10kW three-phase photovoltaic inverters. Responsible for grid synchronization, output filtering, power switching, and protection functions, it plays a vital role in delivering solar energy safely and efficiently to the electrical grid. Proper operation of this board is essential for inverter performance, reliability, and compliance with grid connection requirements.
