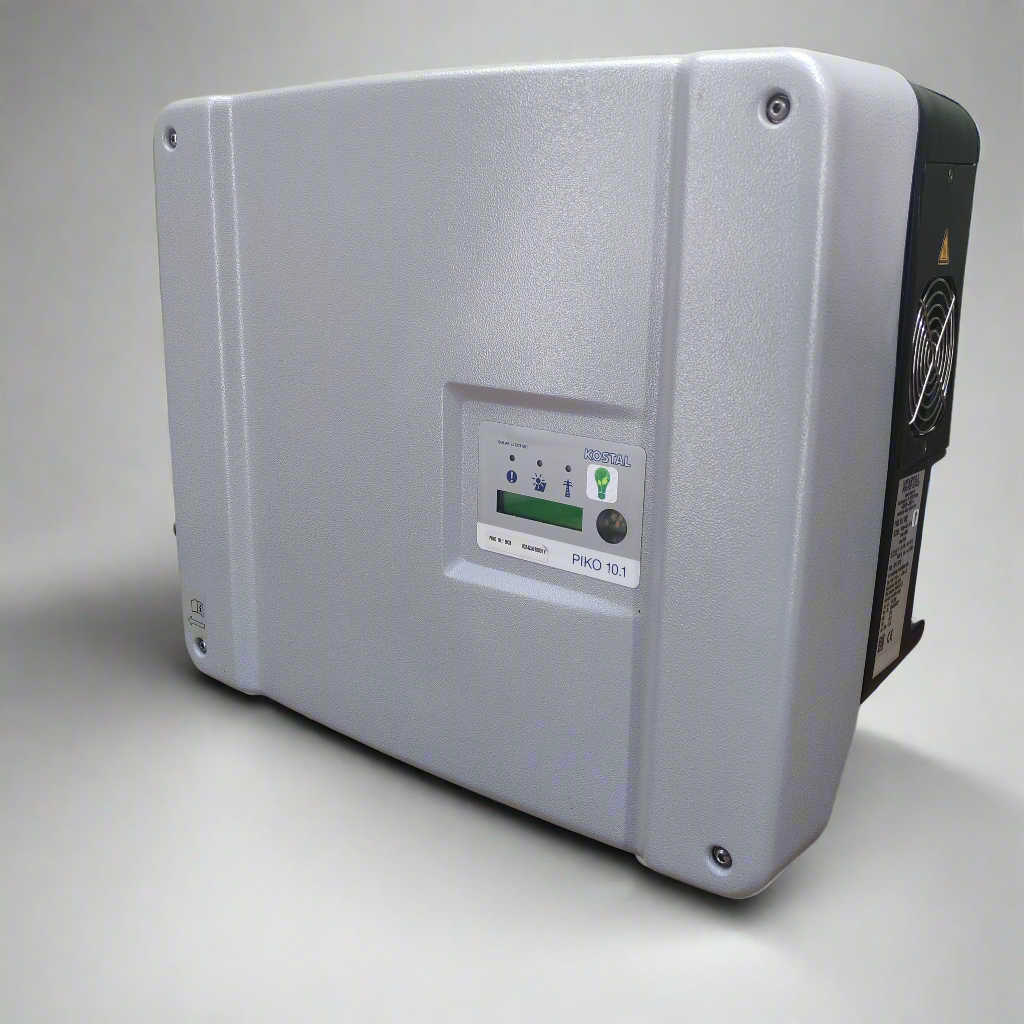

The KOSTAL PIKO 10.1 DCS is a three-phase grid-tied solar inverter engineered for high-efficiency energy conversion in residential, commercial, and industrial PV systems. With a nominal output power of 10 kW (9.2 kW continuous) and three independent MPPT trackers, it provides optimized power harvesting and stable grid feed-in performance.

Manufactured in Germany by KOSTAL Solar Electric GmbH, the PIKO series is known for robust design, reliable operation, and smart monitoring compatibility. This inverter complies with major European grid standards including DIN VDE V 0126-1-1, ENEL DK5940, and Real Decreto 1663/2000, ensuring seamless integration into EU solar installations.

🔄 Condition: Used & tested
🛠 Warranty: 12 months provided by Green Energy

⚙️ Technical Specifications:

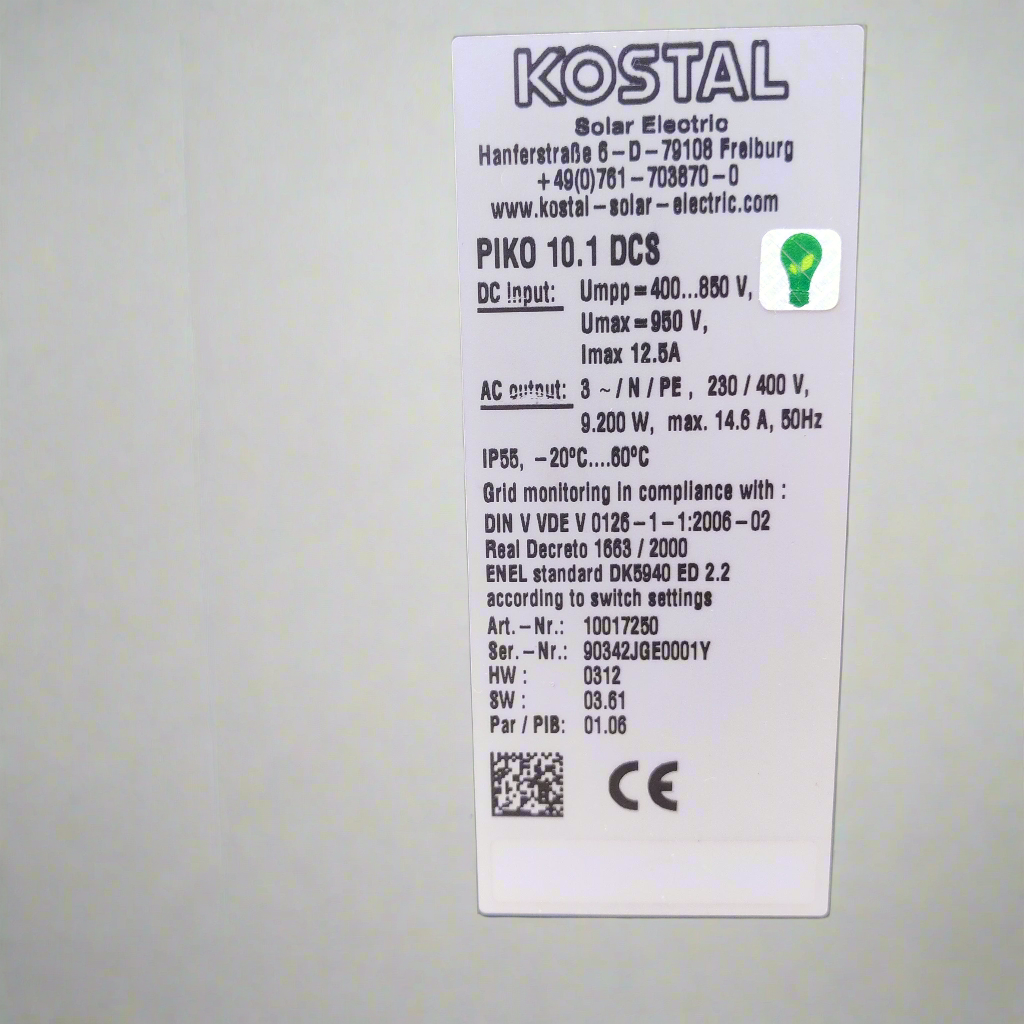

• Model: PIKO 10.1 DCS
• AC Output Power: 9.2 kW (max. 10.1 kW)
• Phases: 3-phase (230/400 V, 50 Hz)
• MPPT Inputs: 3 independent trackers
• DC Voltage Range: 400–850 V
• Max DC Voltage: 950 V
• Max DC Current: 12.5 A per input
• Efficiency: >96% (Euro efficiency)
• Protection Rating: IP55, suitable for outdoor installation
• Operating Temperature: –20°C to +60°C
• Communication: RS485 / Ethernet compatible (depending on configurati   📌 Key FeCompliance: CE certified, conforms to EU grid standardsatures:

✔️ 10 kW 3-phase solar inverter with 3 MPPT inputs
✔️ High conversion efficiency and wide voltage range
✔️ Rugged design for long-term reliability
✔️ Compliant with European grid requirements
✔️ Ideal for commercial rooftop and mid-size PV systems

🚀 Upgrade or restore your solar installation with the durable and efficient KOSTAL PIKO 10.1 DCS inverter,  quality-verified by Green Energy.
