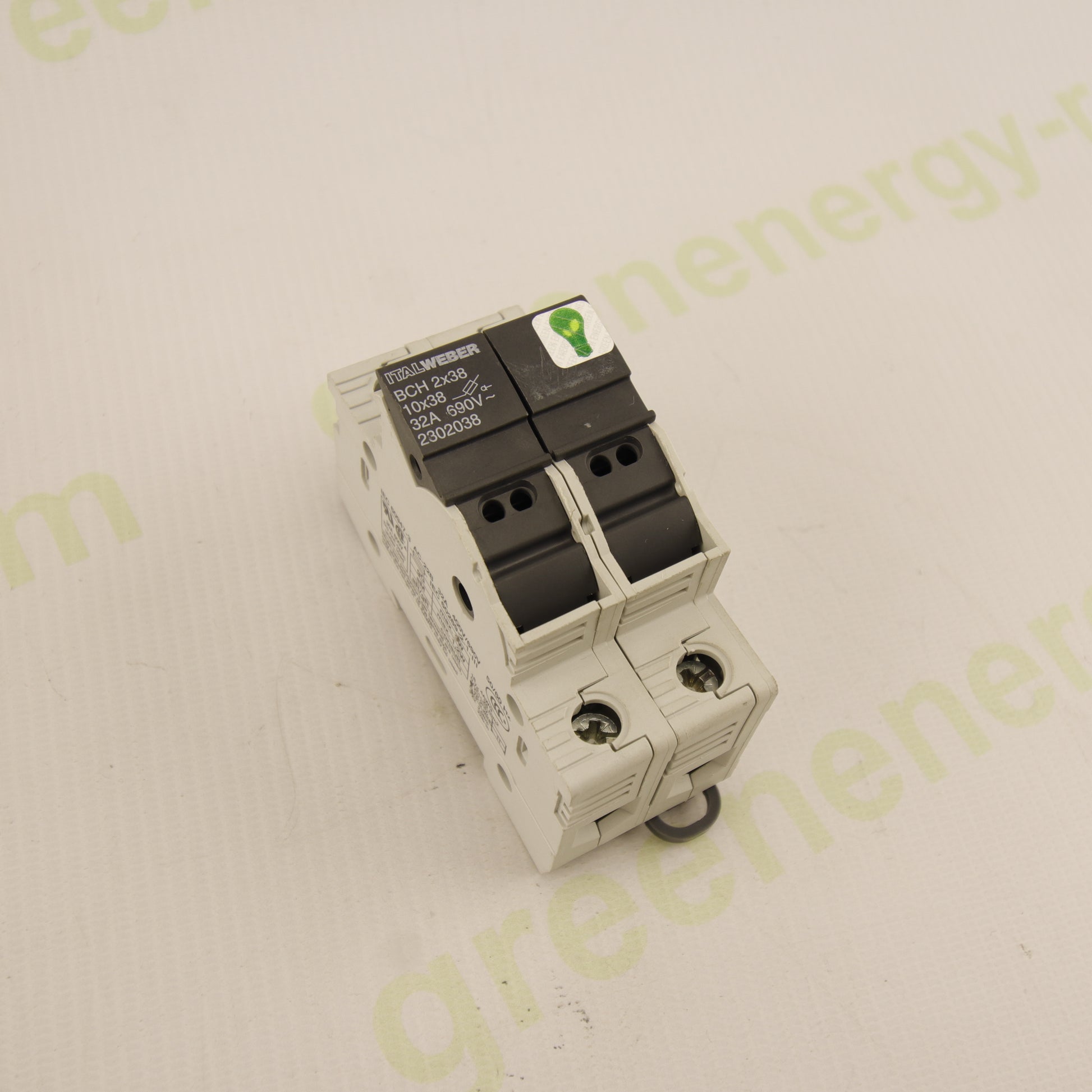

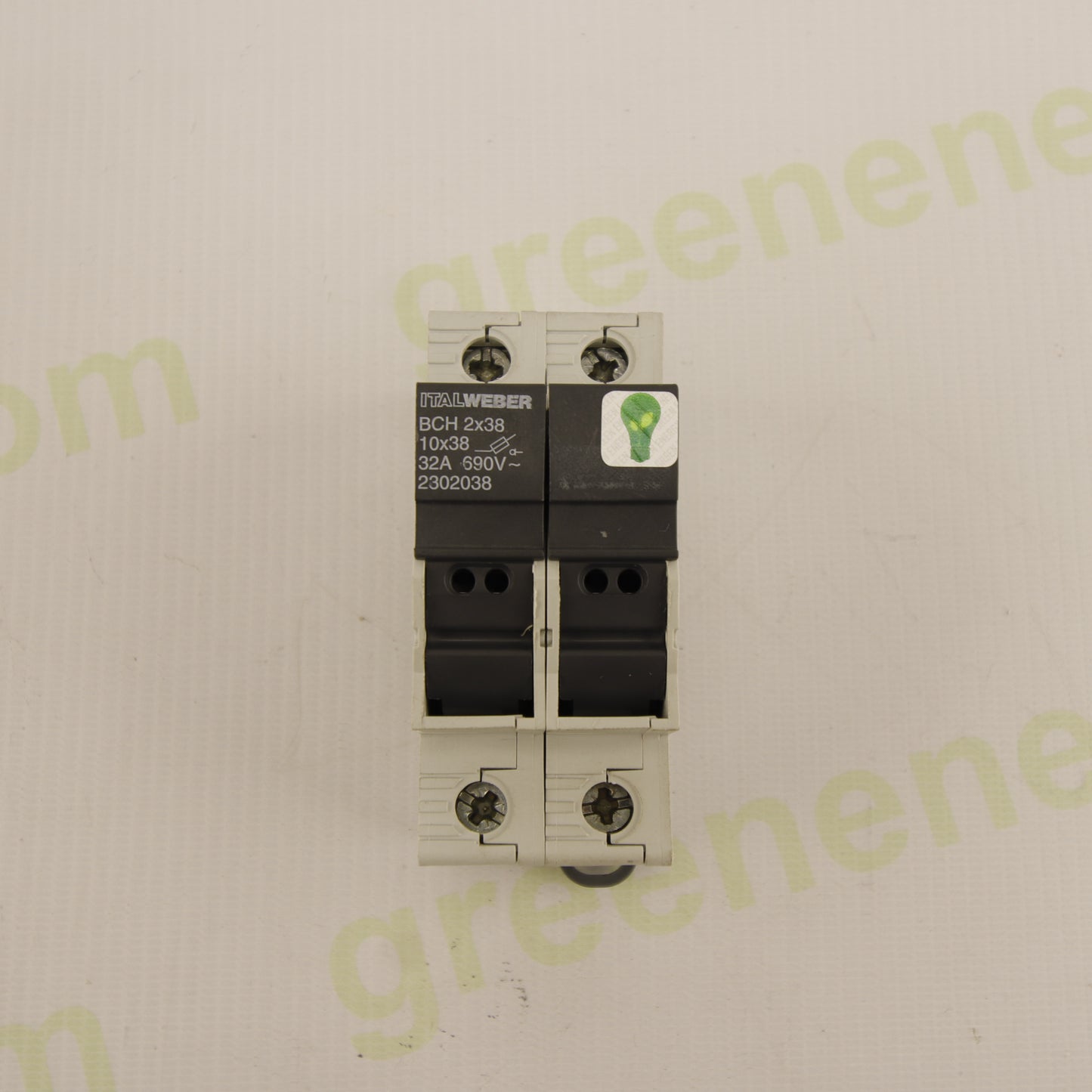

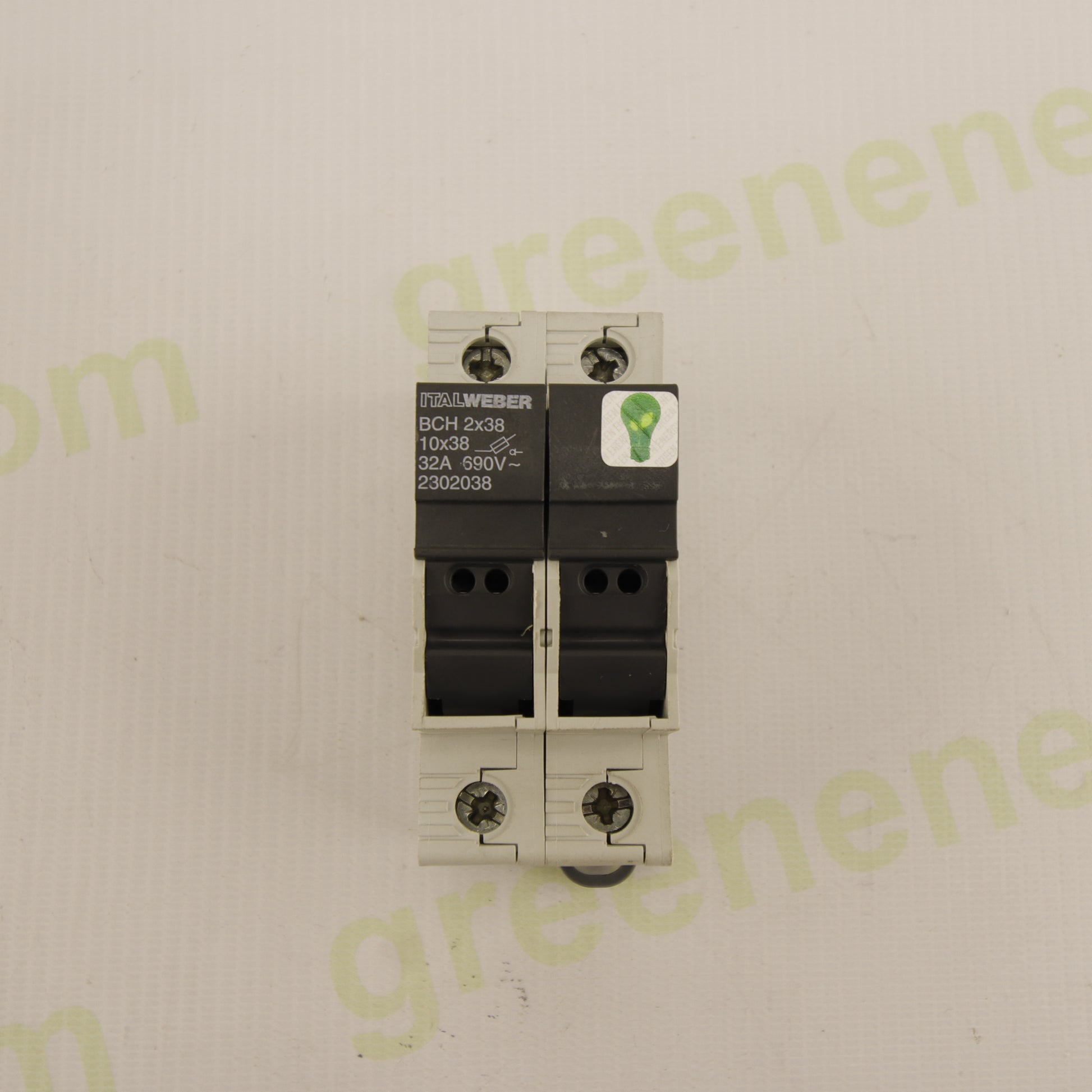

The Italweber BCH 2x38 is a bipolar modular fuse holder designed to accommodate 10×38 mm cylindrical fuse links, used to protect electrical circuits from overloads and short circuits.

This model features a two-pole configuration (2P), allowing the installation of two fuse links, making it suitable for single-phase lines or circuits requiring protection of two conductors.

The device is designed for installation on a standard 35 mm DIN rail and is widely used in residential, industrial, and power distribution panels. Its modular construction allows quick installation and easy maintenance thanks to the front-opening mechanism, which enables safe fuse replacement without removing the unit from the panel.

Manufactured with high-resistance insulating materials, the fuse holder ensures long-term reliability and durability even in demanding industrial environments.

⚙️ Technical Specifications

Brand: Italweber
Series: BCH
Model: BCH 2x38
Product code: 2302038

🔌 Electrical Parameters

• Fuse type: Cylindrical 10 × 38 mm

• Number of poles: 2P (bipolar)

• Rated current: 32 A

• Rated voltage: 690 V AC

• Frequency: 50 / 60 Hz

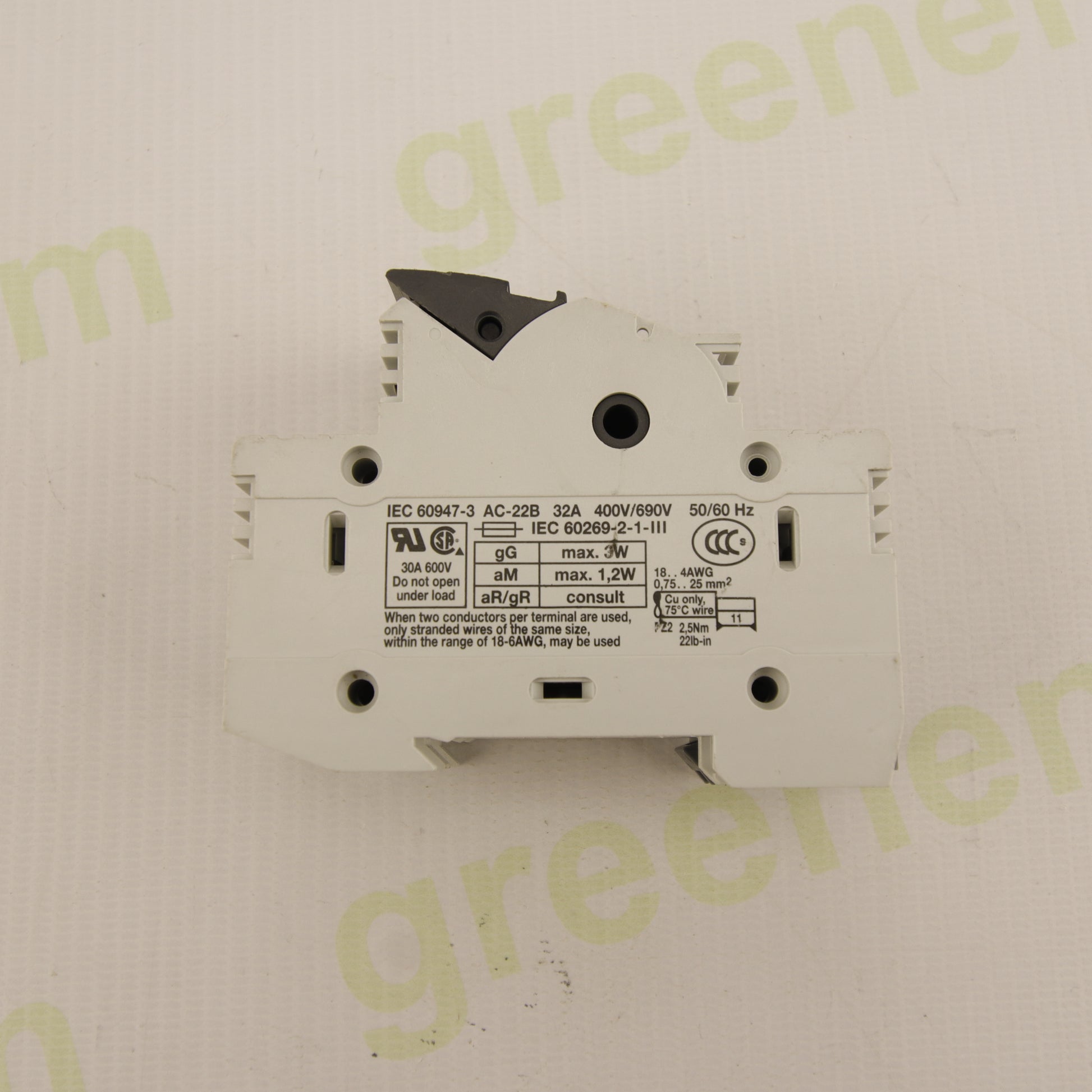

📜 Standards

• IEC 60947-3

• IEC 60269-2-1

🔧 Compatible Fuse Types

• gG – general protection (max 3 W)

• aM – motor protection (max 1.2 W)

• aR / gR – semiconductor protection

🔌 Connections

• Conductor cross-section: 0.75 – 25 mm²

• AWG range: 18 – 4

• Terminal tightening torque: approx. 2.5 Nm

🔧 Installation

• Mounting on standard 35 mm DIN rail

• Bipolar configuration

• Front access for quick fuse replacement

• Compatible with modular electrical panels

🏭 Applications

Ideal for:

✔ Electrical distribution boards
✔ Industrial installations
✔ Residential electrical panels
✔ Automation systems
✔ Photovoltaic installations
✔ Electrical line protection
