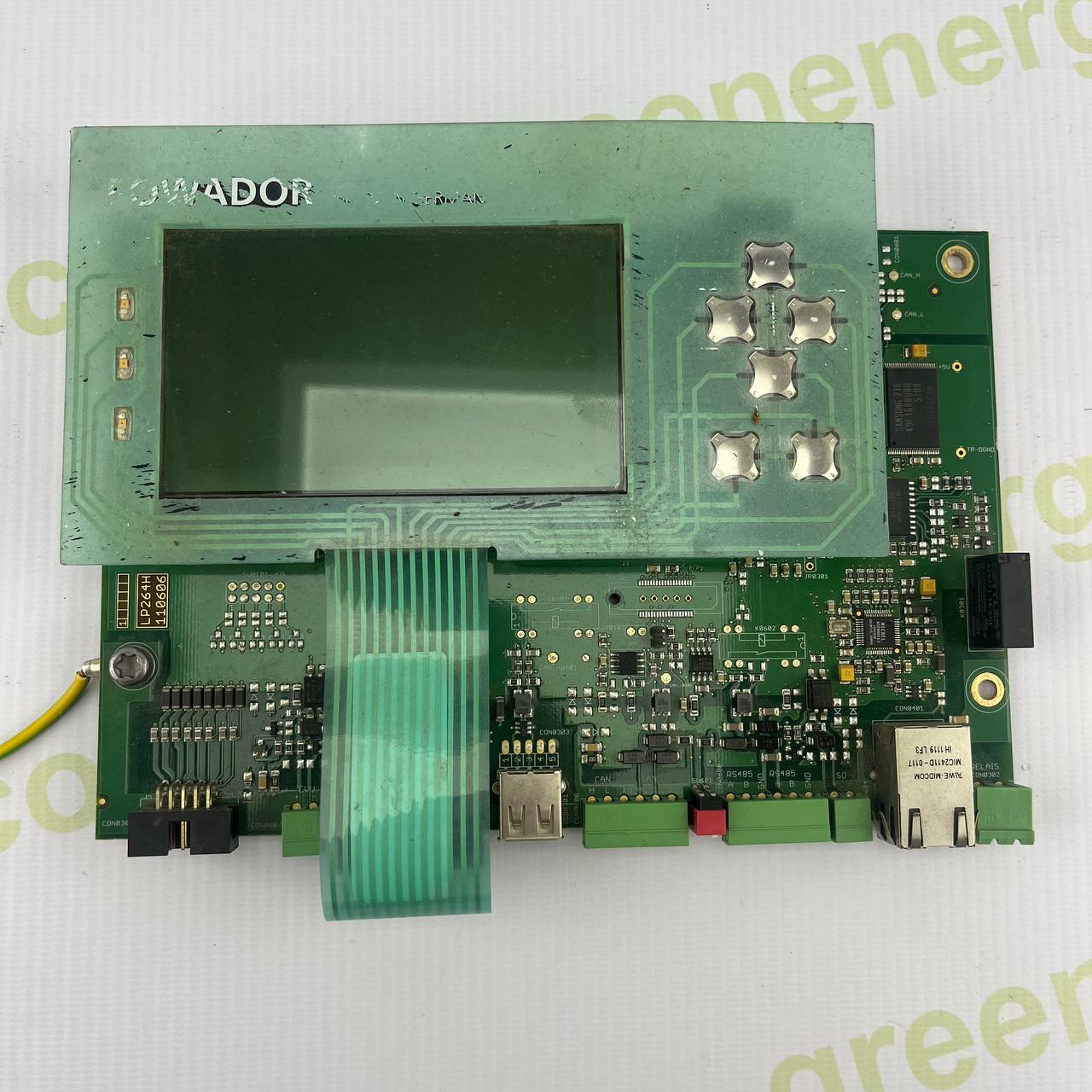

This is a Display + Logic Board assembly for the KACO Powador 36.0 TL3 -XL-INT inverter, serving as the central user interface and control module. It manages display output, system control, communication, and parameter configuration.

Ideal for replacing a damaged or unresponsive HMI module, this unit restores access to system monitoring, real-time data, and inverter configuration settings.

🔄 Condition: Used, inspected, and in good working order.

🔧 Component Details & Markings:

Display: LCD with 6 tactile control buttons

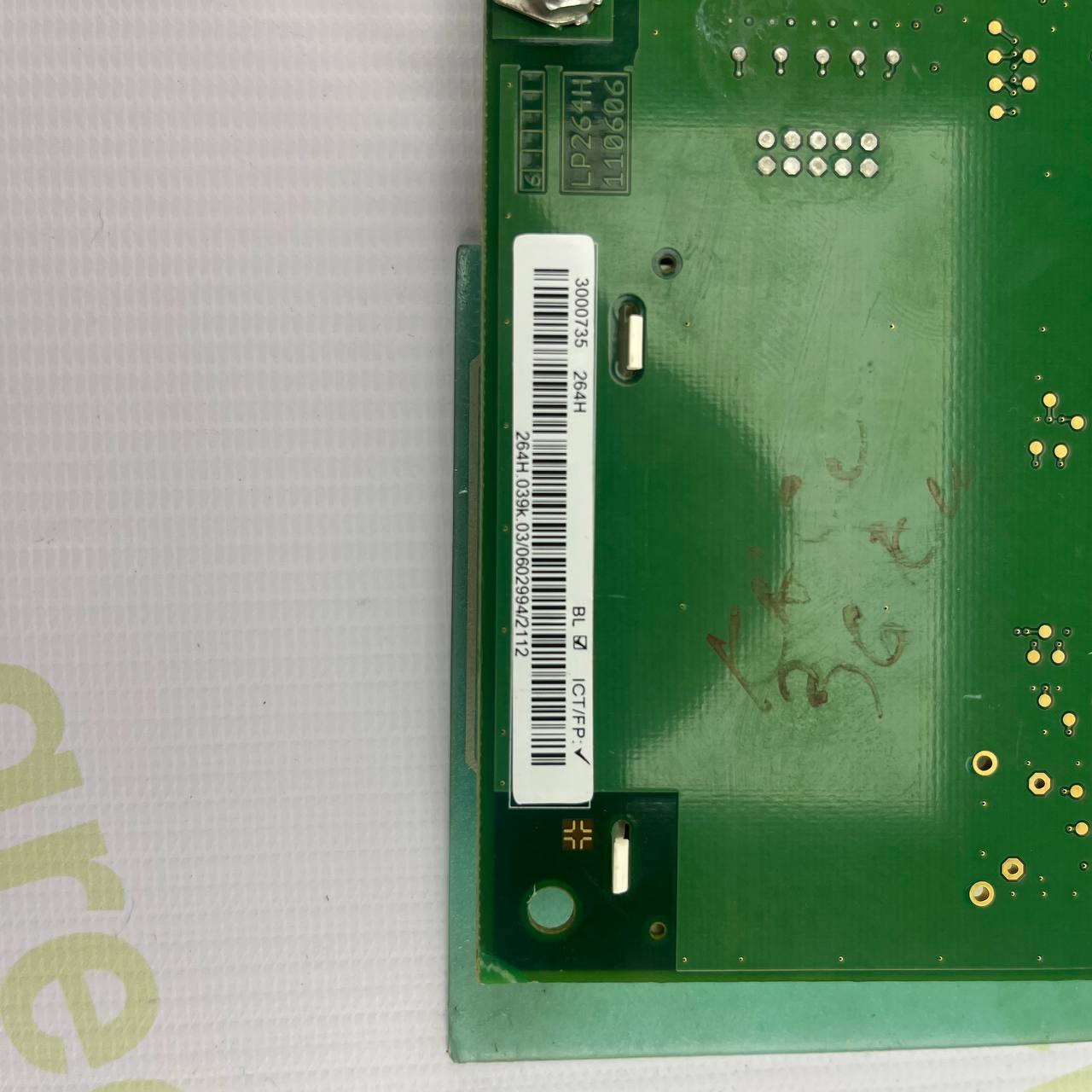

• Board Markings:
  • L226H1
  • 3000735 264H
  • 264H-03X-0306029347112 (barcode label)

• Ports & Connectors:
  • USB Type B for firmware updates or diagnostics
  • Ethernet (RJ45) for network communication
  • Green terminal blocks for system integration
  • Multi-pin ribbon connector to power/control sections

Front Panel: Marked "POWADOR" (partially worn)

Shielding: None — open PCB with visible components and traces

✅ Key Features:

✔ Original OEM interface for KACO Powador 36.0 TL3 -XL-INT
✔ Real-time system display: voltage, power, fault codes
✔ Button-based parameter entry and configuration
✔ Interfaces: Ethernet, USB, CAN, terminal I/O
✔ Designed for quick replacement and integration
✔ Enables remote monitoring and system control

🔗 Ideal For:

✔ Replacement of damaged HMI/control board assemblies
✔ Service technicians performing inverter repairs
✔ KACO Powador system diagnostics and refurbishing

📦 Includes: LCD Display with control buttons + Logic Board (pre-assembled)

🚀 Restore full control and visibility to your KACO inverter system with this tested original interface module.
