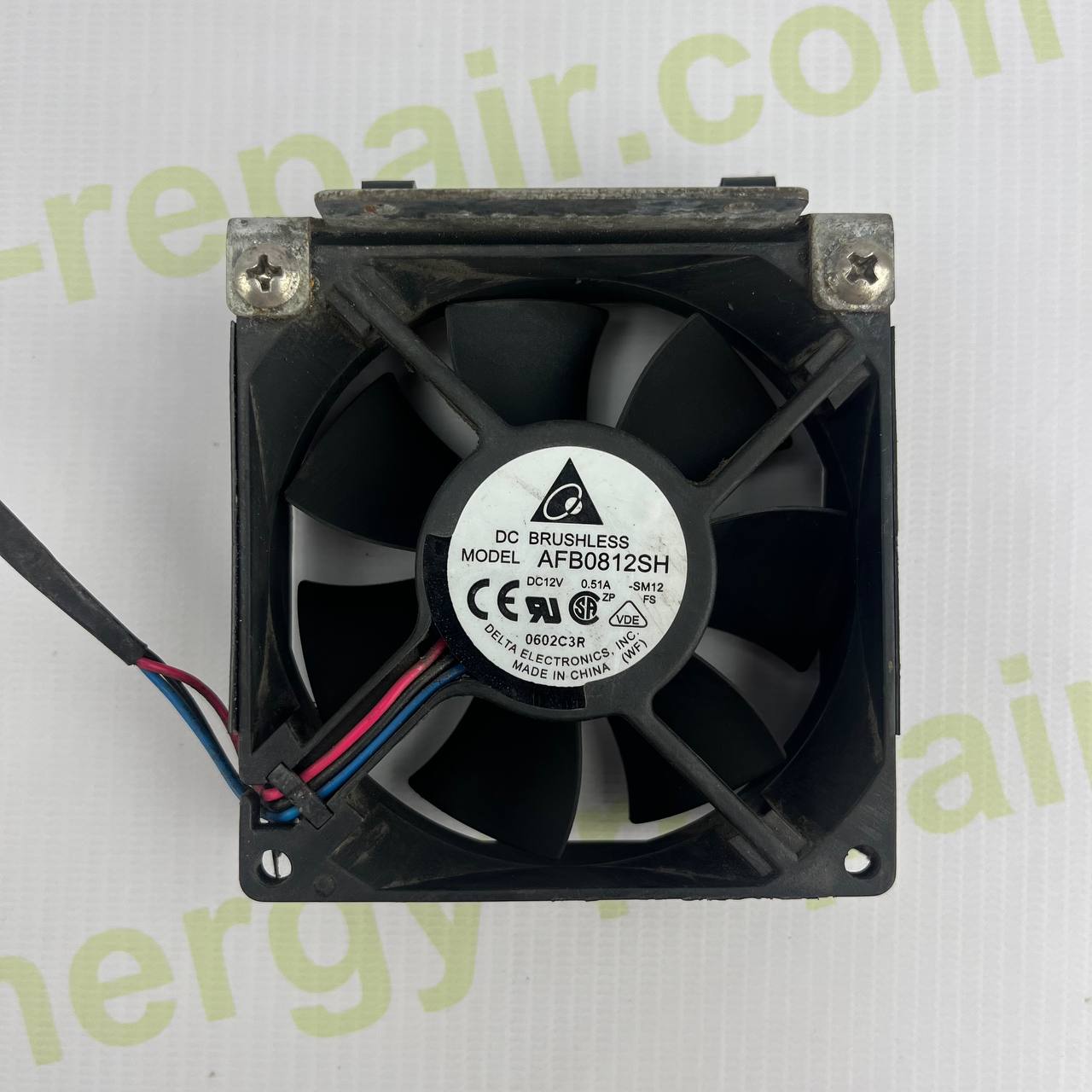

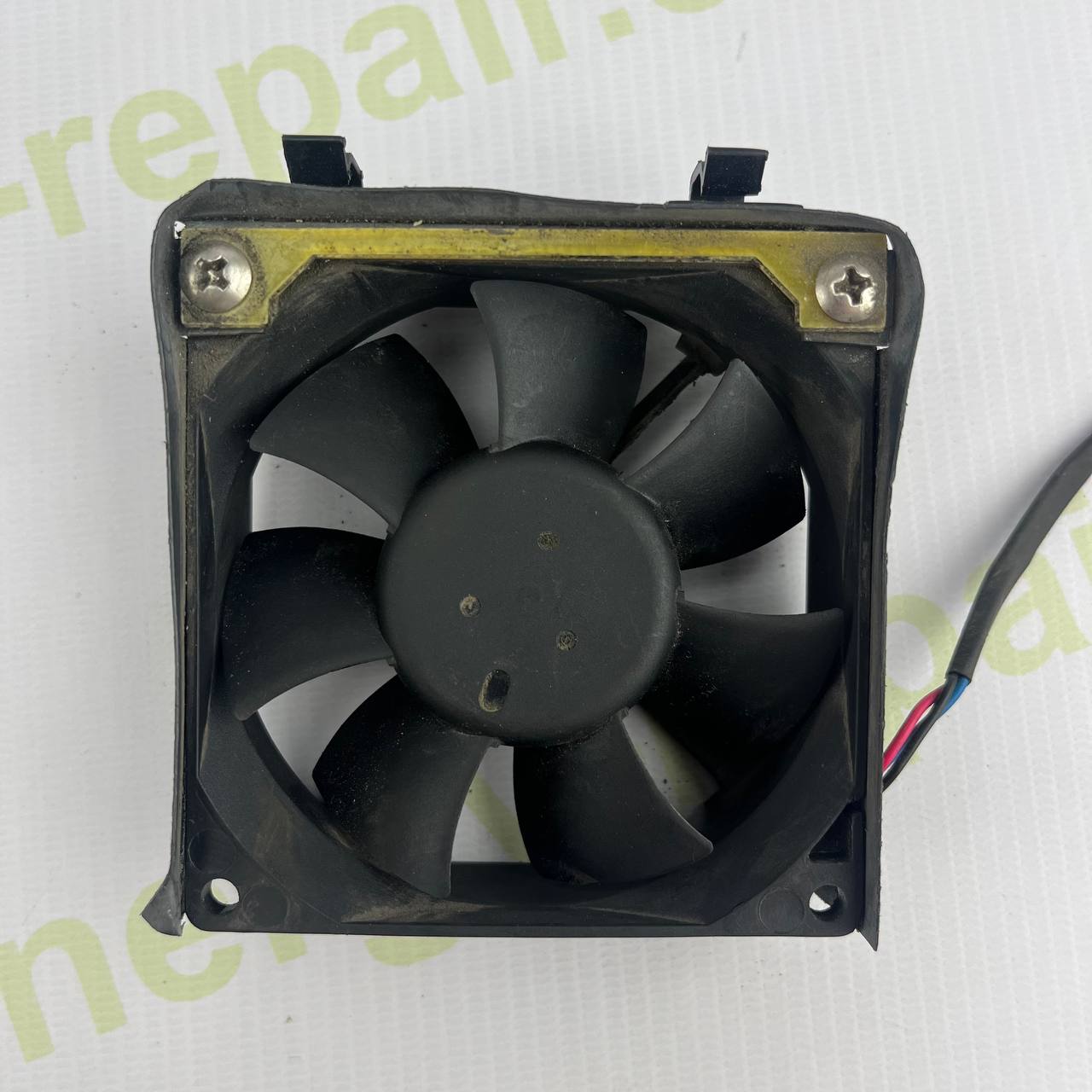

The Delta AFB0812SH is a high-performance axial cooling fan designed to deliver superior static pressure in compact enclosures. Operating at 12V DC with a 0.51A current draw, this fan is optimized for cooling dense electronics, servers, and industrial control systems where airflow resistance is high.

Its brushless motor design ensures long-term durability and consistent performance in demanding applications. With an 80mm frame, the AFB0812SH is a popular choice for systems requiring focused and efficient thermal management.

🔧 Key Features:

✅ Voltage: 12V DC | Current: 0.51A
✅ High static pressure for tight or restrictive environments
✅ Compact 80mm square frame – fits standard mounting layouts
✅ Brushless motor technology for extended lifespan
✅ Durable plastic housing and rotor blades
✅ Quiet yet powerful airflow for critical cooling needs
✅ Made in China – trusted Delta Electronics engineering

📦 Technical Details:

• Model: AFB0812SH
• Type: Axial fan
• Dimensions: 80 × 80 × 25 mm
• Voltage: 12V DC
• Current: 0.51A
• Bearing Type: Dual ball bearing
• Connector: 2-wire or 3-wire (varies by batch)
• Airflow & Pressure: Optimized for high impedance systems
• Certifications: CE, RoHS compliant

🔗 Ideal For:

✔ Server cabinets and telecom equipment
✔ Power supplies and UPS systems
✔ Embedded control panels and industrial PCs
✔ High-density heat-generating electronics

🌬️ Precision cooling with industrial reliability — Delta AFB0812SH keeps systems running cool and stable.
