Description
Used product. Original SMA electronic board belonging to the ESS-12 – Electronic Solar Switch system, used for disconnecting and managing the photovoltaic DC circuit of specific SMA inverters.
The Electronic Solar Switch (ESS) is the photovoltaic circuit interruption device: when correctly inserted, it maintains the DC connection between the PV generator and inverter, while its removal allows subsequent disconnection of the DC connectors. SMA documentation confirms the use of the ESS on various inverter families, including Sunny Boy and Sunny Mini Central.

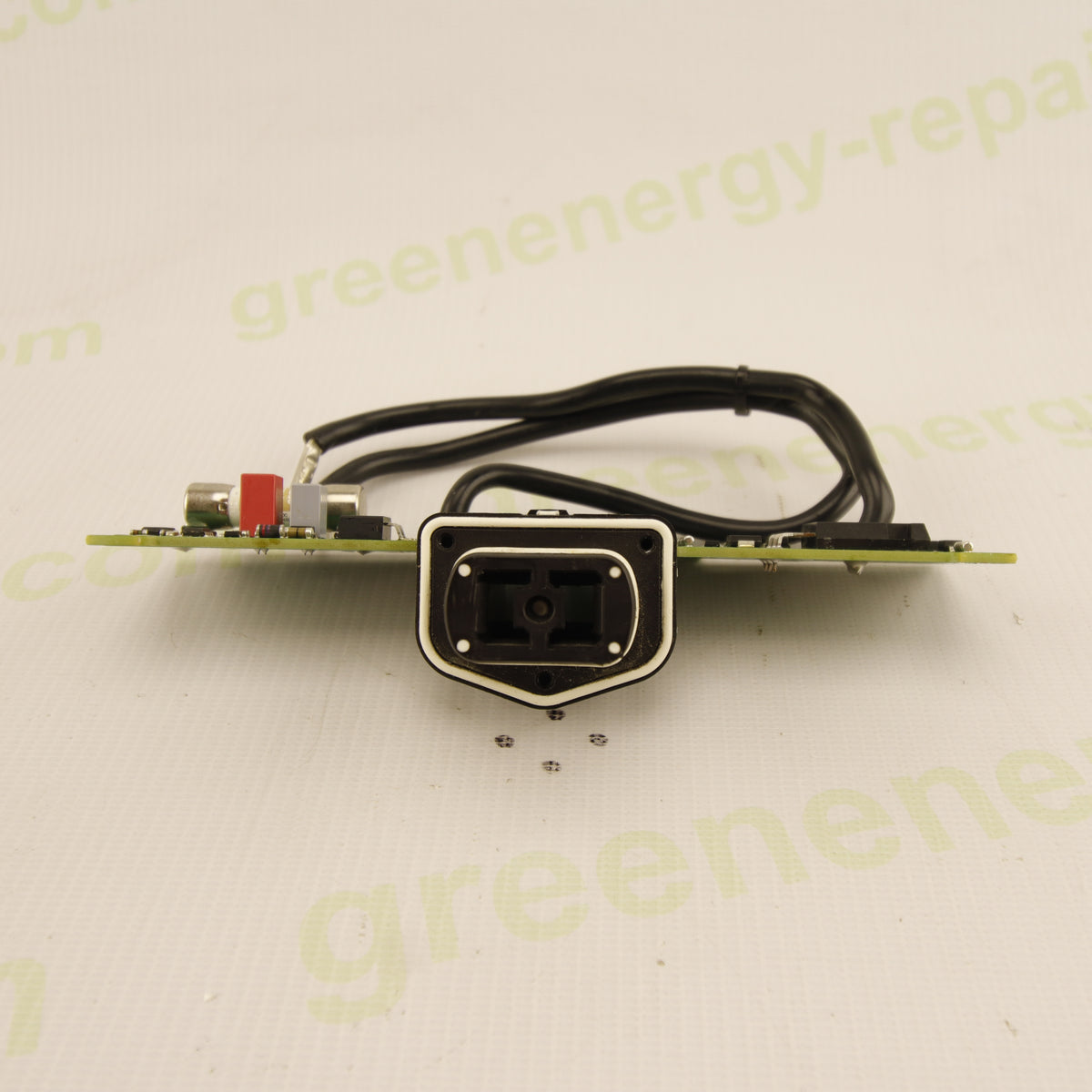

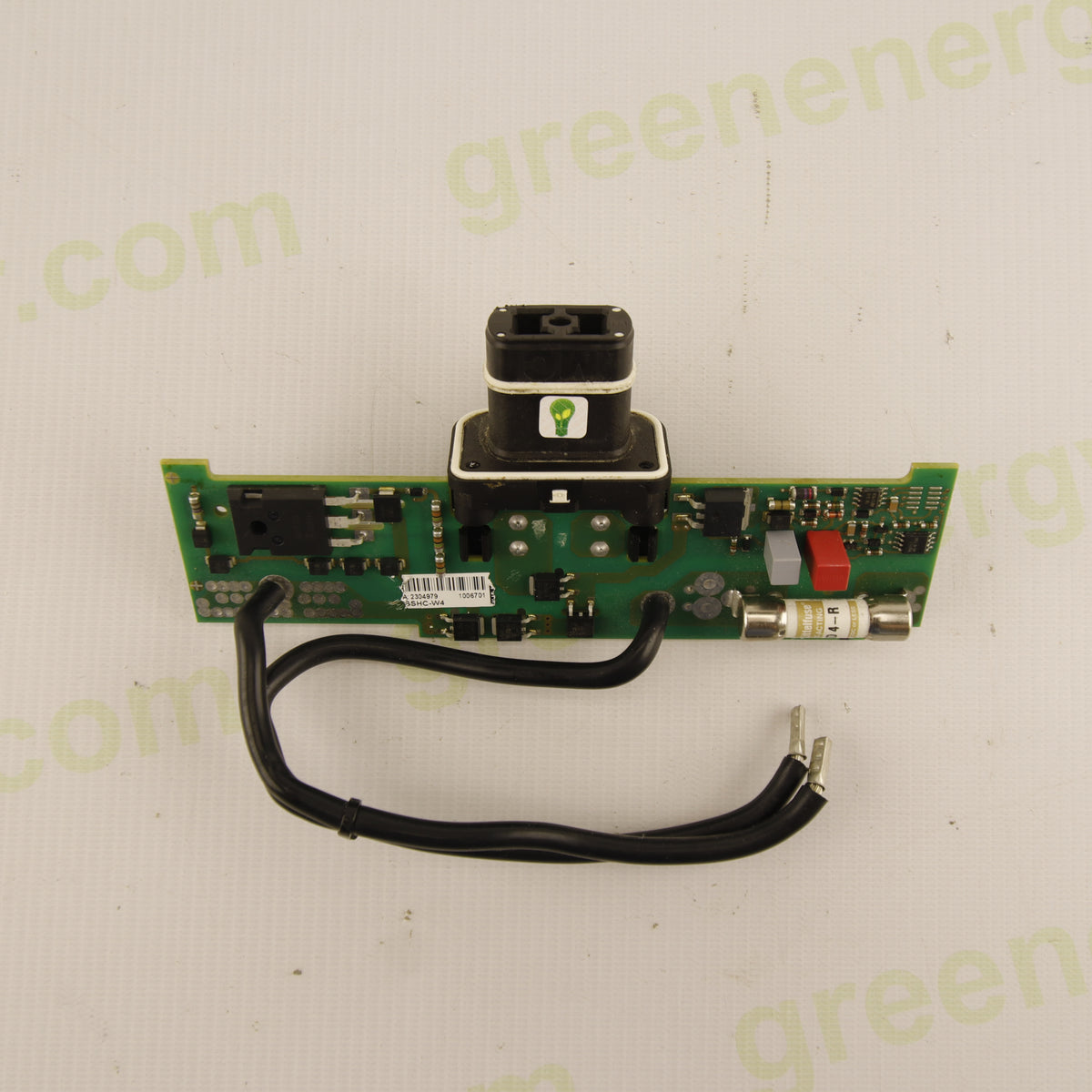

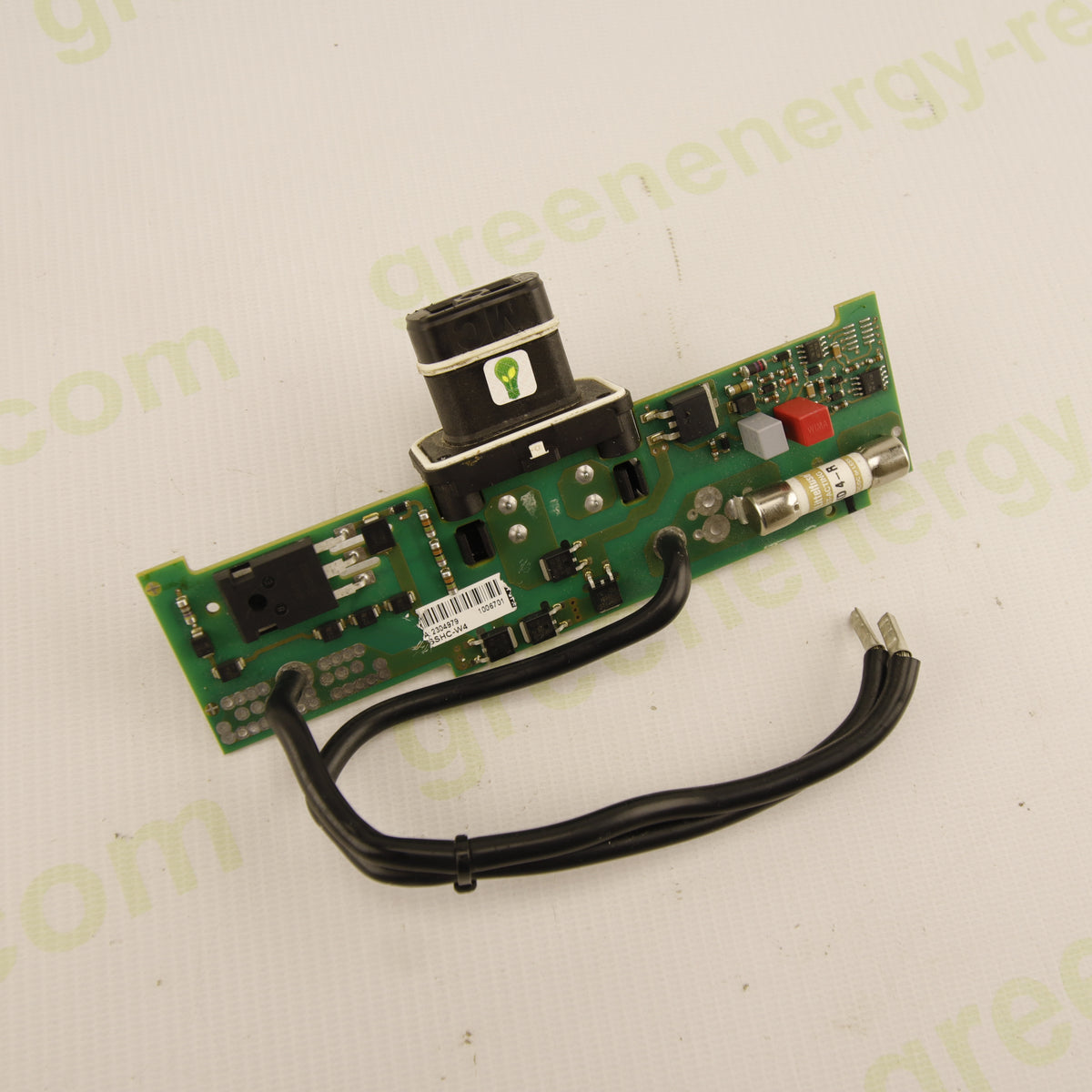

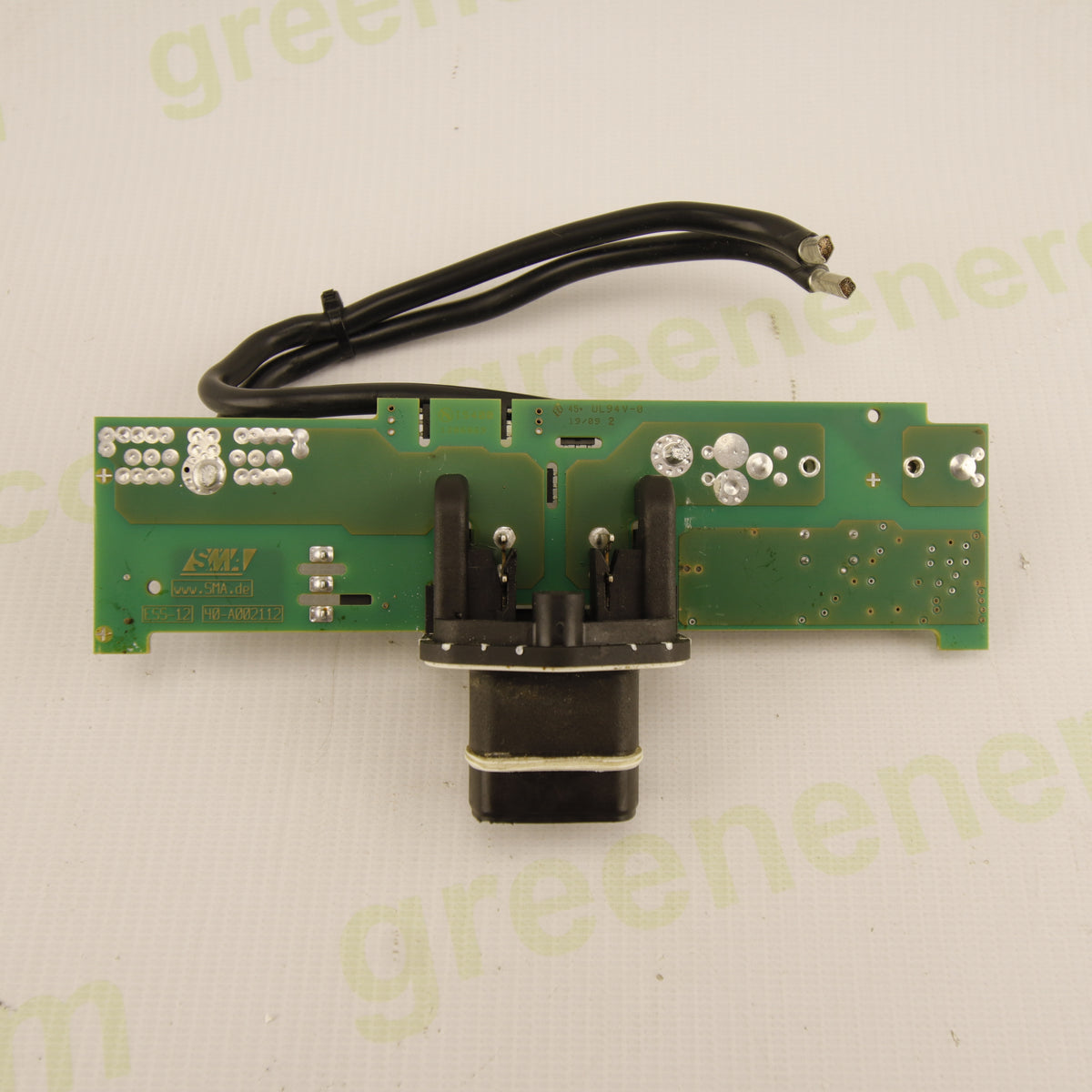

The photographed board is complete with ESS connector, wiring, power and control components, fuse, and protection circuits and is therefore a functional component of the DC disconnect assembly, not simply an electronic control board.
⚙️ Technical Specifications
-
Manufacturer: SMA Solar Technology
-
System: ESS-12 – Electronic Solar Switch
-
Visible markings: SMA, ESS-12, HD-A002112
-
Label code: A2304979
-
Additional marking: 1006701
-
Fuse: Littelfuse, visible marking 4-R
- Original ESS connector with insulated housing
- Integrated 2-conductor wiring with Faston terminals
- PCB with power traces, semiconductors, resistors, capacitors, and protection devices.
🔌 SMA Inverters Compatible with the ESS System
The Electronic Solar Switch system is documented on various generations of SMA inverters. Examples of models/families featuring the ESS include:
- Sunny Boy SB 1300 / SB 1600 / SB 2100
- Sunny Boy SB 2100TL
- Sunny Boy SB 3000TL / SB 4000TL / SB 5000TL
- Sunny Boy 4200TL HC / 5000TL HC
- Sunny Mini Central SMC 4600A / 5000A / 6000A
-
Sunny Mini Central SMC 6000TL / 7000TL / 8000TL
SMA documentation specifically confirms the ESS on the SB 4200TL HC / SB 5000TL HC, SMC 4600A–6000A, and SMC 6000TL–8000TL.
Attention: these are SMA models equipped with the ESS system; this does not automatically mean that this specific ESS-12 PCB is interchangeable with all models. For replacement, it is necessary to compare the board code, PCB revision, connector, and inverter version.
⚡ Function in the Electrical System
The board is part of the inverter's DC disconnect circuit and operates within the power path associated with the Electronic Solar Switch.
If an inverter does not start or does not correctly recognize the presence of the PV generator, the ESS assembly is one of the elements to check together with the fuse, ESS connector, wiring, DC voltage from the panels, and other protection devices. Therefore, it is not correct to automatically attribute every startup failure to this board.
🏭 Construction and Applications
SMA PCB with power section and control circuits, featuring a large ESS connector and integrated wiring. It is primarily intended for repair and replacement of the Electronic Solar Switch assembly installed on earlier-generation SMA inverters.
🛡️ Safety and Condition
Used product, with normal installation and handling marks visible on the surfaces and terminals. Functionality is not declared unless electrically tested.
The component belongs to the DC section of the photovoltaic inverter, where high voltages may be present even after AC disconnection. Inspection and replacement must be carried out exclusively by qualified personnel, with the inverter correctly disconnected and after verifying the absence of voltage.
📦 Package Contents
1 × SMA ESS-12 Electronic Solar Switch Board, complete with ESS connector and wiring as shown in the photographs.
🚀 Final Description
Original SMA ESS-12 – Electronic Solar Switch board, complete with connector, wiring, fuse, and power components. Replacement component intended for the DC disconnect system of earlier-generation SMA photovoltaic inverters. The visible markings ESS-12, HD-A002112, A2304979, and 1006701 should be used to verify compatibility with the board installed in the inverter. Compatibility must always be confirmed according to the exact model and hardware revision.
