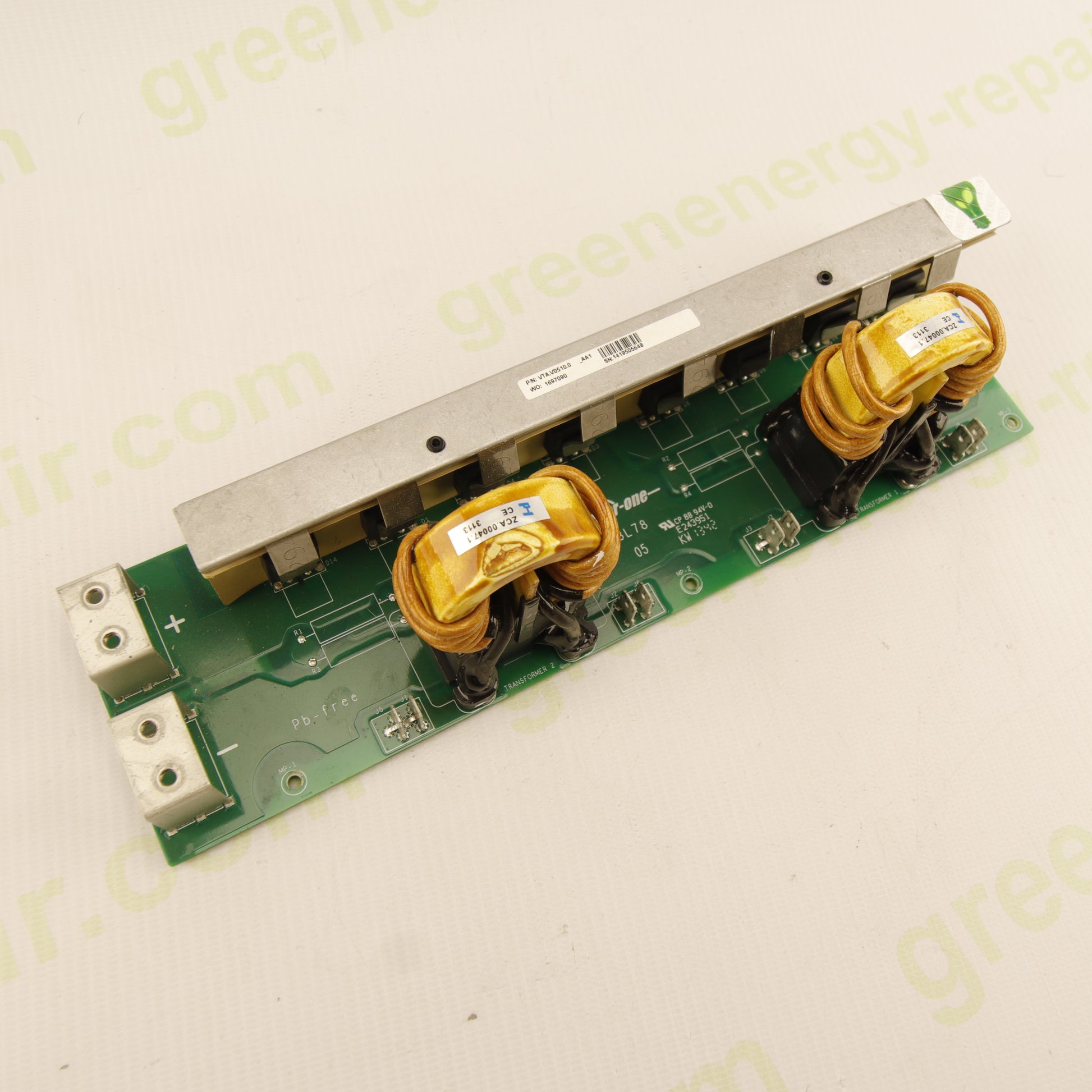

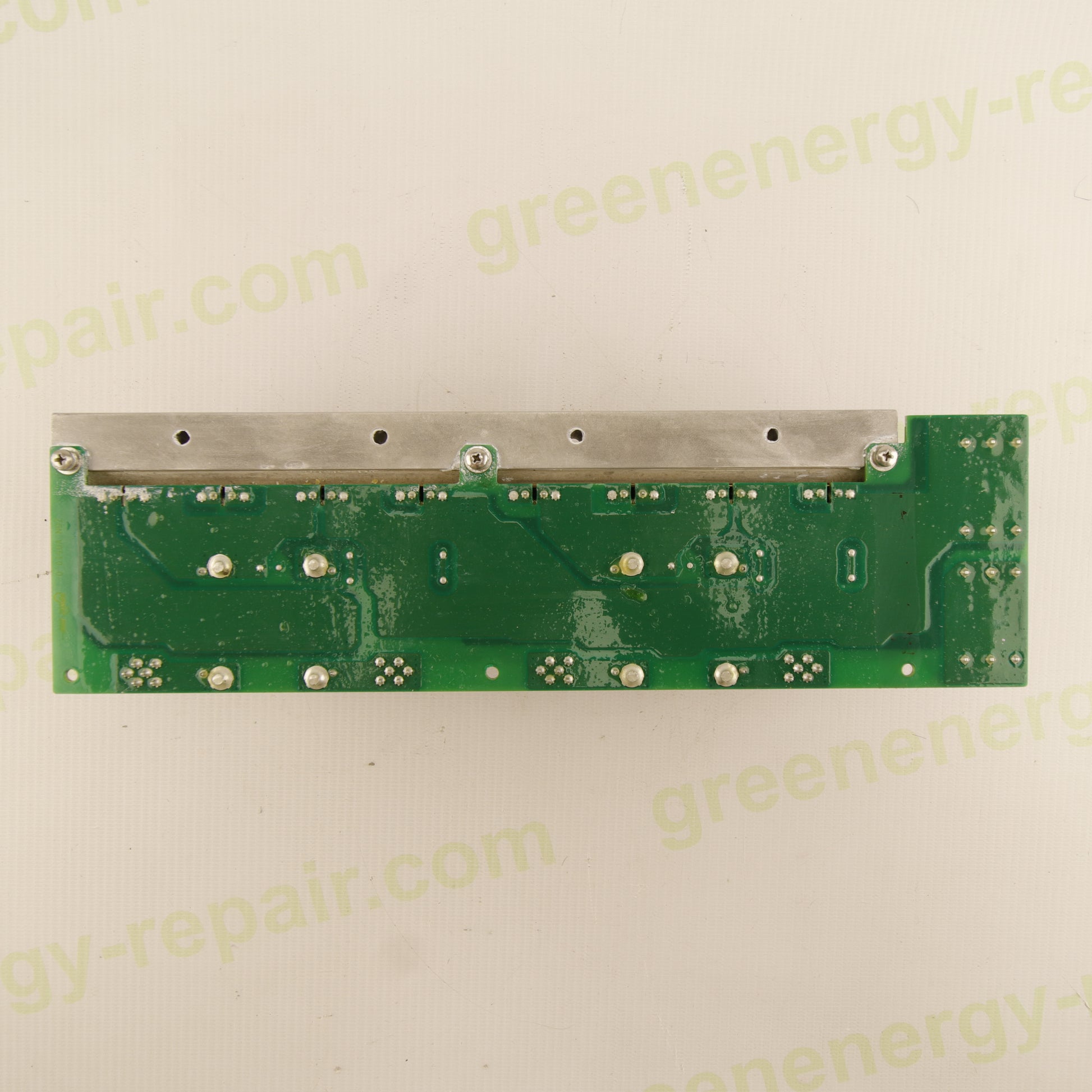

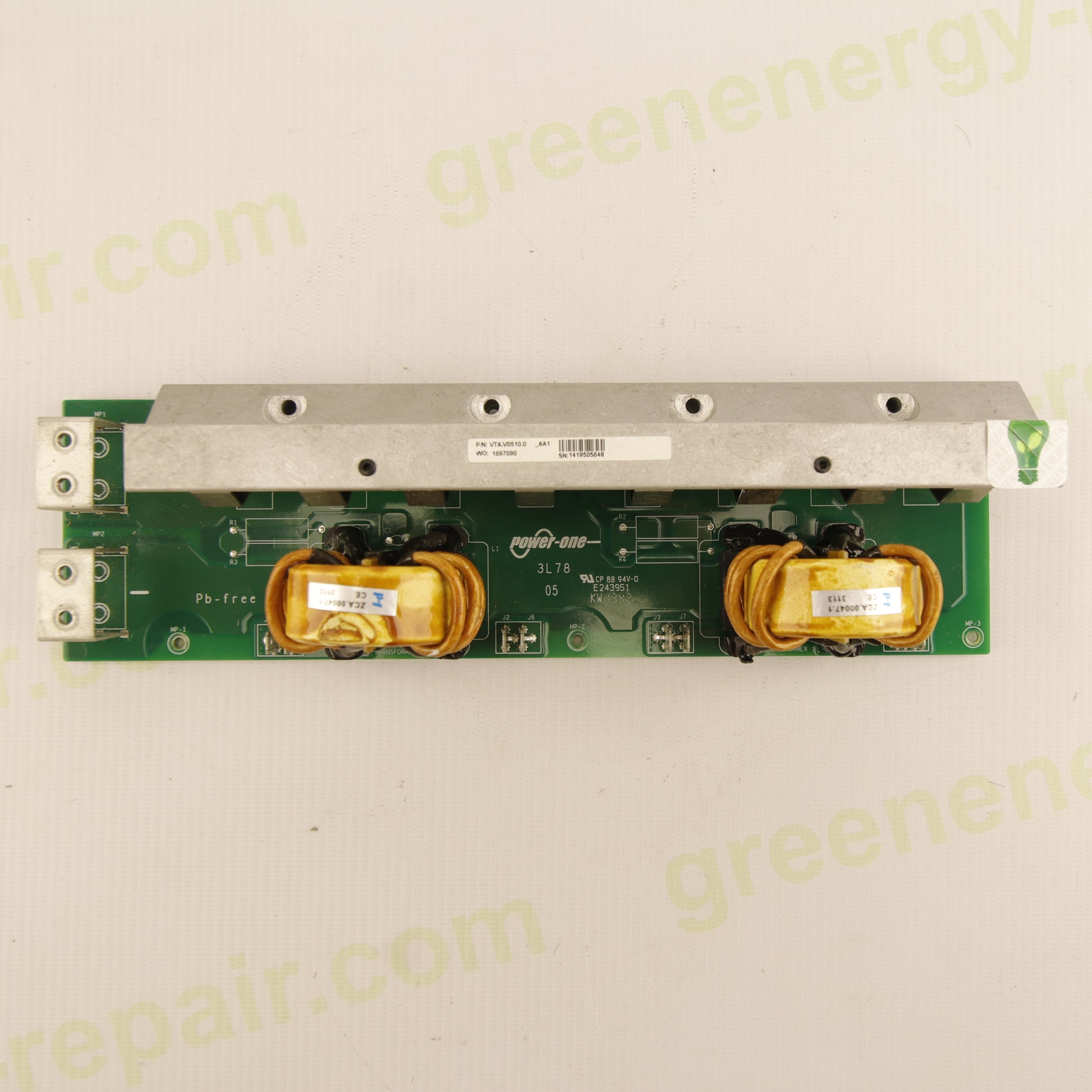

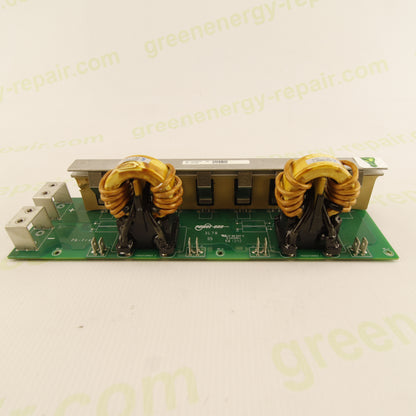

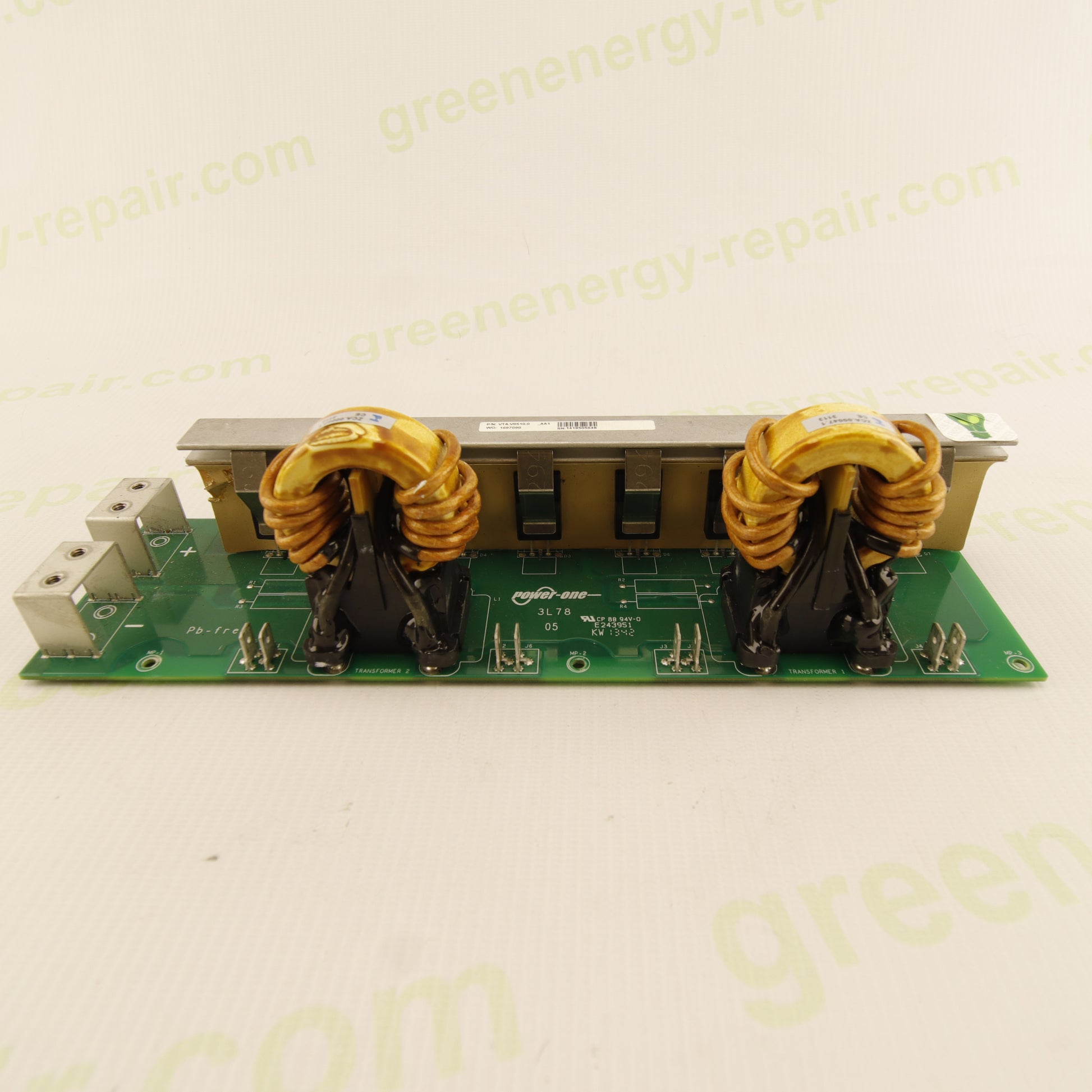

This AC output filter board is a high-power module designed for ABB / Power-One Aurora photovoltaic inverters, specifically the PVI-10.0-I-OUTD and PVI-12.0-I-OUTD (isolated versions).

It is a critical component of the inverter’s AC output stage, responsible for filtering, stabilizing, and conditioning the energy before it is fed into the electrical grid.

⚙️ Main Function

The board performs the following functions:

• AC current filtering (LC filter)
• Reduction of harmonics and EMI/RFI disturbances
• Stabilization of the sinusoidal waveform
• Support of galvanic isolation (isolated “I” version)
• Protection of both the grid and the inverter

👉 Installed between the DC/AC conversion stage and the grid output

🔧 Main Components

• Power inductors (coils) for current filtering
• High-frequency magnetic element / transformer for galvanic isolation
• Aluminum heat sink for thermal management
• Industrial-grade PCB (Power-One, Pb-free)
• High-current connection terminals

⚡ Isolated “I” Version

This board is specifically designed for galvanically isolated inverters:

• Includes a high-frequency transformer (HF)
• Provides electrical separation between DC and AC sides
• Ensures higher safety and regulatory compliance

👉 Different from “TL” (transformerless) versions, which do not include isolation

🔌 Compatibility

Used in:

• ABB / Power-One Aurora PVI-10.0-I-OUTD
• ABB / Power-One Aurora PVI-12.0-I-OUTD
• Industrial three-phase isolated inverter versions

🧩 Technical Features

• Type: AC output filter board (line filter)
• Technology: Inductive filtering + HF isolation
• Application: Three-phase photovoltaic inverter
• Cooling: Passive (heat sink)
• Installation: Internal inverter module

🛡️ Importance in the System

This board is essential to:

• Ensure high power quality (low THD)
• Comply with grid connection standards
• Reduce electrical noise and disturbances
• Guarantee stable and safe inverter operation

📊 Applications

• Industrial photovoltaic inverters
• Grid-connected energy systems
• Inverter repair and maintenance
• Replacement of AC output filter modules

📦 Product Condition

• Electronic power board
• Used / refurbished
• Tested (if applicable)
• Sold as professional technical spare part

💡 Summary

This is an AC inductive filter board for Aurora 10–12 kW inverters, a critical module that:

✔ Filters and stabilizes AC output
✔ Provides galvanic isolation
✔ Ensures safe and compliant grid connection
