📝 Description

Used product. Three-phase inductor assembly intended, according to the available identification, for the AC output filtering section of ABB / Power-One Aurora photovoltaic inverters.

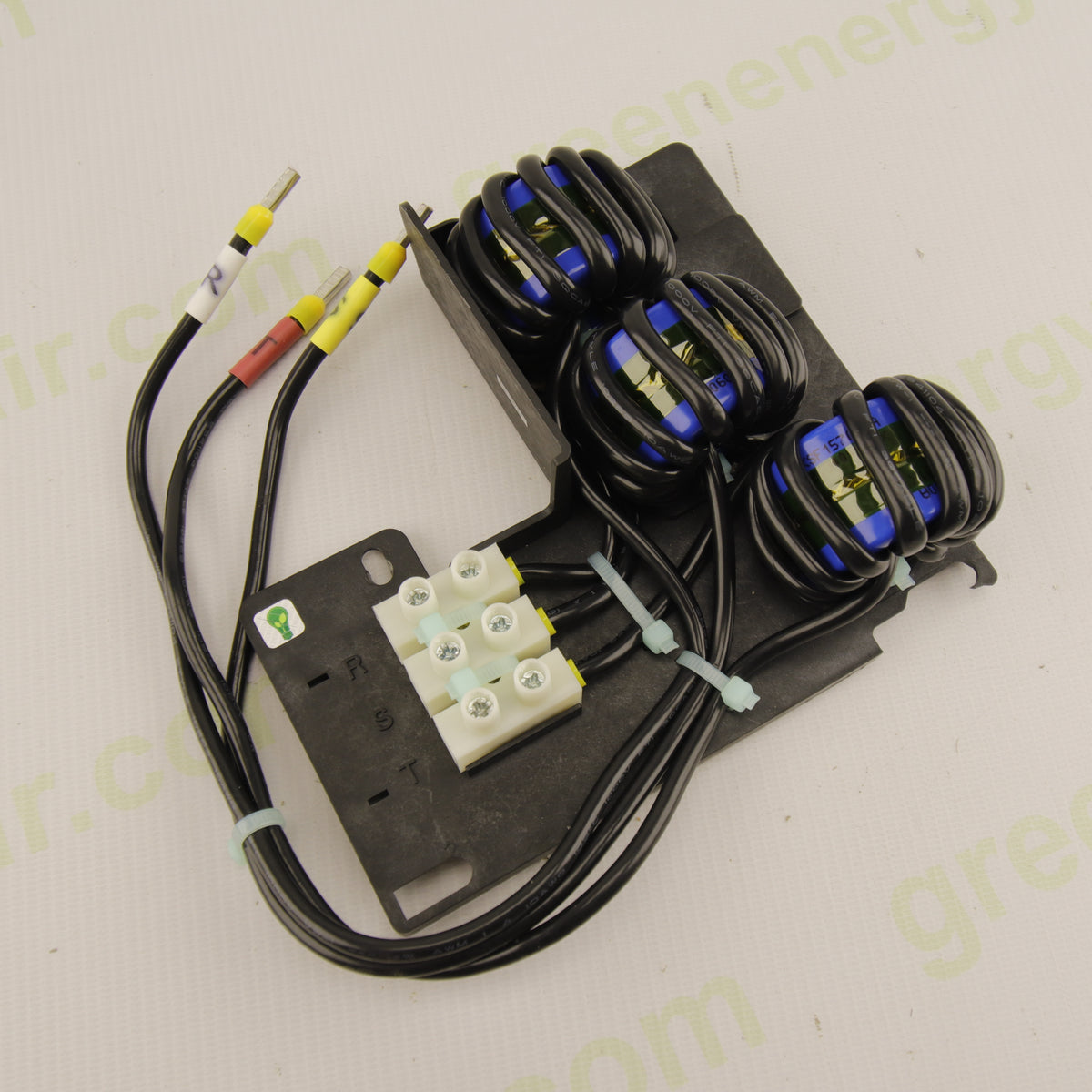

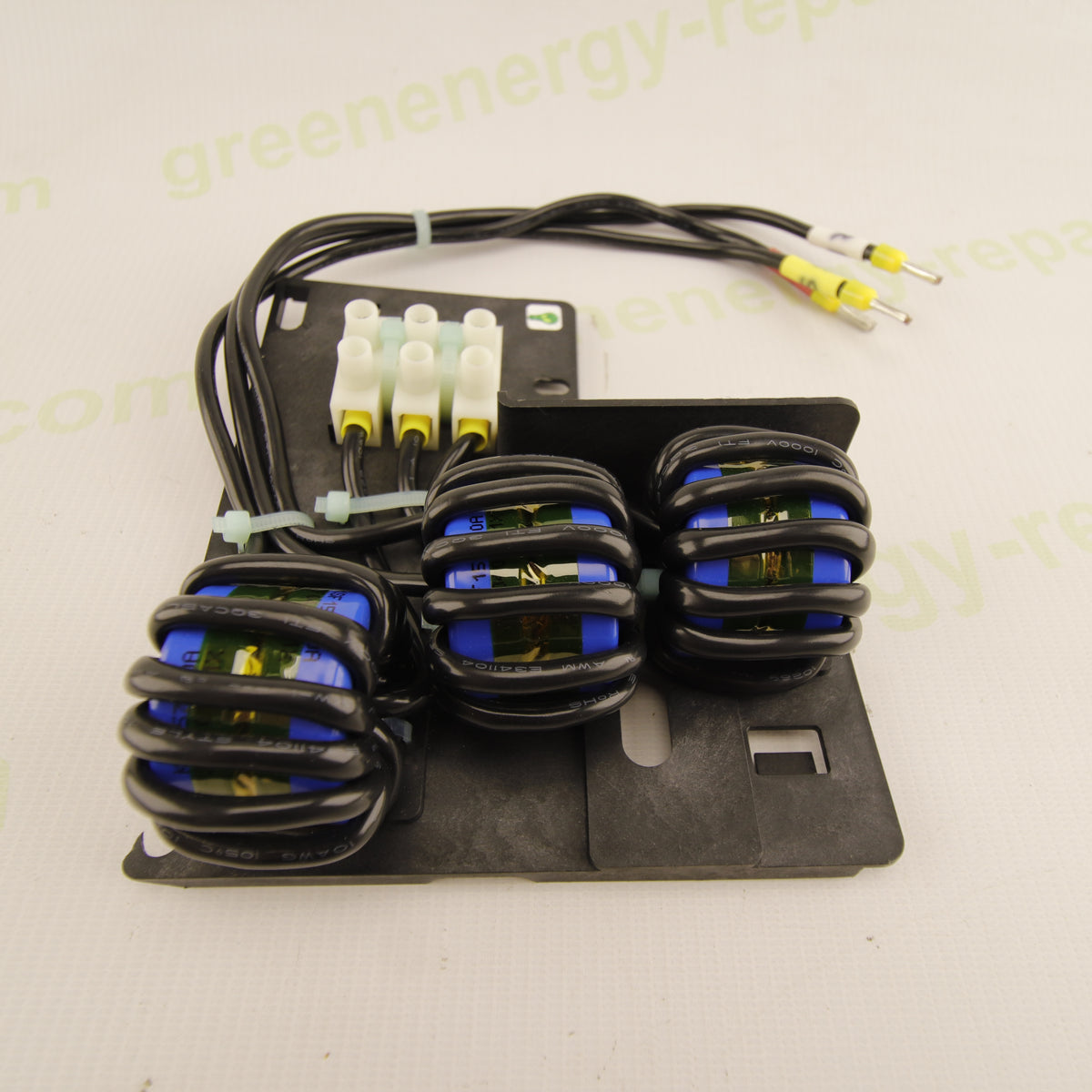

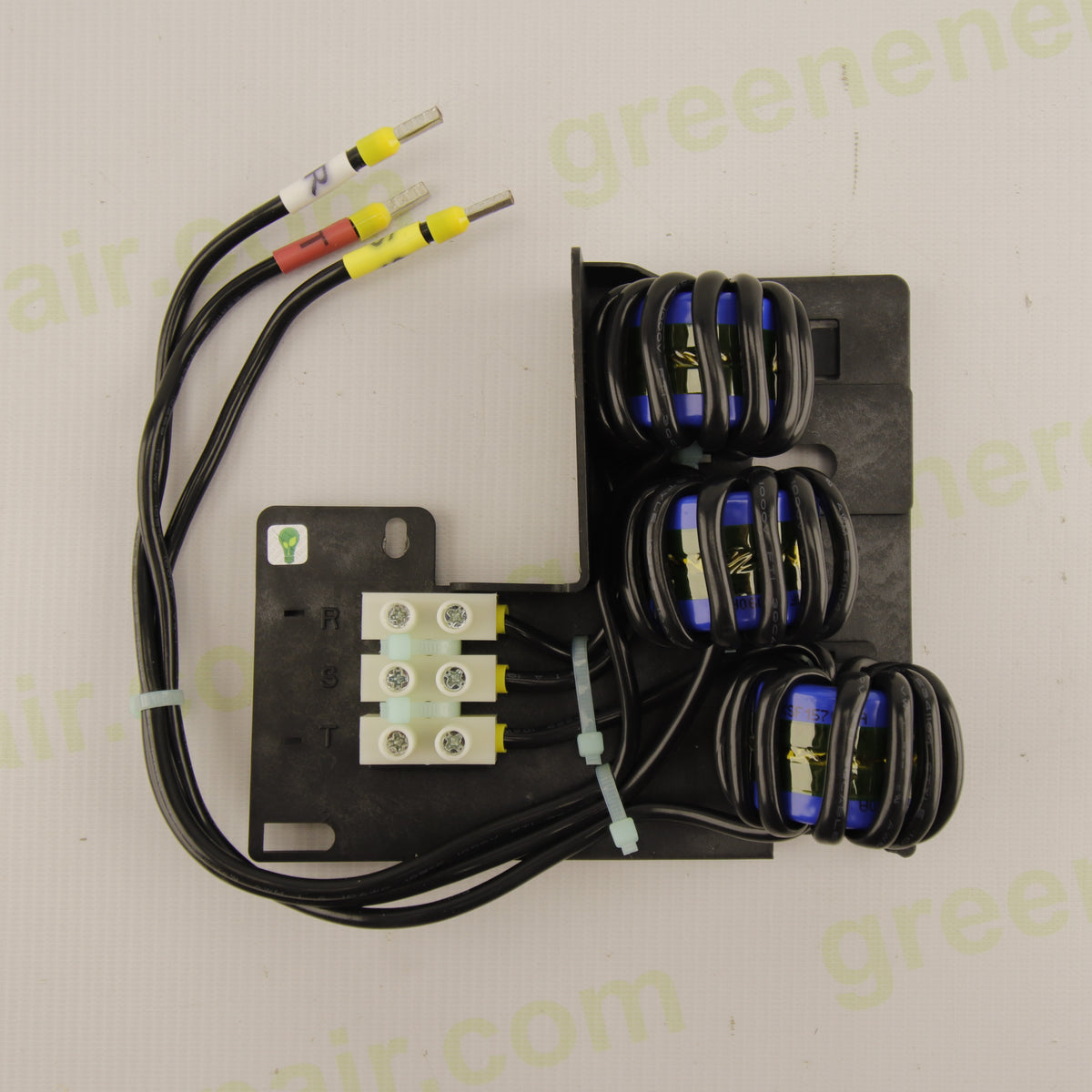

The component consists of three coils wound around magnetic cores, mounted on a metal support and complete with wiring, pin terminals and a screw terminal block. The connections are marked R, S and T, corresponding to the three phases of the circuit.
The assembly is associated with the AC filtering section of Aurora PVI-10.0 and PVI-12.5-TL-OUTD inverter families. In this section, the inductive components help filter the output current before the energy is fed into the electrical grid. ABB documentation illustrates the line filter and grid-parallel relay within the inverter architecture.
The exact function and compatibility with individual revisions must be confirmed using the replacement part number and by comparing the component with the original. The associated board code, 3G83 Pb-Free, and references to errors E030, E031, E032 and W003 must be verified for the specific model and do not constitute a definitive fault diagnosis.

⚙️ Main Specifications

• Reference equipment manufacturer: ABB / Power-One Aurora.
• Type: Three-phase AC filtering inductor assembly.
• Declared application: Inverter AC output.
• Configuration: Three coils.
• Connections: R, S and T.
• Construction: Magnetic cores with windings.
• Wiring: Black cables with pin terminals.
• Connections: Three-section screw terminal block.
• Mounting: Metal support with mounting slots.
• Assembly part number: Not legible in the photographs.
• Associated filter/relay board code: 3G83 Pb-Free, to be verified.
• Rated electrical values: Not verified.

🔌 Main Functions

• Helps filter three-phase alternating current.
• Reduces certain unwanted current components, depending on the circuit.
• Participates in the operation of the inverter's AC output section.
• Contributes to the electromagnetic compatibility of the conversion system.
  Note: This is an inductor assembly; it cannot be stated that it constitutes the entire EMC/EMI filter by itself.

⚡ Role Within the Inverter

In three-phase Aurora photovoltaic inverters, the energy generated by the panels is converted from direct current (DC) to alternating current (AC). The AC filtering section helps condition the current before connection to the electrical grid.
The pictured assembly is identified as an inductive component of this section. Its exact position in the circuit and its association with the filter and relay board must be verified against the relevant inverter revision.

🧩 Compatibility

Compatibility to be verified for:

• ABB / Power-One Aurora PVI-10.0-TL-OUTD.
• ABB / Power-One Aurora PVI-12.5-TL-OUTD.
• Other family variants, only after comparing the part number and original configuration.
  Compatibility must not automatically be extended to all -S and -FS versions or to other Aurora inverters.

🛠️ Applications

• Repair of three-phase photovoltaic inverters.
• Maintenance of the AC output section.
• Replacement of damaged inductor assemblies.
• Recovery of spare parts for compatible ABB / Power-One Aurora equipment.

💡 Advantages

• Assembly with three inductors already installed.
• Wiring and terminal block included.
• Metal support with mounting points.
• Potential replacement part for maintenance work, subject to compatibility verification.

🛡️ Product Condition

Used component with signs of wear. Electrical functionality has not been tested.
Before reuse, check winding continuity, electrical insulation, terminal condition and whether the rated values match those of the original component.

📦 Package Contents

• 1 × three-phase inductor assembly with wiring, terminal block and metal support, as shown in the photographs.

🟢 Summary

Three-phase inductor assembly intended, according to the available identification, for the AC filtering section of  PVI-10.0 and PVI-12.5 kW photovoltaic inverters. The exact part number and compatibility with individual revisions must be verified before purchase and installation.
