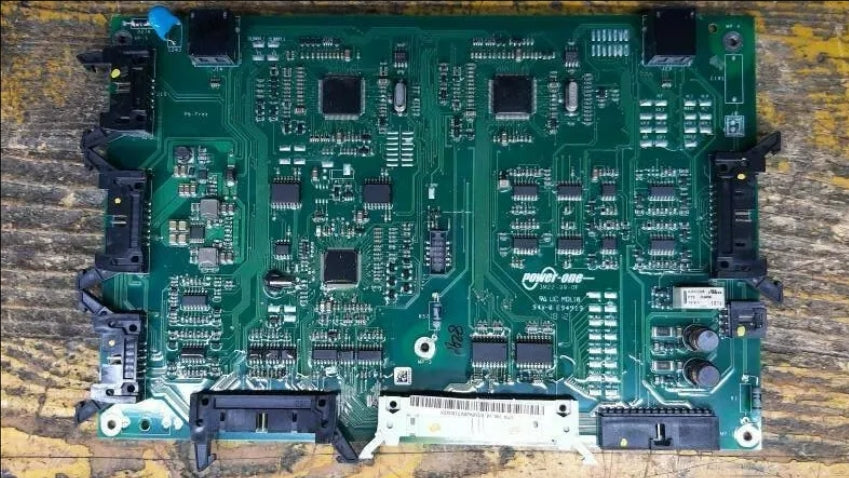

The Main Logic Control Board (CPU Board) for ABB / Power-One Aurora TRIO 20.0 kW is the central electronic unit responsible for the complete control and management of the three-phase photovoltaic inverter.

This board acts as the processing core of the system, coordinating all operational functions including energy conversion, electrical parameter monitoring, communication handling, and safety protection management.

It integrates advanced microcontrollers and DSP-based digital circuits, executing real-time algorithms for MPPT (Maximum Power Point Tracking), grid synchronization, and control of the DC/AC power stages.

Through its interfaces, the logic board communicates with all internal modules (power stage, AC filter boards, relay boards) as well as external monitoring and supervision systems.

⚙️ Main Functions

• Centralized inverter control
• MPPT algorithm management
• Supervision of DC/AC conversion process
• Monitoring of voltage, current, and frequency
• Internal and external communication management
• Fault detection and error code generation
• Control of safety and protection systems

🔌 Role Inside the Inverter

Within the ABB Aurora TRIO inverter, this board:

• Coordinates all internal electronic modules
• Processes signals from sensors and measurement circuits
• Generates control signals for power stages (IGBT/MOSFET)
• Manages startup, shutdown, and grid synchronization
• Controls safety conditions and protections
• Logs and interprets system events and faults

👉 This is the critical control unit — without it, the inverter cannot operate.

🔧 Technical Features

• High-density multilayer PCB
• Digital architecture with microcontrollers / DSP
• Real-time signal processing
• Multiple communication interfaces (internal buses, serial links)
• Isolated sections for sensitive signal handling
• Integrated diagnostic system
• Onboard auxiliary power supply

⚠️ Typical Faults & Symptoms

• Inverter not starting
• No communication with display or monitoring system
• Multiple inconsistent error messages
• Random shutdowns or continuous restarts
• Failure to synchronize with the grid
• MPPT malfunction or unstable performance

🚨 Common Error Codes

These faults may be directly or indirectly related to the logic board:

• E001 – CPU error / internal fault
• E002 – EEPROM error
• E003 – RAM error
• E004 – internal communication error
• E005 – ADC error
• E009 – firmware error
• E011 – DSP communication error
• E013 – control board error
• E031 – self-test failure
• E033 – measurement error
• E035 – internal bus error
• E042 – grid synchronization error

🛠 Product Specifications

• Manufacturer: ABB / Power-One (Aurora)
• Compatibility: TRIO 20.0 kW
• Type: Main Logic Control Board / CPU Board
• Application: Three-phase grid-tie photovoltaic inverters
• Function: Control, monitoring, and diagnostics

📊 Applications

• Repair of ABB Aurora TRIO inverters
• Replacement of faulty control boards
• Advanced inverter diagnostics
• Restoration of system communication and operation

💡 Key Advantages

• Restores full inverter functionality
• Enables proper energy production management
• Reduces downtime and maintenance costs
• Cost-effective alternative to full inverter replacement

📌 Summary

The ABB Aurora TRIO 20.0 kW Logic Control Board is the core control unit of the inverter, responsible for:

✔ Managing all operational and safety functions
✔ Controlling energy conversion and grid synchronization
✔ Handling communication and diagnostics

👉 A mission-critical component for ensuring performance, reliability, and continuous operation of photovoltaic systems.
