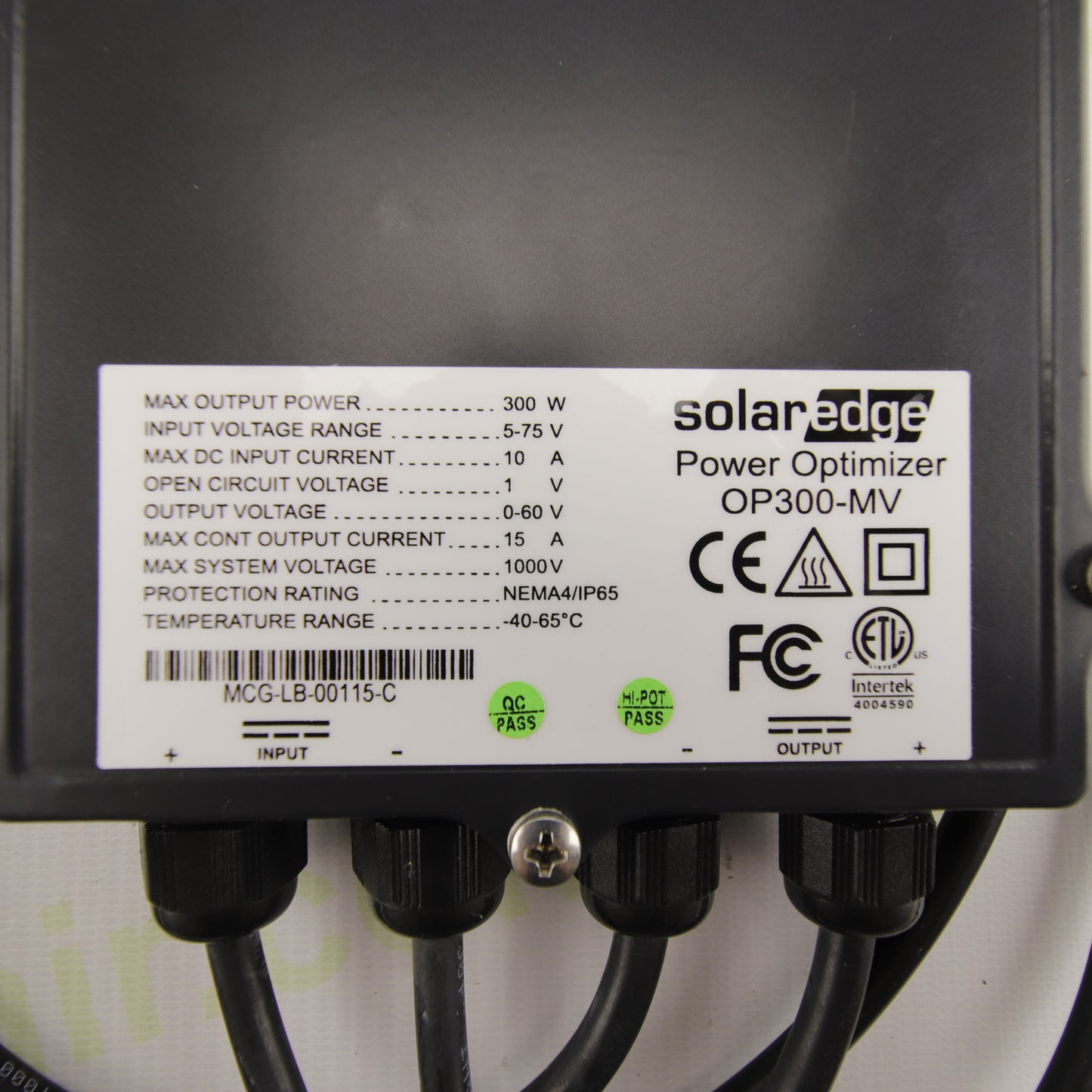

SolarEdge OP300-MV Power Optimizer 300W 5–75V 10A IP65 for Photovoltaic Modules

📘 Product Description

The SolarEdge OP300-MV is a photovoltaic power optimizer designed to maximize the energy production of individual solar modules. Integrated into SolarEdge systems, it provides module-level MPPT (Maximum Power Point Tracking) and continuous performance optimization, significantly improving overall system efficiency.

The optimizer compensates for performance losses caused by partial shading, dirt accumulation, module aging, manufacturing tolerances, and mismatches between solar panels. By allowing each module to operate independently at its optimal power point, the OP300-MV helps maximize energy harvest from the entire PV array.

With its NEMA 4 / IP65 protection rating, the device is suitable for outdoor installation and long-term operation in harsh environmental conditions.

⚙️ Technical Specifications

Identification Data

• Manufacturer: SolarEdge
• Model: OP300-MV
• Product Type: Photovoltaic Power Optimizer

Input (DC)

• Maximum Input Power: 300 W
• Input Voltage Range: 5 – 75 VDC
• Maximum Input Current: 10 A
• Open Circuit Voltage: 1 V

Output (DC)

• Output Voltage Range: 0 – 60 VDC
• Maximum Continuous Output Current: 15 A

System Specifications

• Maximum System Voltage: 1000 VDC
• Protection Rating: NEMA 4 / IP65
• Operating Temperature Range: -40°C to +65°C

Certifications

• CE
• FCC
• ETL (Intertek)

🔧 Main Features

✔ Module-level MPPT optimization

✔ Increased photovoltaic system energy production

✔ Reduced losses caused by partial shading

✔ Compensation for module mismatch and aging

✔ Individual module performance monitoring through SolarEdge systems

✔ Advanced DC-side safety functionality

✔ Greater flexibility in PV string design

✔ Outdoor-rated IP65 enclosure

🔌 Purpose and Operation

The SolarEdge OP300-MV continuously tracks and optimizes the maximum power point of each connected photovoltaic module.

By independently controlling module performance, it allows every panel to operate at its highest possible efficiency regardless of the performance of neighboring modules.

This results in:

• Increased energy yield
• Improved system efficiency
• Enhanced monitoring capabilities
• Better performance under non-uniform conditions
• Greater installation flexibility

The optimizer communicates directly with compatible SolarEdge inverters and monitoring platforms to provide module-level performance data.

☀️ Applications

Ideal for:

• Residential photovoltaic systems
• Commercial solar installations
• Roofs with partial shading
• Complex PV layouts
• SolarEdge monitoring systems
• System upgrades and retrofit projects
• Installations requiring module-level optimization

⚠️ Common Faults and Symptoms

Reduced Module Production

Symptoms:

❗ Lower energy output from the associated panel

❗ Reduced string performance

❗ Lower overall system yield

Communication Failures

Symptoms:

❗ Optimizer not detected by the inverter

❗ Missing module data in monitoring platform

❗ Intermittent communication errors

String Voltage Anomalies

Symptoms:

❗ Abnormal string voltage readings

❗ Startup issues

❗ Reduced inverter performance

Internal Electronic Failure

Symptoms:

❗ Complete optimizer shutdown

❗ Module producing no power

❗ System fault notifications

Thermal Issues

Symptoms:

❗ Excessive device temperature

❗ Intermittent production losses

❗ Safety shutdown activation

🚨 Possible Associated Errors

A faulty optimizer may contribute to:

• Optimizer Communication Error
• String Voltage Fault
• Module Not Detected
• Power Optimizer Failure
• DC Input Error
• Low Module Production Warning
• Monitoring Communication Loss
• PV String Fault
• Energy Production Reduction
• Inverter Optimizer Communication Alarm

Error messages may vary depending on the SolarEdge inverter model and firmware version.

🛠 Applications

Suitable for:

✔ SolarEdge residential PV systems

✔ Commercial photovoltaic installations

✔ Shaded rooftop applications

✔ Advanced module-level monitoring systems

✔ PV system upgrades and modernization projects

✔ Performance optimization of existing solar arrays

✅ Advantages

✔ Module-level power optimization

✔ Increased energy harvest

✔ Reduced mismatch losses

✔ Improved performance under shading conditions

✔ Advanced monitoring capabilities

✔ Enhanced DC safety features

✔ Flexible system design

✔ Proven SolarEdge reliability

📦 Package Contents

• 1 × SolarEdge OP300-MV Power Optimizer
• Integrated input and output cabling
• Original factory-installed connectors
• Cosmetic condition as shown in product photos

🔄 Compatibility

Compatible with:

• SolarEdge photovoltaic systems
• Compatible SolarEdge inverters
• Module-level monitoring installations
• Residential and commercial PV systems
• SolarEdge optimizer-based architectures

Always verify inverter and system compatibility before installation.

🟢 Summary

The SolarEdge OP300-MV is a 300W photovoltaic power optimizer designed to maximize the performance of individual solar modules through advanced module-level MPPT optimization. Featuring a 5–75V input range, 10A maximum input current, IP65 protection, and compatibility with SolarEdge monitoring systems, it improves energy production, reduces shading and mismatch losses, and provides detailed module-level performance monitoring for residential and commercial photovoltaic installations.
