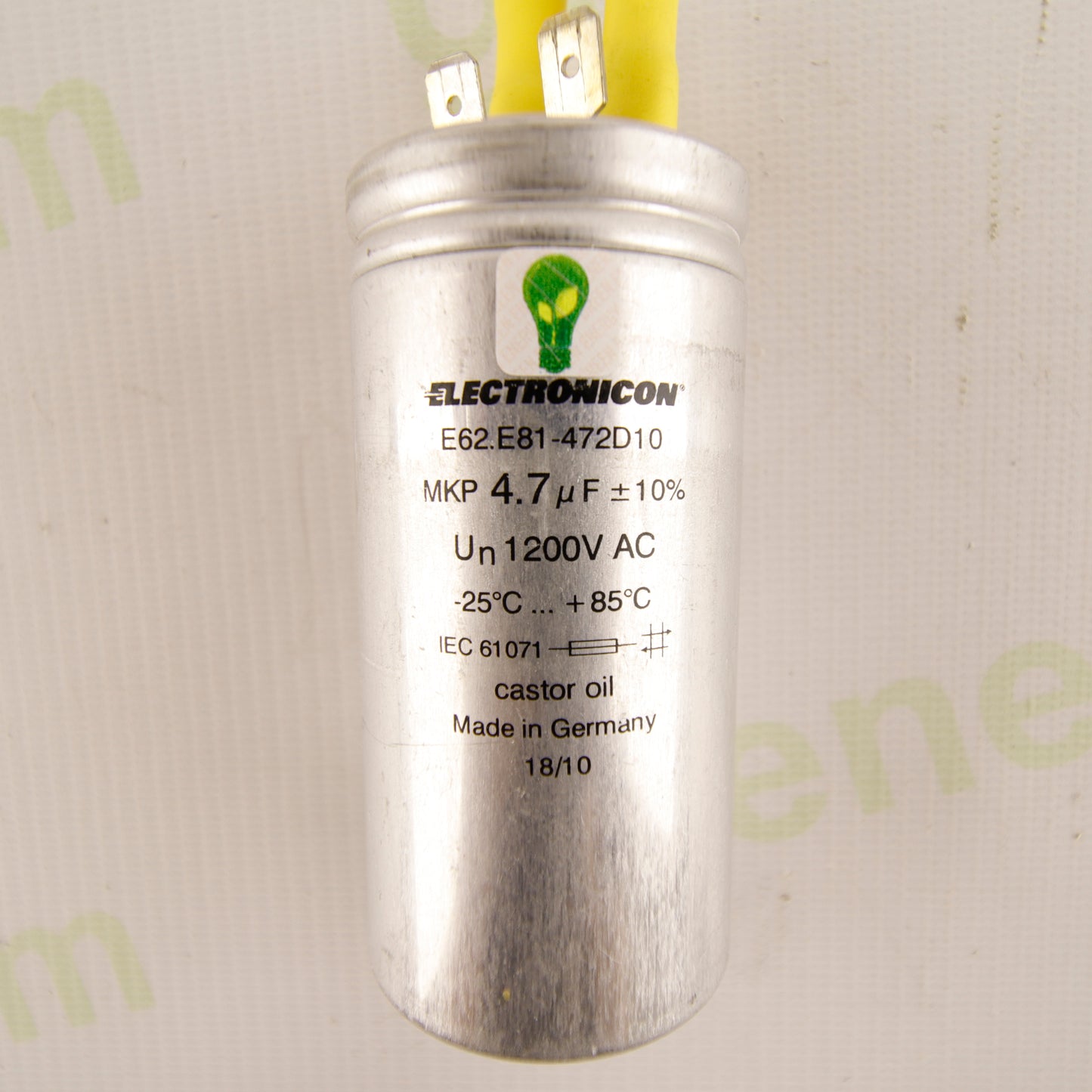

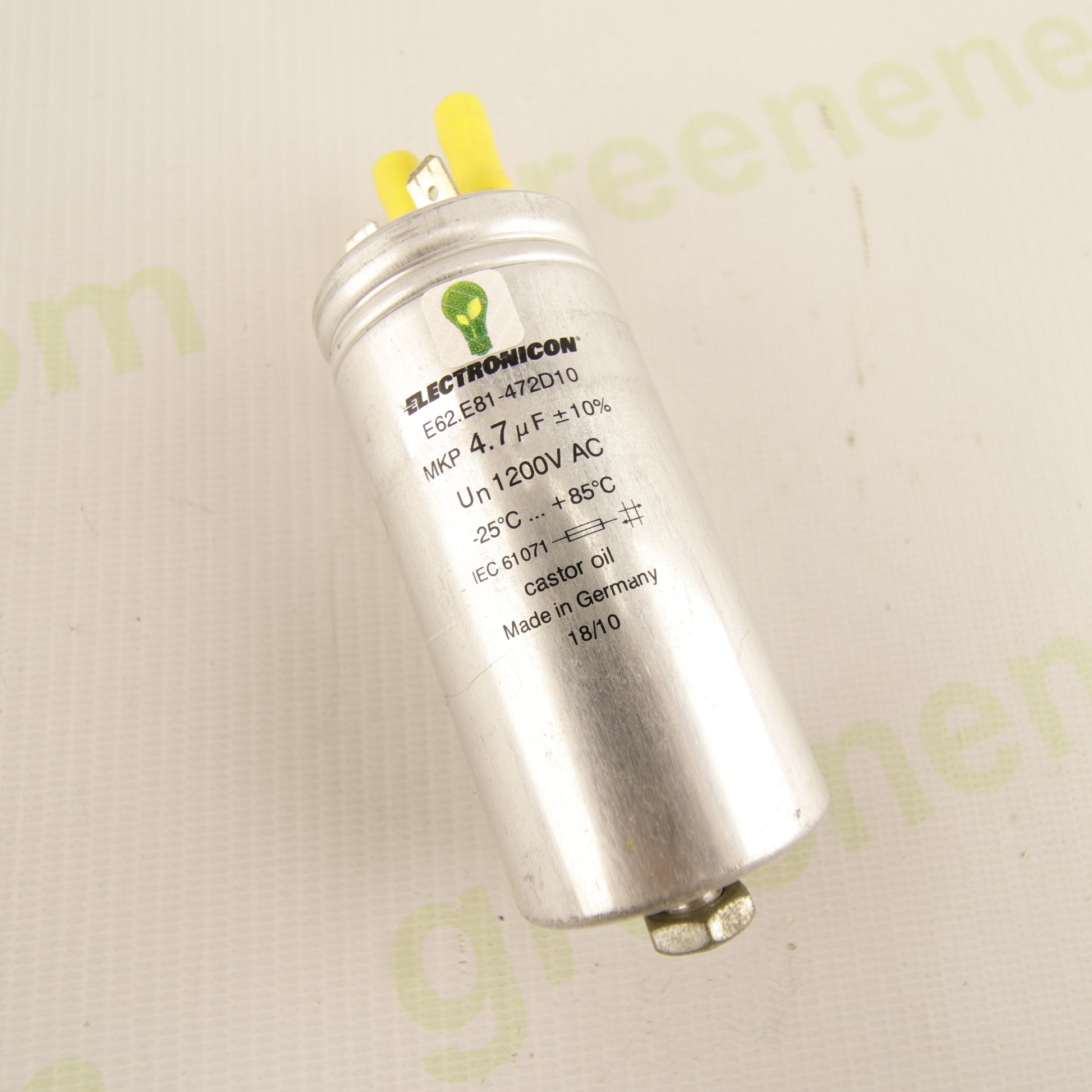

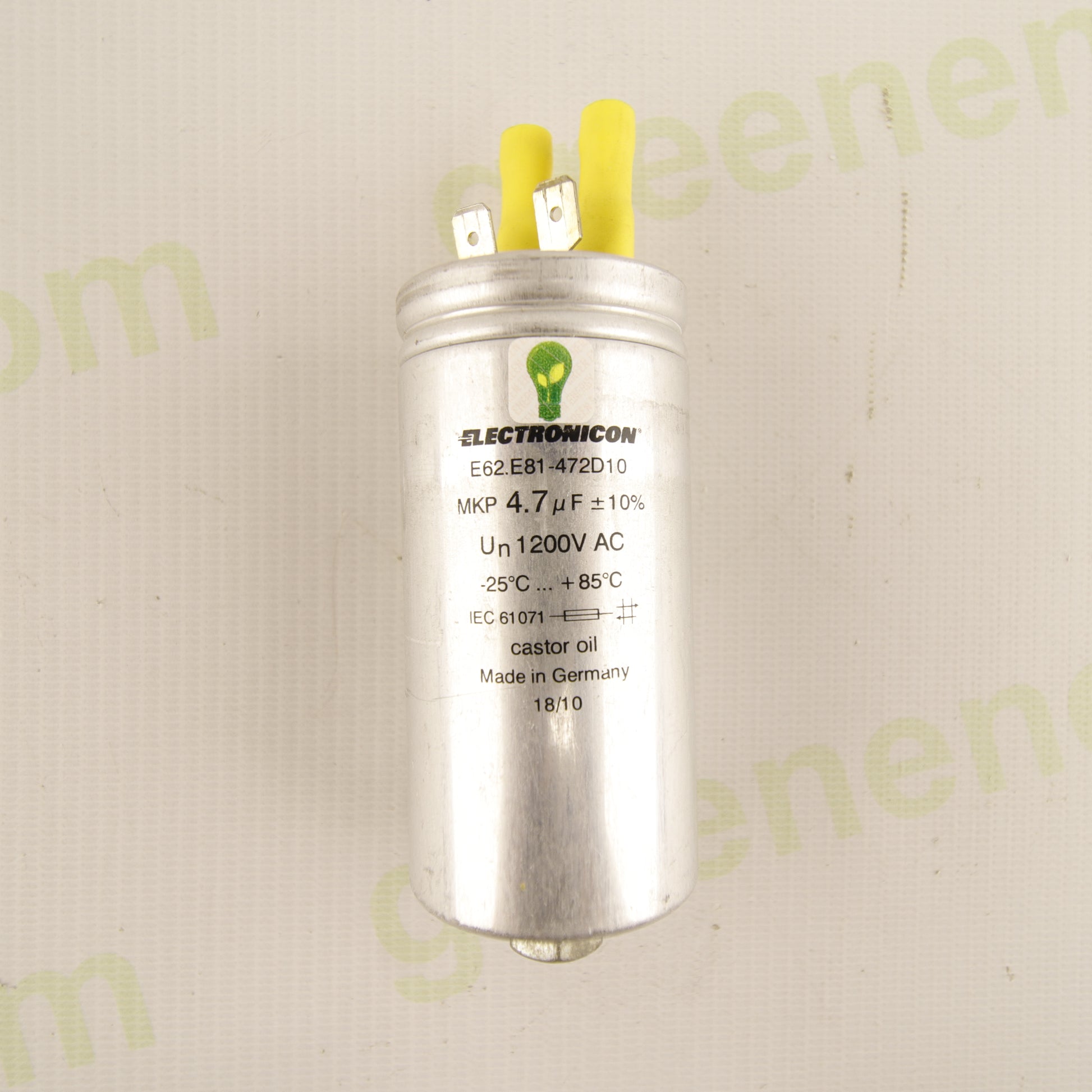

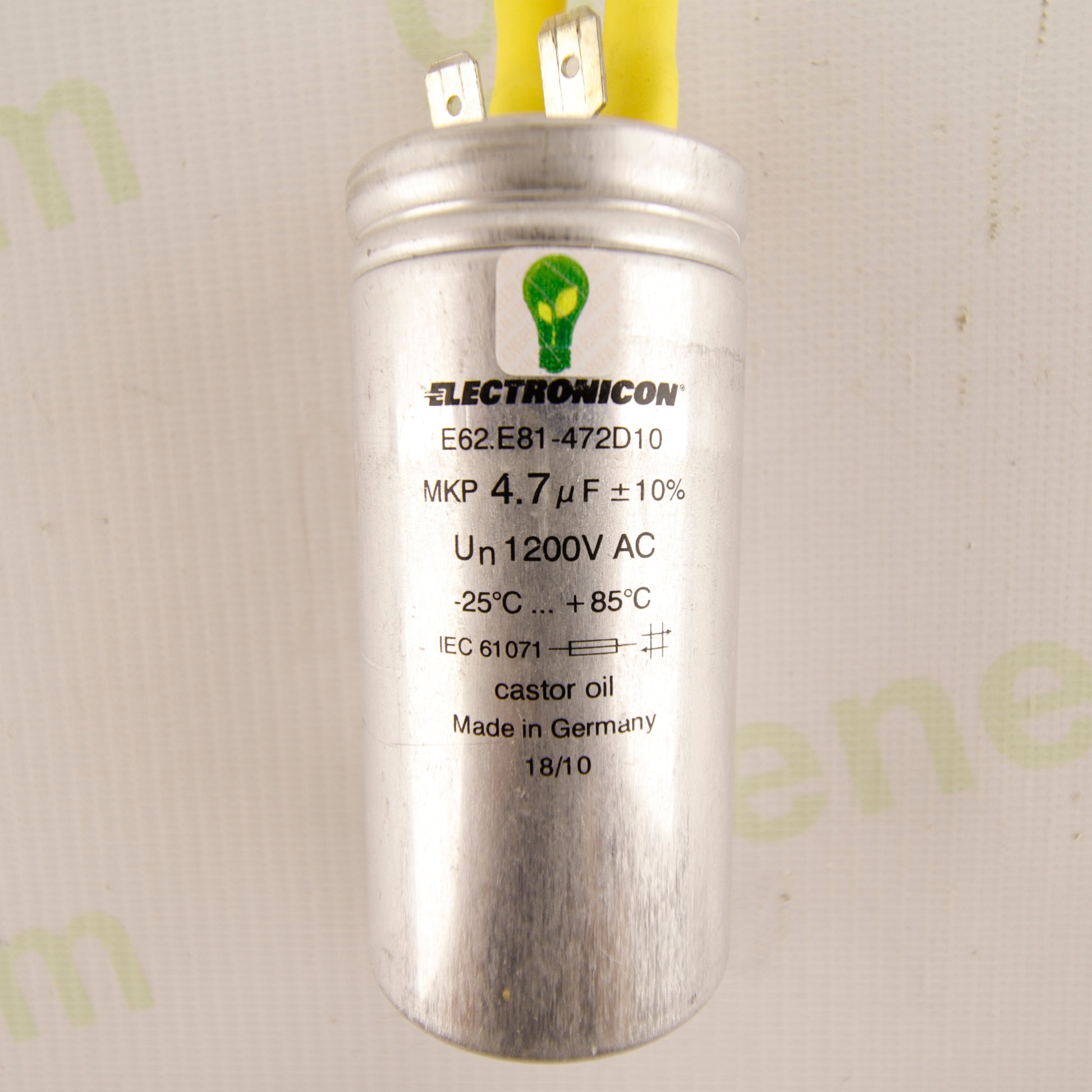

Used product. The ELECTRONICON E62.E81-472D10 is an industrial MKP film power capacitor designed for high-voltage AC power electronics and electrical applications. According to the component markings and technical documentation, it has a nominal capacitance of 4.7 µF ±10% and a rated voltage of 1200 VAC.

The capacitor uses metallized polypropylene film (MKP) technology and features a cylindrical metal housing with castor oil impregnation, as indicated by the component marking. The model belongs to the E62 Heavy Duty AC/DC series, designed for demanding power electronics applications.

⚙️ Technical Specifications

• Manufacturer: ELECTRONICON
• Model: E62.E81-472D10
• Type: Power capacitor
• Technology: MKP – metallized polypropylene film
• Nominal Capacitance: 4.7 µF
• Tolerance: ±10%
• Rated Voltage: 1200 VAC
• Indicated RMS Voltage: 850 VAC
• Test/Overvoltage US: 2100 V
• UBB Voltage: 2580 VDC
• UBG Voltage: 3000 VAC
• Maximum Current Imax: 16 A
• Peak Current Î: 0.42 kA
• Overcurrent IS: 1.3 kA
• Series Resistance RS: 4.7 mΩ
• Equivalent Inductance Le: 60 nH
• Thermal Resistance Rth: 13.8 K/W
• Nominal Energy WN: 3.4 Ws
• Dimensions: Approx. Ø40 × 81 mm
• Approx. Weight: 0.11 kg
• Design: D1
• Connection: Dual Faston terminals
• Mounting: M8 screw/stud
• Temperature Rating: -25 °C to +85 °C
• Standard: IEC 61071
• Filling: Castor Oil
• Country of Manufacture: Made in Germany
• Visible Date Code: 18/10

⚡ Function

This capacitor is designed to operate as a power capacitive component within high-voltage electrical systems.

Depending on the specific circuit, it may be used for:

• Voltage and current filtering
• Reactive power compensation and management
• Reduction of unwanted electrical signal components
• Temporary energy storage
• Power conversion circuits
• Filtering and stabilization in high-voltage AC systems

The combination of 4.7 µF capacitance and 1200 VAC rated voltage makes this component suitable for power circuits requiring high electrical strength and robust operation.

🏭 Construction & Installation

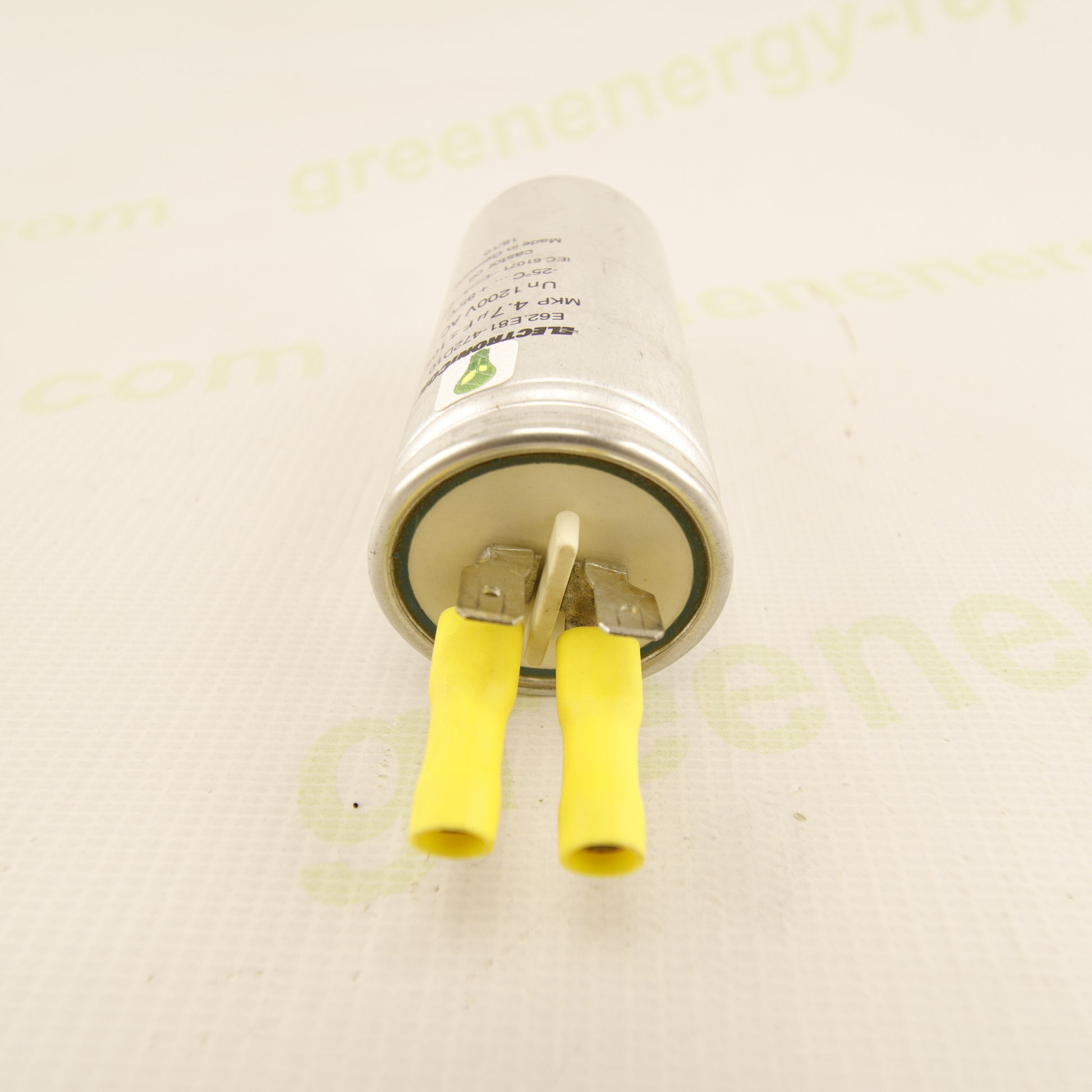

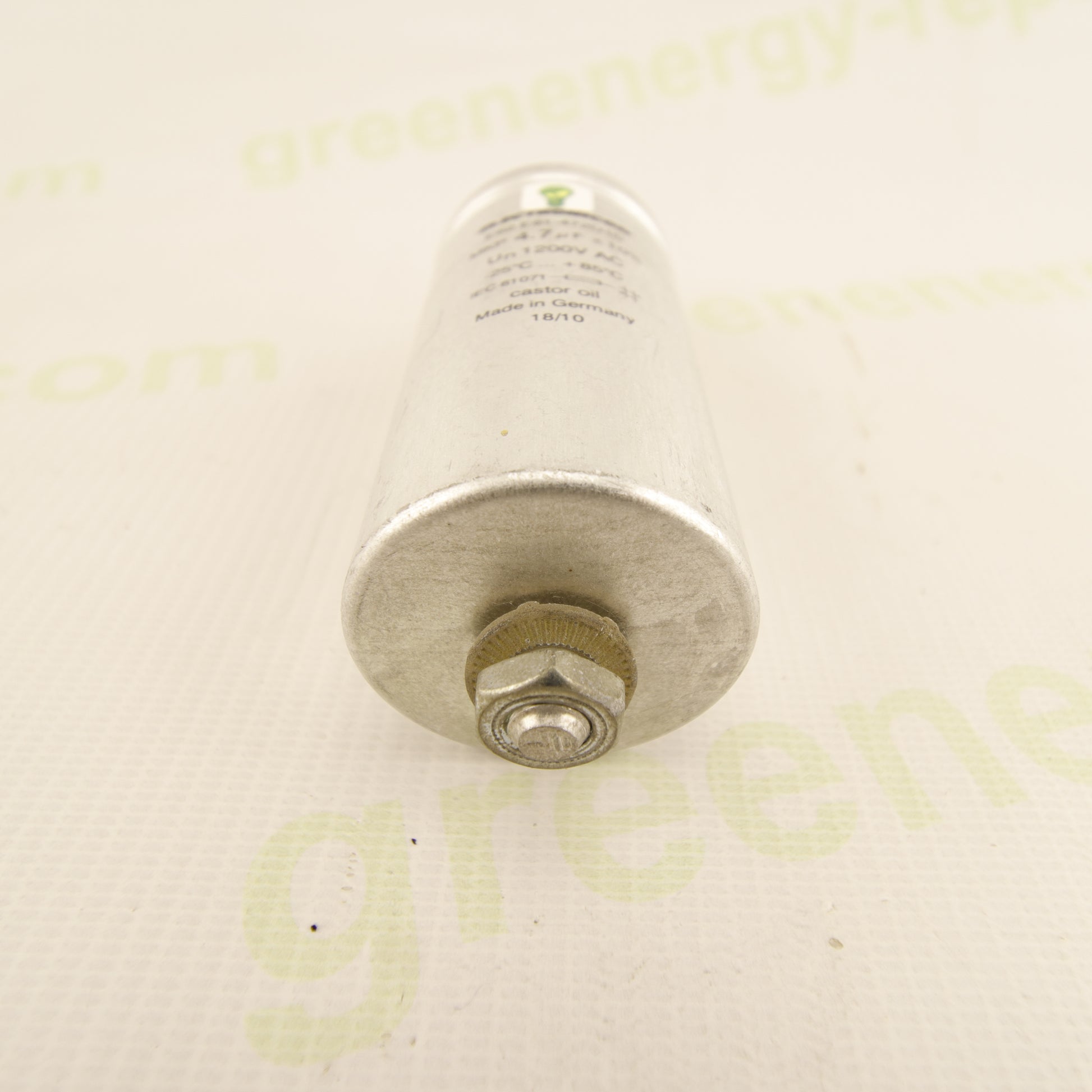

The capacitor features a cylindrical metal housing approximately 40 mm in diameter and 81 mm long. The D1 design uses dual Faston connections for electrical connection and an M8 mounting stud for mechanical fixation.The MKP metallized polypropylene film construction is designed for power applications, while the castor oil impregnation contributes to the insulation and operating characteristics of the component.Installation must comply with the capacitor's rated values and provide suitable clearances, electrical connections and protection systems according to the equipment in which it is installed.

🌐 Applications

Suitable, subject to electrical compatibility, for industrial power electronics applications including:

• Inverters and power converters
• AC/DC and DC/AC conversion systems
• Power filters
• Compensation circuits
• Industrial drives
• High-voltage electrical equipment
• Industrial energy conversion and management systems

The E62 series is designed for demanding AC/DC power applications and includes components rated for high operating voltages.

💡 Key Advantages

• 1200 VAC rated voltage
• 4.7 µF capacitance
• MKP metallized polypropylene film technology
• Robust construction for power applications
• Low series resistance of 4.7 mΩ
• Low equivalent inductance of 60 nH
• Maximum current rating of 16 A
• Compact 40 × 81 mm cylindrical design
• Dual Faston electrical connections
• M8 mounting stud
• Made in Germany

⚠️ Possible Faults & Anomalies

A deteriorated power capacitor may cause various issues in the equipment in which it is installed, including:

• Reduced capacitance compared with the nominal value
• Increased leakage current
• Increased operating temperature
• Increased electrical losses
• Damaged or loose terminals
• Loss of insulation
• Internal short circuit
• Open circuit in the event of component failure
• Instability or abnormal behavior in filtering circuits
• Activation of equipment protection systems

The internal electrical condition of the capacitor cannot be determined from photographs alone. Proper testing requires instrumental measurements of capacitance and insulation, together with loss and current measurements where applicable.

🛡️ Safety & Product Condition

The photographed component is a used product and may show normal cosmetic signs of previous use and handling on the metal housing and terminals. Before use, it is necessary to verify the integrity of the housing, condition of the terminals, actual capacitance and electrical insulation.

⚠️ As this is a high-voltage capacitor, it must be considered potentially charged until it has been properly discharged. Handling and testing must only be carried out using procedures and equipment suitable for the component's rated voltage.

📦 Package Contents

• 1 × ELECTRONICON E62.E81-472D10 Power Capacitor
• Capacitance: 4.7 µF ±10%
• Rated Voltage: 1200 VAC
• Dual Faston terminals and M8 mounting stud, according to the model
