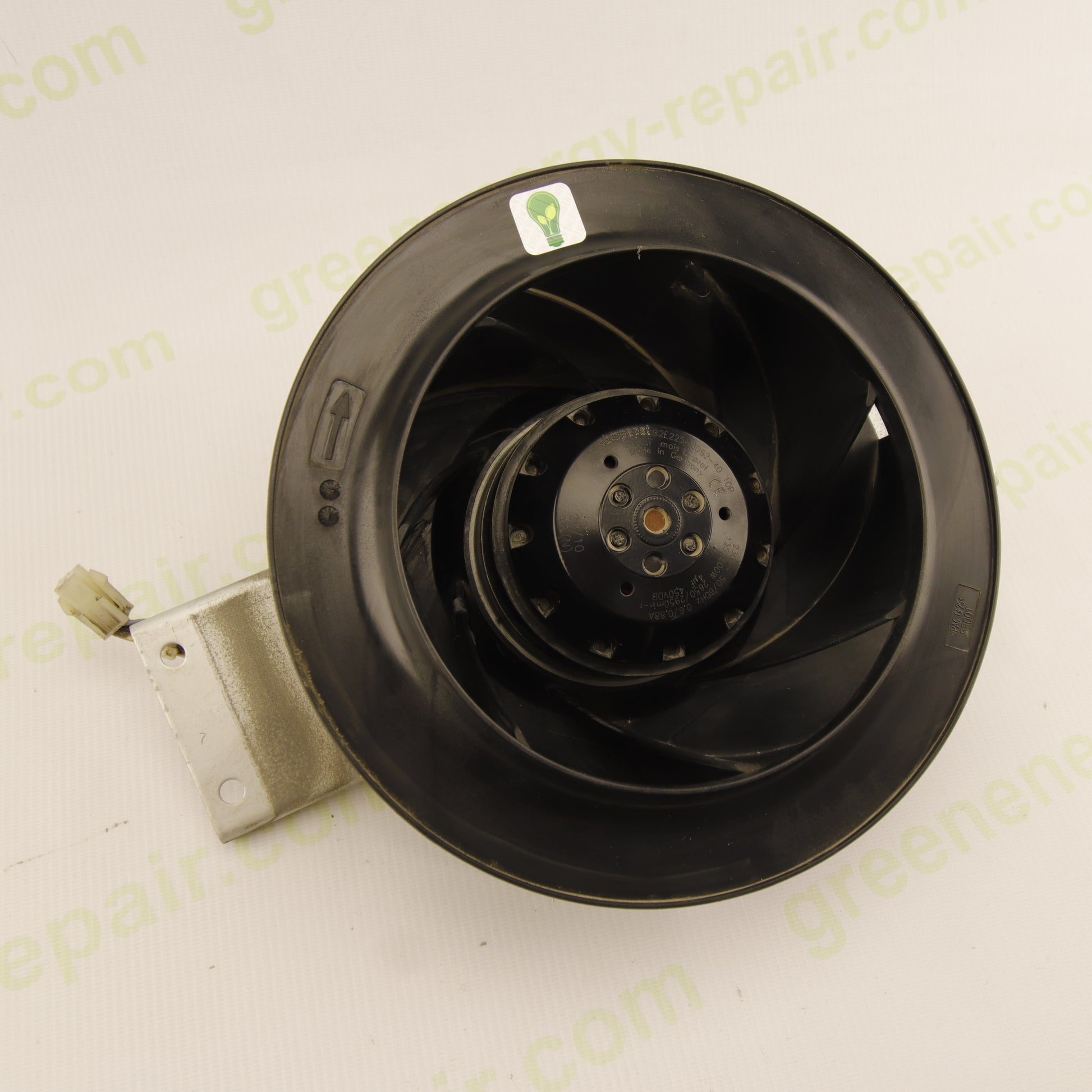

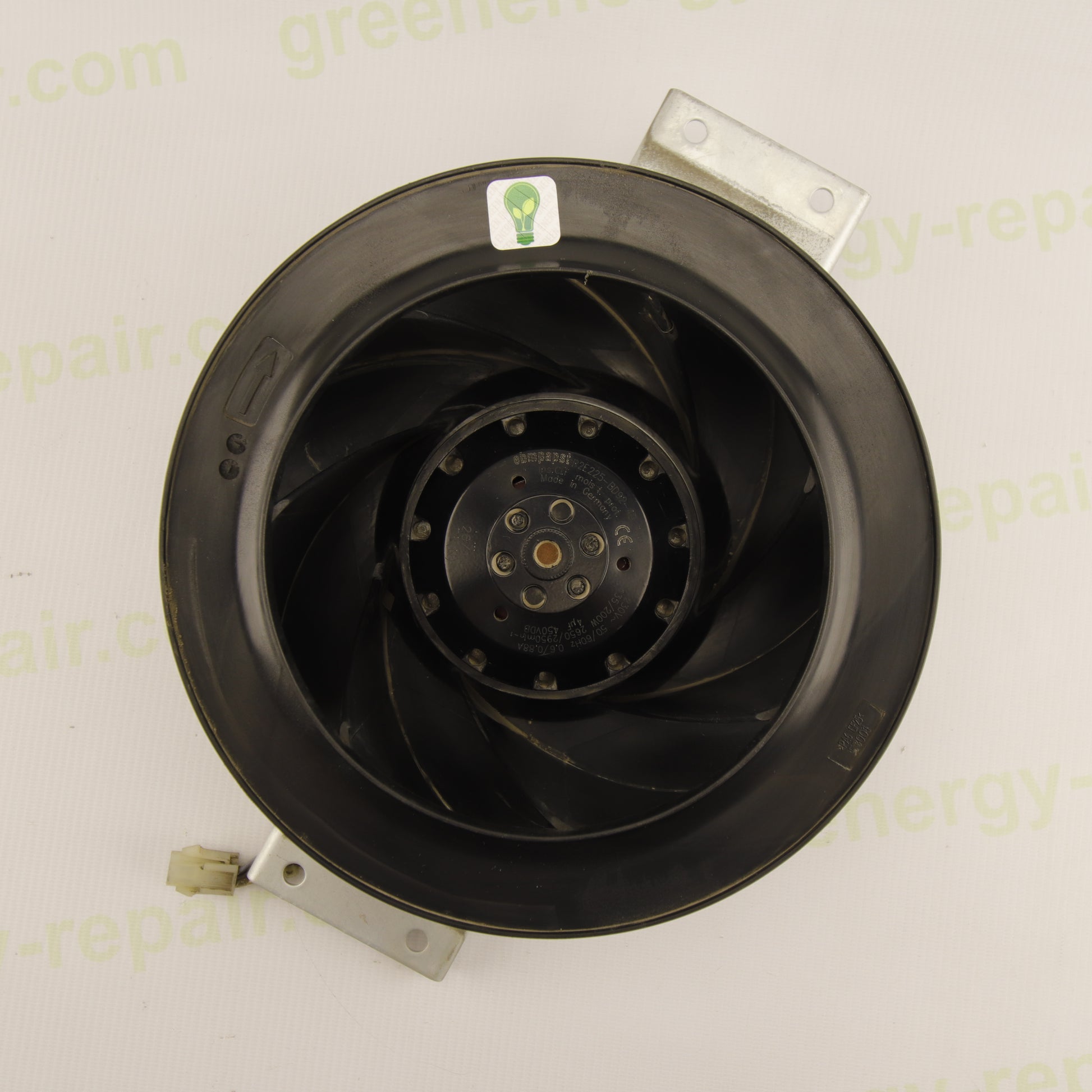

Used product. The ebm-papst R2E225-BD92-40 is a professional single-inlet backward-curved centrifugal blower designed for industrial ventilation and cooling applications requiring high airflow, high static pressure, and reliable continuous operation.

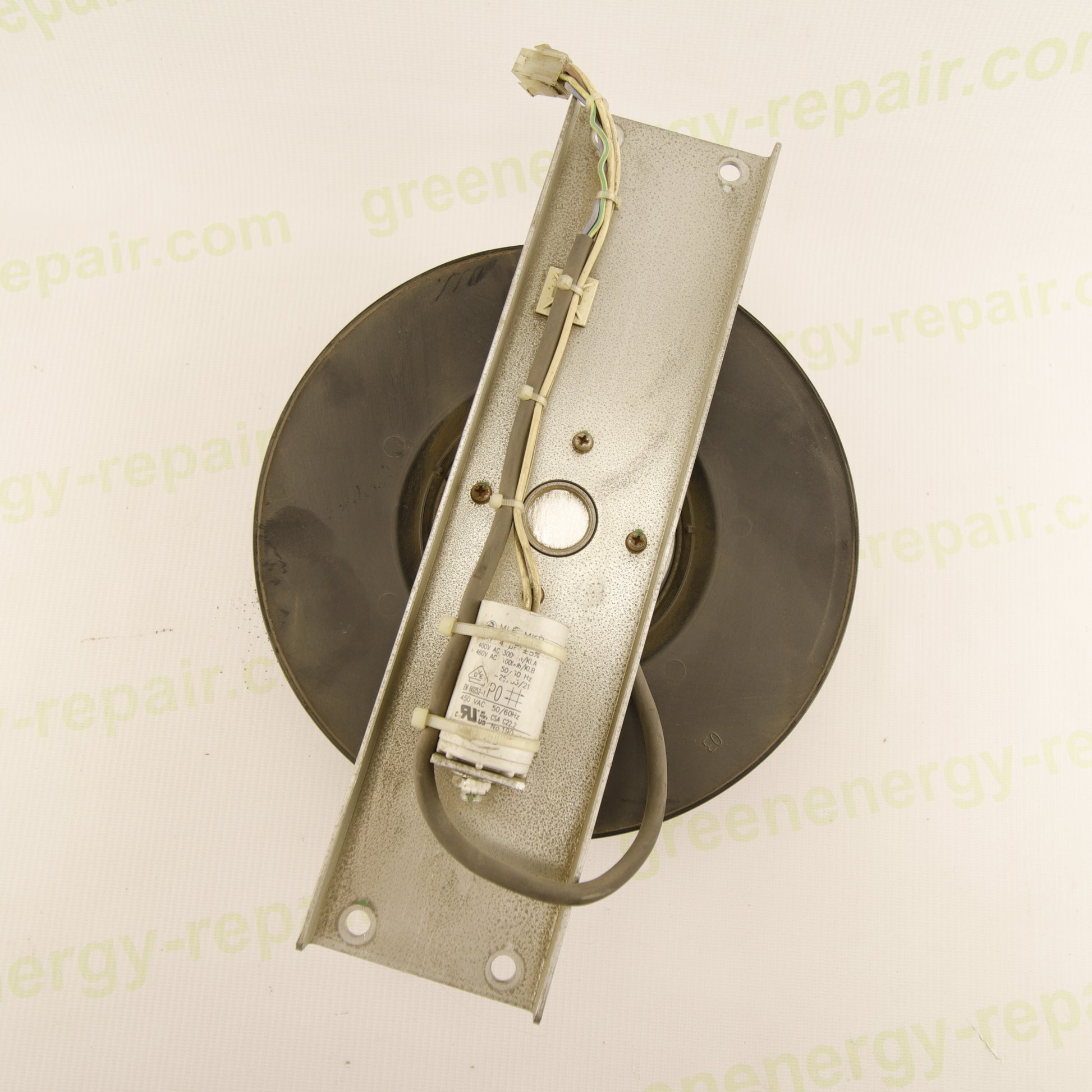

Manufactured by ebm-papst, this blower features a single-phase AC external rotor motor with integrated TOP (Thermal Overload Protector), Class F insulation, and moisture protection. It is supplied complete with the original metal mounting bracket, original wiring harness with connector, and a 4 µF ±5% / 450 VAC permanent run capacitor, allowing quick installation or replacement in compatible equipment.
⚙️ Technical Specifications
🔌 Electrical Specifications
- Nominal Voltage: 230 VAC
- Frequency: 50 / 60 Hz
- Rated Current:
- 0.60 A (50 Hz)
- 0.88 A (60 Hz)
- Power Consumption:
- 135 W (50 Hz)
- 200 W (60 Hz)
⚙️ General Specifications
- Manufacturer: ebm-papst
- Model: R2E225-BD92-40
- Type: Single-Inlet Backward Curved Centrifugal Blower
- Impeller Diameter: 225 mm
- Motor Type: Single-Phase AC External Rotor Motor
- Speed:
- 2650 RPM (50 Hz)
- 2950 RPM (60 Hz)
- Motor Protection: TOP (Thermal Overload Protector)
- Insulation Class: Class F
- Moisture Protection: Yes
- Duty Rating: Continuous Duty (S1)
- Country of Manufacture: Made in Germany

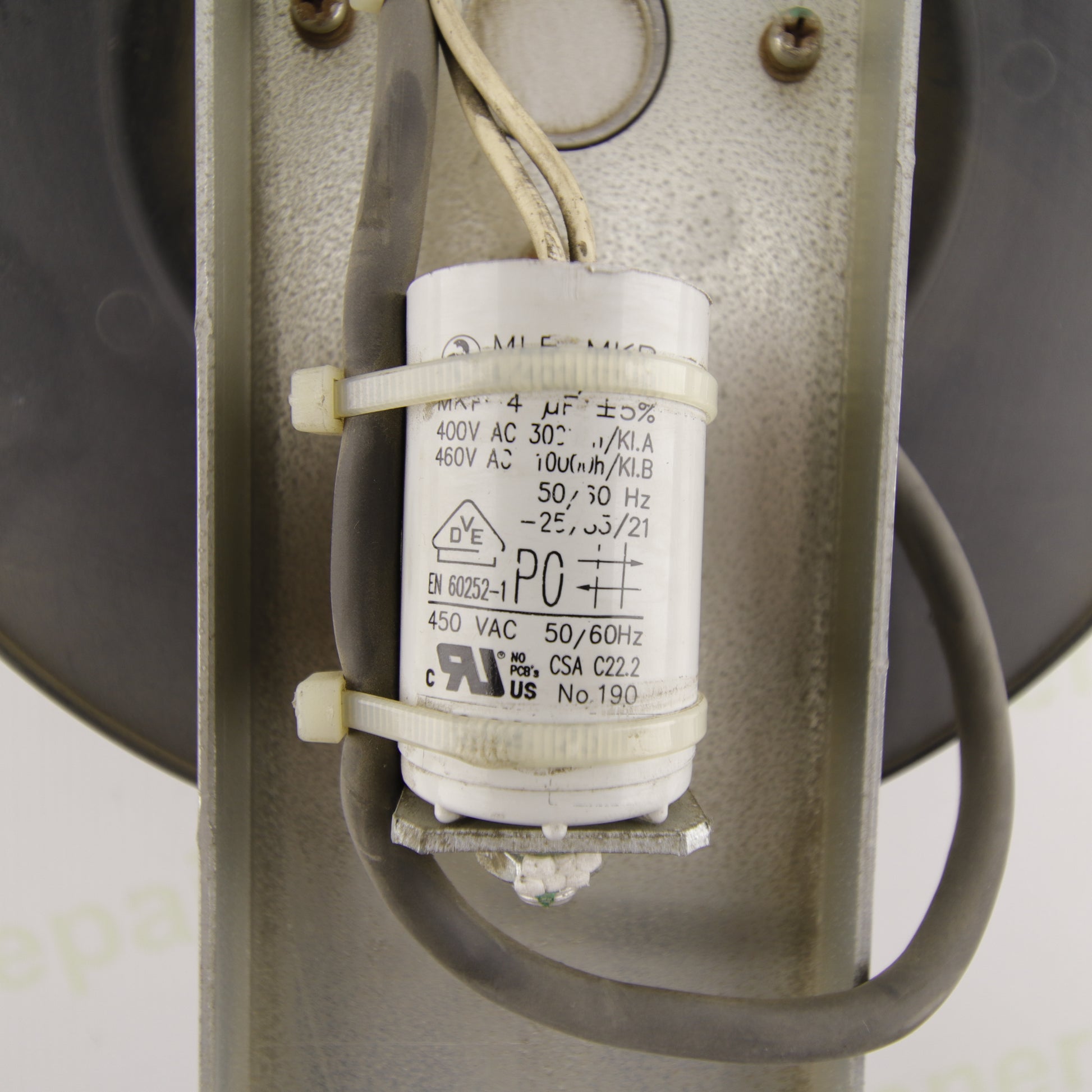

⚙️ Run Capacitor
- Capacitance: 4 µF ±5%
- Rated Voltage: 450 VAC
- Frequency: 50 / 60 Hz
- Standard: EN 60252-1
- Climatic Category: −25/85/21
- Service Life:
- 3,000 h at 400 VAC (Class A)
- 10,000 h at 460 VAC (Class B)
- Certifications: VDE, cRUus, CSA C22.2
🔧 Key Features
- ✔️ Genuine ebm-papst centrifugal blower
- ✔️ High-efficiency backward-curved impeller
- ✔️ Single-phase AC external rotor motor
- ✔️ Integrated TOP thermal overload protection
- ✔️ Class F insulation
- ✔️ Moisture-protected motor
- ✔️ Original 4 µF / 450 VAC run capacitor included
- ✔️ Original mounting bracket and wiring harness
- ✔️ High static pressure and long service life
- ✔️ Designed for continuous industrial operation
🔗 Typical Applications
- Photovoltaic inverters
- Power converters
- Industrial UPS systems
- HVAC equipment
- Electrical control cabinets
- Automation control panels
- Air handling units (AHU)
- Industrial filtration systems
- Power electronic cooling
- Industrial machinery
📦 Package Contents
- 1 × ebm-papst R2E225-BD92-40 Centrifugal Blower
- Original Metal Mounting Bracket
- Original 4 µF ±5% / 450 VAC Run Capacitor
- Original Wiring Harness
- Original Connector
🚀 Overview
The ebm-papst R2E225-BD92-40 is a professional 225 mm backward-curved centrifugal blower designed for demanding industrial ventilation and cooling applications. Supplied as a complete assembly with the original mounting bracket, run capacitor, and wiring harness, it provides high airflow, excellent static pressure, and dependable continuous operation. It is an ideal original replacement for photovoltaic inverters, HVAC systems, power converters, industrial control cabinets, and other equipment requiring efficient and reliable cooling.
