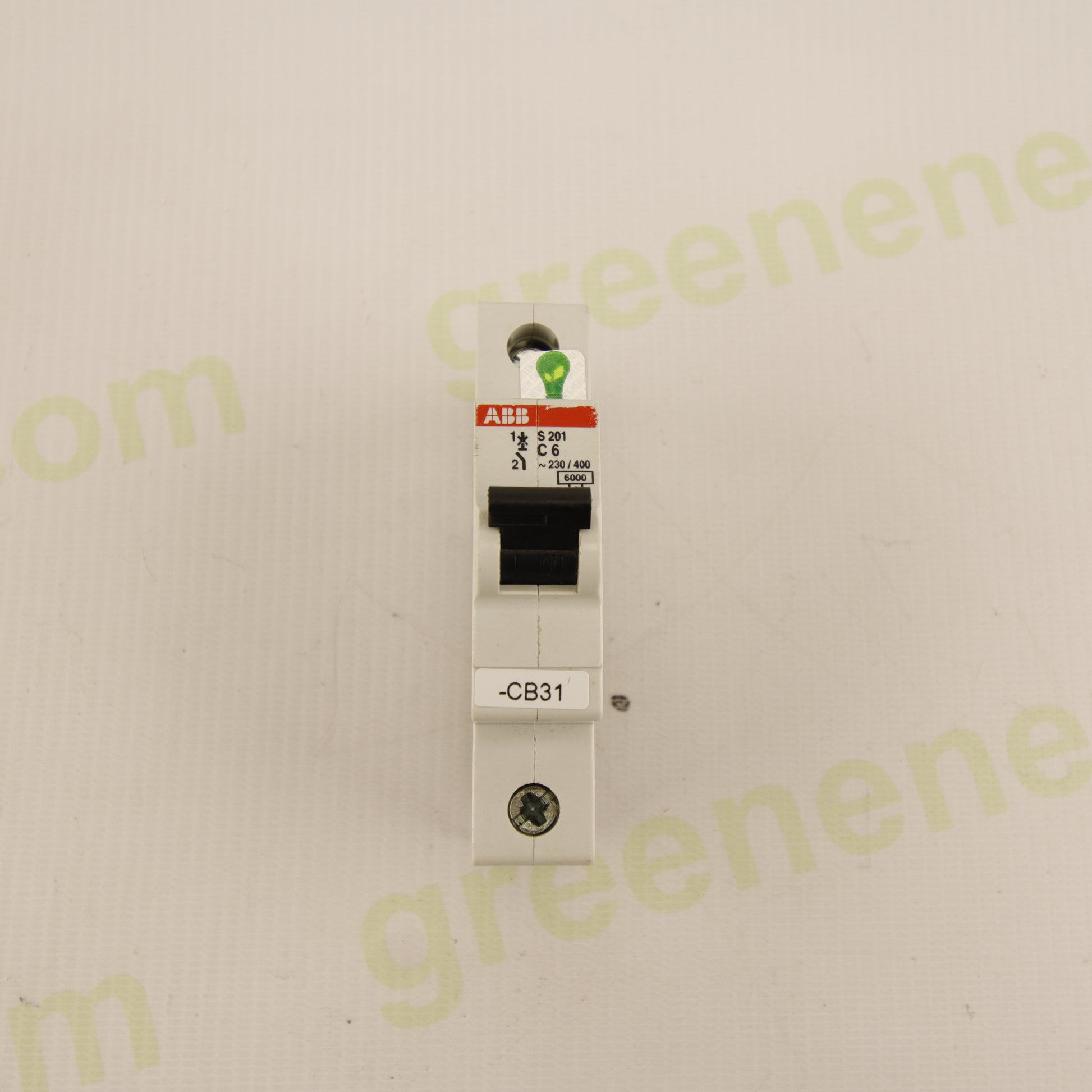

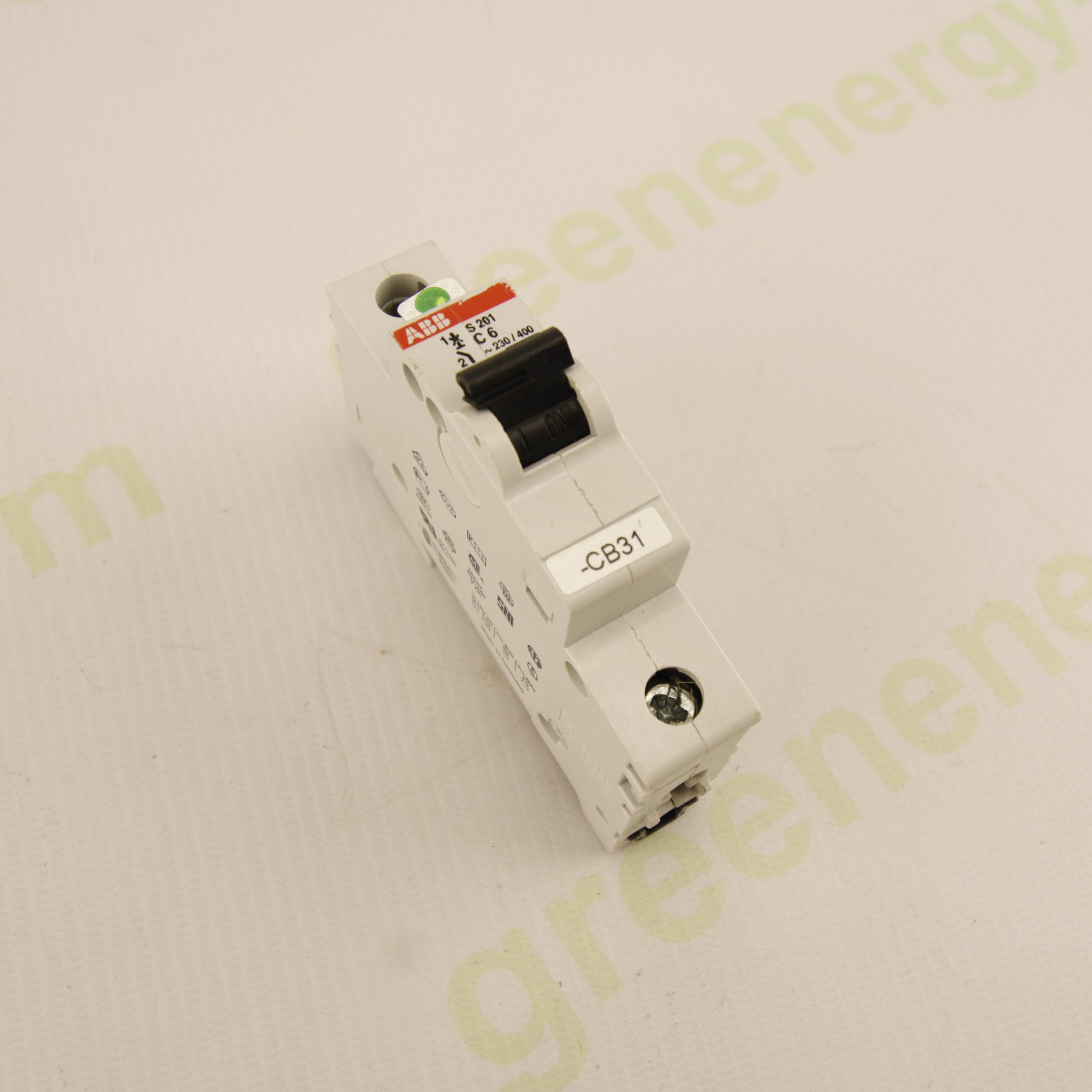

The ABB S201 C6 is a single-pole miniature circuit breaker (MCB) from the professional S200 series, designed to protect electrical circuits against overloads and short circuits in residential, commercial, and light industrial installations.

With a rated current of 6A and C tripping curve, this device is ideal for protecting light-load circuits with moderate inrush currents, such as lighting lines, auxiliary circuits, and control systems.

ABB’s high manufacturing standards ensure excellent reliability, long operational life, and full compliance with international standards.

⚙️ Technical Specifications

Brand: ABB
Model: S201
Series: S200
Rated current (In): 6 A
Tripping curve: C
Number of poles: 1P (single-pole)
Rated voltage: 230/400 V AC
Breaking capacity: 6 kA (6000 A)
Frequency: 50/60 Hz
Mounting: DIN rail (35 mm)
Operating handle: Front lever with ON/OFF indication
Marking: CE

🔒 Protection Functions

✔ Thermal protection against prolonged overloads
✔ Magnetic protection against short circuits
✔ Safe circuit isolation
✔ High mechanical and electrical reliability

🏭 Applications

✔ Lighting circuits
✔ Auxiliary lines
✔ Residential electrical panels
✔ Light industrial installations
✔ Automation systems

The C curve characteristic allows use with loads that have small starting currents.

🛠 Installation

• Mounting on standard 35 mm DIN rail

• Screw terminal connections

• Fully compatible with ABB modular systems
