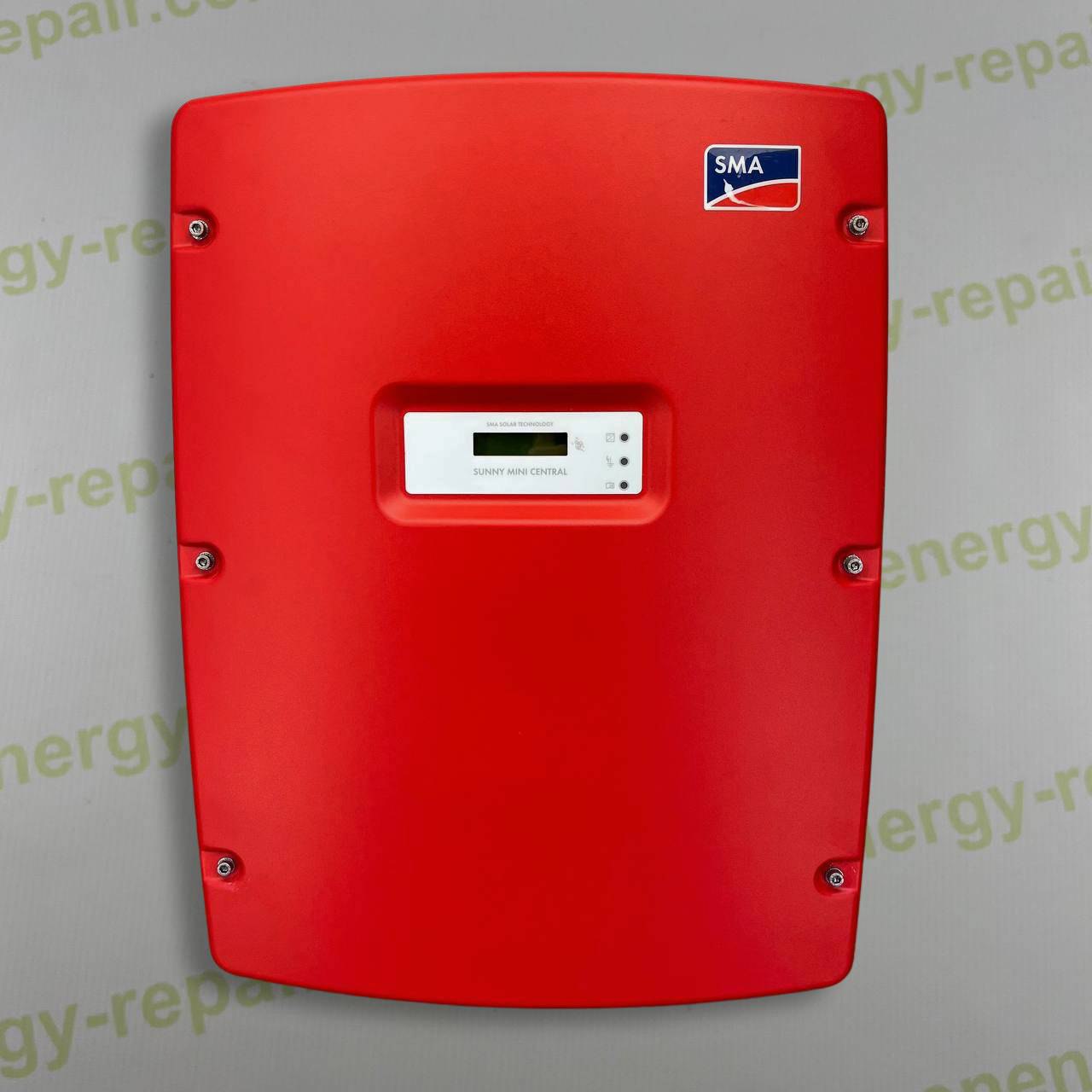

The SMA Sunny Mini Central SMC 10000TL-10/IT is a high-performance 10 kW single-phase string inverter designed for medium to large residential or commercial PV systems. Engineered by SMA Solar Technology AG, this inverter is part of the trusted Sunny Mini Central line, known for reliability, overload resilience, and long-term outdoor durability.

Built with active cooling, a robust aluminum housing, and support for wide MPPT voltage ranges, this unit delivers stable grid-tied power under varied conditions. Ideal for installations requiring high efficiency and professional-grade design.

🏠 Application: Residential and commercial PV systems
🌍 Certifications: DK 5940 Ed. 2.2, CE, TÜV, RAL
🇩🇪 Manufactured by: SMA Solar Technology AG, Germany

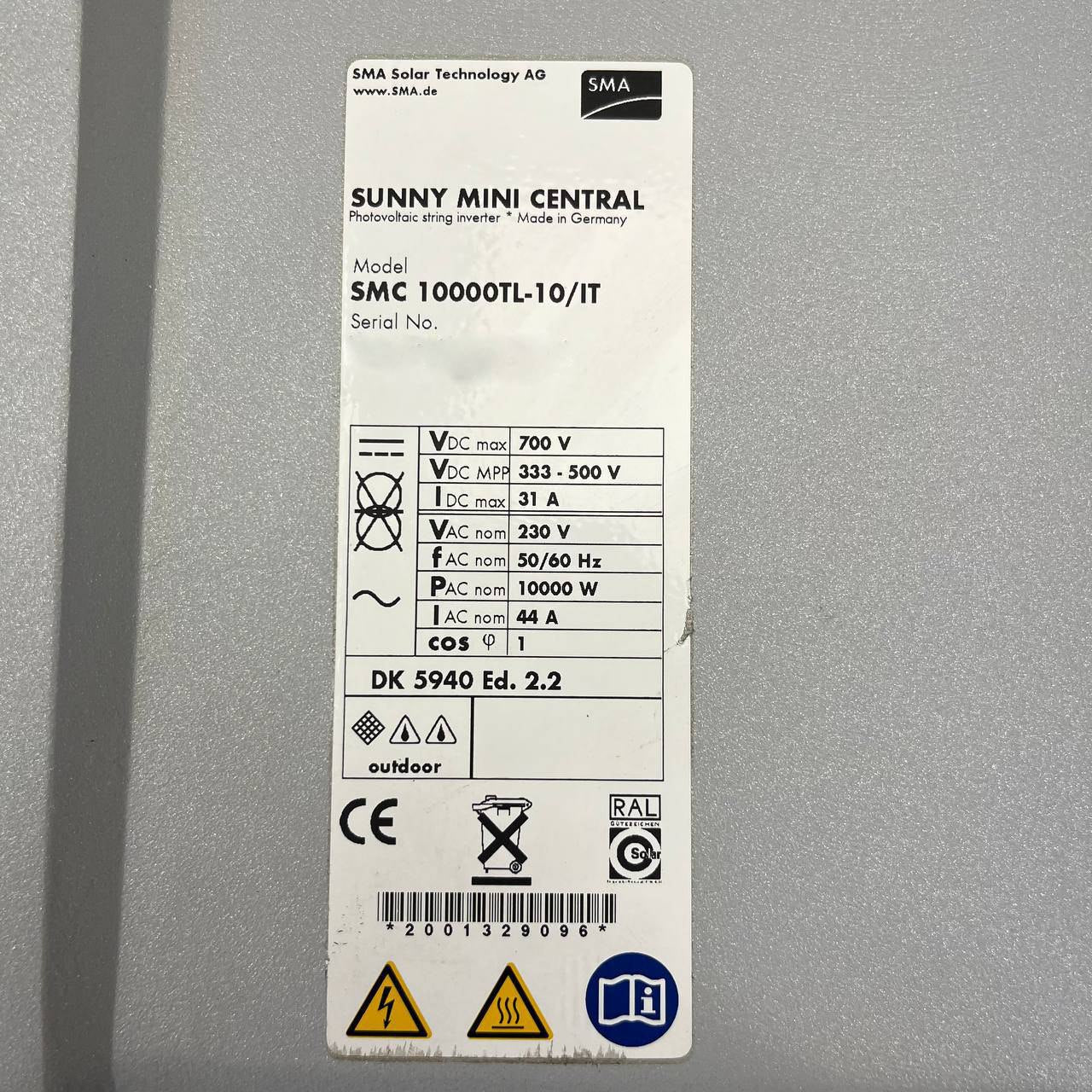

⚙️ Technical Specifications:

🔌 DC Input:

• Max DC Voltage (VDC max): 700 V
• MPPT Operating Range: 333 – 500 V
• Max DC Current (IDC max): 31 A

🔌 AC Output:

• Nominal Voltage (VAC nom): 230 V
• Nominal Output Power (PAC nom): 10,000 W
• Nominal Output Current (IAC nom): 44 A
• Frequency: 50 / 60 Hz
• Power Factor (cos φ): 1

📦 General:

• Installation Type: Outdoor (IP54/IP65)
• Cooling: Active fan cooling
• Enclosure: Powder-coated aluminum, UV-resistant
• Communication: RS485 compatible
• Display: Integrated LCD for real-time data

✅ Key Features:

• 🔧 High-efficiency 10 kW single-phase design
• 🌞 Wide MPPT range for flexible string configurations
• 🌐 Grid-compliant and standards-certified
• 🛡️ Outdoor-ready with active ventilation
• 📊 Ideal for both residential rooftops and commercial applications

🚀 Maximize your solar production with SMA’s field-proven reliability — the SMC 10000TL-10/IT is built for powerful performance in demanding environments.
