Description:

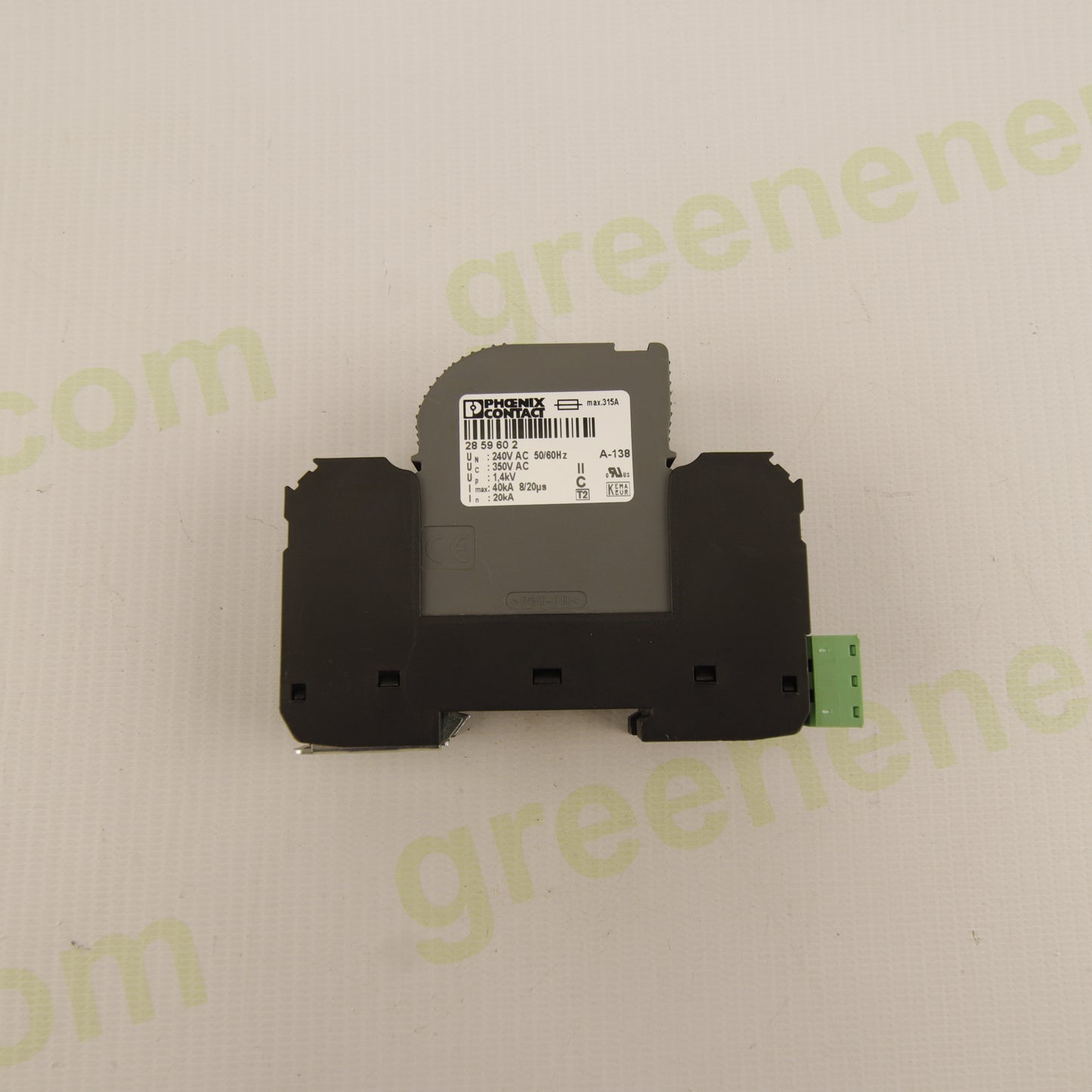

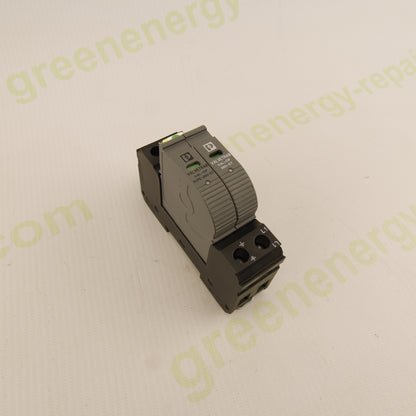

The Phoenix Contact VAL-CP-S-350 surge protection system equipped with VALVETRAB VAL-CP 350-ST plug-in modules is a modular Type 2 (Class II) Surge Protective Device (SPD) designed for 240/415 V AC – 50/60 Hz power networks.

Manufactured by Phoenix Contact, this high-performance SPD protects electrical installations against transient overvoltages caused by indirect lightning strikes and grid disturbances.

The system features a modular DIN rail design with replaceable plug-in cartridges and integrated visual status indicators (green = operational). It is suitable for both single-phase and three-phase AC systems in residential, commercial, and industrial applications.

🛠 Warranty: 12 months by Green Energy

⚙️ Technical Details:

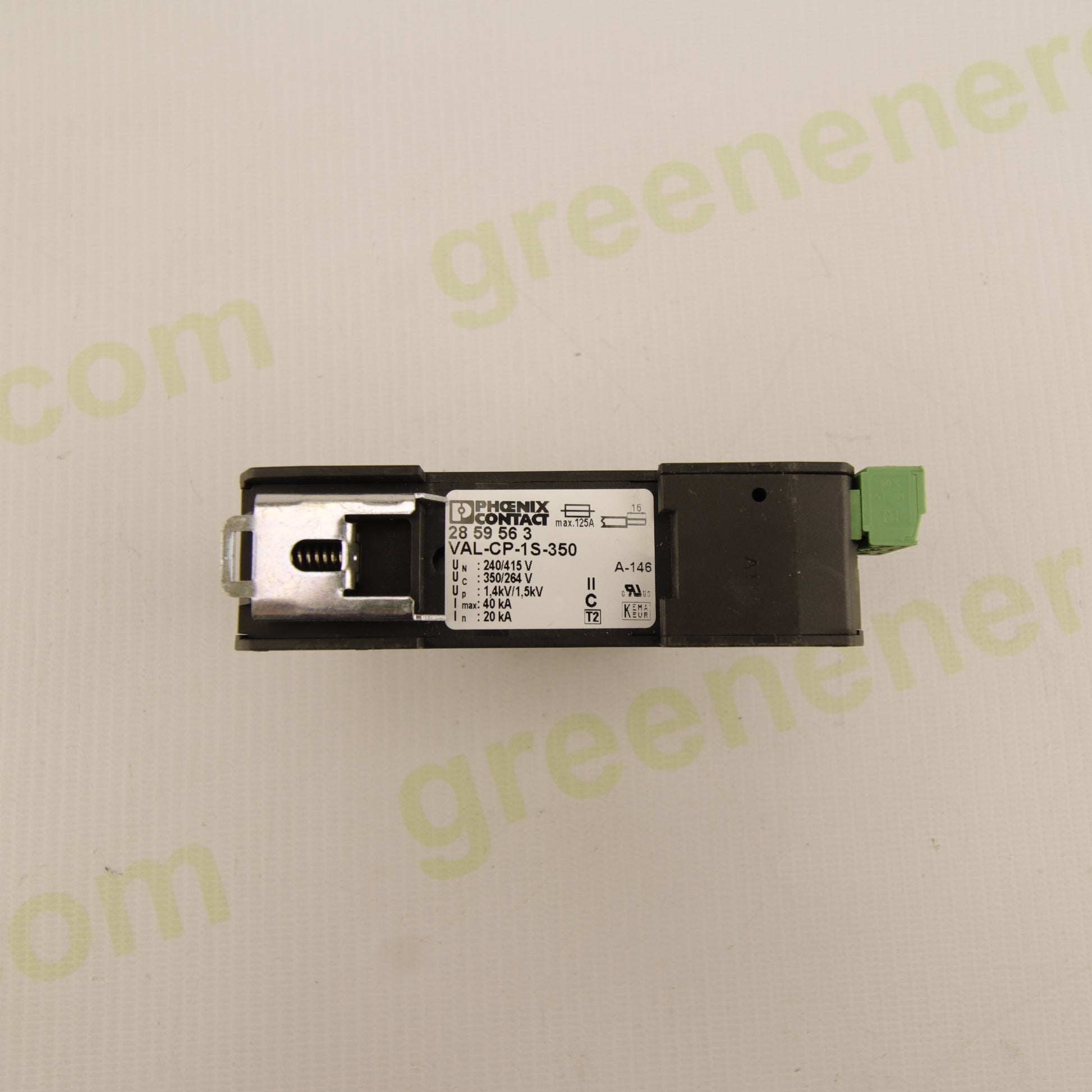

🔹 Base Unit: VAL-CP-S-350

Article No.: 2859563
Nominal Voltage (Un): 240/415 V AC
Frequency: 50/60 Hz
Max Continuous Operating Voltage (Uc): 350 V / 264 V
Voltage Protection Level (Up): 1.4 kV / 1.5 kV
Nominal Discharge Current (In): 20 kA
Maximum Discharge Current (Imax): 40 kA (8/20 µs)
SPD Type: Type 2 (T2)
Test Class: II – C
Max Backup Fuse: 125 A
Certifications: CE, UL, KEMA-KEUR
Mounting: DIN rail

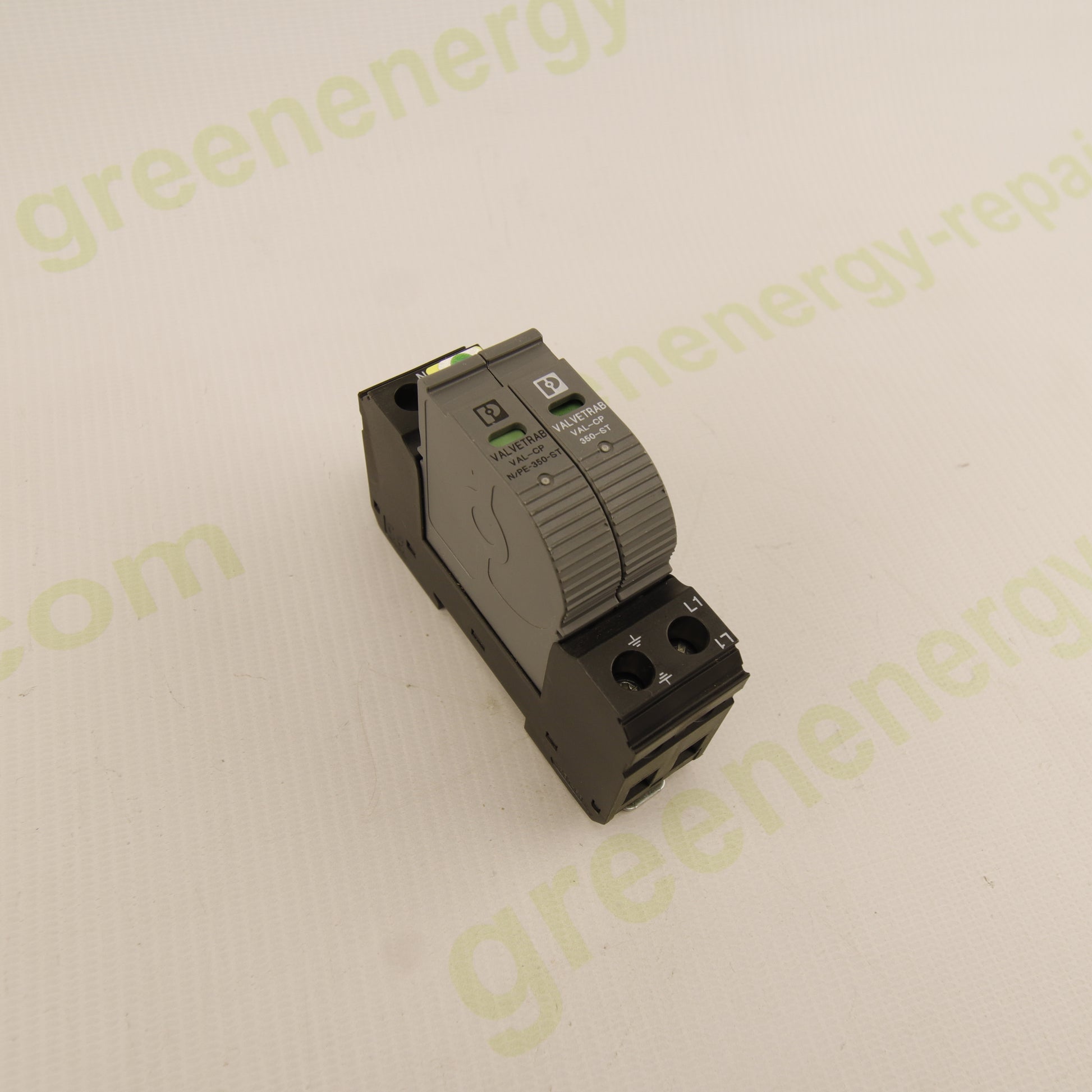

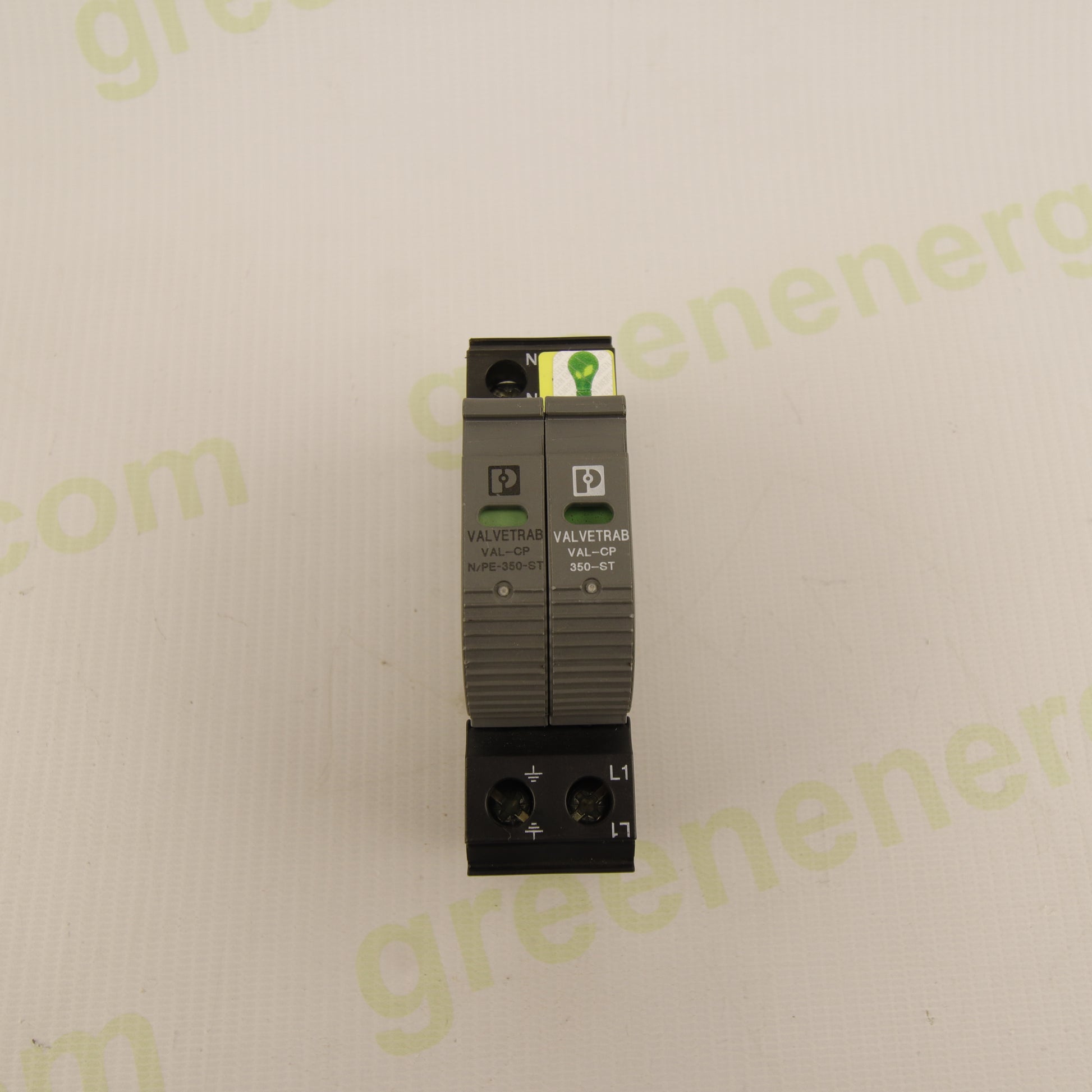

🔹 Plug-in Modules:

Series: VALVETRAB
Model: VAL-CP 350-ST
Status Indicator: Green window (operational status)
Replaceable Cartridges: Yes

📌 Key Functions:

✔️ Type 2 surge protection for AC power networks
✔️ Suitable for 240/415 V single-phase and three-phase systems
✔️ Discharge capacity up to 40 kA
✔️ Replaceable plug-in protection modules
✔️ Integrated visual status indication
✔️ DIN rail mounting for easy installation
✔️ Industrial-grade Phoenix Contact reliability

🛠 Applications:

✔️ Residential and industrial electrical panels
✔️ Power distribution systems
✔️ Commercial and technical installations
✔️ Protection of sensitive electronic equipment
✔️ 240/415 V AC infrastructures

⚡ Operating Principle:

In the event of a transient overvoltage:

• The SPD intercepts the voltage spike.

• Excess surge energy is safely diverted to earth.

• Residual voltage is limited to approximately 1.4–1.5 kV, protecting downstream devices.
