Used. Green Energy company gives a 12 month guarantee FAQ

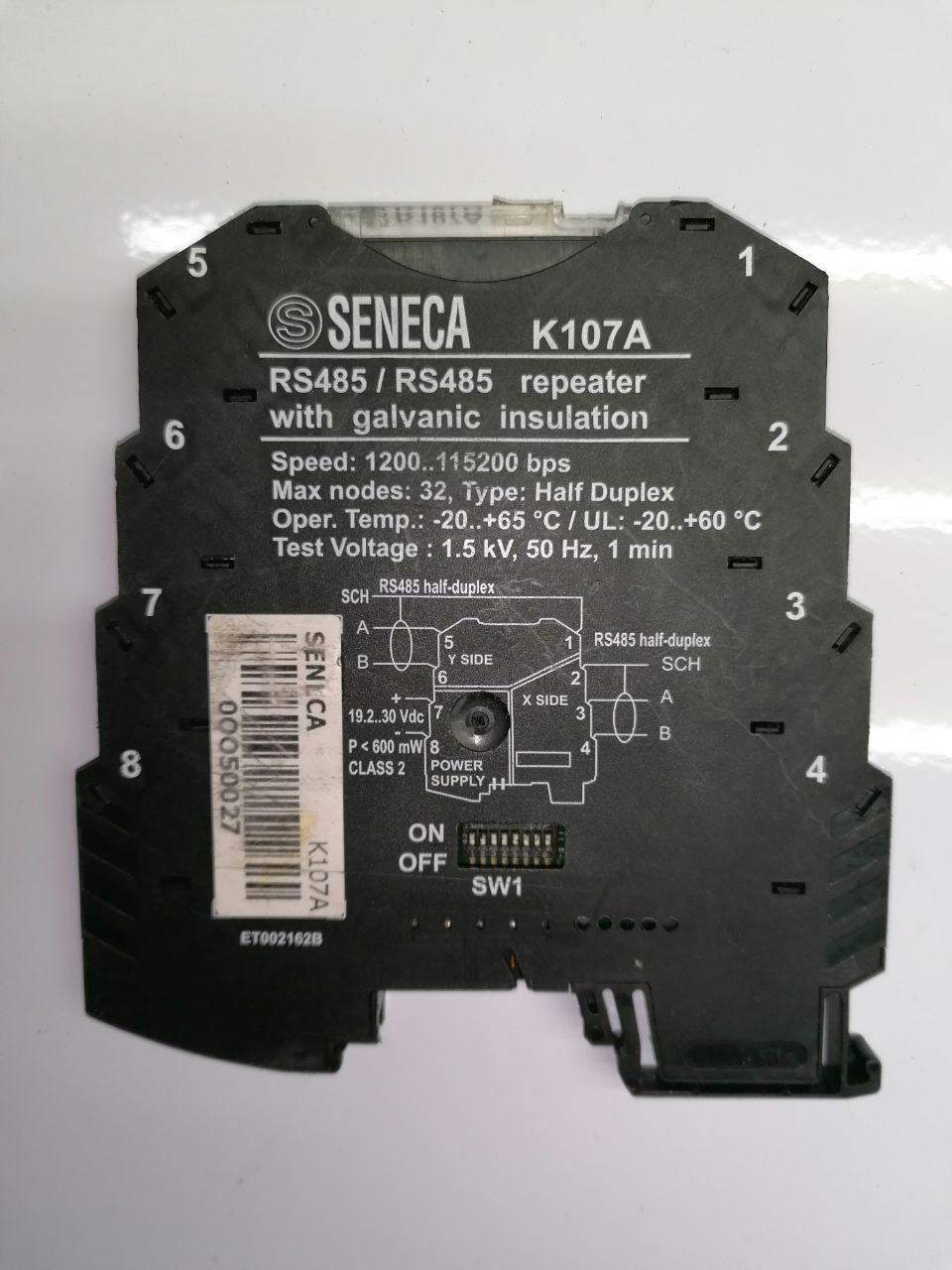

The SENECA K107A is a high-quality RS485 repeater designed for reliable data transmission with galvanic isolation. It extends communication distances and increases the number of nodes (up to 32) in half-duplex RS485 networks, making it ideal for industrial applications.

Key Features:

Data Transmission Speed: 1200 to 115200 bps

Maximum Nodes: Up to 32 devices

Communication Type: Half-duplex mode

Operating Temperature: -20°C to +65°C (UL certified: -20°C to +60°C)

Test Voltage: 1.5 kV, 50 Hz, 1 minute

Power Supply: 19.2–30 V DC

Power Consumption: Max 22 mA at 24 V DC

Mounting: DIN rail 35 mm

Dimensions: 6.2 x 93.1 x 102.5 mm

Weight: 50 g

This compact and robust repeater is perfect for industrial setups requiring stable and secure data transmission in RS485 networks. The SENECA K107A ensures effective isolation and interference protection, providing high performance and system durability.
