📝 Description

Used product. Phoenix Contact UKH 95 power terminal block, article number 3010013, designed for connecting large-cross-section conductors in industrial electrical panels and power distribution systems.

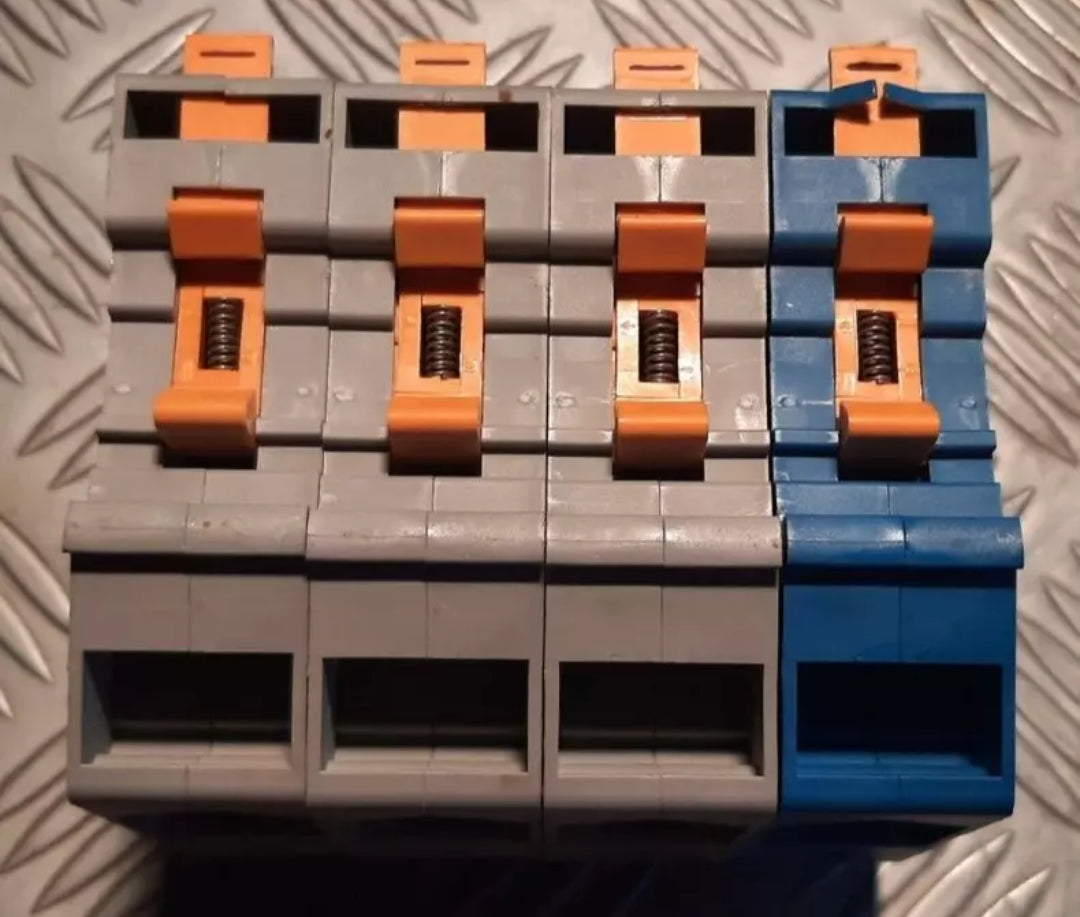

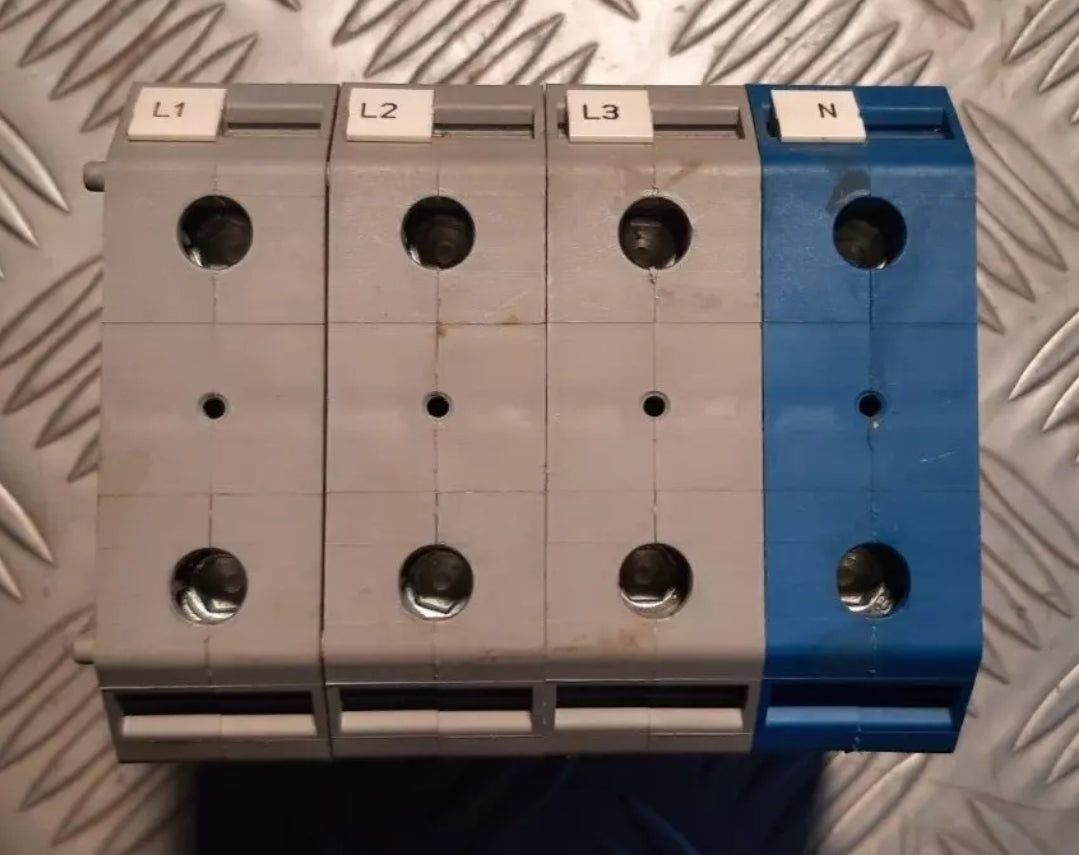

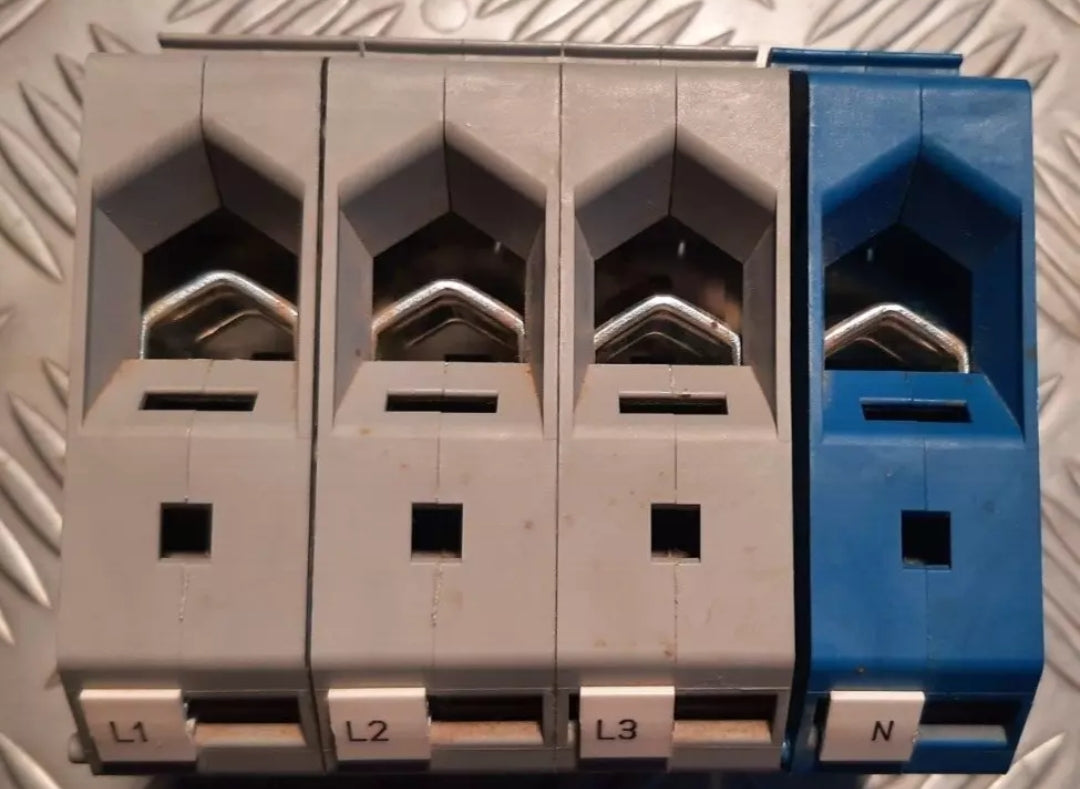

The component features a grey insulating body, an internal conductive element, and a screw-clamping system. It is designed for conductors with a nominal cross-section of up to 95 mm² and can be installed on compatible DIN rails. It is suitable for industrial electrical systems and power applications, subject to the electrical limits and mounting conditions specified by the manufacturer.

⚙️ Main Specifications

• Brand: Phoenix Contact
• Model: UKH 95
• Article number: 3010013
• Type: Power terminal block
• Number of connections: 2
• Number of potentials: 1
• Nominal cross-section: 95 mm²
• Rigid conductor cross-section range: 25–95 mm²
• Flexible conductor cross-section range: 35–95 mm²
• IEC rated voltage: 1000 V
• IEC rated current: 232 A
• Current marking for North American approval: 230 A at 600 V
• Connection type: Screw connection with hex socket screws
• Thread: M8
• Manufacturer's specified tightening torque: 15–20 Nm
• Mounting: Compatible DIN rail, including NS 35 and NS 32
• Colour: Grey
• Reference standard: IEC 60947-7-1

🔌 Purpose and Operation

The terminal block provides a secure electrical and mechanical connection between power conductors. Tightening the screws maintains contact between the conductor and the internal metal element, while the insulating body reduces the risk of accidental contact with live parts.
The cable cross-section and tightening torque must comply with the manufacturer's instructions and the actual installation conditions.

🏭 Applications

• Industrial electrical panels.
• Power distribution systems.
• Automation systems and industrial machinery.
• Power panels for photovoltaic installations and energy systems.
• Maintenance and repair of electrical panels.
• Replacement of existing terminal blocks with compatible models and specifications.

🛡️ Markings and Certifications

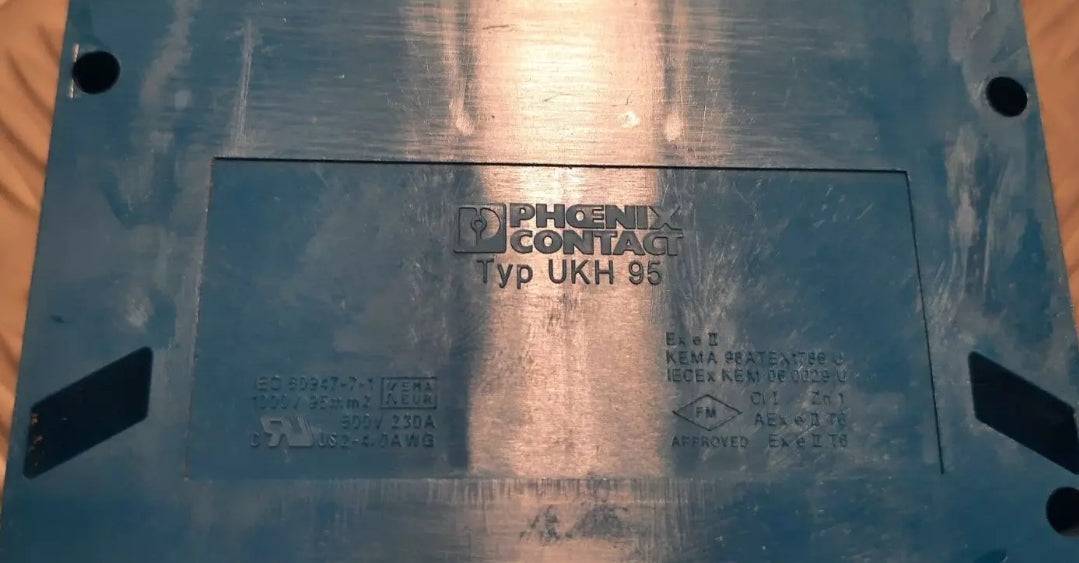

References to the IEC 60947-7-1 standard and markings relating to use in potentially explosive atmospheres, including ATEX and IECEx references, are visible on the housing.
These markings do not replace verification of the operating conditions. For applications in classified areas, the specific certification documentation and suitability of the entire installation must be checked.

🛡️ Product Condition

The component shows superficial signs consistent with previous use. No obvious damage to the insulating body is visible in the photographs, but the condition of the internal contacts and electrical suitability cannot be confirmed without technical inspection.

📦 Package Contents

• 1 Phoenix Contact UKH 95 power terminal block.
• Additional accessories are not included unless otherwise stated.

🟢 Summary

Phoenix Contact UKH 95 power terminal block – article number 3010013, for conductors up to 95 mm², with an IEC rated voltage of 1000 V and a rated current of 232 A. Suitable for power connections in industrial electrical panels, subject to verification of compatibility with the application.
