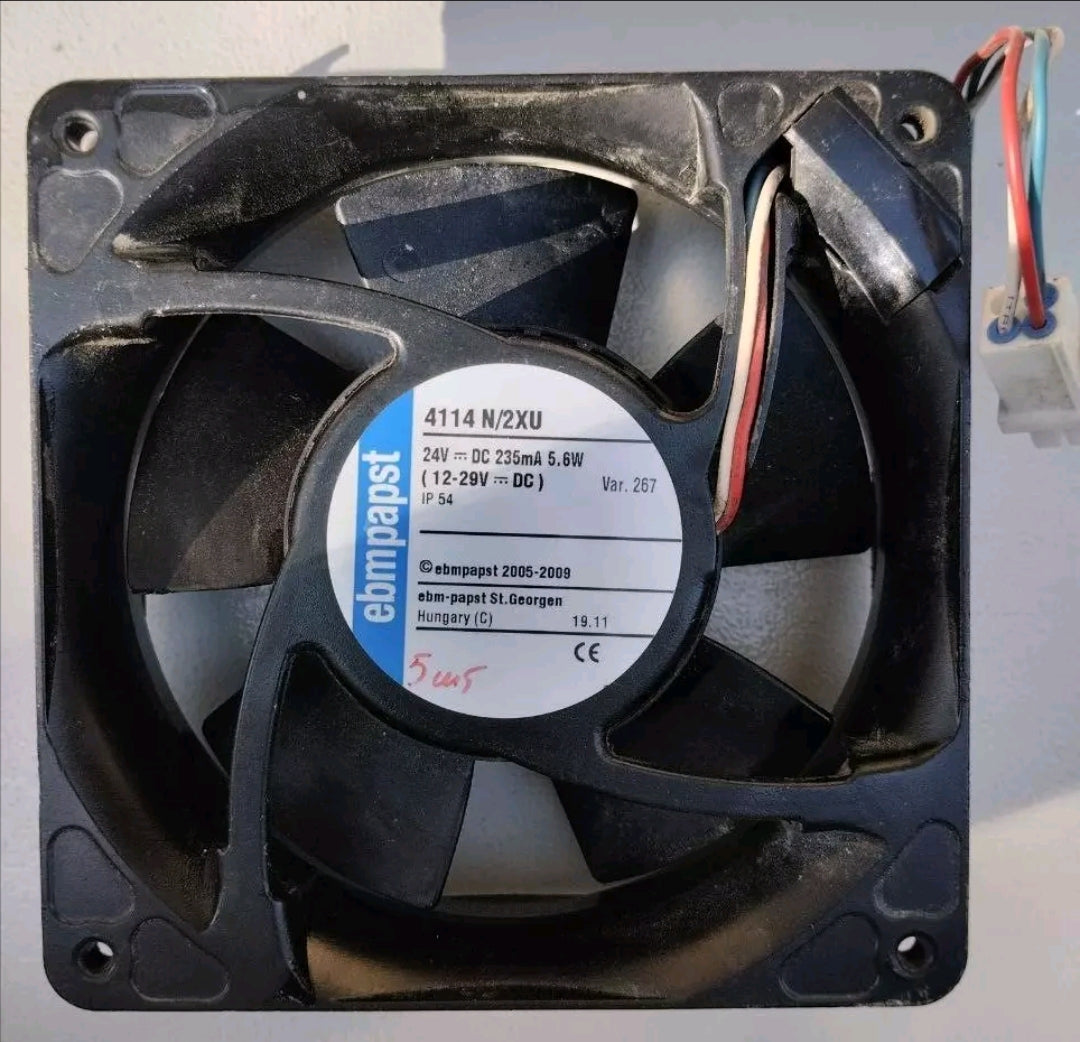

The ebm-papst 4114 N/2XU is a high-performance axial cooling fan designed for industrial and electronic applications where reliability, environmental protection, and continuous operation are essential.

Operating at 24V DC, this fan features a 4-wire connection with connector, enabling power supply, speed monitoring (tachometric signal), and control (PWM or specific control function depending on configuration).

With an IP54 protection rating, the fan is resistant to dust and water splashes, making it suitable for harsh industrial environments.

As expected from ebm-papst, the fan offers long service life, low failure rates, and stable performance over time, even under demanding operating conditions.

⚙️ Technical Specifications

Brand: ebm-papst
Model: 4114 N/2XU

🔌 Electrical Parameters

• Rated voltage: 24 V DC

• Operating voltage range: 12 – 29 V DC

• Current: 235 mA

• Power consumption: 5.6 W

🛠 Mechanical Characteristics

• Dimensions: approx. 119 × 119 × 38 mm

• Type: Axial fan

• Protection rating: IP54

• Mounting: Standard 4-hole mounting

• Material: High-strength engineering plastic

🔌 Connections

• Number of wires: 4

  • Power supply (+ / −)

  • Tachometric signal (RPM monitoring)

  • Control signal (PWM or model-specific function)

• Connector: Included

🌬 Performance & Advantages

• High airflow and static pressure

• IP54 protection (dust and splash resistant)

• Designed for continuous industrial operation

• Integrated speed monitoring capability

• High reliability and long operational life

🔧 Installation

• Panel or enclosure mounting

• Connection to 24V DC power supply

• Compatible with fan control and monitoring systems

🏭 Applications

Ideal for:

✔ Photovoltaic inverters
✔ Industrial electrical panels
✔ Automation systems and machinery
✔ HVAC technical systems
✔ UPS and power supplies
✔ Power electronics cooling
