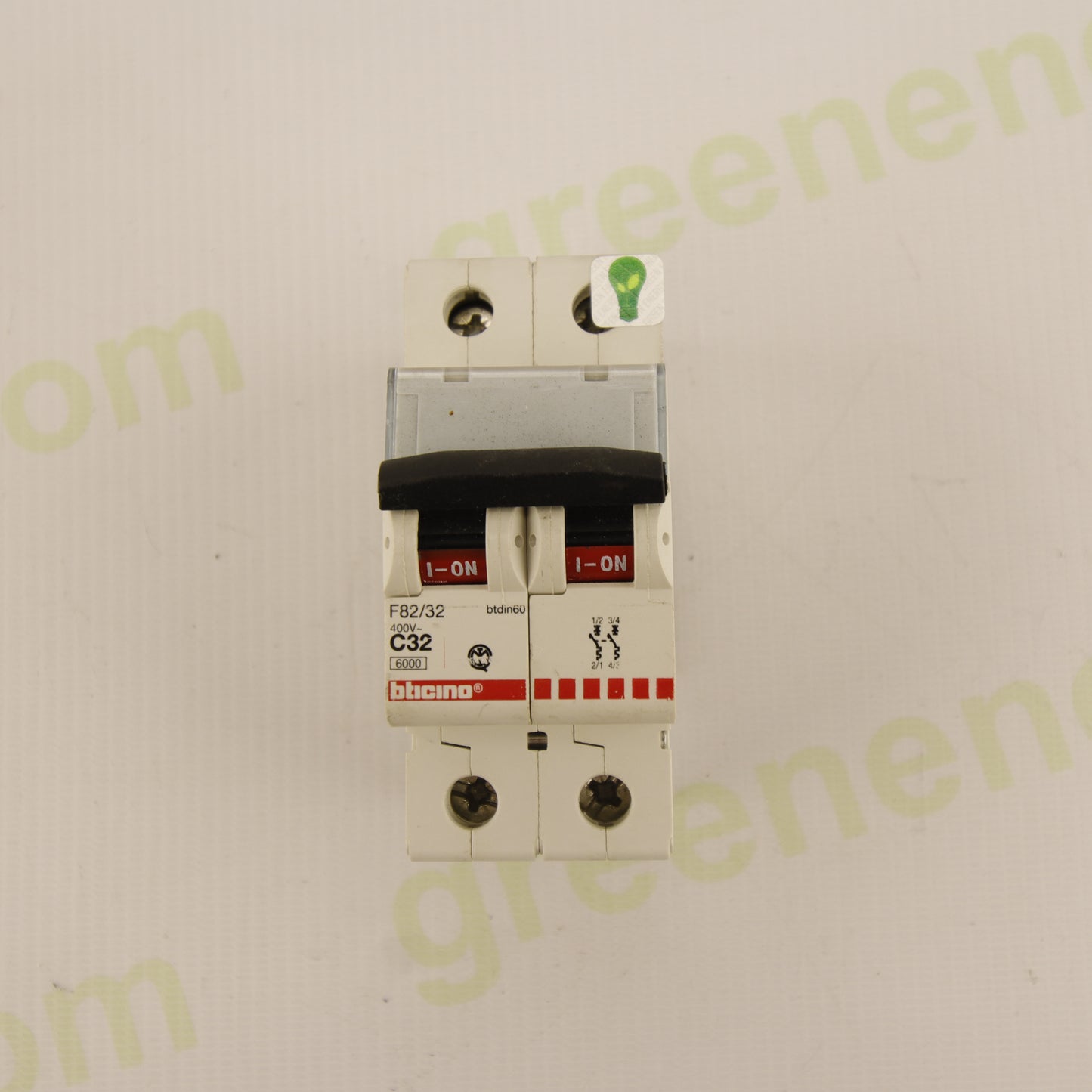

The BTicino F82/32 is a 2-pole (bipolar) miniature circuit breaker (MCB) from the btdin60 series, designed to protect electrical lines against overloads and short circuits in residential and light industrial installations.

With a rated current of 32A and C tripping curve, this breaker is particularly suitable for circuits with mixed loads or moderate inrush currents, such as small motors, industrial sockets, and secondary distribution boards.

Its compact modular design allows easy DIN rail installation, ensuring reliability, operational safety, and straightforward maintenance within standard electrical panels.

⚙️ Technical Specifications

Brand: BTicino
Model: F82/32
Series: btdin60
Number of poles: 2P (bipolar)
Rated current (In): 32 A
Tripping curve: C
Rated voltage: 400 V AC
Breaking capacity: 6 kA (6000 A)
Frequency: 50/60 Hz
Mounting: DIN rail

🔒 Protection Type

• Thermal protection (overload)

• Magnetic protection (short circuit)

Operating handle: Black lever with I-ON indication

🔒 Protection Functions

✔ Protection against prolonged overloads
✔ Fast response to short circuits
✔ Simultaneous disconnection of both poles
✔ Certified operational safety

🏭 Applications

✔ Residential electrical panels
✔ Socket outlet circuits
✔ Light industrial installations
✔ Single-phase 230V line protection
✔ Secondary distribution boards
