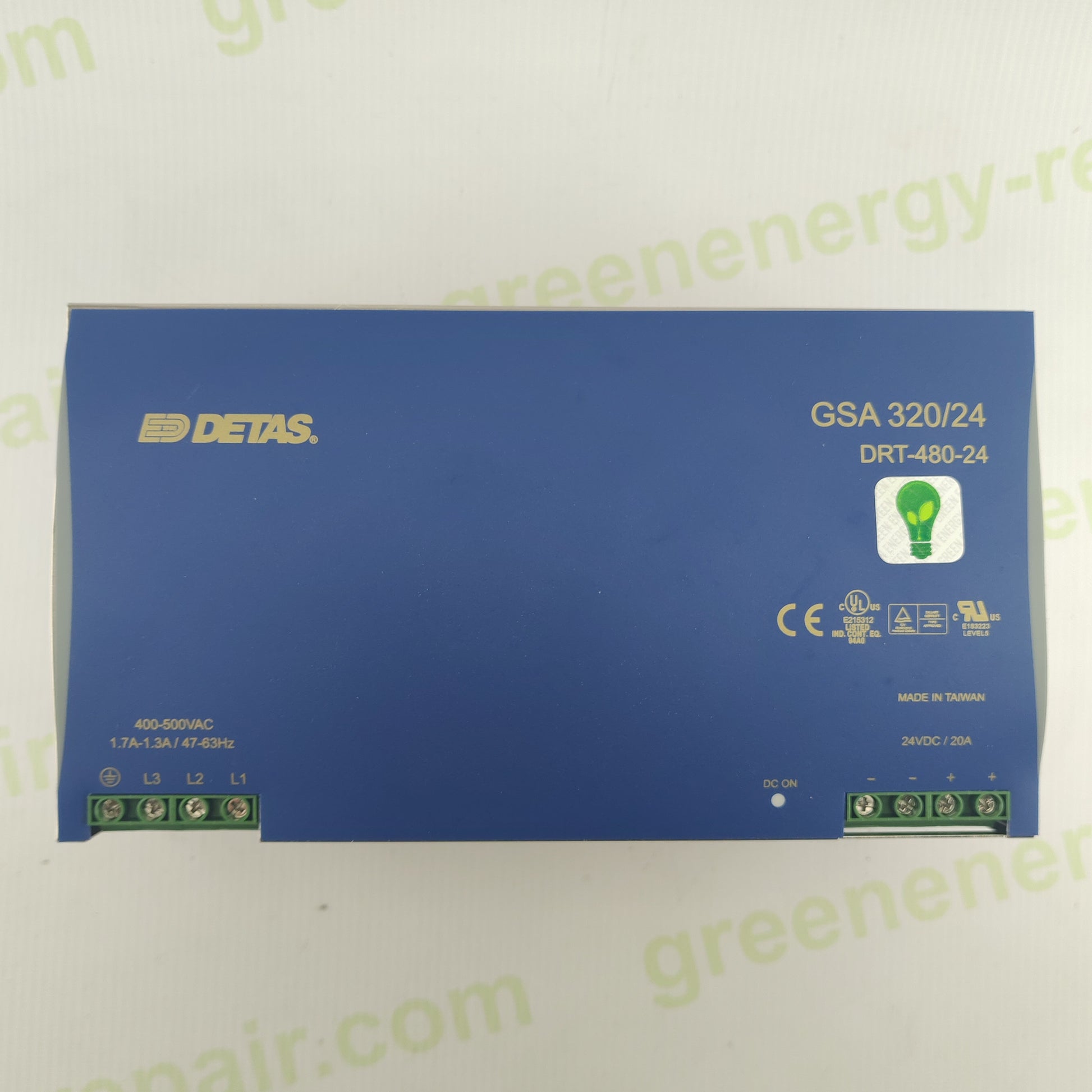

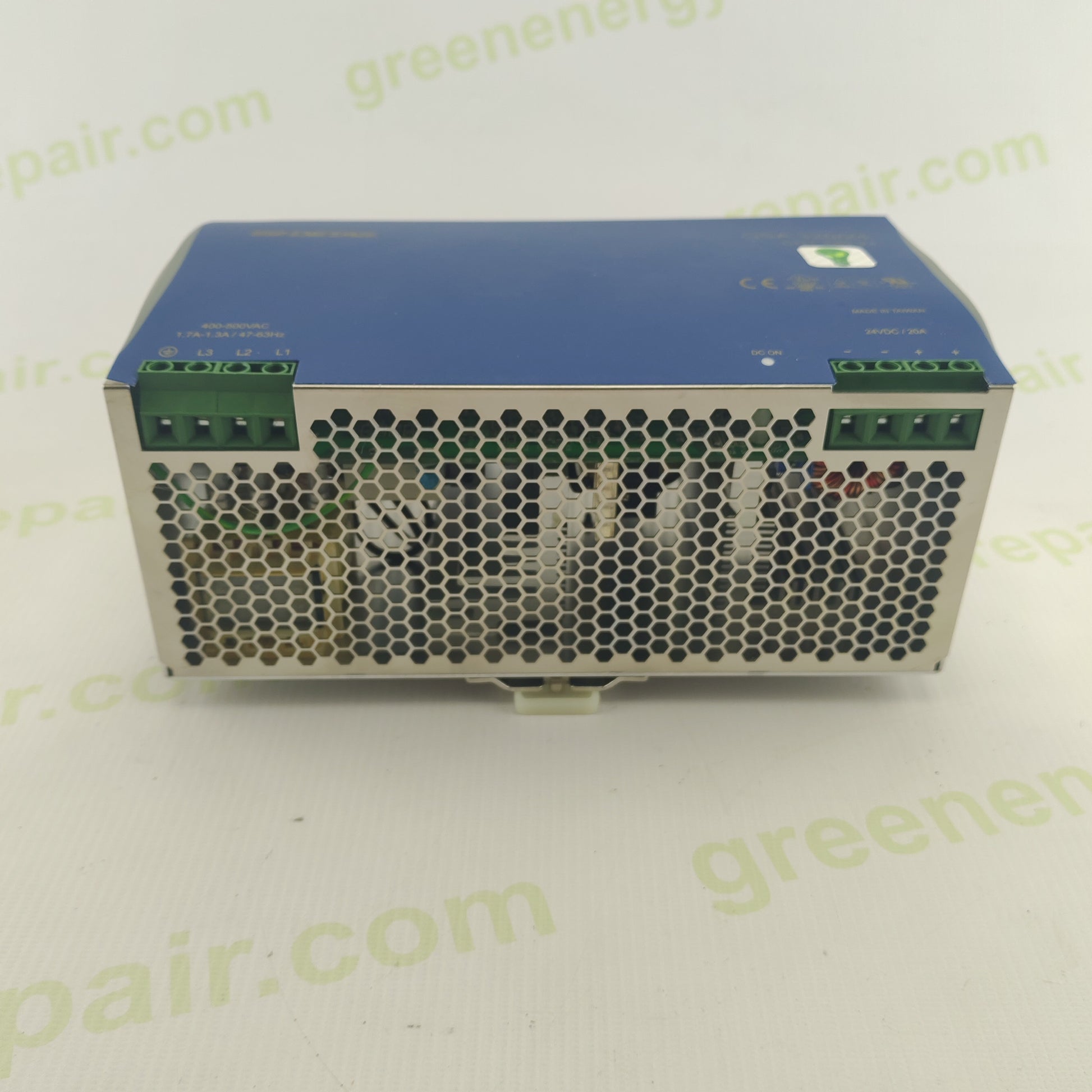

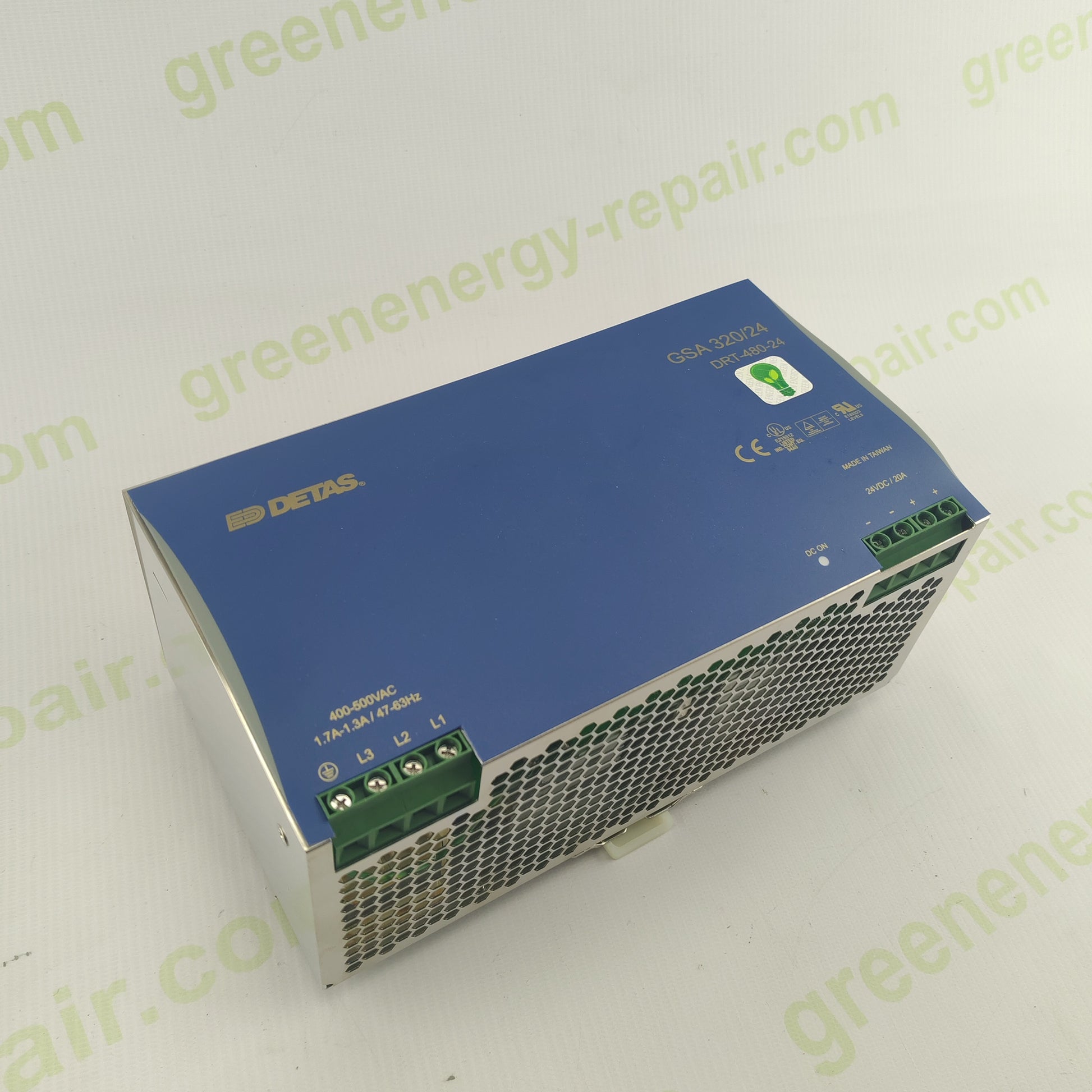

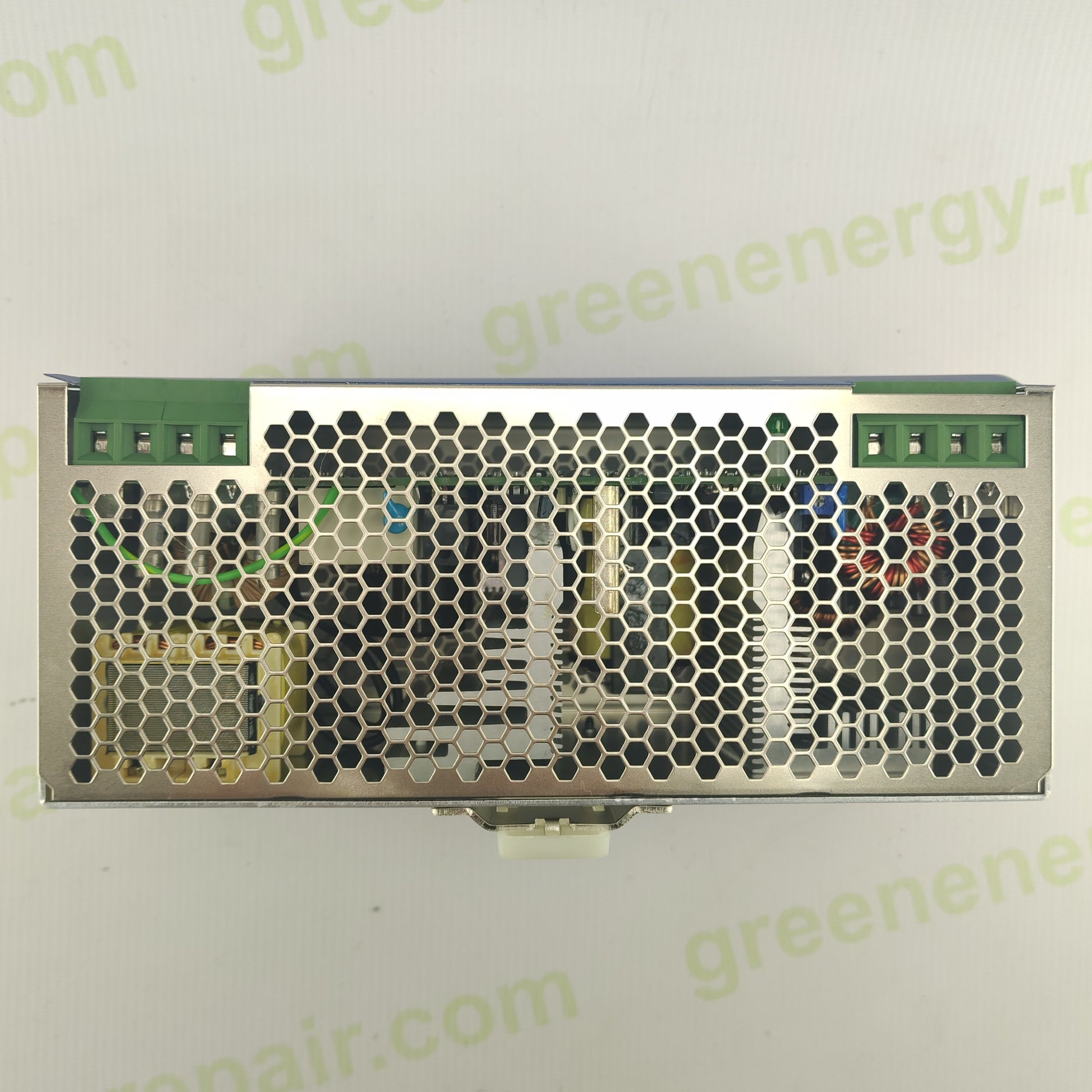

The DETAS GSA 320/24 (DRT-480-24) is a high-performance 3-phase industrial power supply designed for demanding automation, energy, and photovoltaic applications.
Delivering a stable 24V DC / 20A output, it operates from a 400–500V AC three-phase input, ensuring high efficiency, thermal stability, and long service life under continuous operation.

Manufactured with precision and certified to CE, UL, and TUV standards, the GSA 320/24 is suitable for powering industrial control systems, inverter components, and monitoring devices in solar or grid-connected environments.

🛠 Warranty: 6 months provided by Green Energy
🔄 Condition: New

⚙️ Technical Details:

• Model / Part No.: GSA 320/24 – DRT-480-24
• Manufacturer: DETAS
• Input Voltage: 400–500 VAC (3-phase), 47–63 Hz
• Input Current: 1.7–1.3 A
• Output Voltage: 24 VDC
• Output Current: 20 A
• Power Rating: 480 W
• Efficiency: High-efficiency industrial design

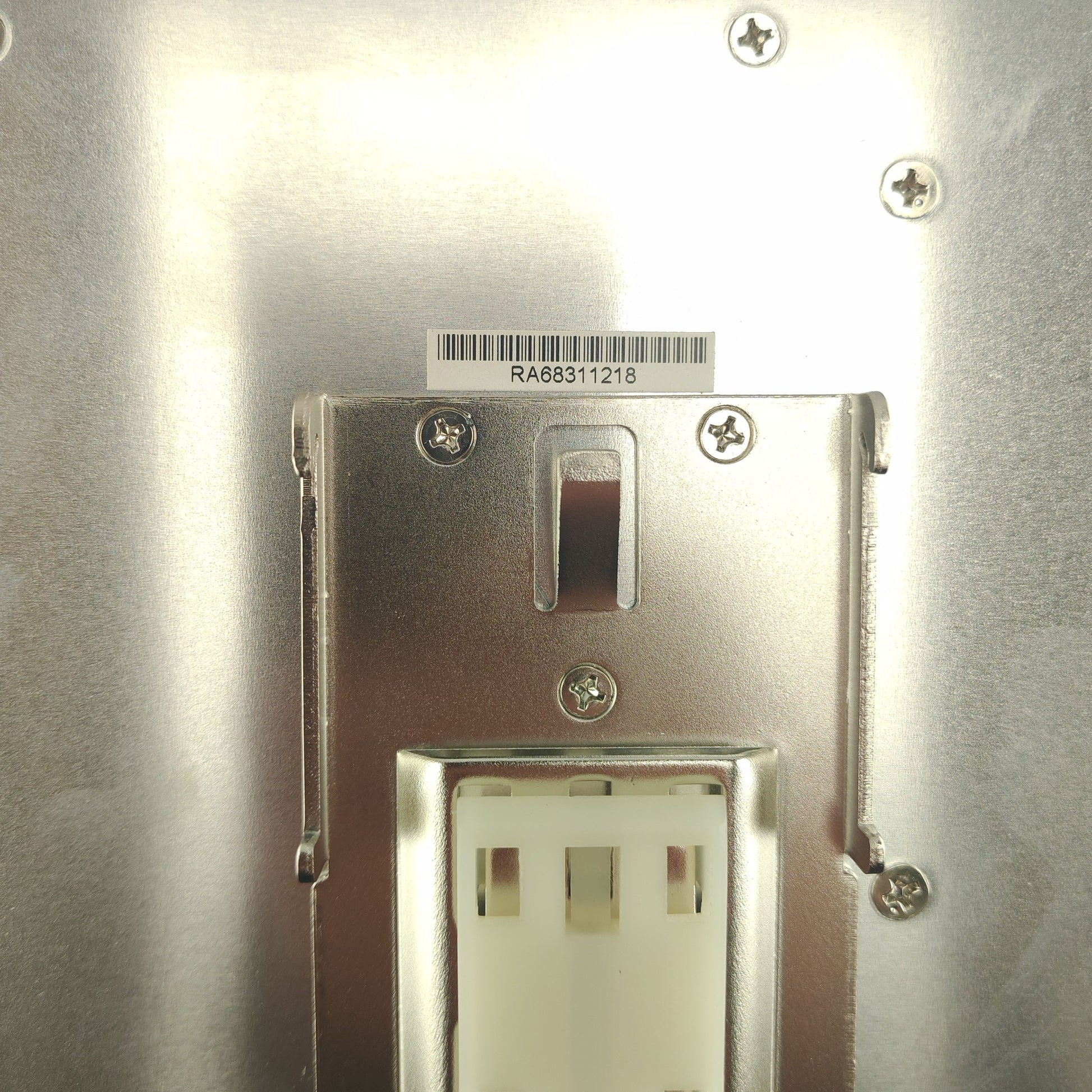

• Mounting Type: DIN rail or panel mount
• Certifications: CE, UL, TUV, RoHS compliant
• Origin: Made in Taiwan

📌 Key Features:

✔️ Industrial-grade 24V DC power supply for control systems
✔️ Wide 3-phase AC input range for stable operation
✔️ Ideal for PV inverter cabinets, automation, and monitoring
✔️ Built-in protection: overload, overvoltage, and short-circuit
✔️ Reliable DETAS quality – tested and guaranteed by Green Energy

🚀 Ensure continuous, reliable power delivery in your industrial or solar applications with the original DETAS GSA 320/24 (DRT-480-24) power supply
