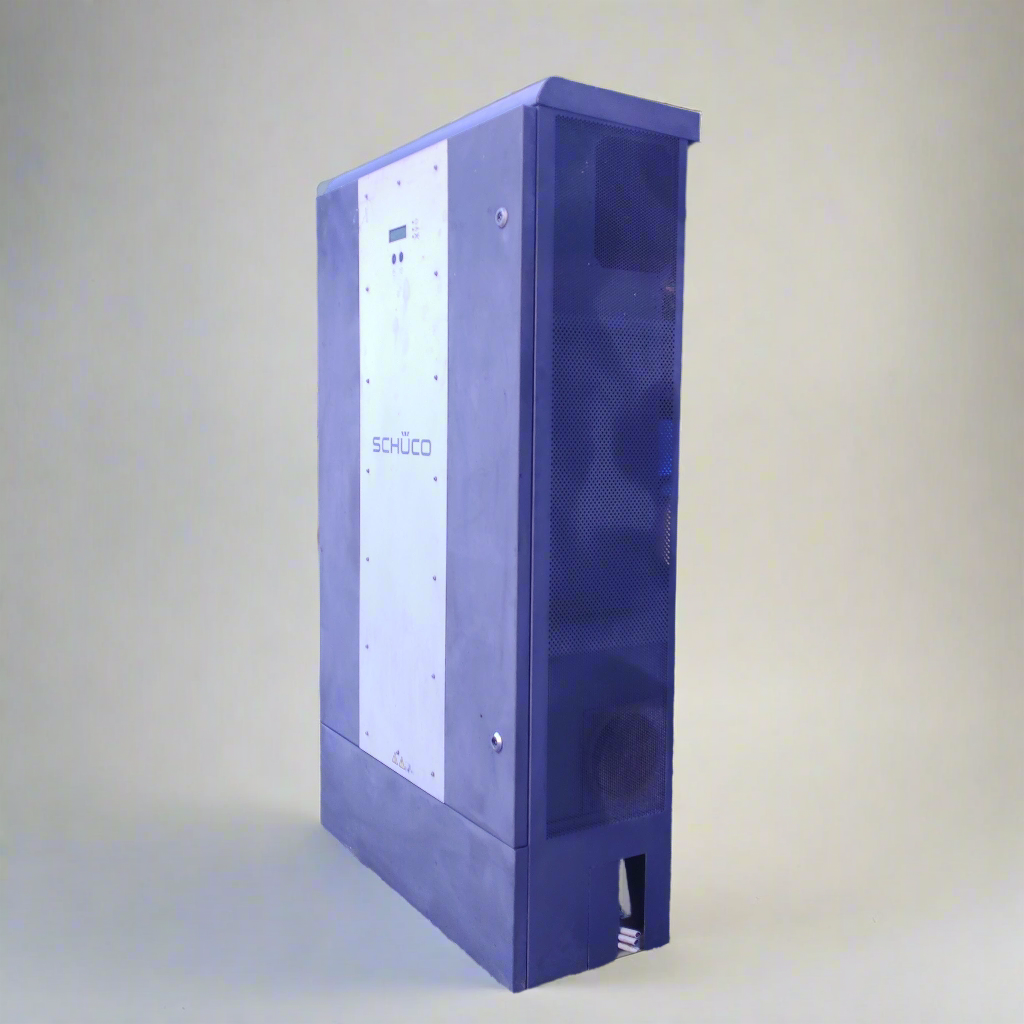

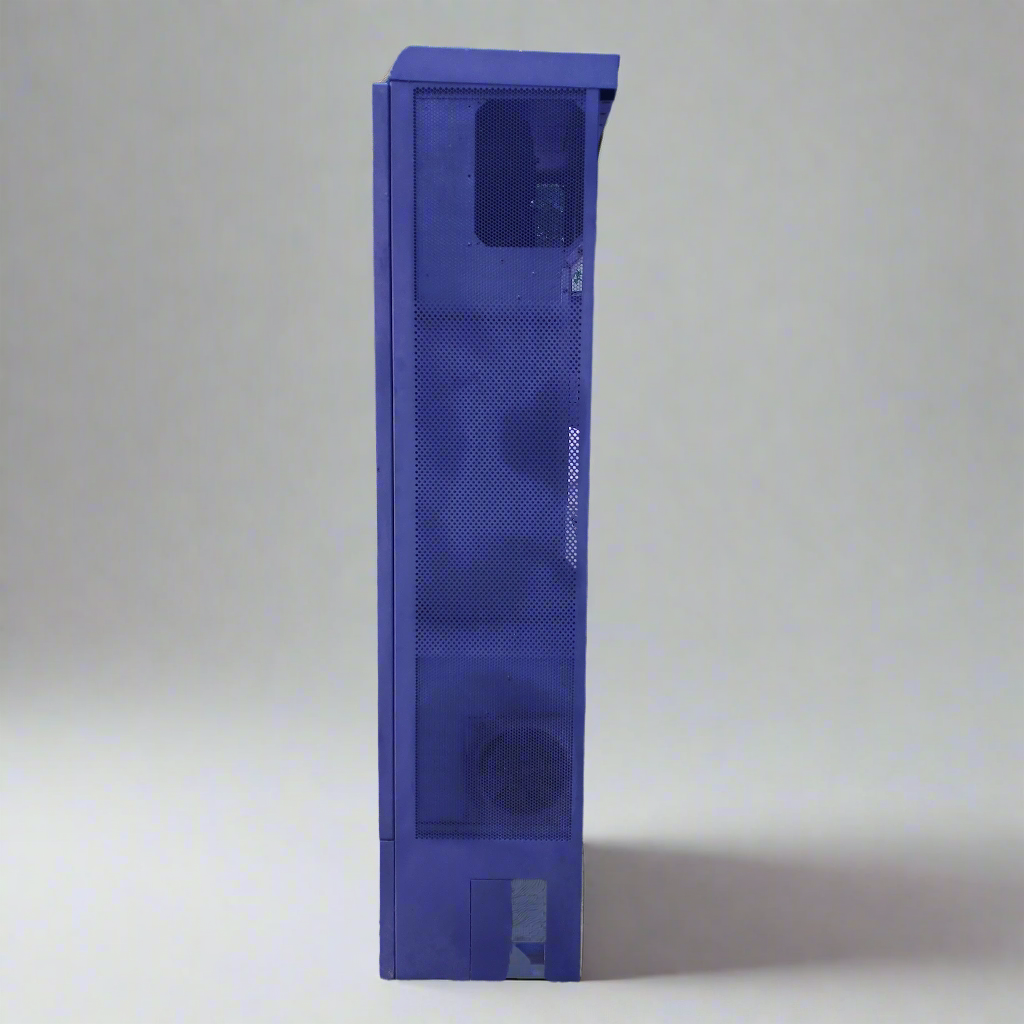

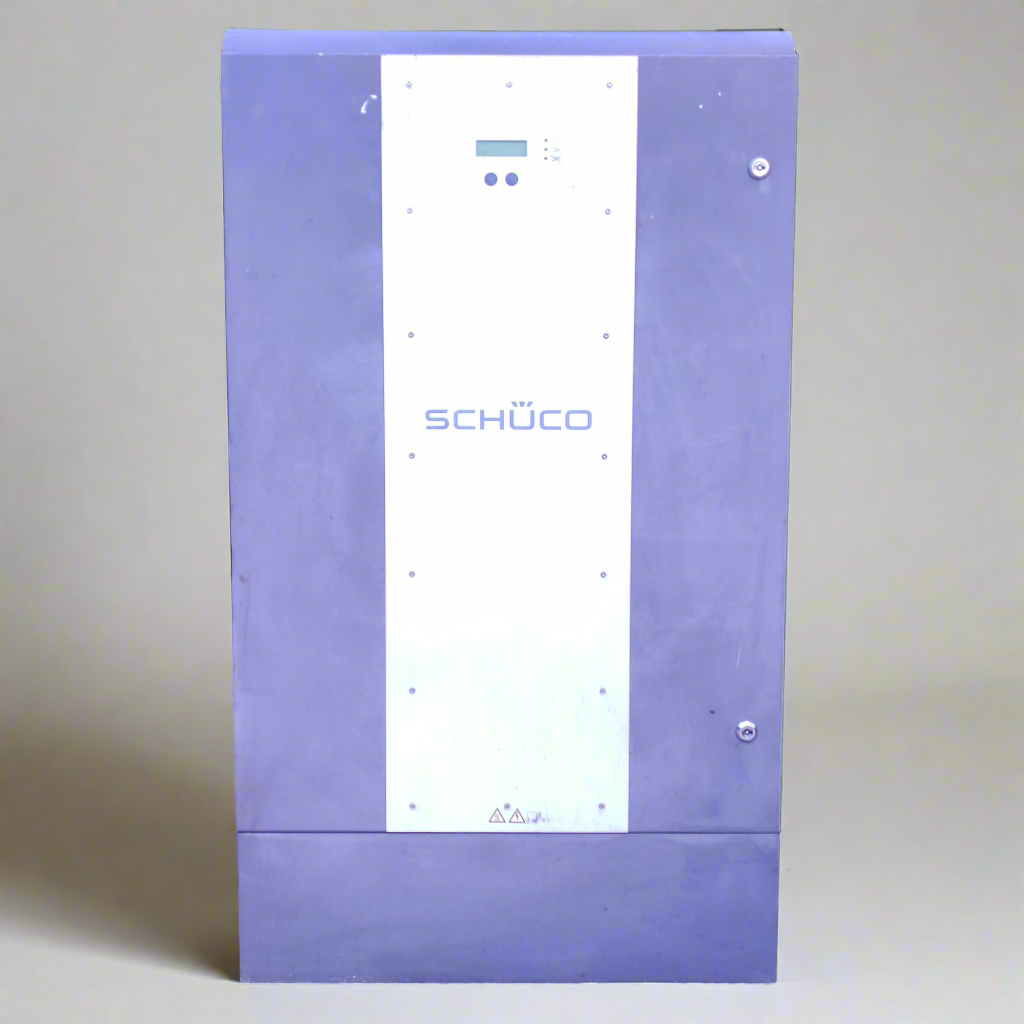

The Schüco SGI 33k XL-IT Park is a high-performance grid-tie solar inverter engineered for commercial and industrial PV installations. With a nominal output of 33.3 kW AC, this robust unit delivers reliable three-phase energy conversion, ensuring maximum uptime and stable operation under demanding field conditions.

Manufactured by Schüco International KG (Germany), the SGI 33k series is designed for long-term outdoor service with IP54 protection and high thermal tolerance (–20 °C to +40 °C). It supports an MPP voltage window of 330 – 600 VDC and integrates advanced monitoring and network control functions for precision system management.

🛠 Condition: Refurbished, tested
🧾 Warranty: 12 months by Green Energy

Compatible with Kaco Powador 25000xi-30000xi-33000xi

⚙️ Technical Specifications:

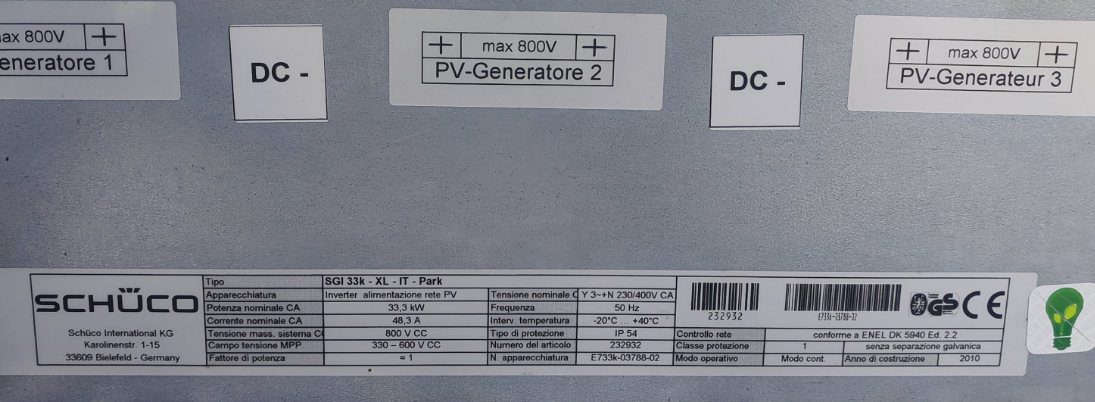

Parameter    Value
Model    SGI 33k XL-IT Park
AC Nominal Power    33.3 kW
AC Nominal Current    48.3 A
AC Voltage    3 ~ N 230/400 V
Frequency    50 Hz
DC Max System Voltage    800 VDC
MPP Voltage Range    330 – 600 VDC
Protection Class    IP 54
Operating Temp. Range    –20 °C … +40 °C
Compliance    ENEL DK 5940 Ed. 2.2
Year of Manufacture    2010
Part No.    232932
ID Code    E733k-03788-02

📌 Key Features:
✔️ High-efficiency 33.3 kW 3-phase inverter for commercial PV plants
✔️ Rugged IP54 enclosure for outdoor operation
✔️ Wide MPP range (330–600 VDC) for flexible string configuration
✔️ Integrated control and monitoring interface
✔️ Designed for long-term reliability in industrial environments

🚀 Restore and enhance the performance of your Schüco PV system with this tested SGI 33k XL-IT Park inverter — refurbished, guaranteed, and supported by Green Energy.
