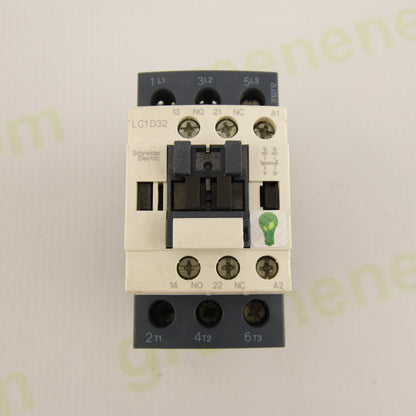

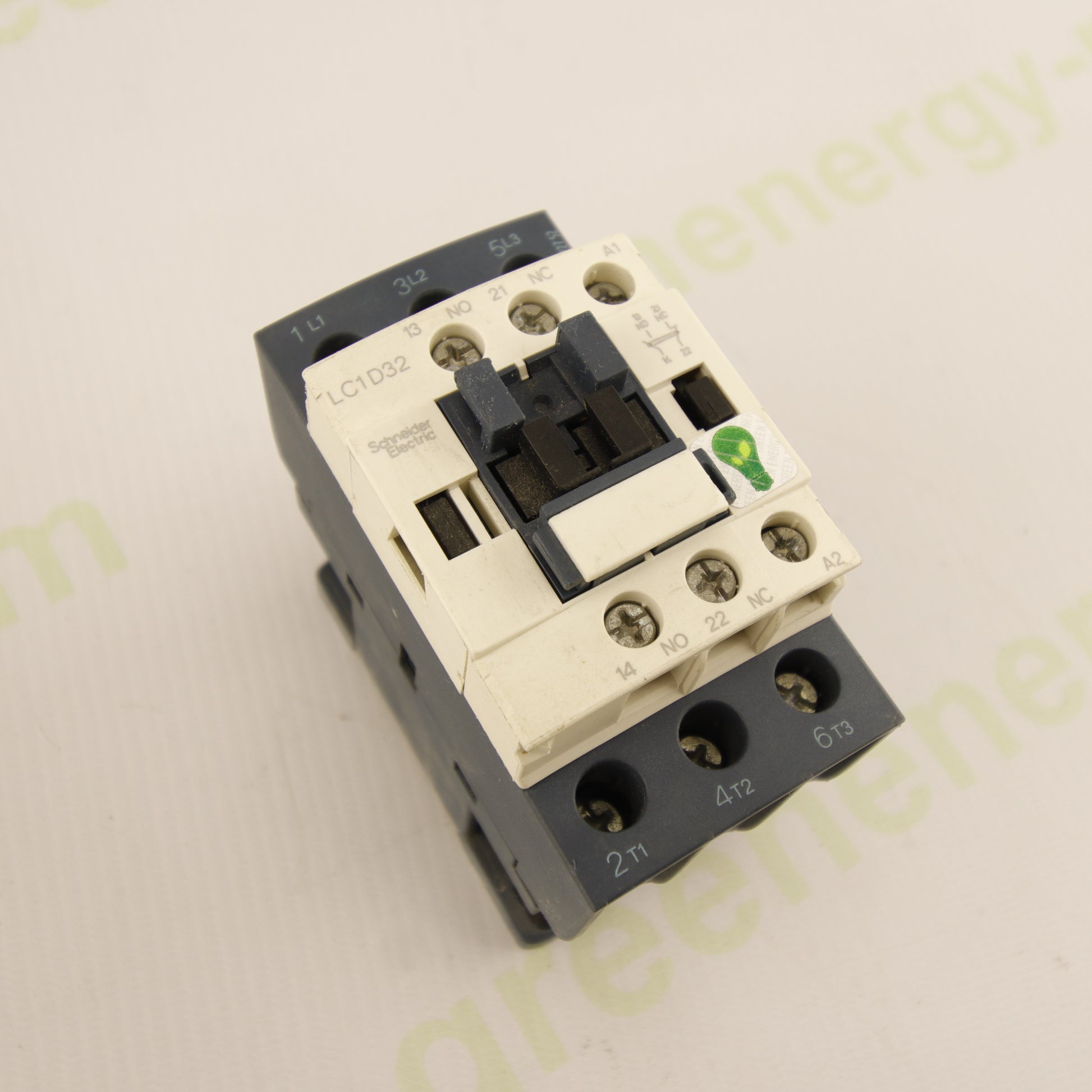

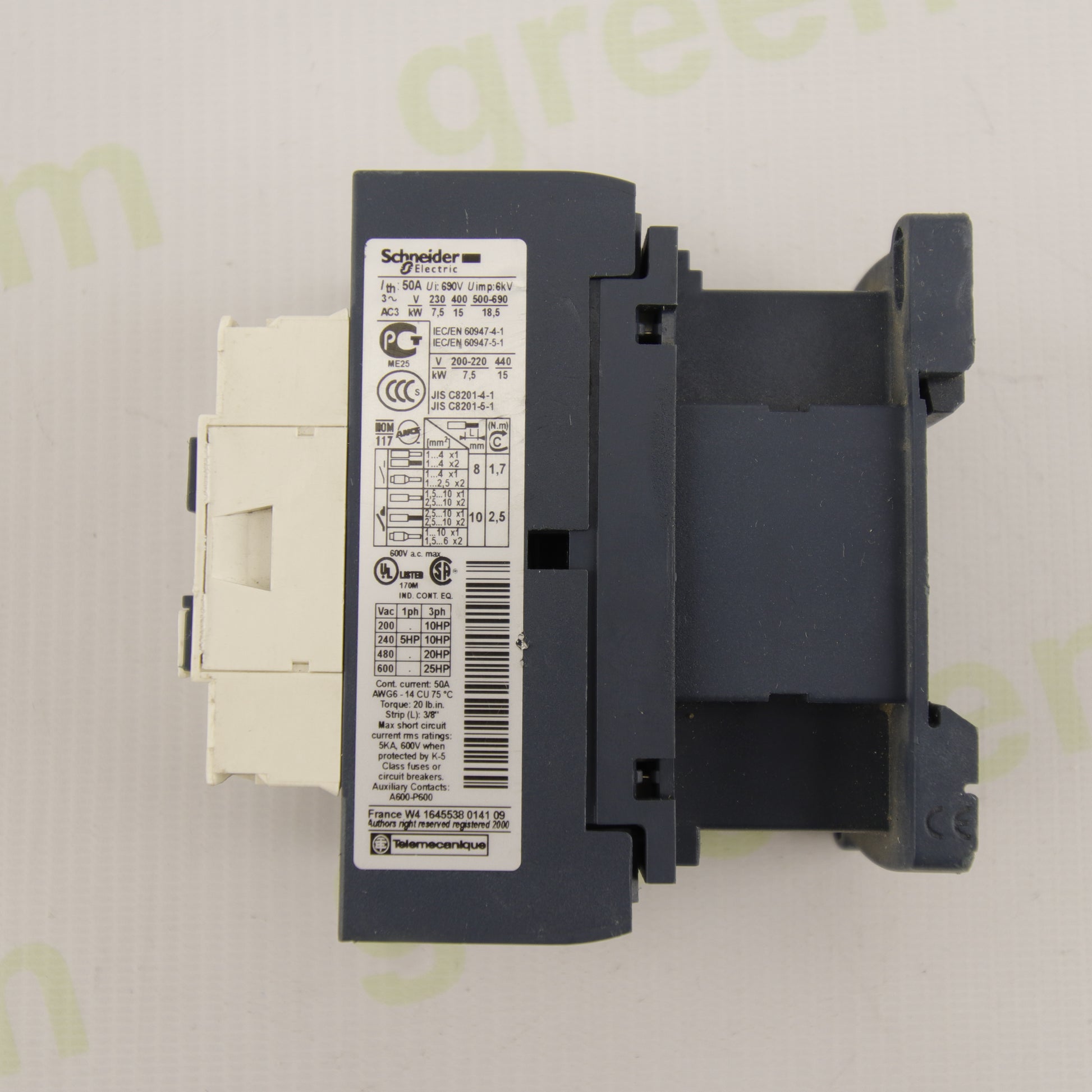

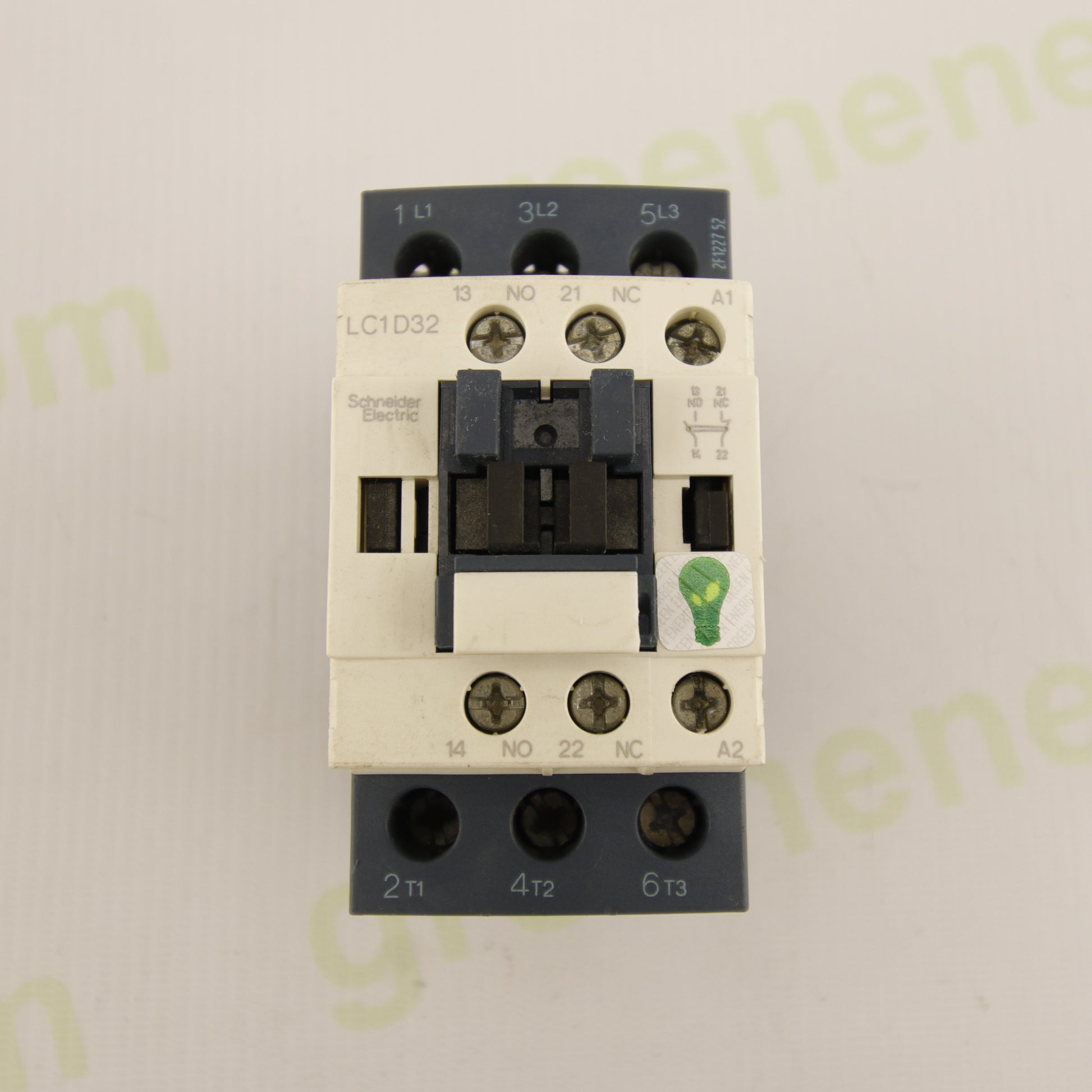

The Schneider Electric LC1D32 is a three-phase electromechanical power contactor from the TeSys D series (formerly Telemecanique), designed for switching and controlling electric motors and industrial loads in AC-3 utilization category.

Compact, robust, and highly reliable, this contactor is suitable for industrial automation panels and power distribution systems, offering high switching performance and long mechanical and electrical lifespan.

⚙️ Technical Specifications

Brand: Schneider Electric
Series: TeSys D
Model: LC1D32
Type: Power contactor
Number of poles: 3P (three-phase)

🔌 Electrical Ratings

• Rated operational current (AC-3): 32 A

• Rated operational voltage (Ue): up to 690 V AC

• Rated insulation voltage (Ui): 690 V

• Impulse withstand voltage (Uimp): 6 kV

• Utilization category: AC-3

⚡ Indicative Motor Power (AC-3)

• 7.5 kW @ 230 V

• 15 kW @ 400 V

• 18.5 kW @ 500 V

🔄 Control Circuit

• Coil terminals: A1 – A2

• ⚠ Coil voltage must be verified on the device nameplate

🔧 Auxiliary Contacts (Integrated)

• 1 NO (13-14)

• 1 NC (21-22)

📜 Standards

• IEC / EN 60947-4-1

🛠 Mounting

• DIN rail mounting

• Panel mounting with screws

🔎 Function

The contactor is designed for:

✔ Starting and stopping three-phase motors
✔ Switching inductive loads
✔ Integration into industrial automation systems
✔ Use in power distribution panels

Integrated auxiliary contacts allow signaling, control logic, or interlocking functions.

🏭 Applications

✔ Industrial automation panels
✔ Three-phase motor control
✔ Compressors
✔ Pumps
✔ Industrial fans
✔ HVAC systems
✔ Production lines

🛠 Installation

• Mounting on DIN rail or panel

• Power connections: L1-L2-L3 / T1-T2-T3

• Coil connection: A1-A2

• Compatible with TeSys thermal overload relays

📦 Condition

Used product in good cosmetic condition.
Verification of coil voltage is recommended prior to installation.

📦 Scope of Supply

• 1x Schneider Electric LC1D32 contactor

🚀 Commercial Summary

Professional 32A AC-3 three-phase contactor from the Schneider Electric TeSys D range. The LC1D32 is ideal for controlling motors up to 15 kW at 400V, offering reliable performance for industrial automation and power control applications.
