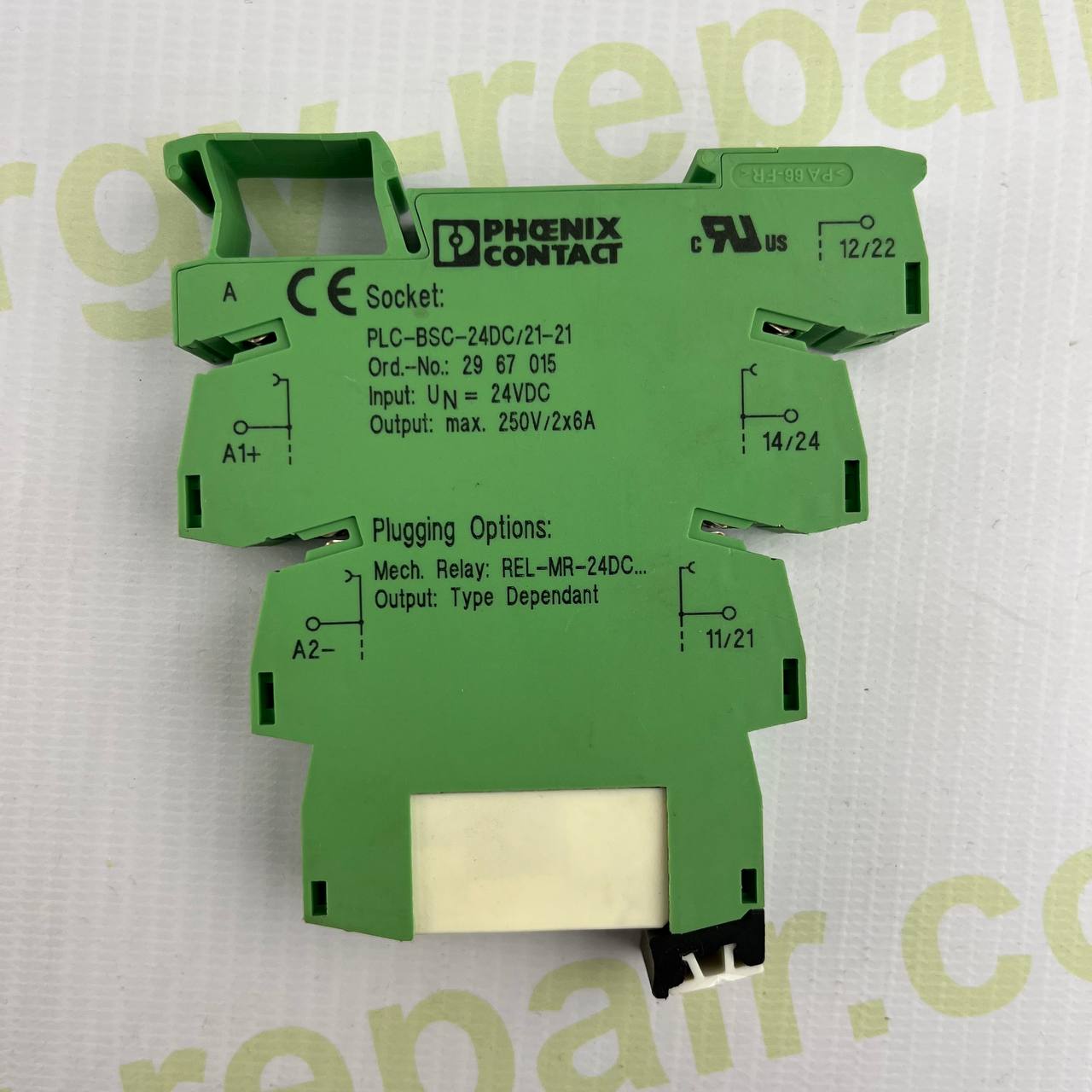

The Phoenix Contact PLC-BSC-24DC/21-21 is a high-quality interface relay module designed for compact and efficient signal switching in automation systems. Featuring a slim 15 mm housing for DIN rail mounting, this relay is ideal for space-constrained control cabinets.

It includes a 24V DC coil and two SPDT (changeover) contacts, each rated for up to 6A at 250V AC, making it suitable for controlling various loads such as solenoids, actuators, and indicators in both industrial and safety-critical applications.

⚙️ Technical Specifications:

• Manufacturer: Phoenix Contact
• Model: PLC-BSC-24DC/21-21
• Part Number: 2967015
• Input Voltage (Coil): 24V DC
• Output Contacts: 2× SPDT (changeover), 6A @ 250V AC
• Connection Type: Screw terminals
• Mounting: DIN-rail (35 mm)
• Width: ~15 mm (ultra-compact design)
• Housing Type: Modular plug-in base

✅ Features:

• Space-saving slimline design for dense control panels
• High-reliability switching with Phoenix Contact build quality
• Quick installation with screw terminal connections
• Easily replaceable relay plug with LED indication (optional)

📦 Condition: Used – Fully tested
🛡 Green Energy Warranty: 6 months

🔗 Ideal for PLC interfacing, control signal isolation, and modular automation systems.
