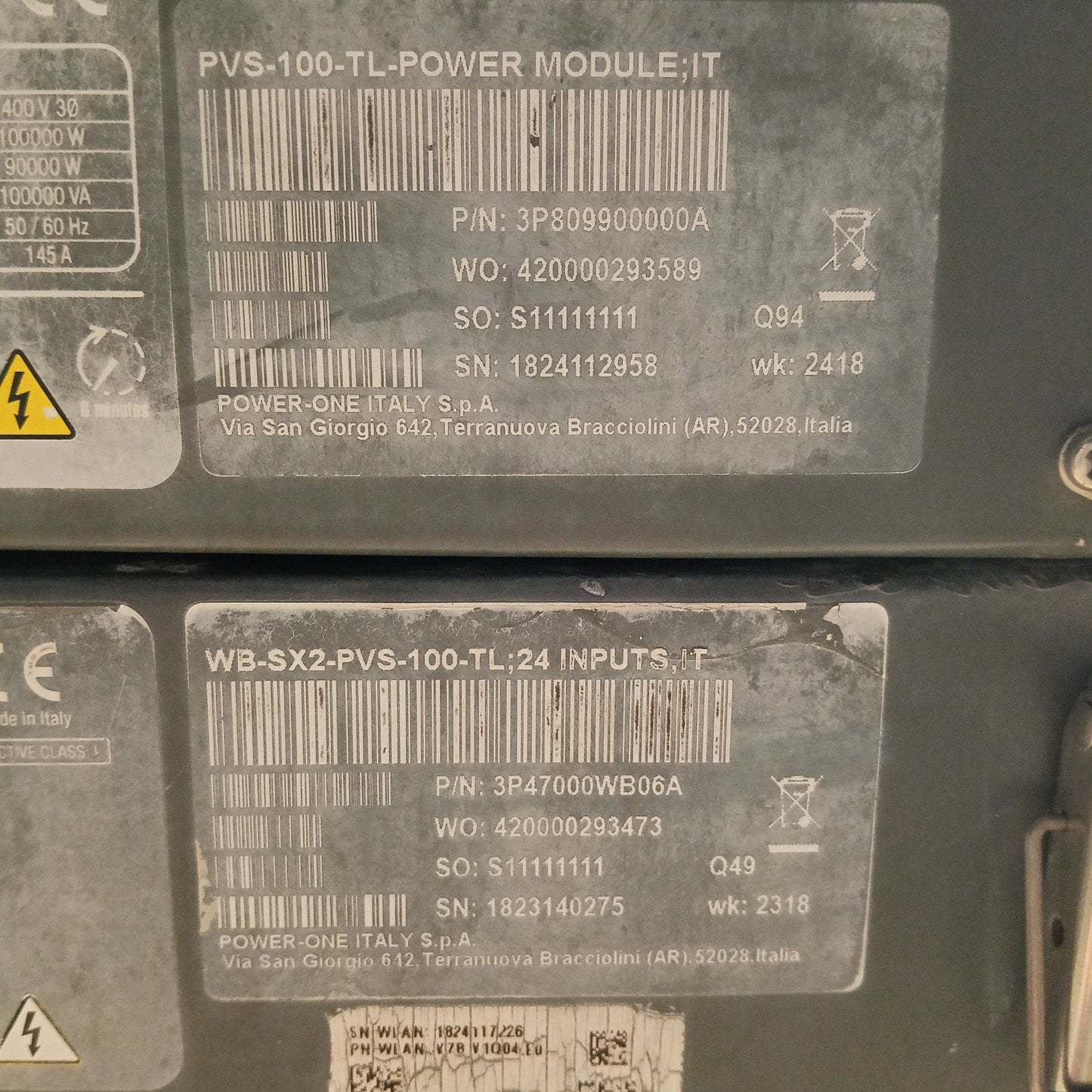

The ABB PVS-100-TL Power Module with Wiring Box is a high-performance inverter assembly designed for commercial and utility-scale photovoltaic installations. This unit is a core component of the ABB PVS-100-TL central inverter platform, delivering reliable grid-connected operation with industrial-grade efficiency and protection.

Manufactured in Italy by Power-One Italy S.p.A. (ABB), the system combines a 100 kW power module with a 24-input wiring box, ensuring safe DC aggregation, stable power conversion, and long-term durability in demanding outdoor environments.

🔄 Condition: Used, 100% functional
🛠 Warranty: 12 months by Green Energy

⚙️ Technical Specifications – Power Module

• Manufacturer: ABB / Power-One Italy
• Model: PVS-100-TL Power Module
• Rated AC Power: 100 kW
• AC Output Voltage: 400 V, 3-Phase
• Frequency: 50 / 60 Hz
• Max Apparent Power: 100,000 VA
• DC Operating Range: 360 – 1000 V
• MPPT Voltage Range: 480 – 850 V
• Max DC Voltage: 1000 V
• Max DC Current: 6 × 36 A / 6 × 50 A
• Protection Rating: IP66 (cooling section)
• Protective Class: Class I
• Cooling: Integrated forced-air cooling
• Country of Origin: Italy
• Part Number: 3P809900000A⚙️ Technical Specifications – Wiring Box
• Model: WB-SX2-PVS-100-TL
• Inputs: 24 DC string inputs
• Function: DC string aggregation & protection
• Protection Rating: IP66
• Operating Temperature: -25 °C to +60 °C
• Part Number: 3P47000WB06A

📌 Key Features

✔️ Complete ABB inverter power assembly (Power Module + Wiring Box)
✔️ Designed for large-scale grid-tied solar power plants
✔️ High DC voltage capability up to 1000 V
✔️ Industrial IP66 enclosure for outdoor installation
✔️ Fully compatible with ABB PVS-100-TL inverter systems
✔️ Ideal for replacement, refurbishment, or capacity restoration

⚠️ Notes

• This listing includes Power Module and Wiring Box only
• Mounting hardware, DC/AC cables, and accessories are not included unless specified
• Recommended installation by qualified solar technicians

🚀 Restore the performance and reliability of your ABB PVS-100-TL solar inverter system with this tested industrial-grade power module and wiring box — backed by Green Energy expertise and warranty
