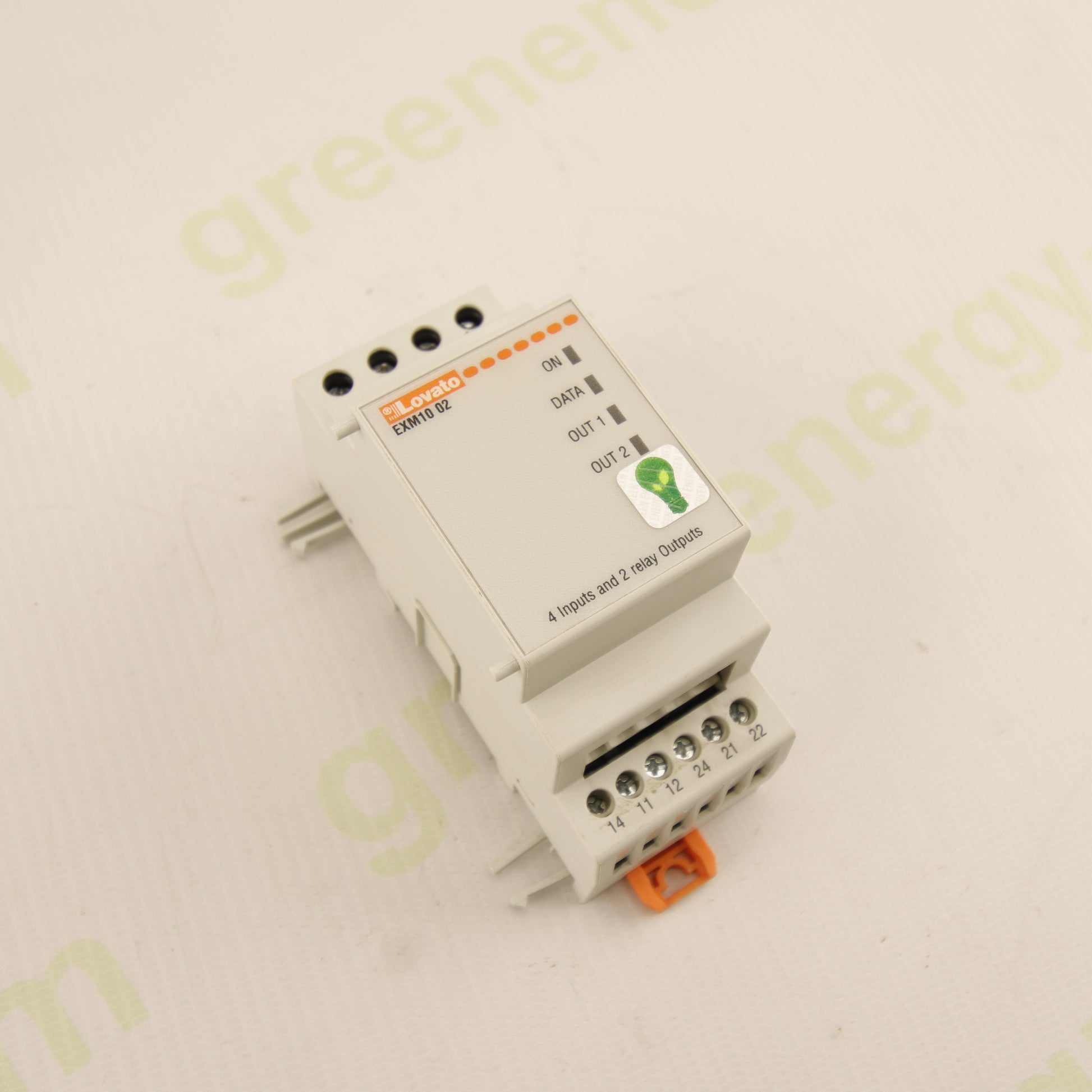

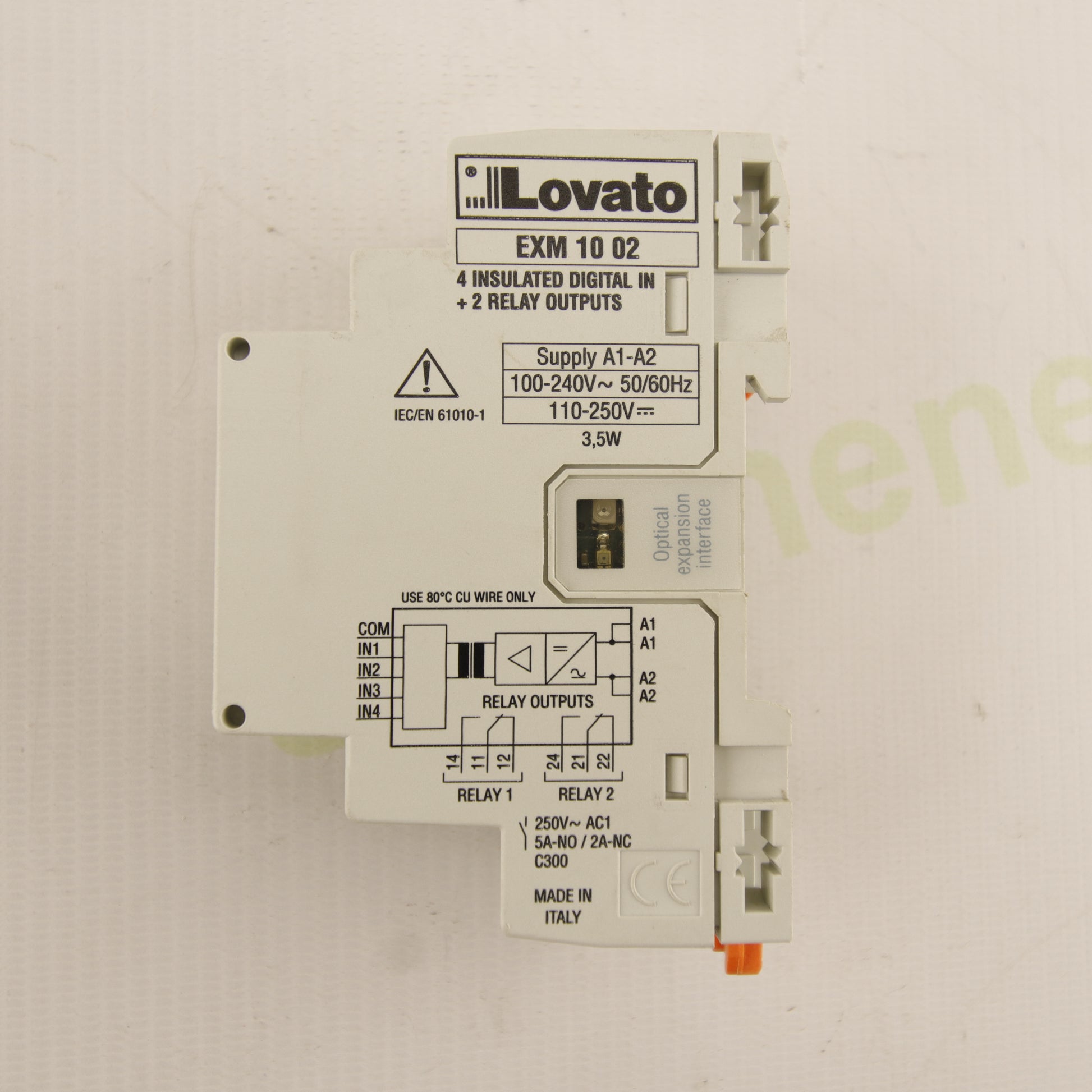

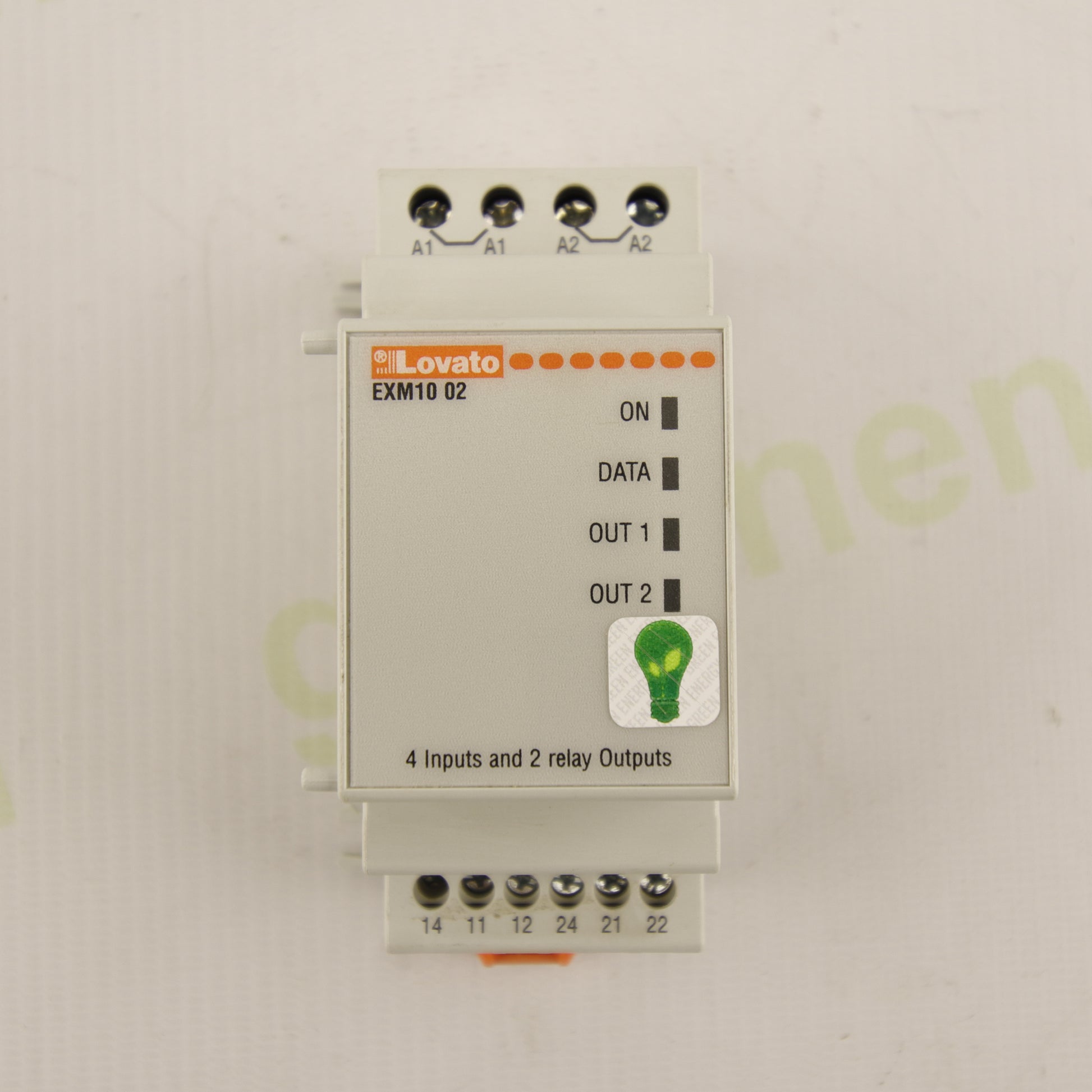

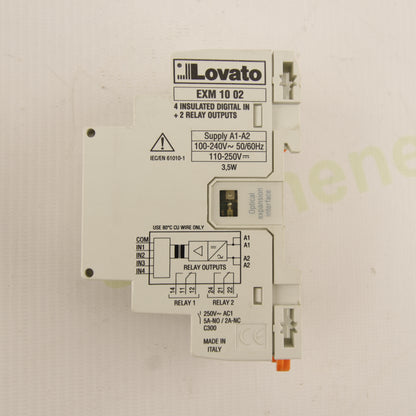

The Lovato EXM10 02 is an industrial I/O expansion module designed for automation and control systems, featuring 4 isolated digital inputs and 2 relay outputs.

This module allows you to extend the functionality of Lovato monitoring and control devices, enabling the management of digital signals and the activation of loads through integrated relay contacts.

With its compact DIN rail design, it is ideal for installation in electrical panels, industrial automation systems, and energy management applications.

⚙️ Technical Specifications

• Model: EXM10 02
• Manufacturer: Lovato Electric
• Type: I/O expansion module

Inputs:

• 4 isolated digital inputs (IN1–IN4)

Outputs:

• 2 relay outputs (OUT1, OUT2)

Power Supply:

• 100–240 V AC (50/60 Hz)
• 110–250 V DC

Power consumption: 3.5 W

Relay contacts:

• 250 V AC
• 5 A NO / 2 A NC

Interface:

• Optical expansion port

Mounting:

• DIN rail (modular)

Standard:

• IEC / EN 61010-1

Origin:

• Made in Italy

🔧 Main Functions

• Expansion of digital inputs for control systems
• Load activation via integrated relays
• Interface with Lovato devices (monitors, controllers, energy systems)
• Management of ON/OFF signals from sensors or contacts
• Industrial process automation

🔌 Applications

• Industrial electrical panels
• Automation and control systems
• Energy monitoring systems
• Integration with Lovato devices
• Photovoltaic and energy installations

📦 Package Contents

• 1× Lovato EXM10 02 Module
• Condition: Used / tested (if verified)

💡 Key Benefits

✔ Easy and modular system expansion
✔ High industrial reliability
✔ Quick DIN rail installation
✔ Full compatibility with Lovato systems
