Fronius Primo 6.0-1 – 6kVA Solar Inverter | 5400W | 2 MPPT | WLAN/LAN | IP65 | 230V | Grid-Tie | PN 4,210,062

(4.79)

25 verified purchases

€650,00 EUR

Z wliczonym podatkiem.

Sorry, it's out of stock.

But we can let you know when it's back in.

Zapas wyczerpany

Quantity Discount

2 or more items	3% OFF
5 or more items	5% OFF
10 or more items	10% OFF

Warranty Included

Smooth and stress-free — we handle issues, without bureaucracy.

After-Sale Care

From setup to questions — we’ve got your back after the sale.

Description

The Fronius Primo 6.0-1 is a high-quality single-phase photovoltaic inverter designed for medium-sized residential and small commercial solar systems.

This version features integrated WLAN, LAN, and Webserver, enabling advanced monitoring, remote management, and smart energy control.

Built with transformerless technology, the inverter ensures high efficiency and reliable performance. The presence of two independent MPPT trackers allows optimal energy production even with multiple PV string orientations.

With an IP65 protection rating, the unit is suitable for both indoor and outdoor installations, ensuring durability in various environmental conditions.

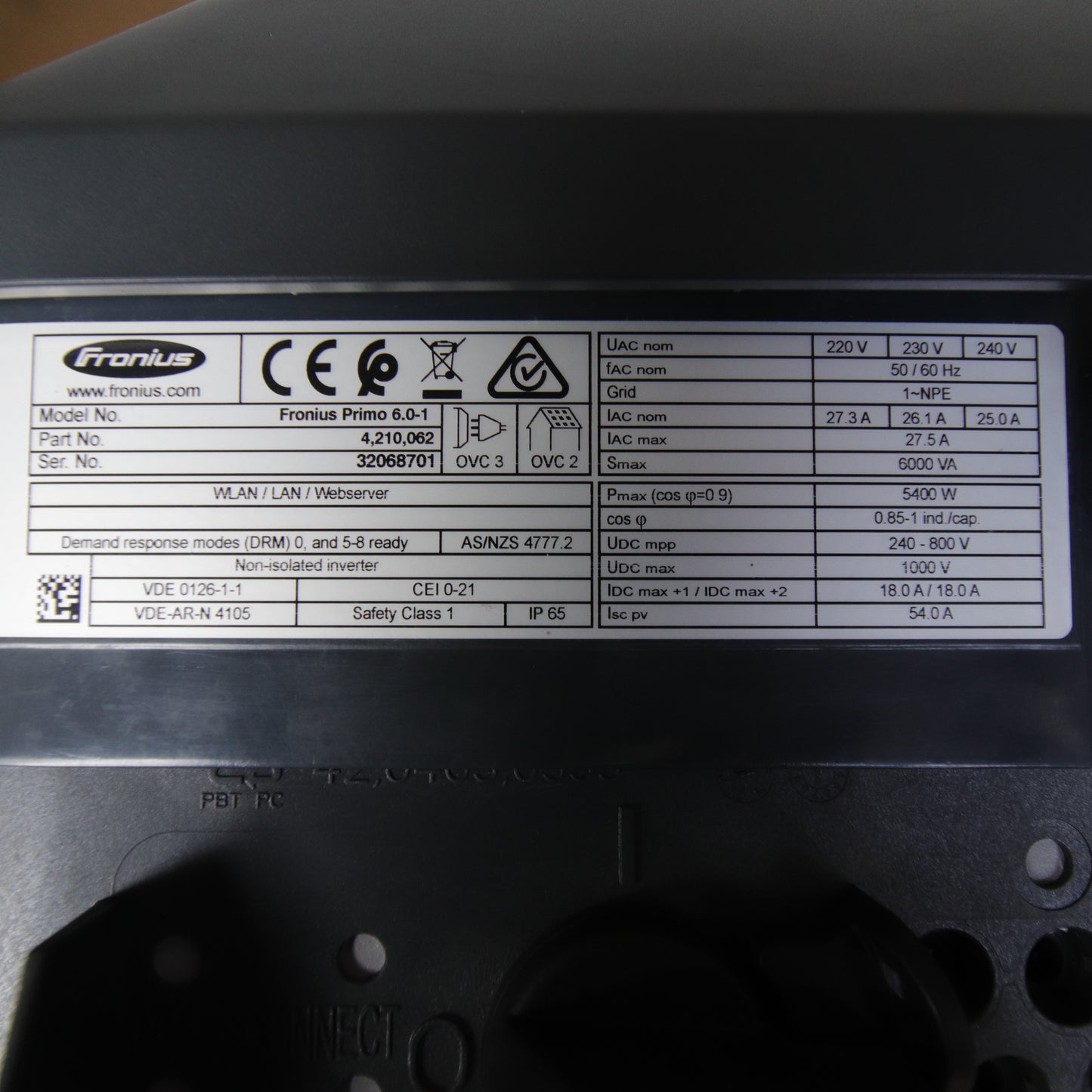

⚙️ Identification Data

Brand: Fronius
Model: Primo 6.0-1
Part Number: 4,210,062
Serial Number: 32068701
Type: Single-phase string inverter (transformerless)

🔌 AC Side (Grid Output)

Nominal voltage (UAC): 220 / 230 / 240 V
Frequency (fAC): 50 / 60 Hz
Grid configuration: 1~NPE
Nominal current (IAC nom):
- 27.3 A (220 V)
- 26.1 A (230 V)
- 25.0 A (240 V)
Maximum current (IAC max): 27.5 A
Apparent power (Smax): 6000 VA
Active power (Pmax): 5400 W (cos φ = 0.9)
Power factor: 0.85 – 1 (adjustable inductive/capacitive)

☀️ DC Side (PV Input)

MPPT voltage range (UDC mpp): 240 – 800 V
Maximum DC voltage: 1000 V
Number of MPPTs: 2 independent trackers
Maximum input current: 18.0 A + 18.0 A
Short-circuit current (Isc PV): 54.0 A

🌐 Communication & Smart Features

Integrated WLAN (Wi-Fi)
Integrated LAN (Ethernet)
Built-in Webserver for monitoring
Demand Response Modes (DRM): 0 and 5–8 ready
Remote monitoring via Fronius platforms

🛡 Protection & Certifications

Protection rating: IP65
Safety class: Class I
Overvoltage category: OVC 2 / OVC 3

Compliance:

VDE 0126-1-1
VDE-AR-N 4105
CEI 0-21
AS/NZS 4777.2

🧠 Key Features

✔ High-performance inverter up to 6 kVA
✔ Dual MPPT for maximum energy yield
✔ Integrated Wi-Fi, LAN, and Webserver
✔ Wide DC voltage range for flexible system design
✔ Efficient active cooling system
✔ Suitable for indoor and outdoor installation (IP65)
✔ Smart grid compatibility and advanced monitoring

🏭 Applications

Ideal for:

✔ Medium to large residential PV systems
✔ Installations with multiple PV string orientations
✔ Systems requiring advanced remote monitoring
✔ Smart energy management applications
