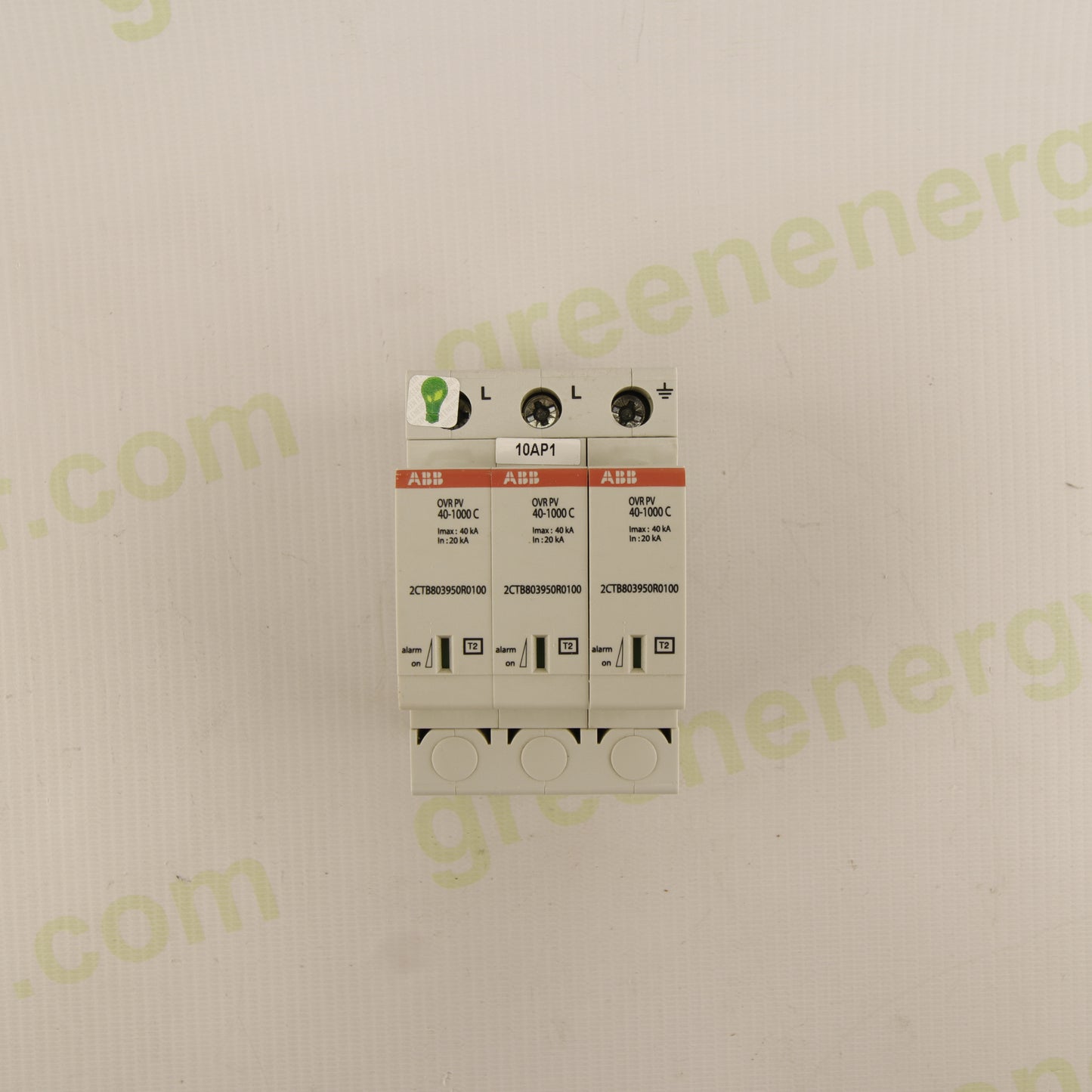

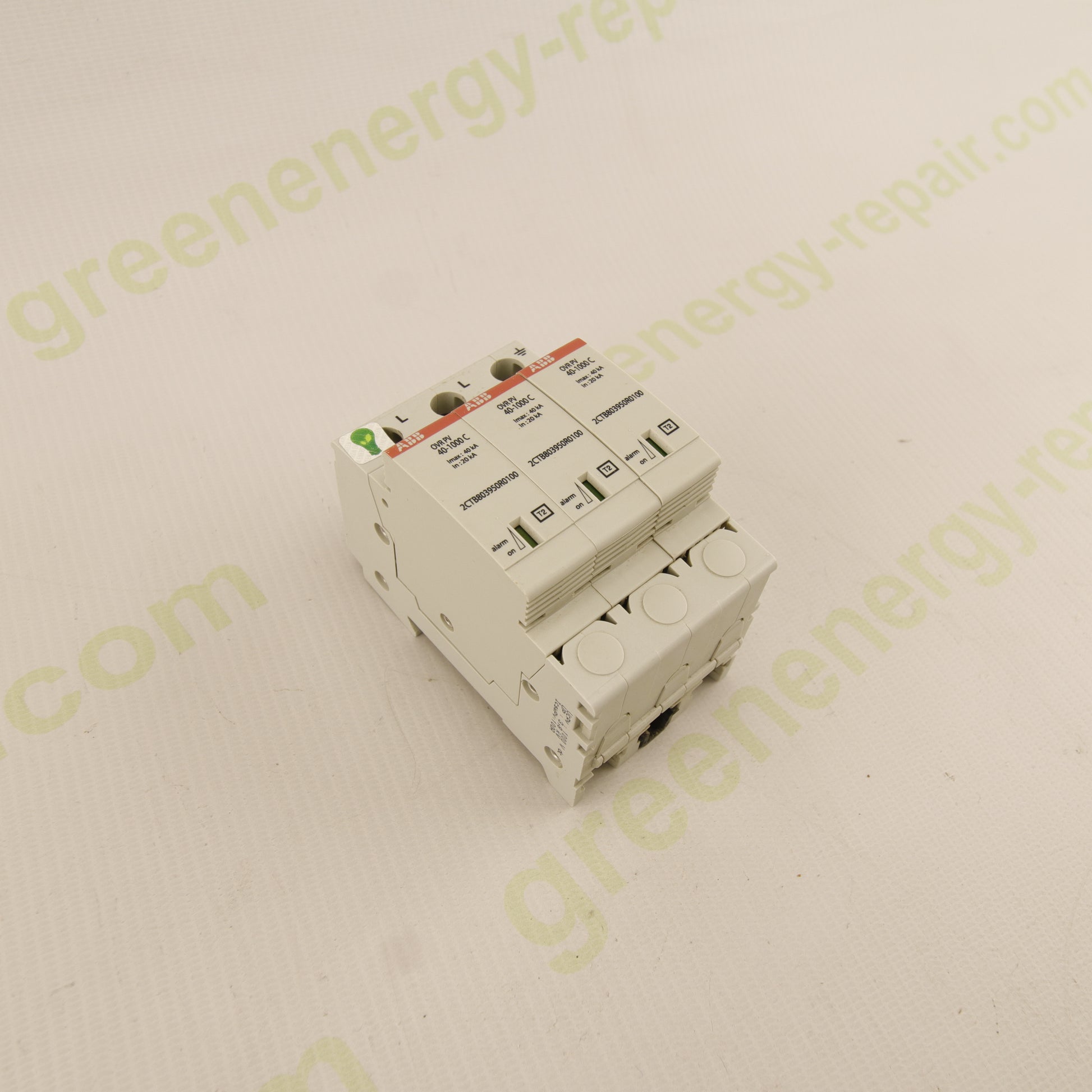

The ABB OVR PV 40-1000 C is a Type 2 Surge Protection Device (SPD) specifically designed for photovoltaic DC installations.

This device protects solar inverters, PV strings, and sensitive electronic equipment from transient overvoltages caused by indirect lightning strikes, atmospheric disturbances, or switching surges on the DC line.

The OVR PV 40-1000 C is suitable for photovoltaic systems with maximum DC voltage up to 1000V, providing strong surge protection with a nominal discharge current of 20 kA and a maximum discharge current of up to 40 kA.

Thanks to ABB’s modular design, the device allows easy replacement of the protection cartridges and quick visual inspection of operational status through a front status indicator.

It is intended for installation in PV DC protection panels or string combiner boxes, mounted on a standard 35 mm DIN rail.

⚙️ Technical Specifications

Brand: ABB
Series: OVR PV
Model: OVR PV 40-1000 C
Product code: 2CTB803950R0100
Device type: Photovoltaic surge protection device (SPD)
SPD class: Type 2 (Class C)
Application: Photovoltaic DC systems

🔌 Electrical Parameters

• Maximum continuous operating voltage (Uc): 1000 V DC

• Nominal discharge current (In): 20 kA

• Maximum discharge current (Imax): 40 kA

🔧 Installation

• Mounting on 35 mm DIN rail

• Installation in PV DC protection panels or combiner boxes

• Connected between photovoltaic strings and the inverter

🏭 Applications

Ideal for:

✔ Residential photovoltaic systems
✔ Commercial and industrial PV installations
✔ PV string combiner boxes
✔ Solar inverter protection
✔ DC power distribution systems
