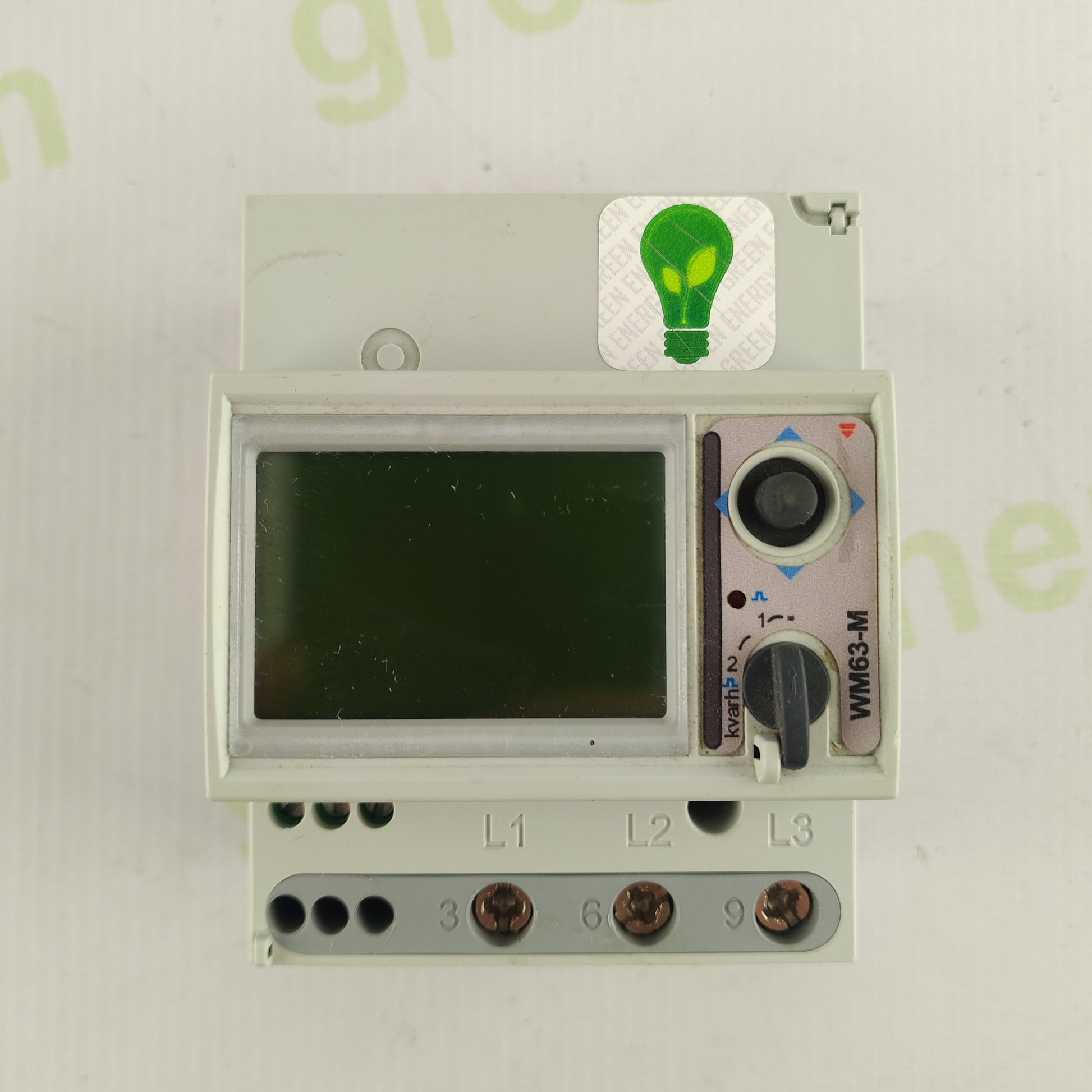

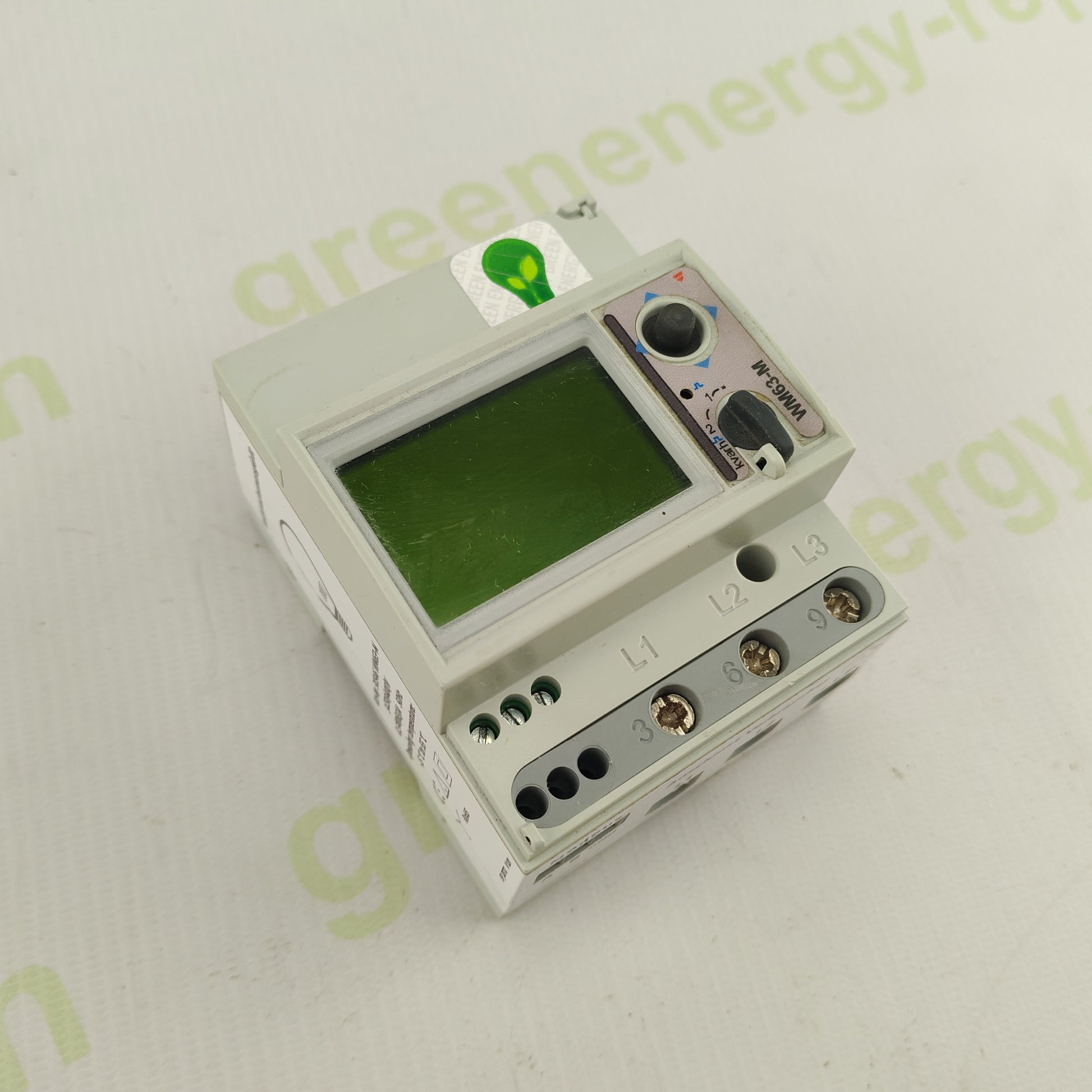

The WM63-M/ EM24-DIN (Part No. 30346) is a compact three-phase digital energy meter designed for accurate measurement and monitoring of active energy consumption in 3x230/400 V AC systems.
With a current range of 0.5–10(65) A, this device provides reliable data for both residential and industrial applications, including solar PV systems, control panels, and energy management installations.

The WM63-M / EM24-DIN features a clear LCD display, high measurement accuracy, and easy DIN-rail mounting. It supports direct connection (up to 65 A per phase) and is compliant with MID standards, ensuring certified precision for billing or energy analysis.

🔄 Condition: Used
🛠 Warranty: 6 months by Green Energy

⚙️ Technical Specifications:

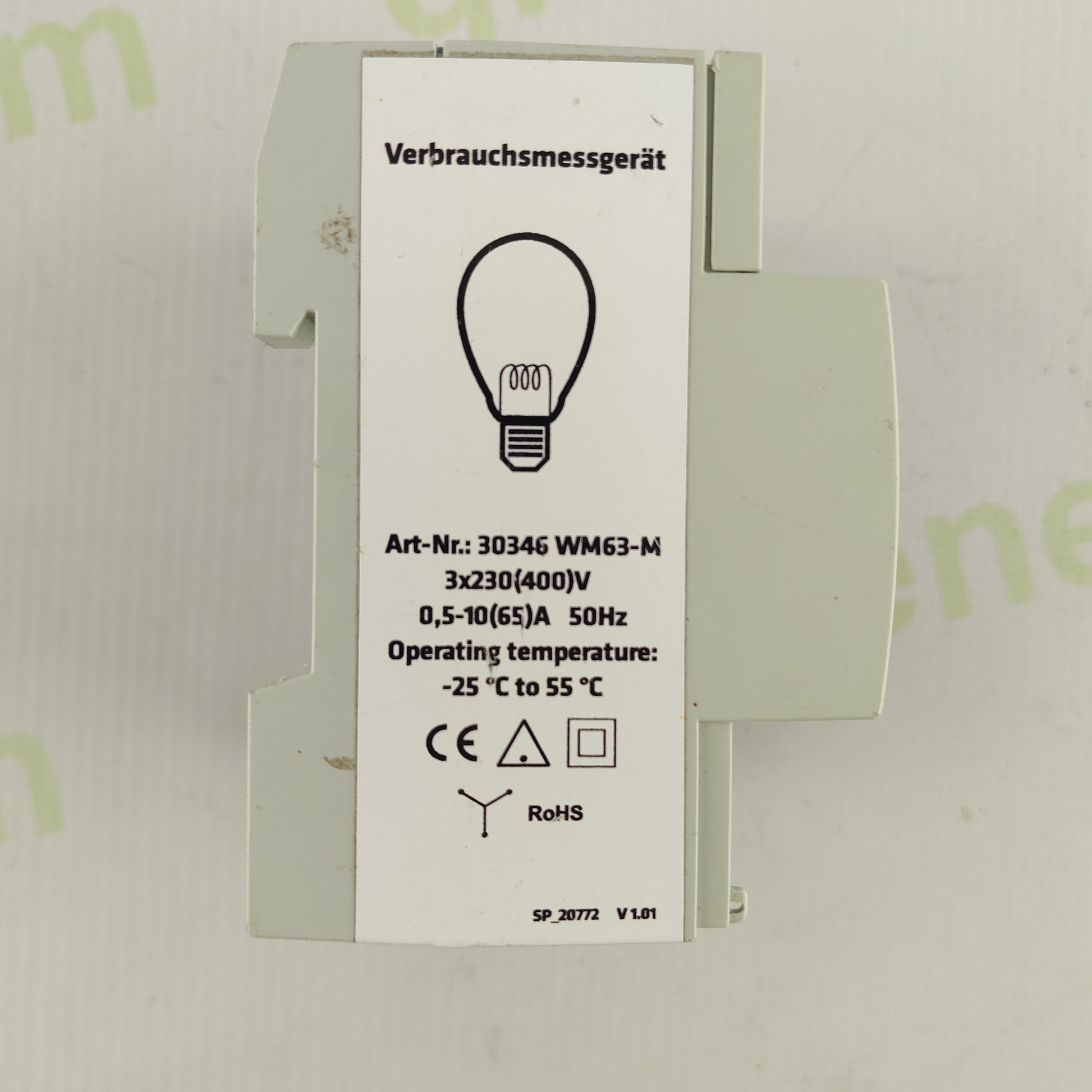

• Model: WM63-M
• Part Number: 30346
• Measurement Type: 3-phase 4-wire energy meter
• Voltage: 3x230/400 V AC, 50 Hz
• Current Range: 0.5–10(65) A (direct connection)
• Display: LCD (multi-function energy data)
• Accuracy Class: Class 1 (active energy)
• Measurement Parameters: kWh, kVarh, V, A, Hz
• Interface: Pulse output / optional communication (depending on version)
• Mounting: DIN-rail, modular housing
• Dimensions: Standard 4 modules (approx.)
• Certification: MID / CE / RoHS compliant
• Operating Temperature: -25 °C … +55 °C
• Origin: Made in EU

📌 Key Features:
✔️ Three-phase energy metering up to 65 A per phase
✔️ MID-certified precision for billing applications
✔️ Direct connection without external CTs
✔️ Compact modular design for DIN-rail panels
✔️ Ideal for PV, industrial, and commercial installations
✔️ Clear LCD display with real-time energy data

🚀 Monitor and optimize your energy performance with the WM63-M Energy Meter (30346)
