📝 Description

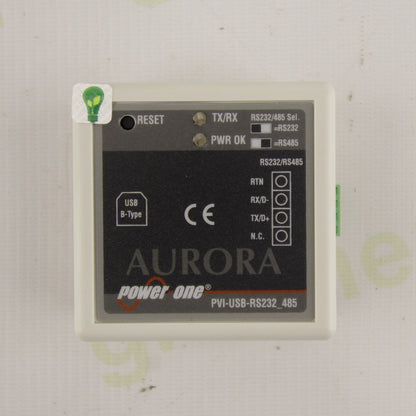

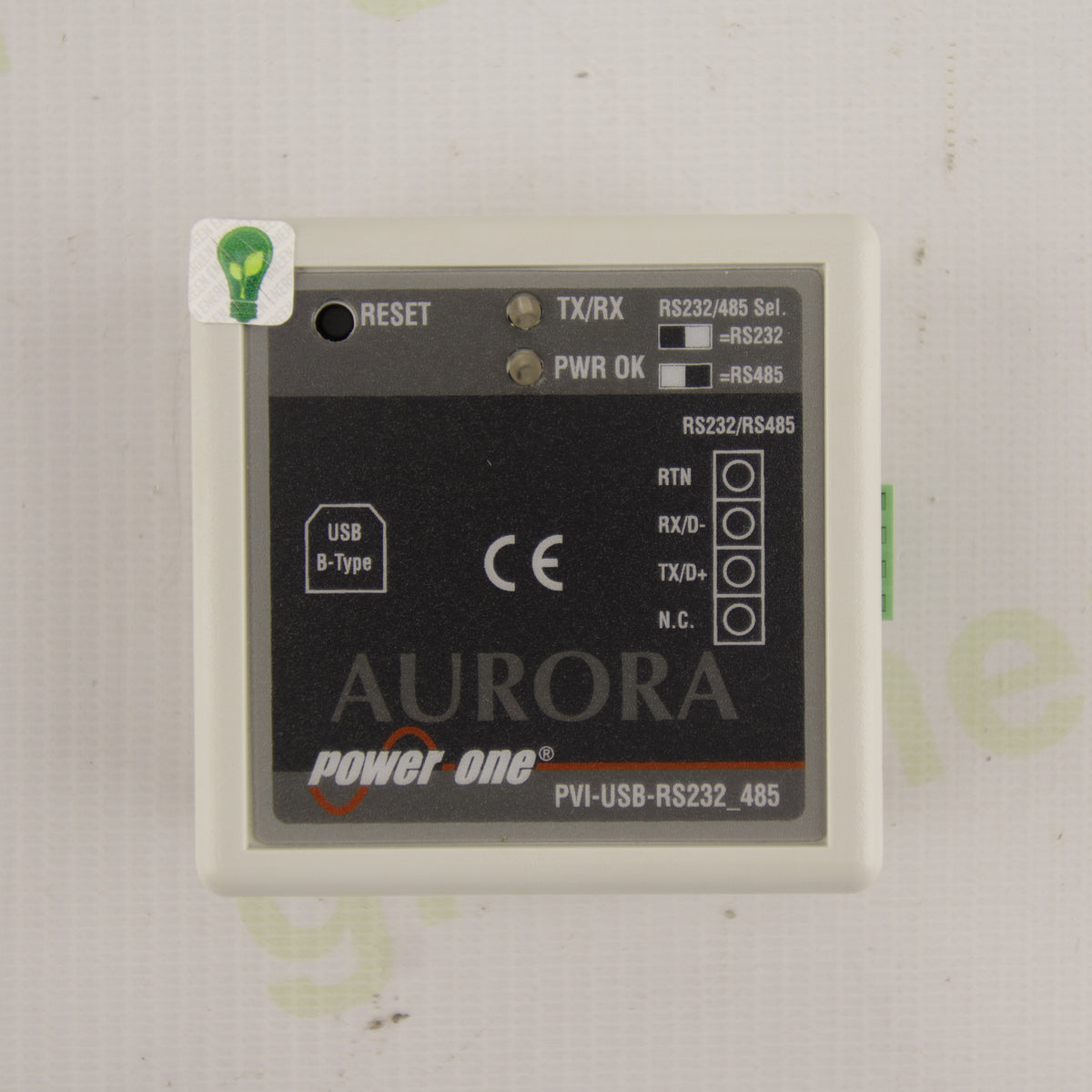

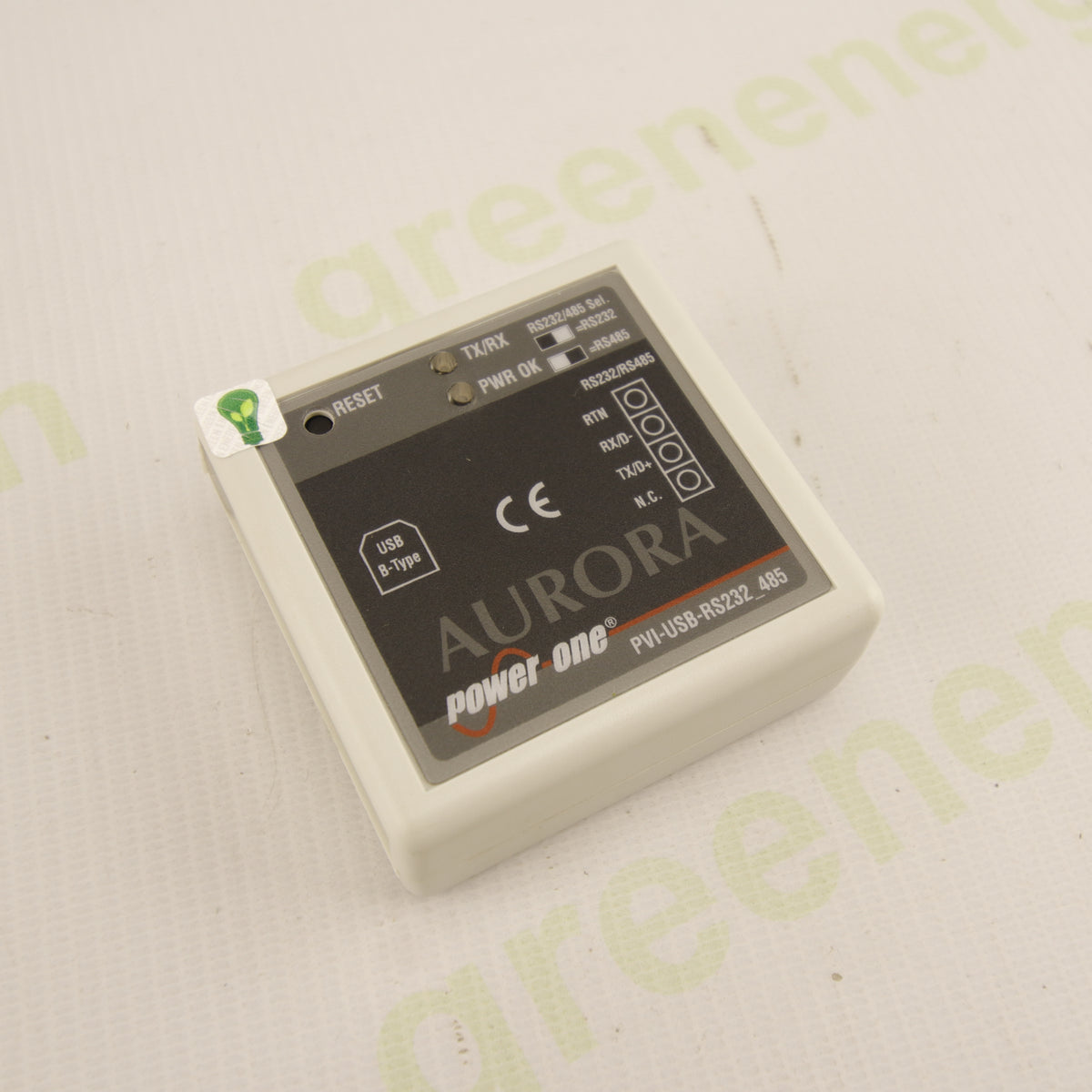

New product, complete with the accessories visible in the photographs and original packaging. Power-One Aurora PVI-USB-RS232_485 serial communication converter, designed to connect compatible photovoltaic inverters to a computer via USB, using either an RS232 or RS485 serial interface.
The device enables communication with inverters for configuration, monitoring, diagnostics, and management using compatible software. The RS232/RS485 selector allows you to choose the required serial connection type.

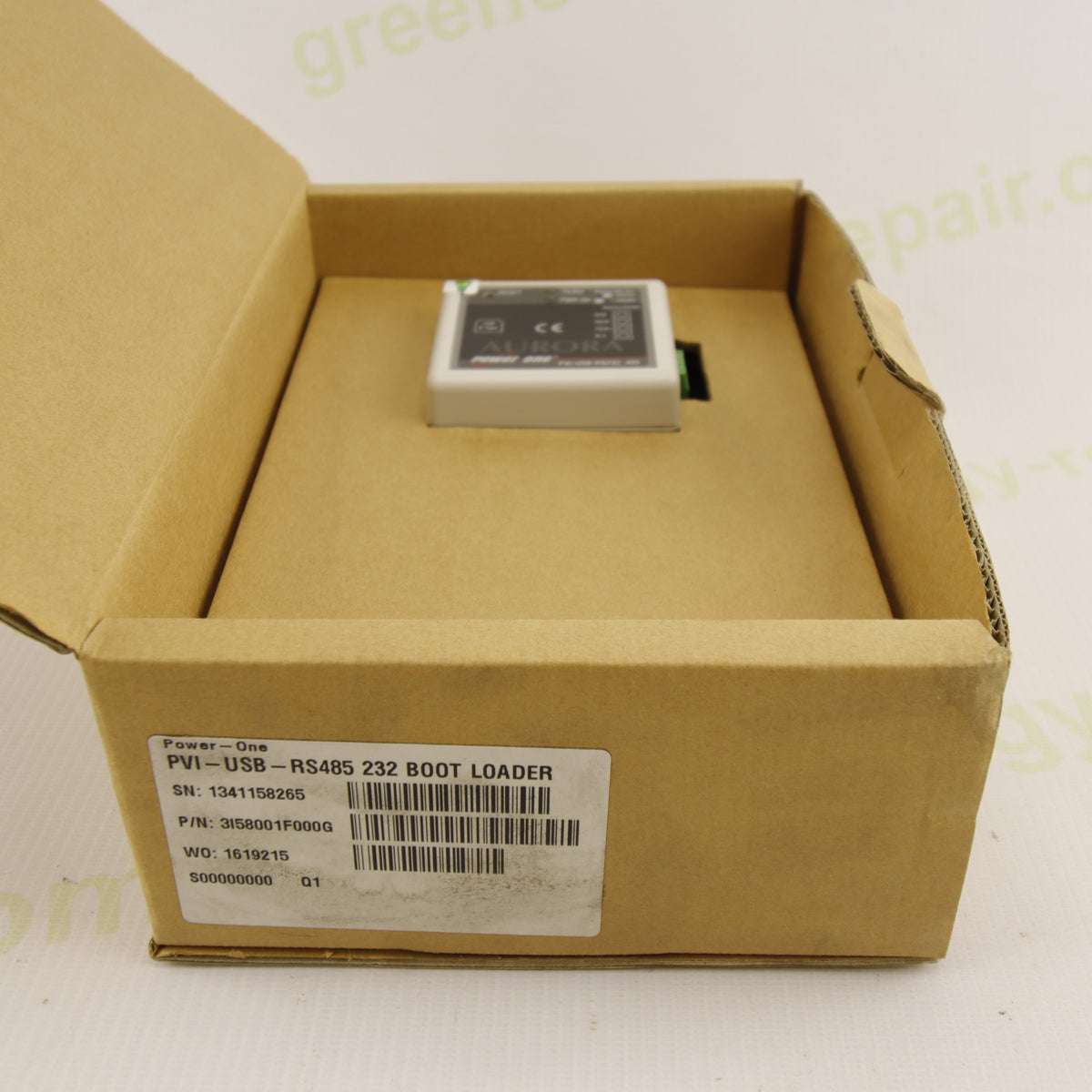

The product is also identified by the label on the packaging:

• Model: PVI-USB-RS485 232 Boot Loader
• P/N: 3158001F000G
• S/N: 1341158265
• W/O: 1619215
  Official FIMER documentation confirms the converter's function and its use with string and central photovoltaic inverters.

⚙️ Main Specifications

• Brand: Power-One / Aurora
• Model: PVI-USB-RS232_485
• Product code on packaging: 3158001F000G

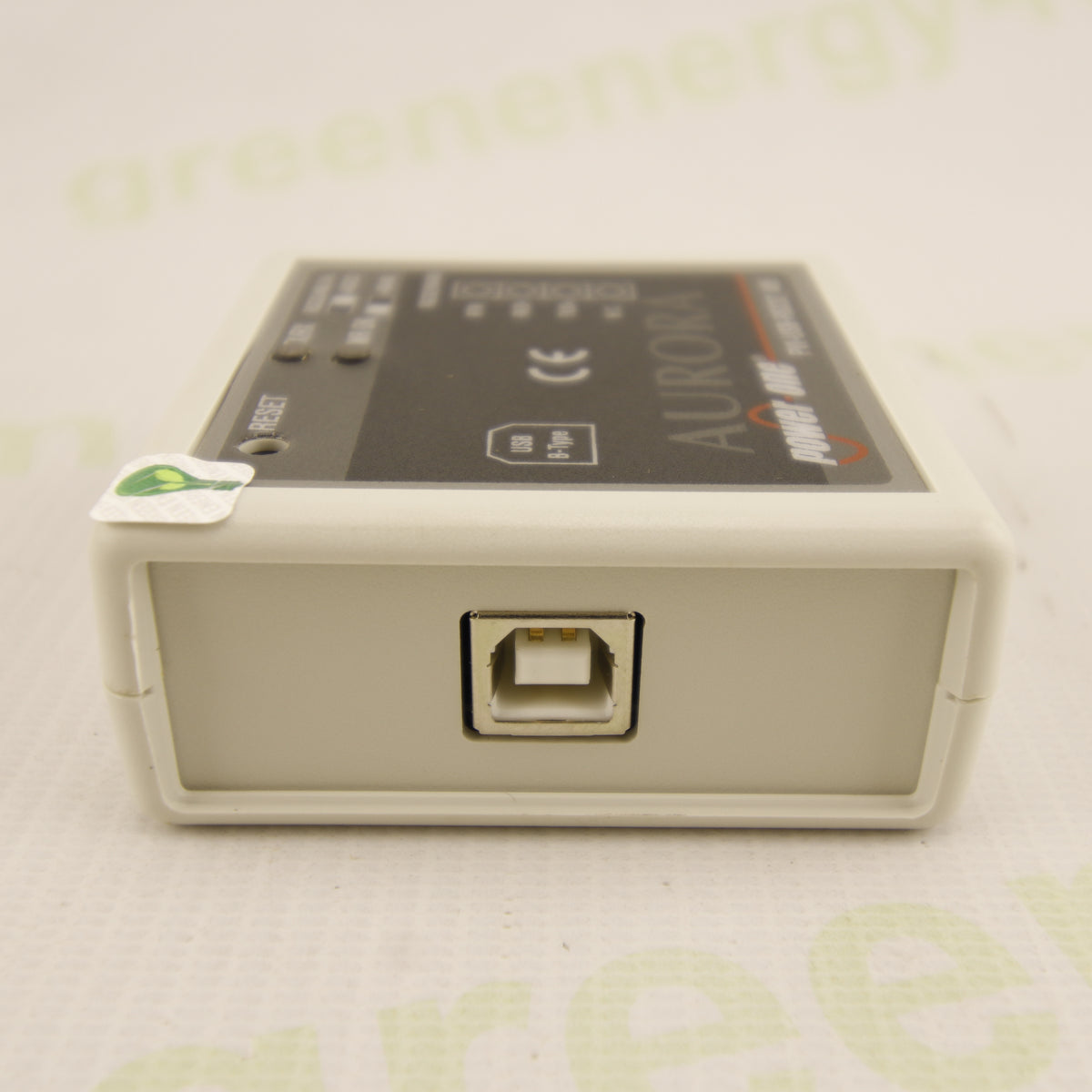

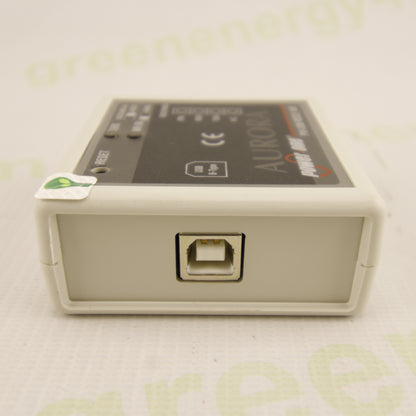

• Computer interface: USB Type B
• Serial interfaces: RS232 and RS485
• Mode selection: RS232/RS485
• LED indicators: TX/RX and PWR OK
• Button: RESET
• Power supply: Via USB port, no external power supply required

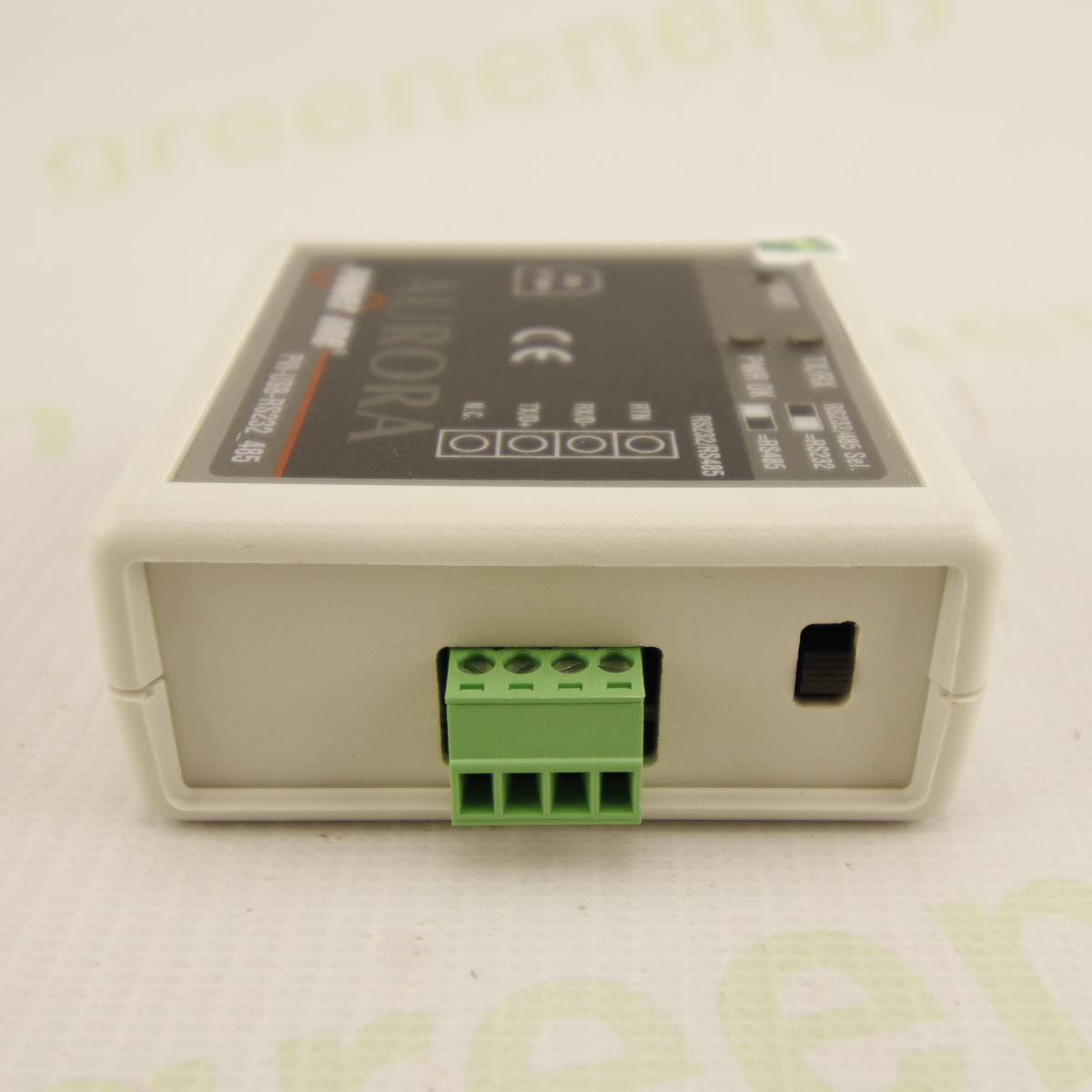

• Serial connector: Screw terminal block
• Marking: CE

🔌 Main Functions

• Connects a computer to compatible Aurora inverters.
• Enables data exchange via RS232 or RS485.
• Supports configuration and monitoring using compatible software.
• Allows RS485 connection to a communication line linking multiple inverters, according to the system configuration.

💻 Compatible Software

According to the official documentation, the converter can be used with software from the Aurora family, including:

• Aurora Communicator
• Aurora CVI Central
• Aurora Installer
• Aurora Stringcomb Installer
• Aurora Manager
  Actual compatibility depends on the inverter model, software, and operating system used.

🛠️ Applications

• Configuration and monitoring of compatible photovoltaic inverters.
• System diagnostics and maintenance.
• Serial communication with string and central inverters.
• Technical servicing of Power-One/Aurora photovoltaic systems and compatible models.

📦 Package Contents

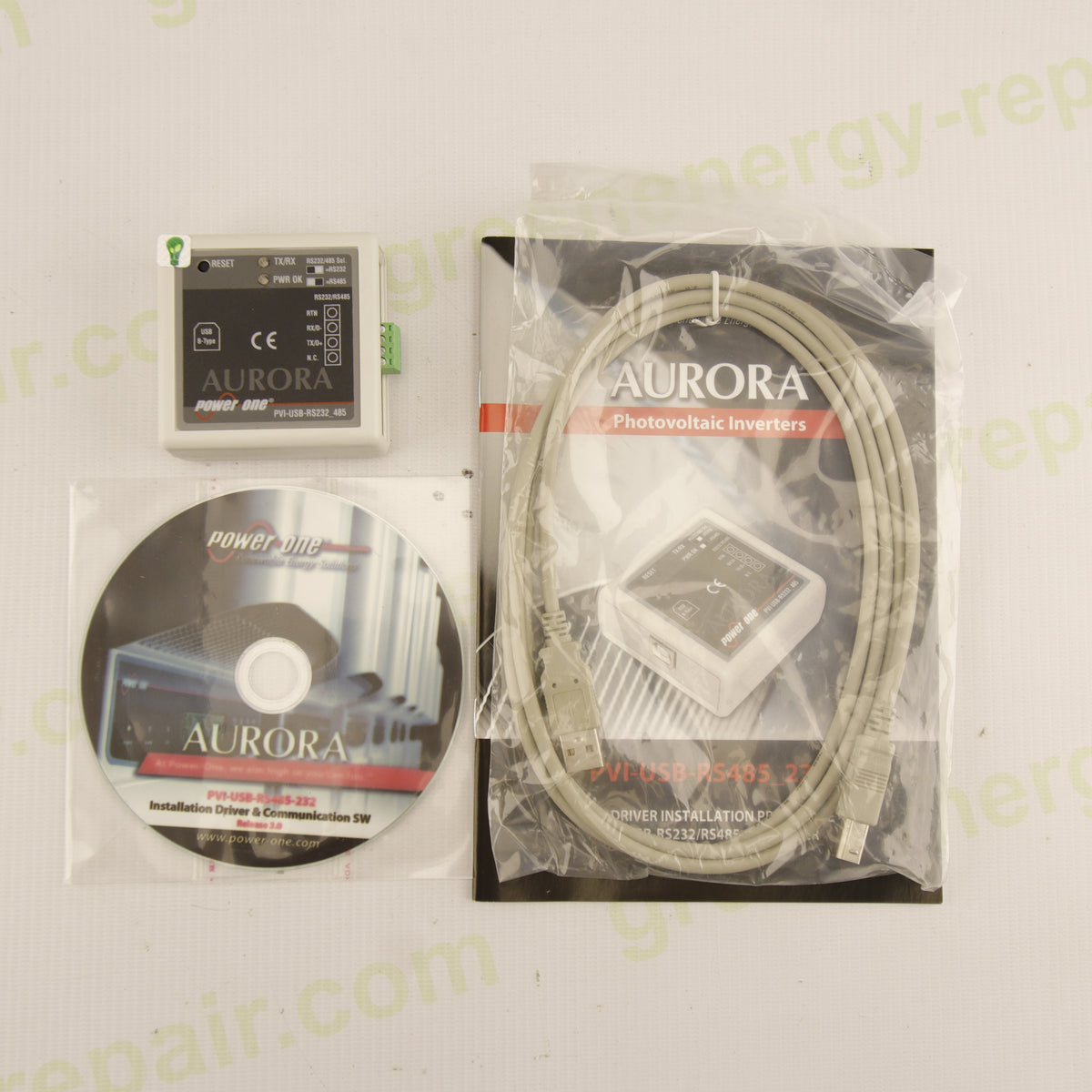

The photographs show the following items included:

• 1 Power-One Aurora PVI-USB-RS232_485 converter.
• 1 USB cable.
• 1 CD containing software and drivers.
• 1 printed document/manual.
• 1 original package.
  Note: The presence of the CD does not guarantee compatibility with current operating systems. Updated drivers or software may need to be obtained from the manufacturer.

🛡️ Product Condition

• New product.
• Original packaging included.
• Cable, CD, and documentation visible in the photographs.
• Functionality must be verified by connecting the device via USB and communicating with a compatible inverter.

🟢 Summary

Original Power-One Aurora PVI-USB-RS232_485 converter for communication between a computer and compatible photovoltaic inverters via USB, RS232, or RS485. Sold with the accessories shown in the photographs.
