New product. Phoenix Contact STEP-PS/1AC/24DC/2.5 switching power supply, code 2868651, marketed by SMA under the designation CLCON-PWRSUPPLY.
It is a single-phase industrial power supply for DIN rail mounting, designed to convert the input voltage into a stable 24 V DC / 2.5 A supply for electronic devices and SMA monitoring systems.
The model belongs to the Phoenix Contact STEP POWER family and is specifically associated by SMA with its monitoring and communication systems.
⚙️ Main Specifications
-
Brand: Phoenix Contact
-
Model: STEP-PS/1AC/24DC/2.5
-
Phoenix Contact Code: 2868651
-
SMA Designation: CLCON-PWRSUPPLY
-
Type: AC/DC switching power supply
-
Nominal input: 100–240 V AC
-
Input range: 85–264 V AC
-
Output: 24 V DC
-
Output current: 2.5 A
-
Rated power: approx. 60 W
- Single-phase power supply
-
Mounting: DIN rail
-
LED indicator: DC OK
-
Protection rating: IP20
-
Dimensions: approx. 72 × 90 × 55 mm
-
Net weight: approx. 277 g
🔧 Main Functions
- Conversion of AC mains voltage into 24 V DC.
- Power supply for industrial electronic devices.
- Power supply for SMA monitoring and communication systems.
- Direct installation inside electrical panels using DIN rail.
- Visual indication of output voltage through the DC OK LED.
🔌 Purpose and Operation
The device receives the input mains voltage and converts it through a switching stage into a stabilized 24 V DC voltage, with up to 2.5 A available.
The 24 V DC output can be used to power electronic control, communication and monitoring equipment. The front DC OK LED indicates the presence of the correct output voltage; Phoenix Contact specifies that the LED illuminates when the output voltage exceeds approximately 21.5 V.
🧩 Compatibility
The product is marketed by SMA as CLCON-PWRSUPPLY and is intended for powering equipment such as:
- SMA Data Manager
- SMA Cluster Controller
- SMA Inverter Manager
-
SMA COM Gateway
SMA documentation identifies Phoenix Contact model 2868651 as a 24 V DC / 2.5 A DIN rail power supply.
⚠️ Typical Faults and Symptoms
In case of malfunction, the following may occur:
- absence of 24 V DC output voltage;
-
DC OK LED off;
- connected SMA device not powered;
- equipment restarts or shuts down;
- insufficient output voltage;
- activation of the internal protection in case of overload or abnormal conditions.
A power supply fault should not be confused with a failure of the connected SMA device: the input, output and load must be checked separately.
🔍 Diagnosis
Diagnosis may include:
- checking the AC mains input voltage;
- checking the DC OK LED;
- measuring the output voltage;
- checking for possible overload on the 24 V circuit;
- checking terminals and connections;
- checking operation with a compatible load.
🛠️ Common Services in Case of Failure
- Power supply testing.
- AC input measurement.
- DC output measurement.
- Load testing.
- Terminal inspection.
- Overload diagnosis.
- Power supply replacement in case of failure.
🛠️ Applications
- SMA monitoring systems.
- Data Manager.
- Cluster Controller.
- Inverter Manager.
- Communication gateways.
- Industrial electrical panels.
- Industrial automation.
- Building automation.
- Power supply for 24 V DC electronic devices.
🛡️ Product Condition

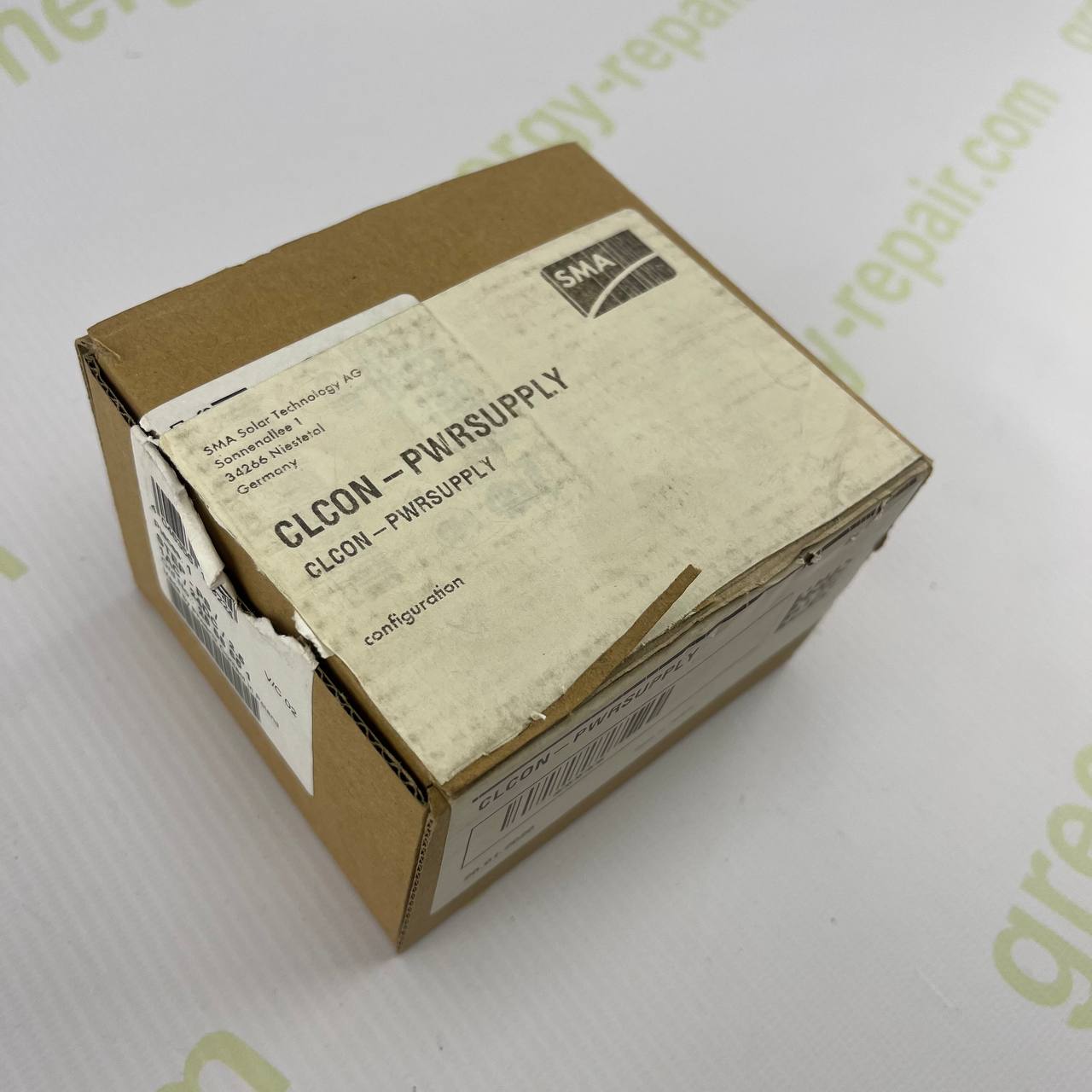

New product, as shown in the photographs, with original SMA packaging. The housing has some cosmetic marks due to storage, while the power supply appears intact.
📦 Package Contents
- 1 × Phoenix Contact STEP-PS/1AC/24DC/2.5
-
Code: 2868651
-
SMA designation: CLCON-PWRSUPPLY
- Original SMA packaging.
🟢 Summary
The CLCON-PWRSUPPLY is a Phoenix Contact STEP POWER 2868651 industrial power supply used by SMA to provide 24 V DC / 2.5 A to its monitoring, control and communication devices. It is designed for DIN rail installation and provides a compact and reliable solution for powering electronic equipment inside electrical panels.
