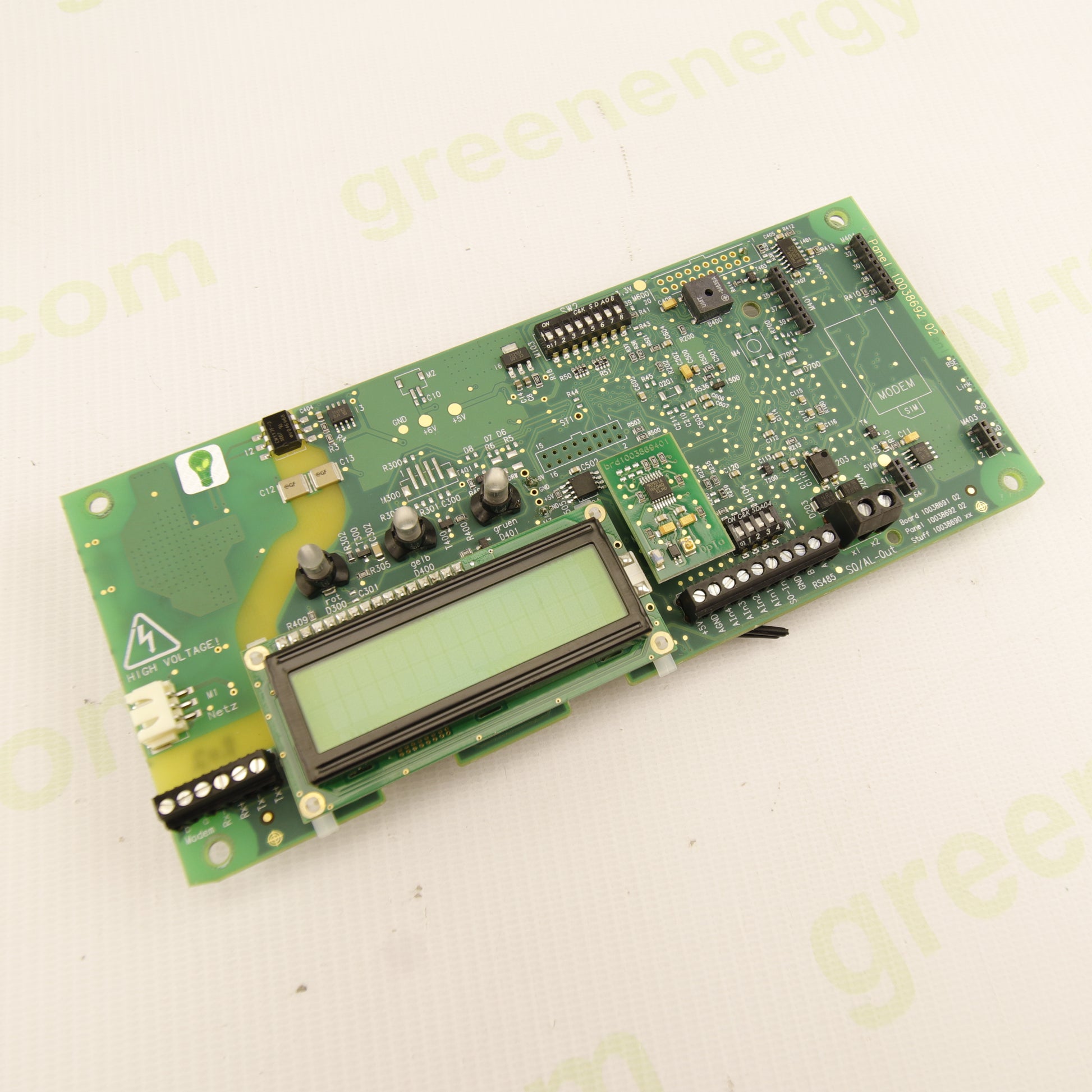

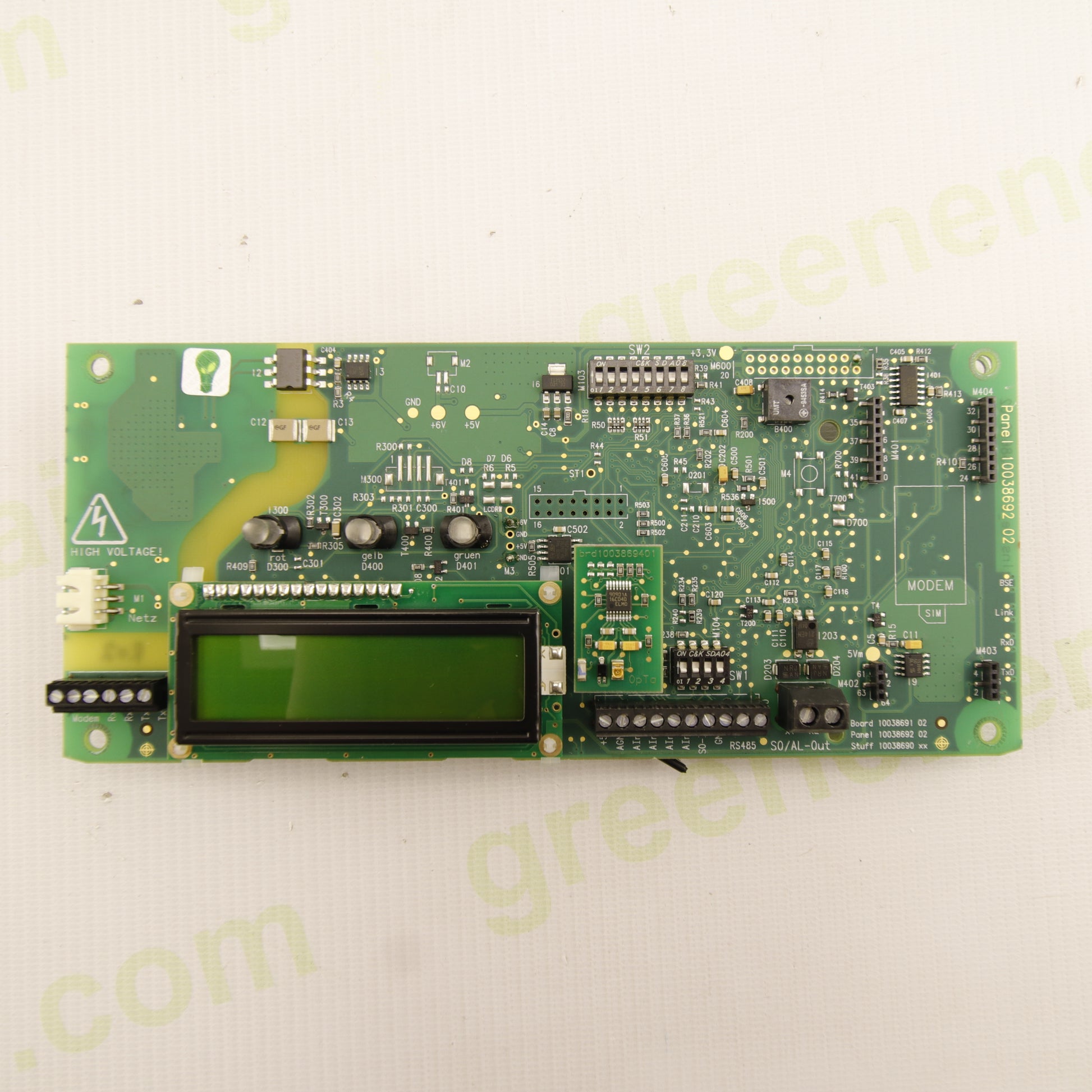

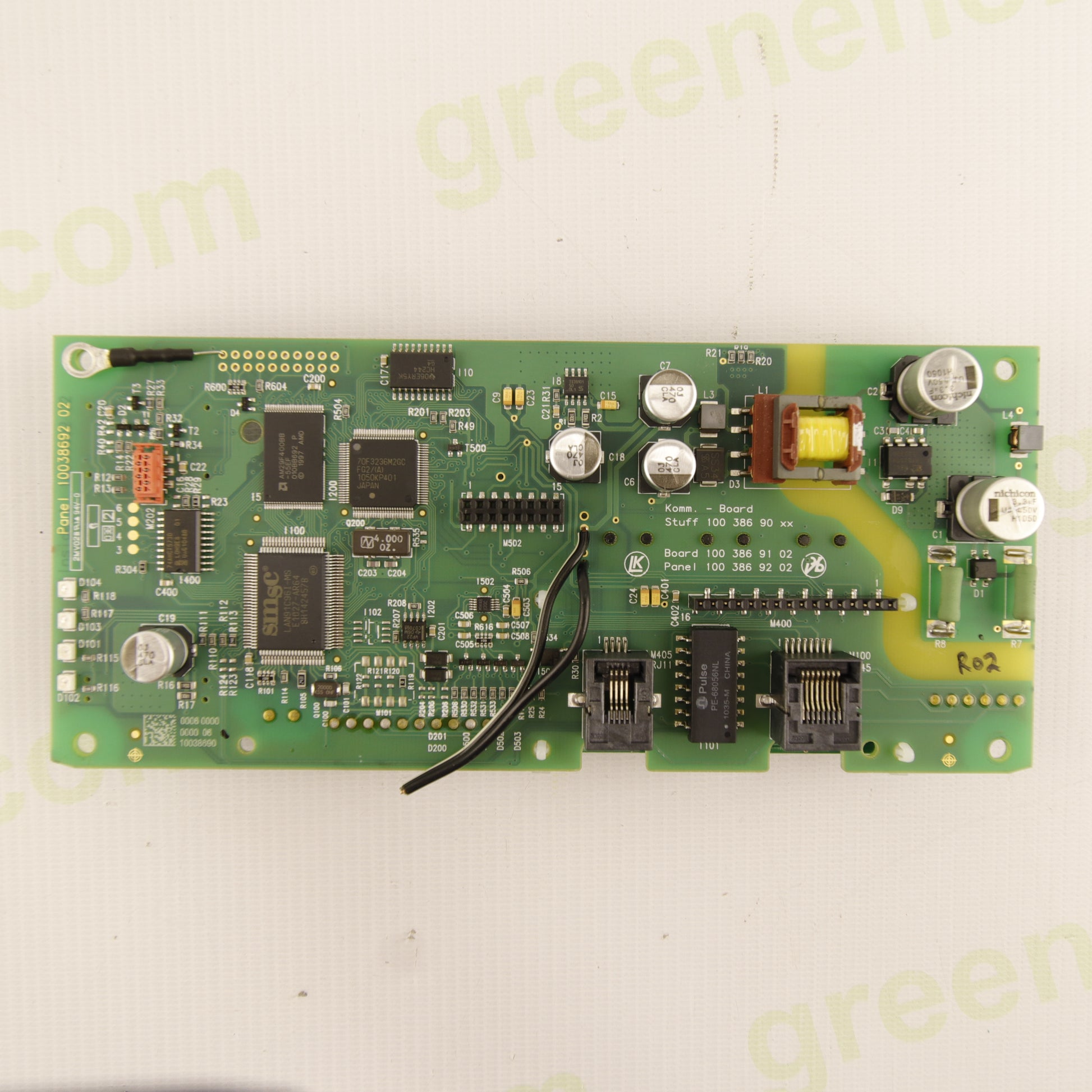

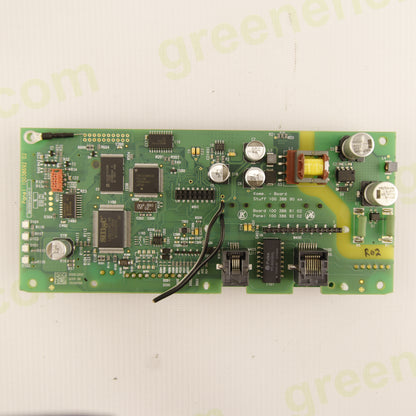

The KOSTAL Panel 10038692.02 is a multifunction electronic board installed in KOSTAL PIKO 5.5 DCS photovoltaic inverters. This module integrates the LCD display, user interface, communication circuitry, and several inverter monitoring functions into a single assembly.

The board enables real-time visualization of production data, configuration of operating parameters, and management of communications between the inverter, local networks, and remote monitoring systems. It serves as the primary access point for both users and service technicians during monitoring, diagnostics, maintenance, and configuration operations.

⚙️ Technical Specifications

• Manufacturer: KOSTAL Solar Electric
• Compatible Inverter Model: KOSTAL PIKO 5.5 DCS
• Board Part Number: 10038692.02
• Type: Display, Communication & Control Board
• Integrated LCD Display
• User interface with navigation buttons
• Integrated Ethernet communication
• RS485 communication interface
• Analog input support
• S0 Input/Output interface support
• Built-in data logging and monitoring functions
• Powered directly by the inverter
• Internal inverter installation
• Dedicated microcontroller-based monitoring and data management system

🔧 Main Functions

LCD Display and Monitoring

Provides real-time access to:

• Instantaneous power output
• Daily energy production
• Total lifetime energy generation
• DC voltage measurements
• DC current measurements
• AC grid parameters
• Inverter operating status
• Warning and fault messages

Inverter Configuration

Allows access to:

• Grid settings
• Ethernet configuration
• RS485 communication settings
• Country-specific parameters
• Monitoring options
• Remote portal settings
• System configuration menus

Communication and Monitoring

Handles data transmission to:

• Local computers
• Network routers
• Remote monitoring portals
• SCADA systems
• Energy management software

Event Logging

Stores and manages:

• Alarm history
• Operational logs
• Energy production records
• Grid events
• Diagnostic information

🔌 Purpose and Operation

This board functions as the inverter's Human Machine Interface (HMI) and communication gateway.

It allows users and technicians to:

• Monitor photovoltaic system performance
• Verify energy production
• View alarms and fault conditions
• Configure inverter settings
• Perform diagnostics and maintenance
• Connect the inverter to remote monitoring platforms

Without this board, the inverter may continue operating but can become difficult or impossible to configure, monitor, or diagnose properly.

🧩 Role Within the Inverter

Inside the KOSTAL PIKO 5.5 DCS, the board operates as:

• Data display unit
• Configuration interface
• Communication gateway
• Local data logger
• Alarm management system
• Interface between power electronics and the user

It receives information from the main control board and converts it into readable data on the LCD display and communication interfaces.

⚠️ Typical Faults and Symptoms

LCD Display Not Working

Possible causes:

• Missing board power supply
• Failed voltage regulator
• Damaged internal fuse
• Defective LCD display

Partial or Corrupted Display

Possible causes:

• LCD degradation
• Loose flat cable connection
• Display driver failure

Ethernet Communication Failure

Possible causes:

• Defective Ethernet controller
• Damaged RJ45 connector
• Corrupted firmware

RS485 Communication Errors

Possible causes:

• Faulty serial communication circuitry
• Electrical interference
• Incorrect bus configuration

Random Freezing or Reboots

Possible causes:

• Corrupted firmware
• Unstable power supply
• Microcontroller failure
• Aging SMD components

Data Logging Failure

Possible causes:

• Damaged memory device
• Software errors
• Data logger malfunction

🚨 Possible Associated Errors

A malfunctioning board may cause:

• Missing production data display
• Ethernet communication errors
• RS485 communication faults
• Failure to connect to monitoring portals
• Missing production updates
• Loss of event logs
• Configuration errors
• Frozen display interface
• Continuous interface restarts
• Inability to read inverter status information

In many cases, the inverter may continue producing energy while monitoring, configuration, and communication functions become unavailable.

🛠 Applications

• Repair of KOSTAL PIKO 5.5 DCS inverters
• Replacement of defective display and communication boards
• Restoration of monitoring functions
• Repair of Ethernet and RS485 communication faults
• Inverter refurbishment and maintenance
• Troubleshooting and diagnostic operations

💡 Advantages

✔ Original KOSTAL component
✔ Integrated LCD display and communication functions
✔ Supports local and remote monitoring
✔ Enables inverter configuration and diagnostics
✔ Built-in data logging capabilities
✔ Cost-effective repair solution compared to inverter replacement

🟢 Summary

The KOSTAL PIKO 5.5 DCS Panel 10038692.02 is the original display, communication, and control board used in KOSTAL photovoltaic inverters. Featuring an integrated LCD display, Ethernet and RS485 connectivity, user interface controls, and data logging functions, it serves as the central monitoring and communication hub of the inverter, providing essential functionality for operation, configuration, diagnostics, and remote supervision.
