The Ingeteam Ingecon Sun 4.6TL is a single-phase grid-connected photovoltaic inverter designed to convert direct current (DC) energy generated by photovoltaic modules into alternating current (AC) compatible with 230V single-phase electrical networks.
With a nominal AC power of 4600W / 4.6kW, the device is suitable for residential photovoltaic systems and medium-power technical applications. The wide DC voltage range, indicated on the nameplate as 150–550V DC, allows integration with photovoltaic string configurations compatible with the electrical limits of the equipment.

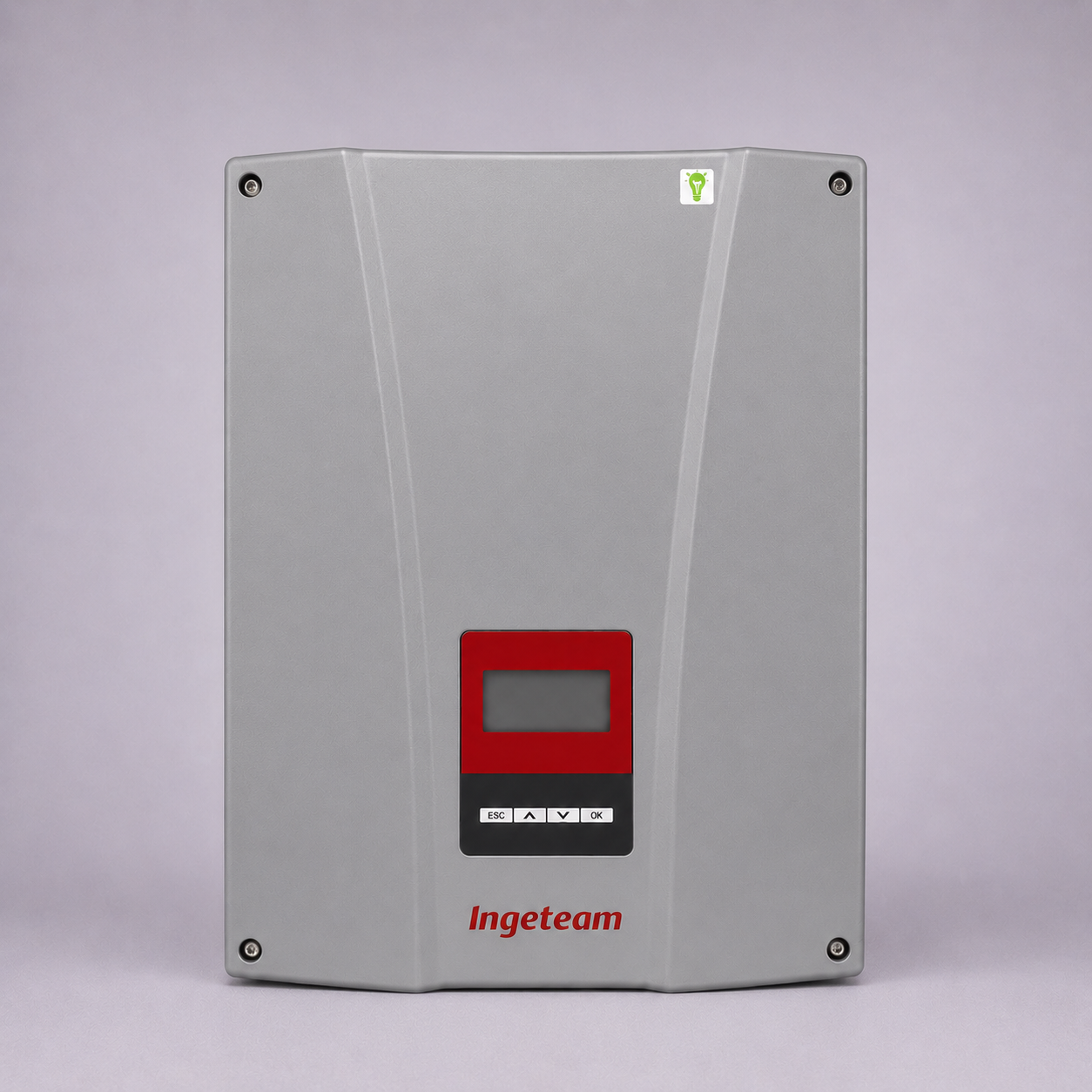

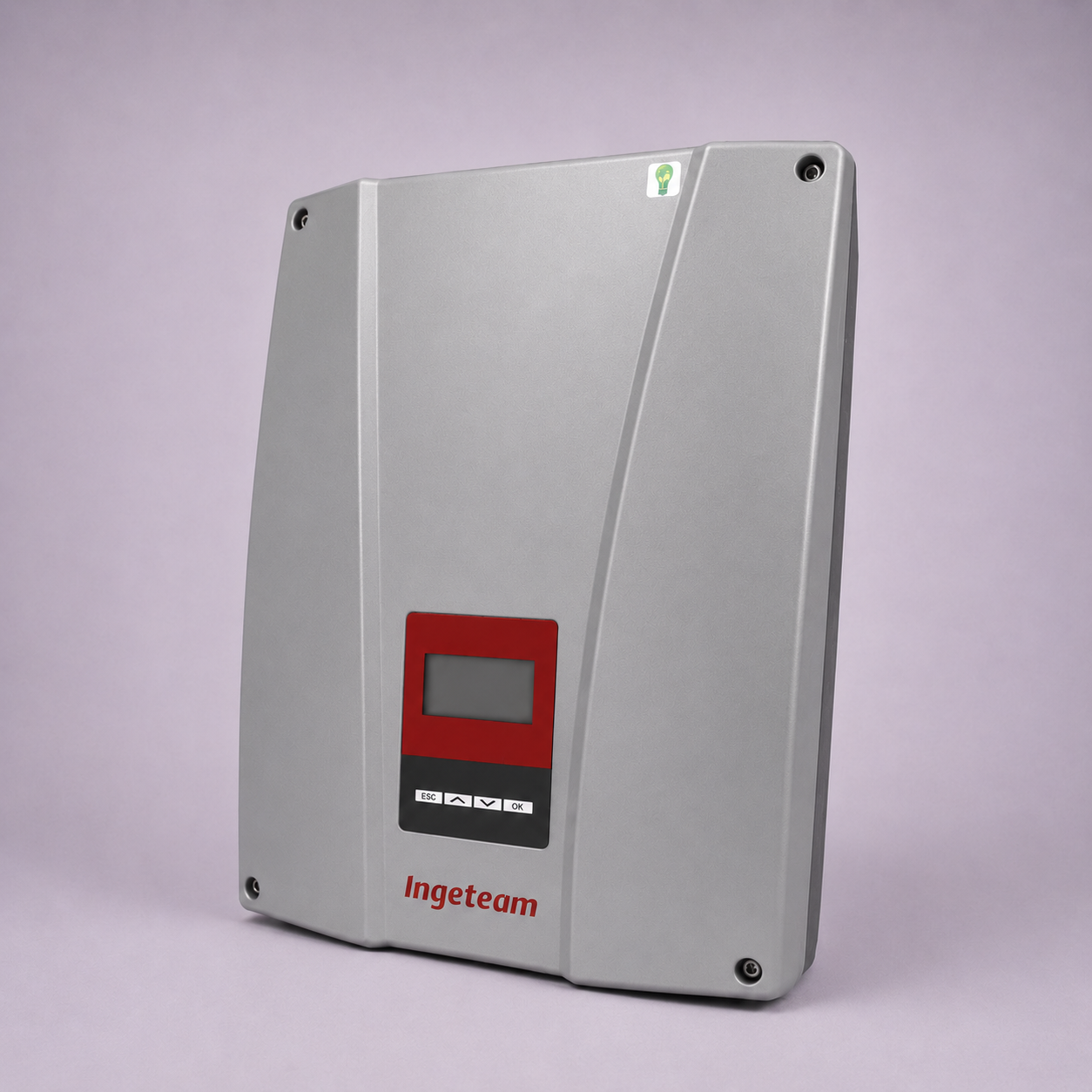

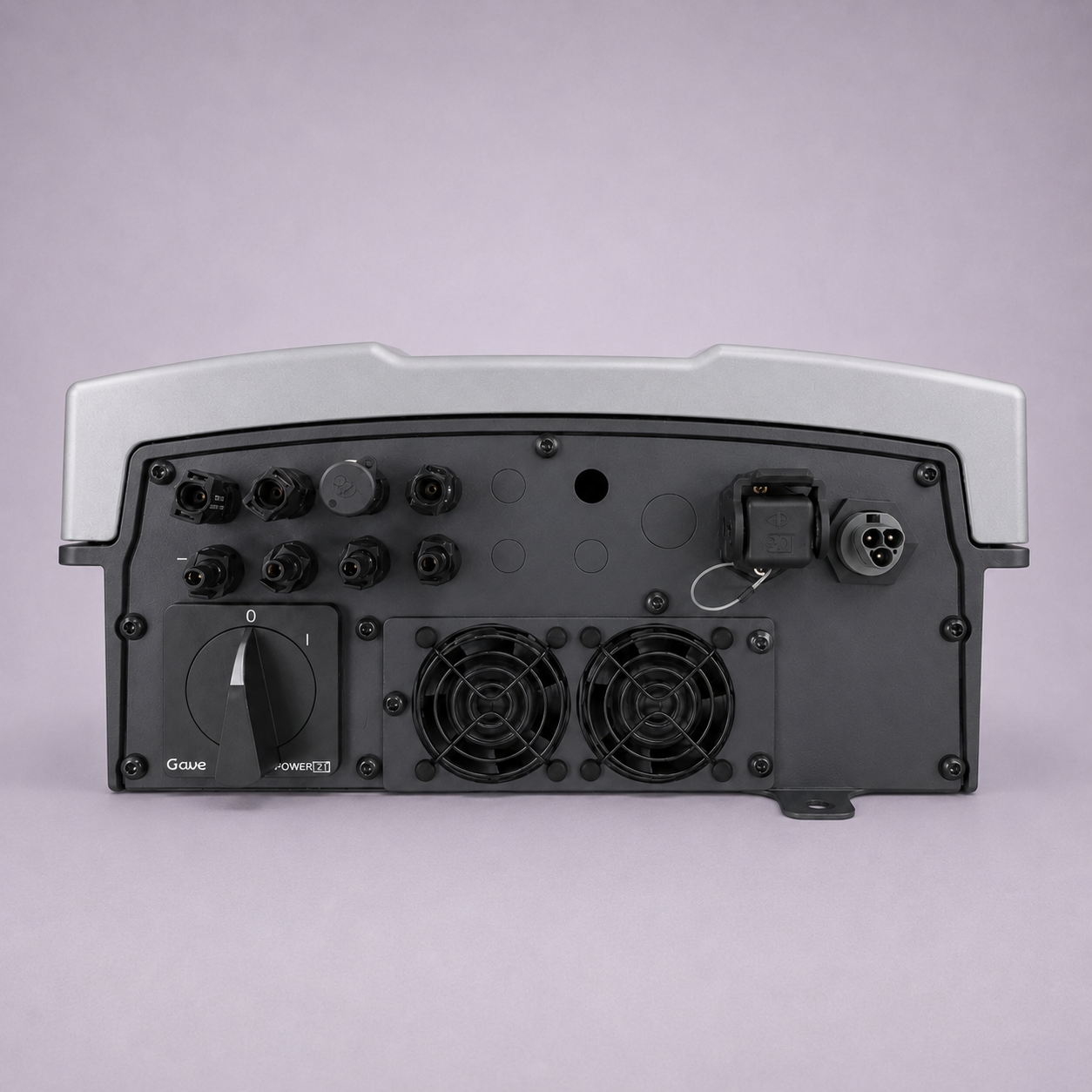

The inverter is equipped with a front LCD display and navigation keypad, useful for checking operating parameters, system status and any system notifications. The lower section integrates dedicated system connections, a rotary ON/OFF isolator switch and a dual-fan forced ventilation system.
The enclosure with IP65 protection rating provides a robust structure for technical installations carried out in accordance with the manufacturer's requirements and applicable regulations.
⚙️ Main Features
Single-Phase Grid-Connected Photovoltaic Inverter
Nominal AC Power: 4600W / 4.6kW
Nominal AC Voltage: 230V
Nominal Frequency: 50Hz
DC Voltage Range: 150–550V DC
Power Factor cos φ: 1
Front LCD Display
4-Button Navigation Keypad
Integrated Rotary Isolator Switch
Dual-Fan Forced Cooling
Multiple Lower-Side Connections
IP65 Environmental Protection
CE Marking
Robust Structure for Photovoltaic Applications
📋 Technical Specifications
Brand: Ingeteam
Series: Ingecon Sun Lite
Model: Ingecon Sun 4.6TL
Type: Grid-Connected Photovoltaic Inverter
Grid Configuration: Single-Phase
Nominal AC Power (Pac): 4600W / 4.6kW
Nominal AC Voltage (Vac): 230V AC
Nominal Frequency: 50Hz
Power Factor (cos φ): 1
Indicated DC Voltage Range: 150–550V DC
User Interface: LCD Display with Front Keypad
Cooling: Forced Ventilation with Dual Fan
Isolation: Integrated Rotary Isolator Switch
Protection Rating: IP65
Marking: CE
Year Indicated on Nameplate: 2010
🔧 Integrated Functions
The inverter is designed to convert electrical energy produced by the photovoltaic array into alternating current for use within a grid-connected electrical system.
Functions and equipment visible or identifiable:
DC/AC Conversion for Photovoltaic Systems
Power Feed-In Management for 230V Single-Phase Grid
Operating Parameter Monitoring via LCD Display
Operating Status Display
Operating Condition and Fault Indication
Control via Front Keypad
Manual Isolation via Rotary Switch
Thermal Management through Dual Forced Ventilation
🔌 Compatibility
Compatible, subject to verification of the electrical design parameters, with:
Residential Photovoltaic Systems
Single-Phase PV Systems
230V AC / 50Hz Electrical Networks
Photovoltaic Strings Compatible with 150–550V DC Range
Grid-Connected Photovoltaic Systems
Compatible Inverter Retrofit and Replacement Applications
🏭 Applications
Ideal for:
Residential Solar Installations
Single-Phase Photovoltaic Systems
Medium-Power PV Installations
Replacement of Compatible Ingecon Sun Inverters
Retrofit of Existing Photovoltaic Systems
Technical Installations in the Renewable Energy Sector
🌟 Advantages
4.6kW Nominal Power
Wide 150–550V DC Voltage Range
Simple and Immediate Front LCD Interface
Integrated Rotary Isolator Switch
Dual Forced Ventilation
Robust IP65 Enclosure
230V Single-Phase Configuration
Professional Structure for Photovoltaic Systems
CE Marking
📦 Product Condition
Used Inverter
Cosmetic Condition as Shown in the Photographs
Signs, Scratches and Traces of Use Present

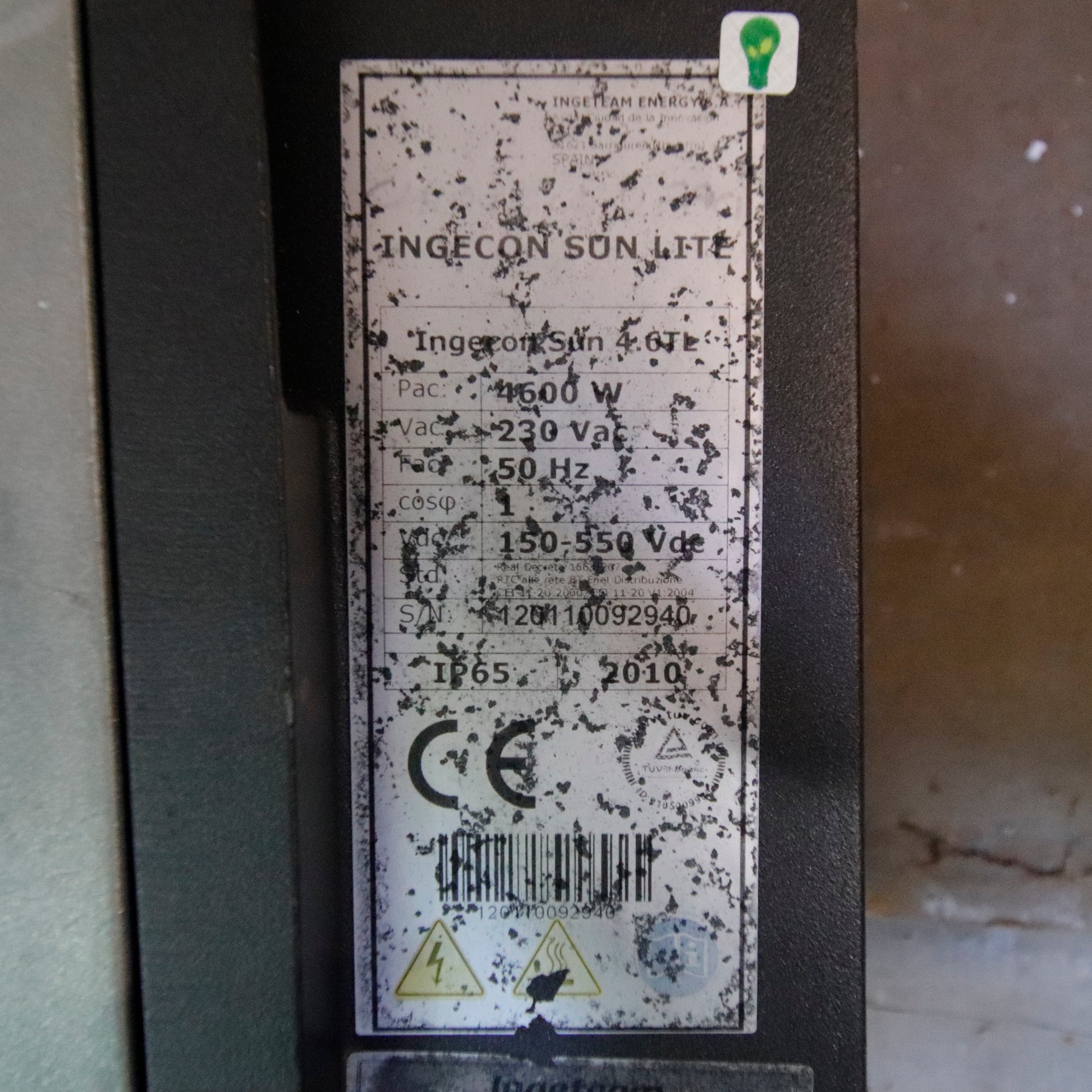

Identification Nameplate Worn but Partially Legible
Display, Connections and External Components Visible in the Photographs
Operation Cannot Be Determined from Images Alone
