Name: Fronius Primo 3.6-1 Light – Solar Inverter 3.68 kVA / 3310 W – 230V – 2 MPPT – IP65 – Part No. 4,210,067,001
Brand: Fronius
Price: 380.0 EUR
Availability: InStock

Fronius Primo 3.6-1 Light – Solar Inverter 3.68 kVA / 3310 W – 230V – 2 MPPT – IP65 – Part No. 4,210,067,001

(4.83)

12 verified purchases

€380,00 EUR

Imposte incluse.

Scorte ridotte: ne restano 1

Quantity Discount

2 or more items	3% OFF
5 or more items	5% OFF
10 or more items	10% OFF

Acquista in sicurezza

Rendi sicura la tua esperienza di acquisto con diversi metodi di pagamento sicuri e affidabili.

Acquista in sicurezza con noi

Termini e condizioni di garanzia

Garanzia inclusa

Semplice e senza stress — gestiamo i problemi senza burocrazia.

Assistenza post-vendita

Dall’installazione alle domande — siamo al tuo fianco anche dopo la vendita.

Descrizione

The Fronius Primo 3.6-1 Light is a single-phase photovoltaic inverter designed for residential solar systems, offering high reliability, wide voltage range, and flexible system design.

Equipped with two independent MPPT trackers, it allows optimal energy harvesting even in installations with different string orientations or shading conditions.

This Light version provides essential inverter functionality without integrated communication interfaces, making it ideal for simple installations or systems with external monitoring solutions.

The inverter features transformerless technology, ensuring high efficiency, reduced weight, and improved performance.

⚡ AC Output Data

Nominal voltage (UAC): 220 / 230 V
Frequency: 50 / 60 Hz
Grid type: 1~ NPE (single-phase with neutral)
Nominal current (IAC nom): 16.7 A / 16.0 A
Maximum current (IAC max): 16.8 A
Apparent power (Smax): 3680 VA
Maximum active power: 3310 W (cos φ = 0.9)
Power factor: 0.85 – 1 (inductive/capacitive)

☀️ DC Input Data

MPP voltage range (UDC mpp): 200 – 800 V
Maximum DC voltage: 1000 V
Max DC current per input: 12.0 A + 12.0 A
Short-circuit current (Isc PV): 36.0 A
Number of MPPT: 2 independent trackers

⚙️ Technical Features

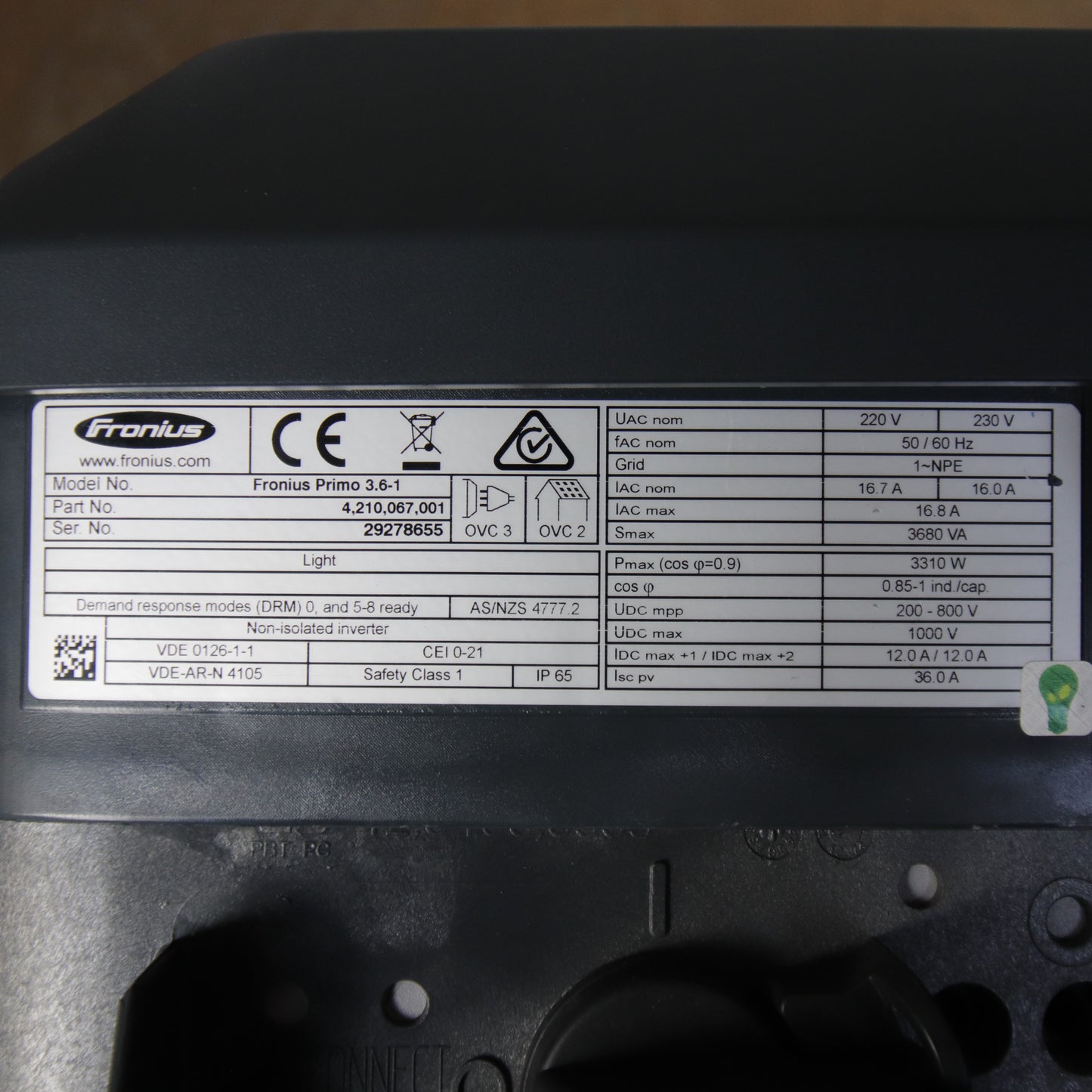

Model: Primo 3.6-1
Version: Light
Part Number: 4,210,067,001
Type: Transformerless string inverter
Safety class: Class 1
Protection rating: IP65 (indoor/outdoor installation)
Overvoltage category: OVC 2 / OVC 3

🛡️ Standards & Certifications

CEI 0-21
VDE-AR-N 4105
IEC 62109-1 / -2
EN 61000-6-2 / 6-3
EN 62233

🧠 Key Features

✔ Dual MPPT for optimized energy production
✔ Wide DC voltage range for flexible design
✔ Transformerless technology for higher efficiency
✔ Compact and robust construction
✔ Suitable for outdoor installation (IP65)
✔ Proven reliability from Fronius

🏠 Applications

Ideal for:

Residential photovoltaic systems
Single-phase grid-connected installations
Systems with multiple string orientations
Indoor and outdoor installations

📦 Condition

Used product – condition as shown in photos.
Functional testing is recommended before installation.

🚀 Commercial Summary

The Fronius Primo 3.6-1 Light is a compact and reliable 3.6 kW single-phase inverter, ideal for residential solar systems.

With dual MPPT, high efficiency, and robust IP65 design, it offers a professional solution for maximizing energy production and ensuring long-term performance.
