The Aurora Stream Box is an original monitoring and communication component designed for integration with Aurora (Power-One / ABB) central inverters. This unit collects data from multiple PV strings, provides protection via internal fuses and surge arresters, and transmits performance information to supervisory control systems through RS-485 and digital inputs/outputs.

Engineered for medium to large-scale photovoltaic installations, the Stream Box combines string protection with advanced monitoring features, ensuring reliable operation, fast fault detection, and simplified maintenance of PV plants. It supports environmental sensors such as temperature (PT100), irradiance, wind, and cell temperature, making it an essential device for precise system performance analysis.

🔄 Condition: Used
🛠 Warranty: 6 months by Green Energy

⚙️ Technical Details:

Model / Name: Aurora Stream Box (String Monitoring Unit)

Manufacturer: Aurora / Power-One (ABB Solar, Italy)

Function: Combines PV strings, provides protection, and enables data communication

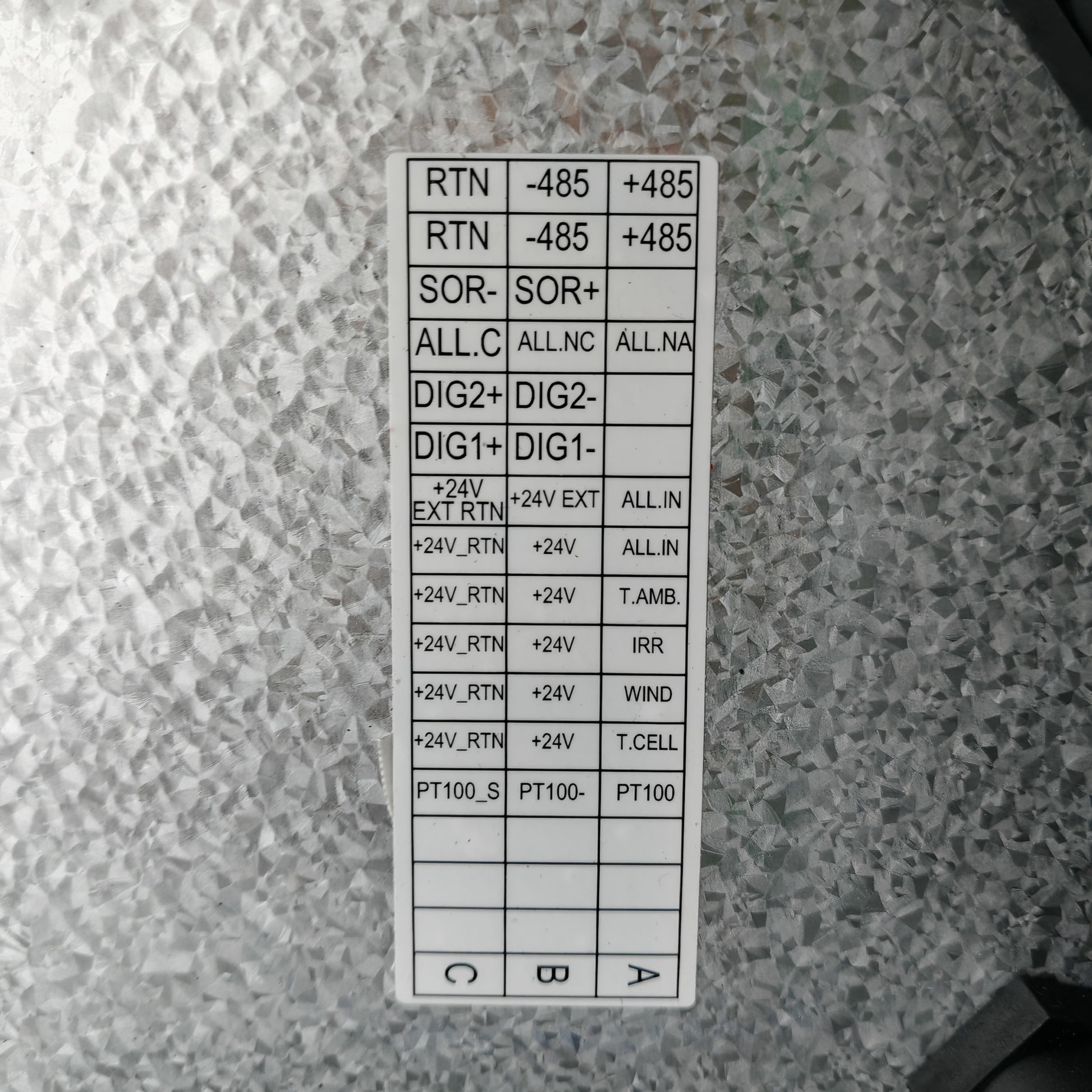

Inputs / Interfaces:
  • RS-485 communication (RTN, +/–485)
  • Digital inputs (DIG1, DIG2)
  • Alarm relay contacts (ALL.C, ALL.NC, ALL.NA, ALL.IN)
  • +24V supply outputs for sensors
  • PT100 sensor terminals (ambient & cell temperature)
  • Irradiance & wind sensor connections

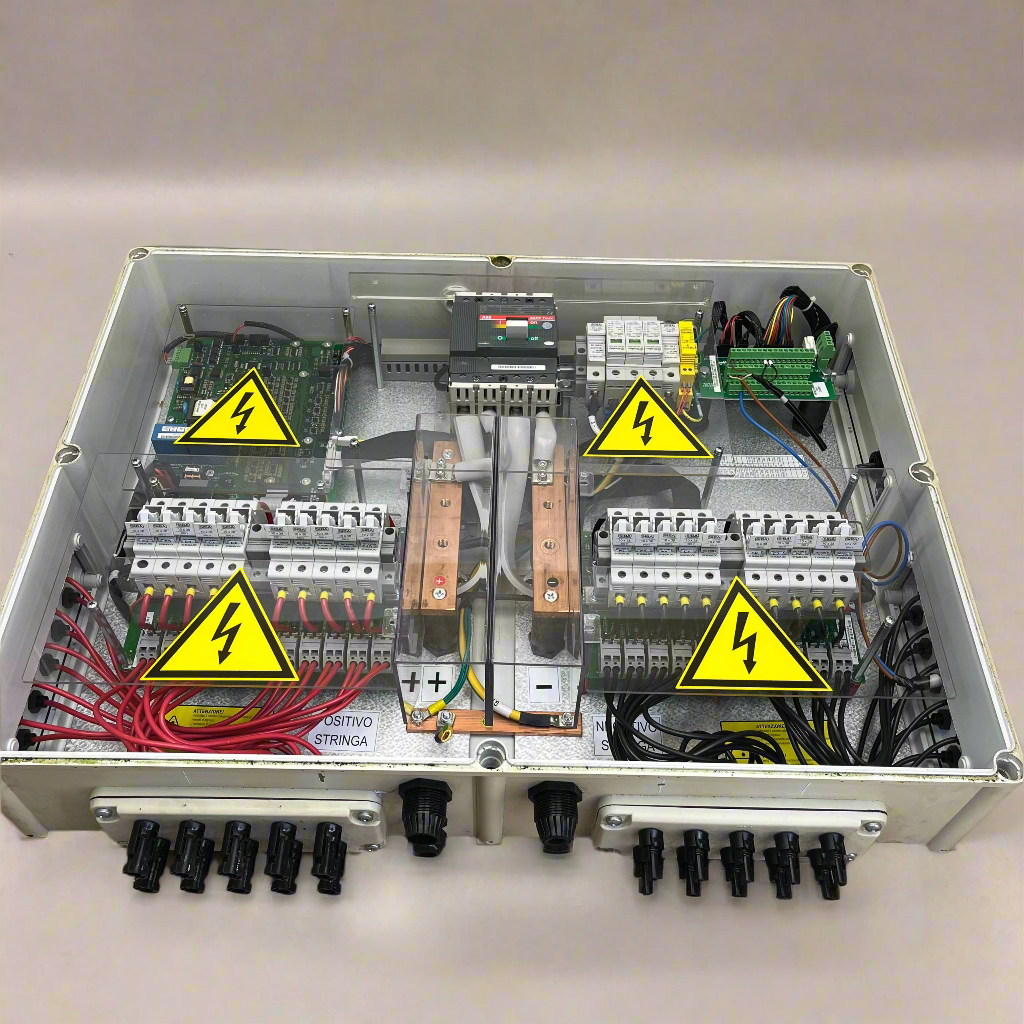

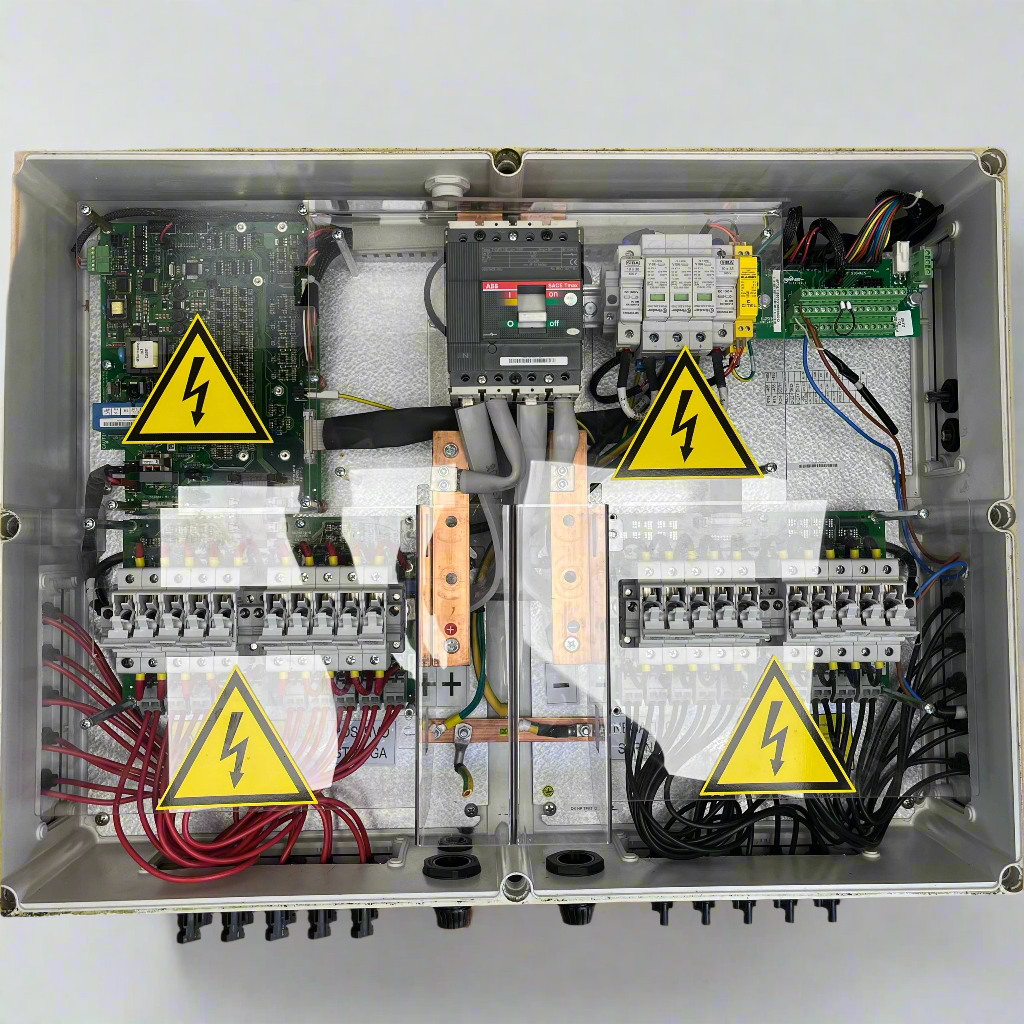

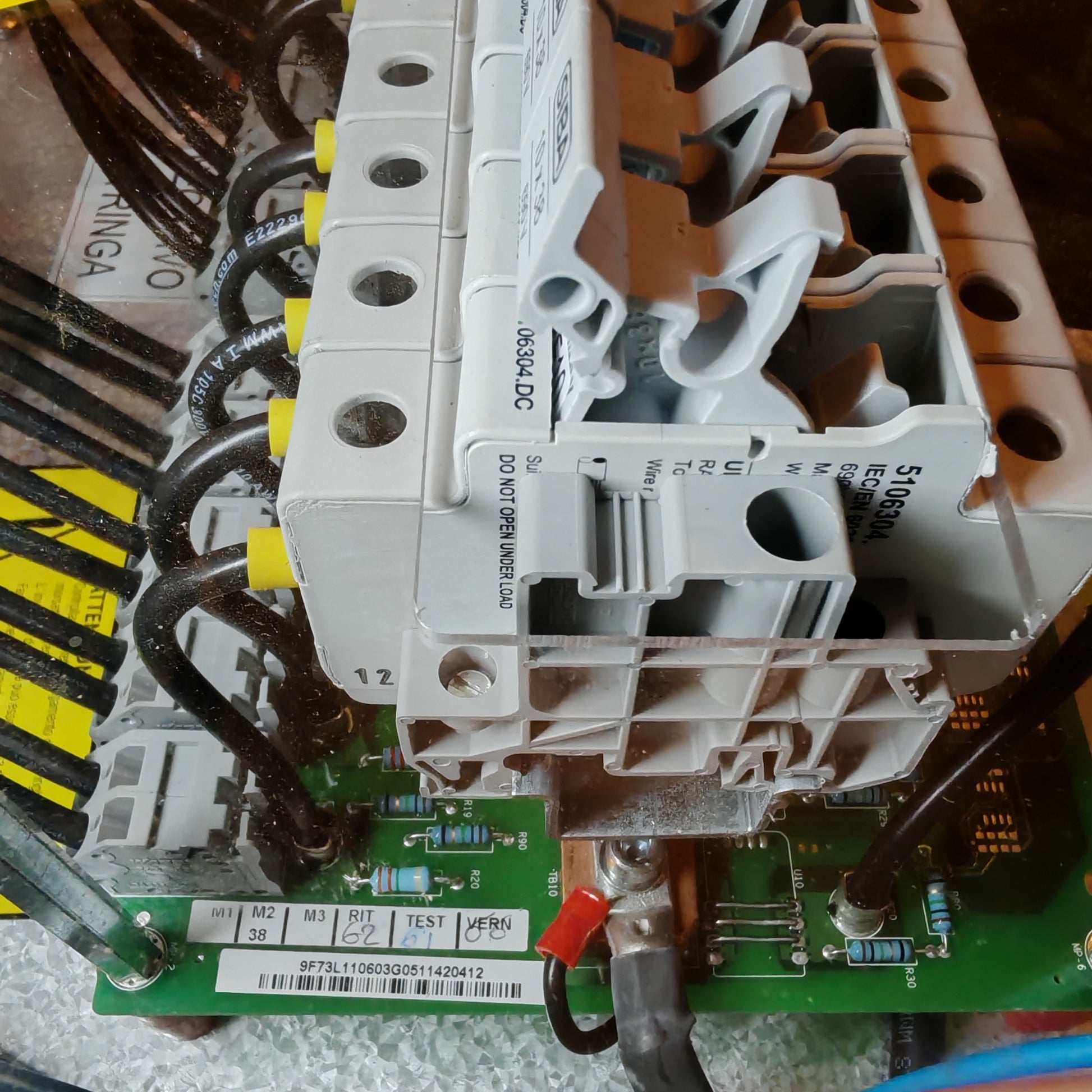

Protection: Integrated fuses, busbars, surge arresters

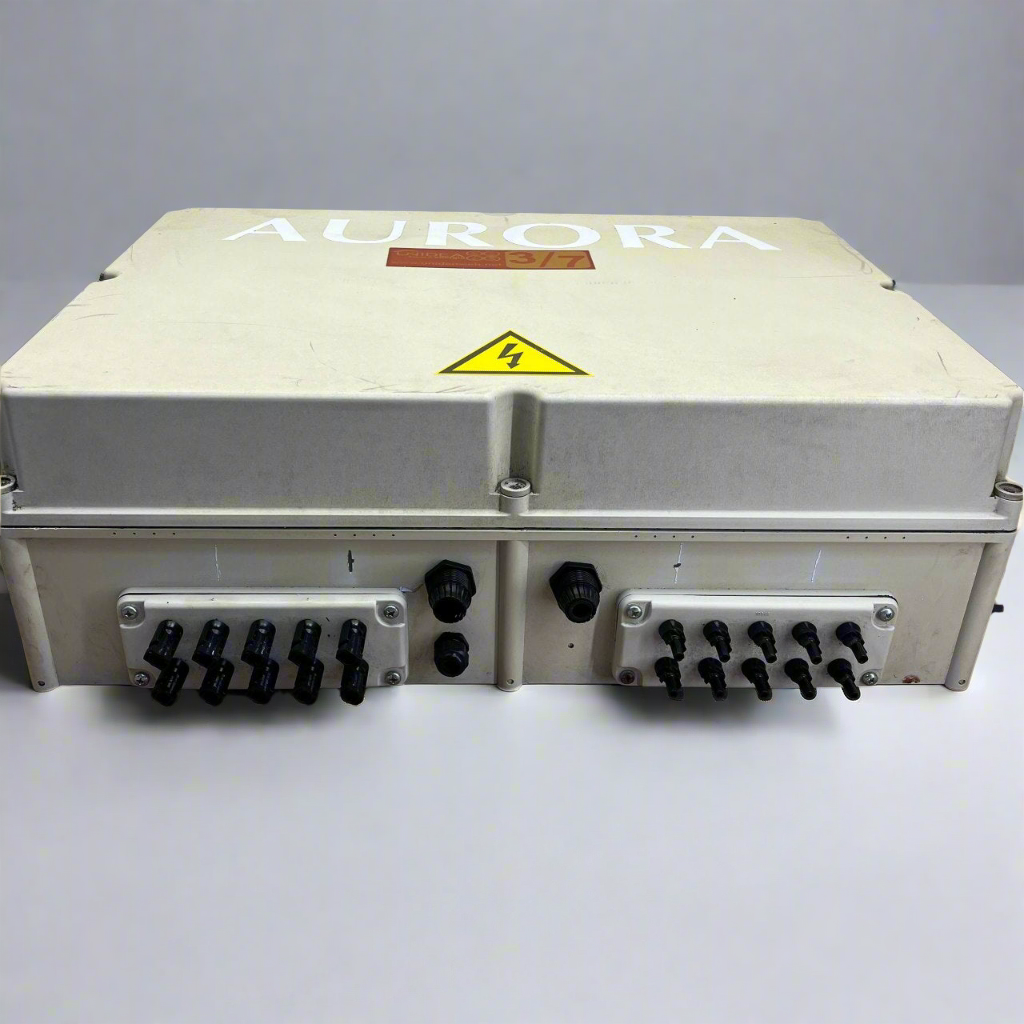

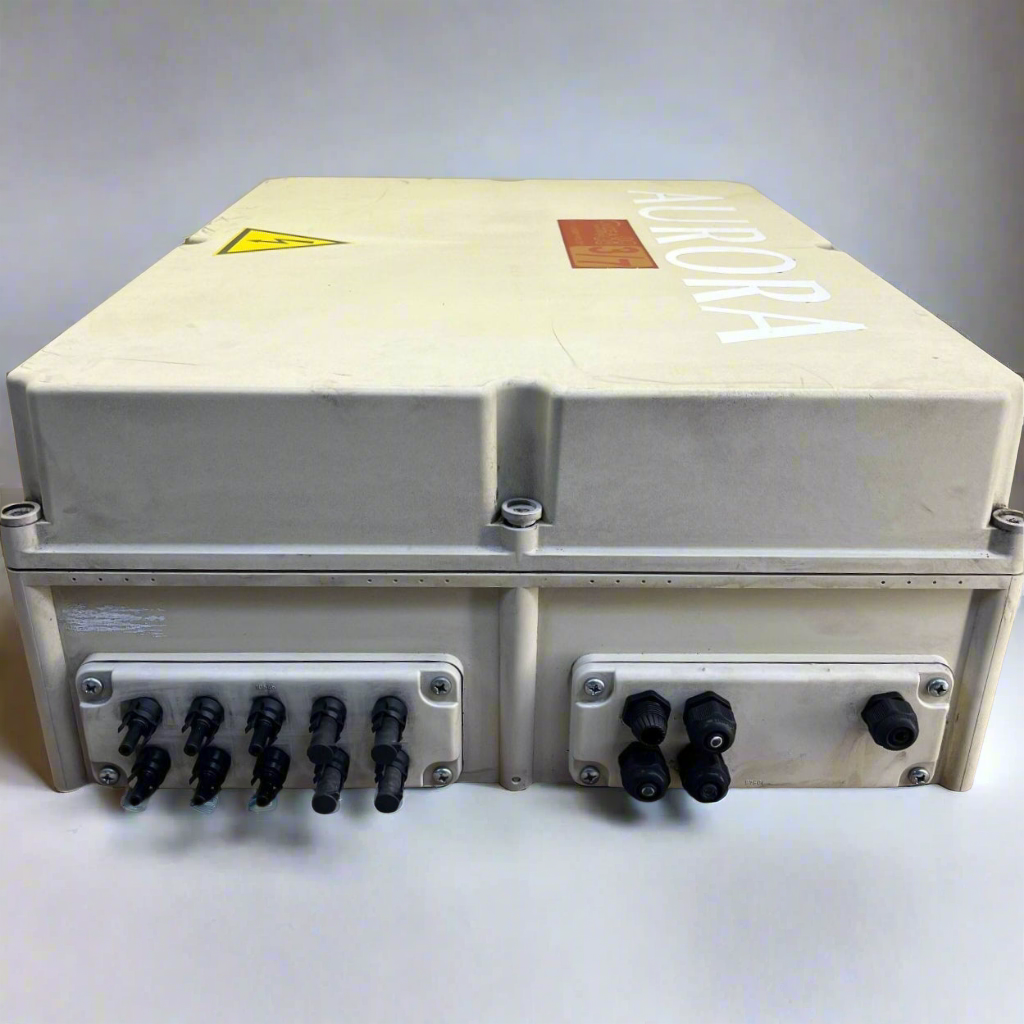

Installation: Outdoor-ready enclosure with multiple cable entries

Application: Utility-scale and commercial PV power plants

📌 Key Features:
✔️ Original Aurora/Power-One monitoring accessory
✔️ Centralizes PV string data for SCADA and inverter communication
✔️ Provides overcurrent and surge protection for PV strings
✔️ Supports environmental sensors for advanced monitoring
✔️ Robust IP-rated enclosure for outdoor use
✔️ Ideal for maintenance, retrofit, or spare-part replacement in Aurora inverter systems
