Name: ABB SACE Tmax T1 D/PV 160 | 4-Pole Molded Case Circuit Breaker | 160A | 1100V DC | PV Applications | IEC 60947-2 | Made in Italy
Brand: Contactor used
Price: 180.0 EUR
Availability: InStock

Acquista in sicurezza

Rendi sicura la tua esperienza di acquisto con diversi metodi di pagamento sicuri e affidabili.

Acquista in sicurezza con noi

Warranty Terms and Conditions

€180,00 EUR

Imposte incluse.

15 disponibile/i

Quantity Discount

2 or more items	5% OFF
5 or more items	10% OFF
10 or more items	20% OFF

Warranty Included

Smooth and stress-free — we handle issues, not forms.

After-Sale Care

From setup to support - we're with you after the purchase.

Description

The ABB SACE Tmax T1 D/PV 160 is a 4-pole molded case circuit breaker (MCCB) specifically designed for photovoltaic (PV) systems operating at high DC voltages up to 1100V. Engineered for reliable protection of DC power circuits, this breaker supports fixed mounting and includes a TMD adjustable trip unit for precise current calibration.

Manufactured by ABB S.p.A. (Italy) and conforming to IEC 60947-2, this circuit breaker is ideal for use in solar energy systems, battery energy storage, and other DC industrial applications requiring high performance and compact protection.

🛠️ Condition: New
📦 Supplied in original factory packaging

⚙️ Technical Specifications:

Model: T1 D/PV 160
Part Number: 1SDA069816R1
EAN: 8015644705909
Poles: 4P
Mounting: Fixed (F)
Connection Type: Cu (Copper terminals)
Rated Current (In): Adjustable up to 160A (via TMD unit)
Rated DC Voltage (Ue DC): Up to 1100V
Rated AC Voltage (Ue AC):
• 230/240V, 415V, 440V, 525V, 690V, 800V
Rated Insulation Voltage (Ui): 800V
Rated Impulse Voltage (Uimp): 8 kV
Breaking Capacity (Icu):
• 65kA @ 230/240V
• 36kA @ 415V / 440V
• 22kA @ 525V
• 20kA @ 690V
• 16kA @ 800V
Service Breaking Capacity (Ics): Up to 100% of Icu
Standard Compliance: IEC 60947-2
Frequency: 50–60 Hz
Category of Duty: A
Operating Temperature Reference: 40°C

⚙️ TMD Trip Unit Settings (Front Dial):

In Settings:
• Min: 112 A / 70 A / 1600 A
• Med: 136 A / 85 A / 1000 A
• Max: 160 A / 100 A / 1000 A

✅ Key Applications:

✔ Photovoltaic DC disconnect & protection
✔ String or array-level protection in solar fields
✔ High-voltage DC motor or battery system protection
✔ Industrial panels operating under IEC or UL guidelines

🏷️ Certifications & Standards:

CE
EAC
UL Listed
IEC 60947-2
NEMA A(B1) 240/480V

📍 Made in Italy by ABB SACE Division
🔗 Compatible with accessories (not included):
• SOR (Shunt Opening Release)
• UVR (Undervoltage Release)
• ALX / MOD modules

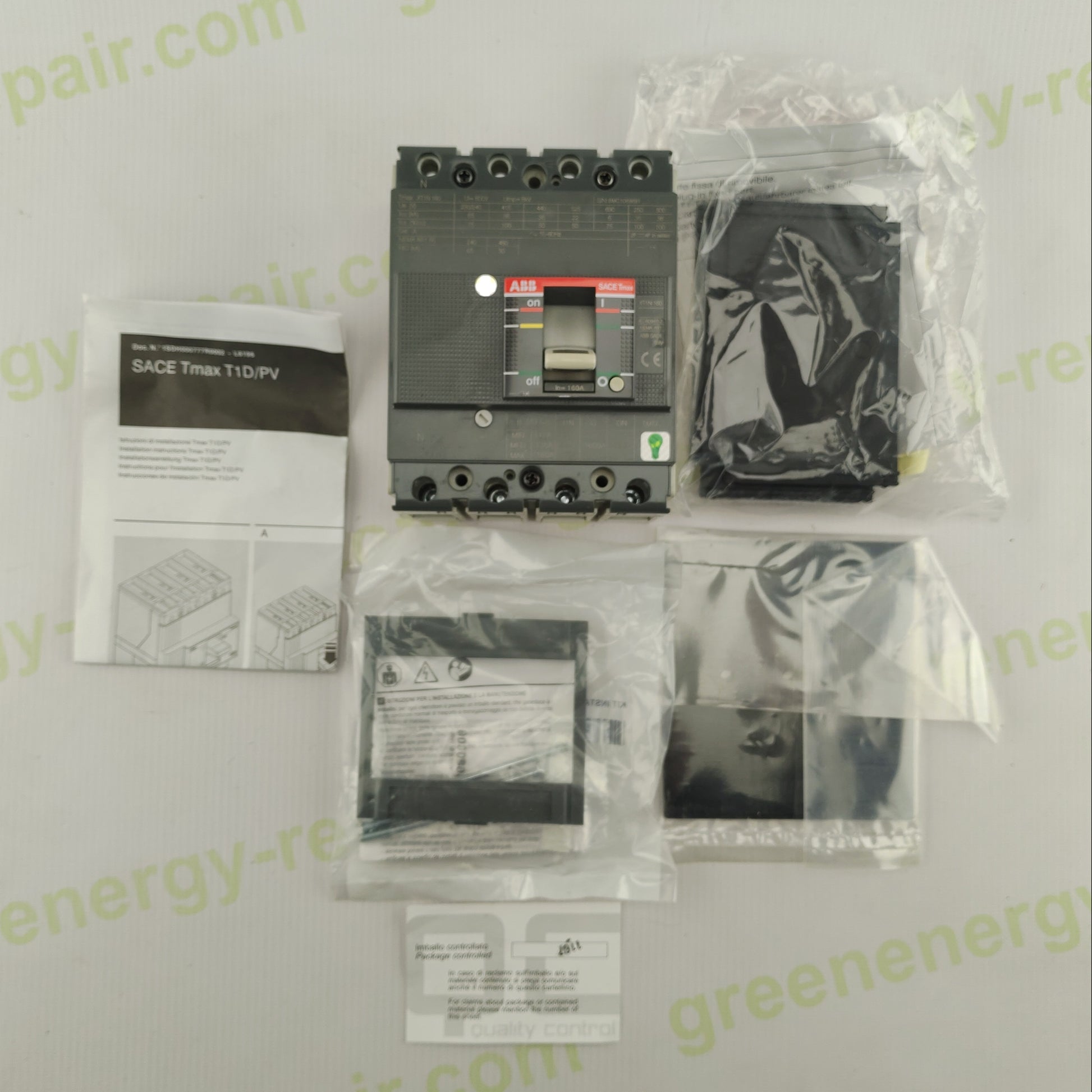

📦 Includes:
• ABB Tmax T1 D/PV 160 Circuit Breaker (New)
• Original packaging with serial and factory labeling
🛠 Configuration Code: T1D/PV 160 4p F FC Cu 1100V DC
📑 Serial No.: CA71104922
🔧 Product Code: 1SDA069816R1

🚀 High-performance DC protection trusted by PV professionals — engineered by ABB for modern solar and industrial installations.
