📝 Description

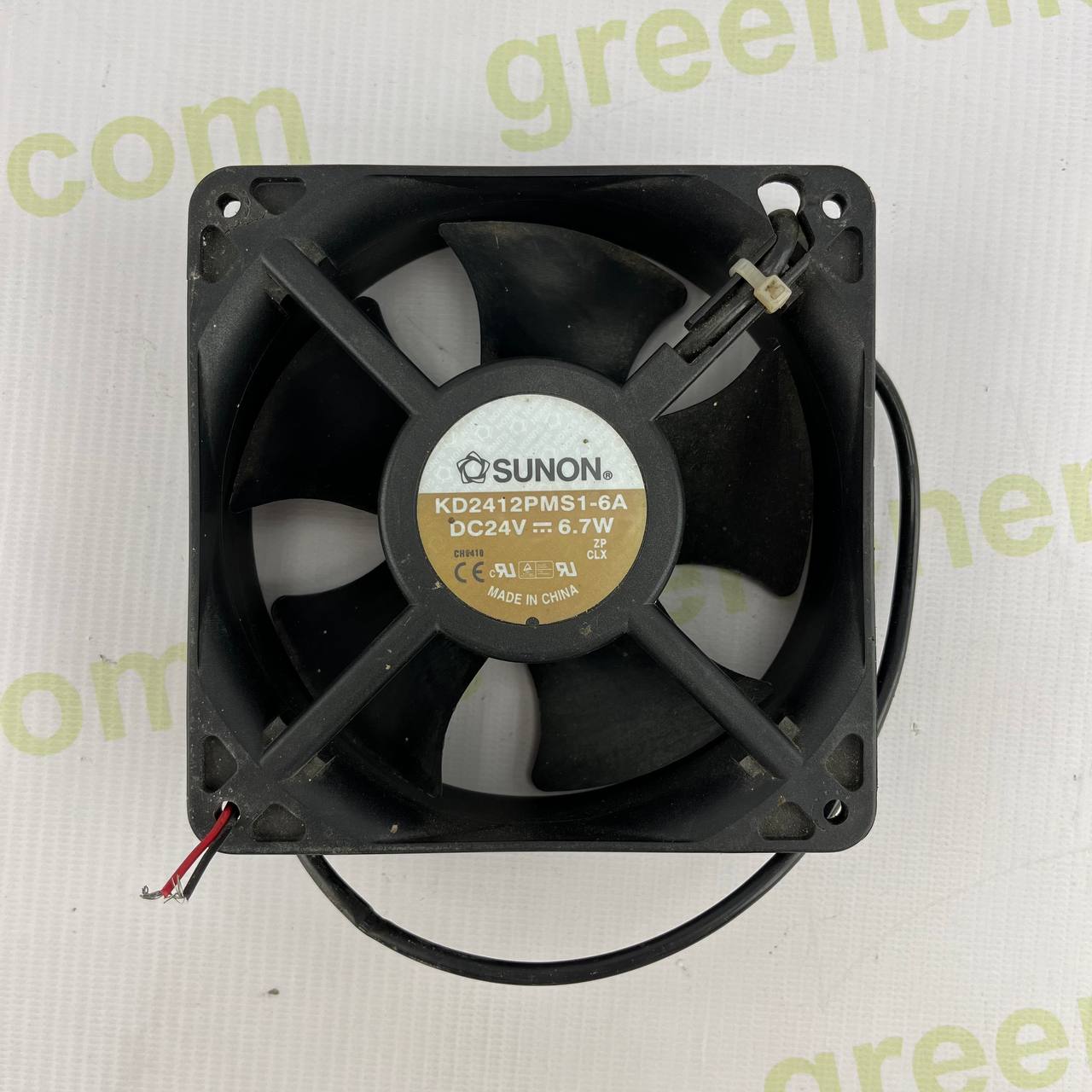

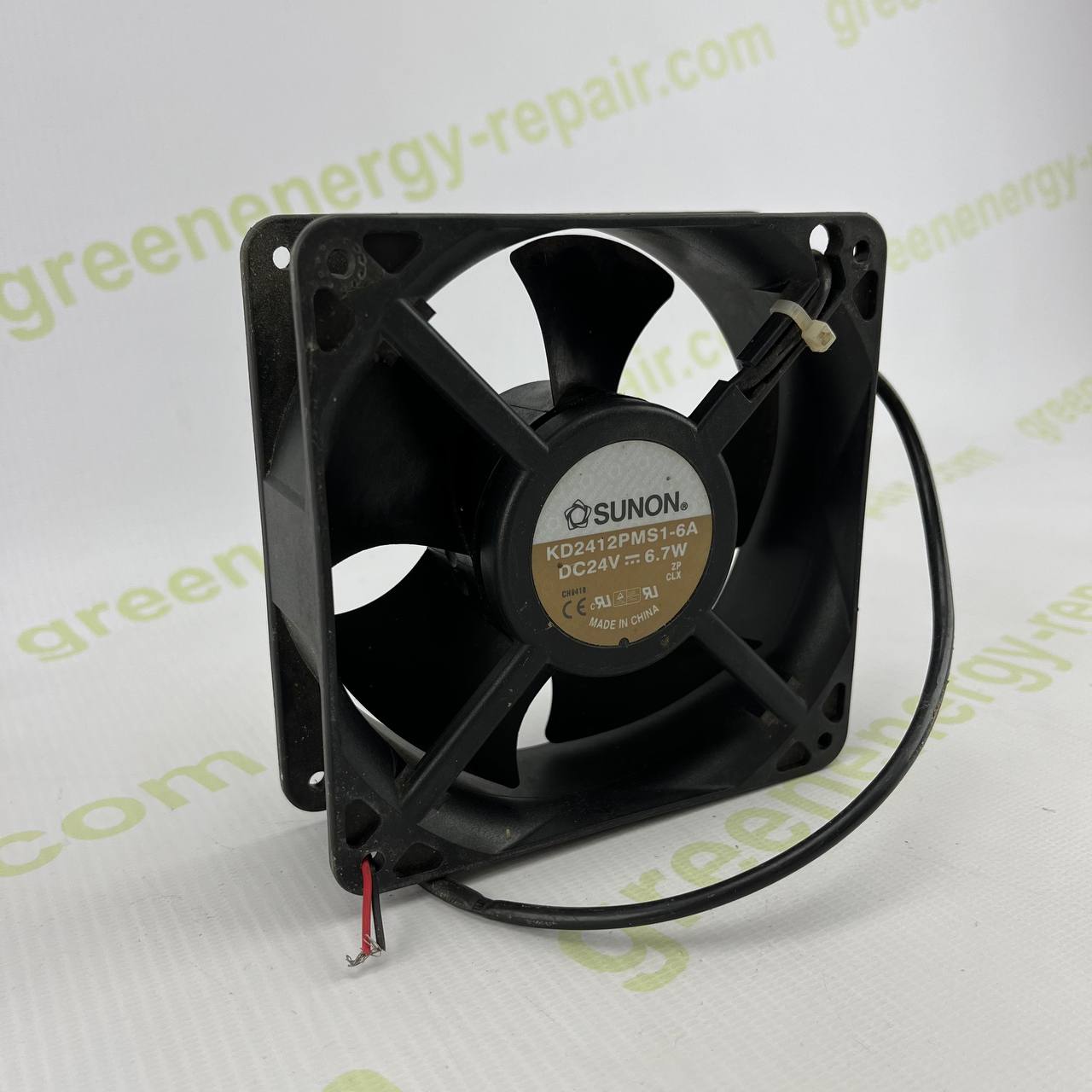

Used product and functioning at the time of packaging and shipment. SUNON KD2412PMS1-6A axial fan, 24 V DC power supply, rated power 6.7 W, designed for cooling electronic equipment, power supplies, inverters, electrical panels and industrial systems. The model is identified by the original SUNON label visible on the fan. The technical specifications for this model indicate 24 V DC, 0.28 A, 6.7 W, 3000 rpm and 107 CFM airflow.
⚙️ Main Specifications
-
Brand: SUNON
-
Model: KD2412PMS1-6A
-
Type: DC axial fan
-
Rated supply voltage: 24 V DC
-
Operating voltage: 20.4–27.6 V DC
-
Rated current: 0.28 A
-
Power: 6.7 W
-
Dimensions: 120 × 120 × 38 mm
-
Rated speed: approx. 3000 rpm
-
Airflow: approx. 107 CFM / 181.8 m³/h
-
Static pressure: approx. 0.30 in-H₂O
-
Noise level: approx. 41 dB(A)
-
Motor: brushless DC
-
Bearing: sleeve bearing
- Locked-rotor protection with automatic restart
-
Rotation: counterclockwise viewed from the fan side
🔧 Main Functions
The fan is designed to create a continuous airflow to dissipate the heat generated by electronic components during operation.
It is particularly suitable for cooling:
- photovoltaic inverters;
- industrial power supplies;
- electronic equipment;
- electrical panels;
- automation systems;
- telecommunications equipment;
- power conversion and power systems.
🔌 Purpose and Operation
The fan is powered directly by 24 V DC and uses a brushless motor to drive the rotor and generate airflow.
With a stated airflow of approximately 107 CFM, it is designed for applications where effective heat dissipation from electronic components is required.
🧩 Compatibility
The identified model is:
SUNON KD2412PMS1-6A
Compatibility with a specific inverter or piece of equipment must be verified by comparing:
- fan model;
-
24 V DC voltage;
-
120 × 120 × 38 mm dimensions;
- connection type;
- wiring length and configuration;
- airflow direction;
- mounting system.
⚠️ Typical Faults and Symptoms
A faulty or worn fan may cause:
- no rotation;
- slow or irregular rotation;
- abnormal noise;
- vibrations;
- insufficient airflow;
- increased internal equipment temperature;
- activation of thermal protections;
- inverter or power supply shutdown due to overheating.
🔍 Diagnosis
The fan can be checked by verifying:
- presence of the 24 V DC supply;
- current consumption;
- motor startup;
- regularity of rotation;
- any abnormal noise or vibration;
- possible mechanical rotor blockage;
- wiring and connection condition.
A fan receiving the correct voltage but failing to start may have a motor or internal electronic fault.
🛠️ Common Services in Case of Failure
- Electrical fan inspection.
- Power supply verification.
- Current consumption check.
- Cleaning of dust and residues.
- Rotor inspection.
- Complete fan replacement in case of failure.
🛠️ Applications
Cooling fan for electronic and industrial equipment, particularly suitable for systems requiring 24 V DC power supply and high airflow.
It can be used as a replacement for ventilation systems installed in photovoltaic inverters, power supplies, electrical panels and power equipment, subject to verification of mechanical and electrical compatibility.
🛡️ Product Condition

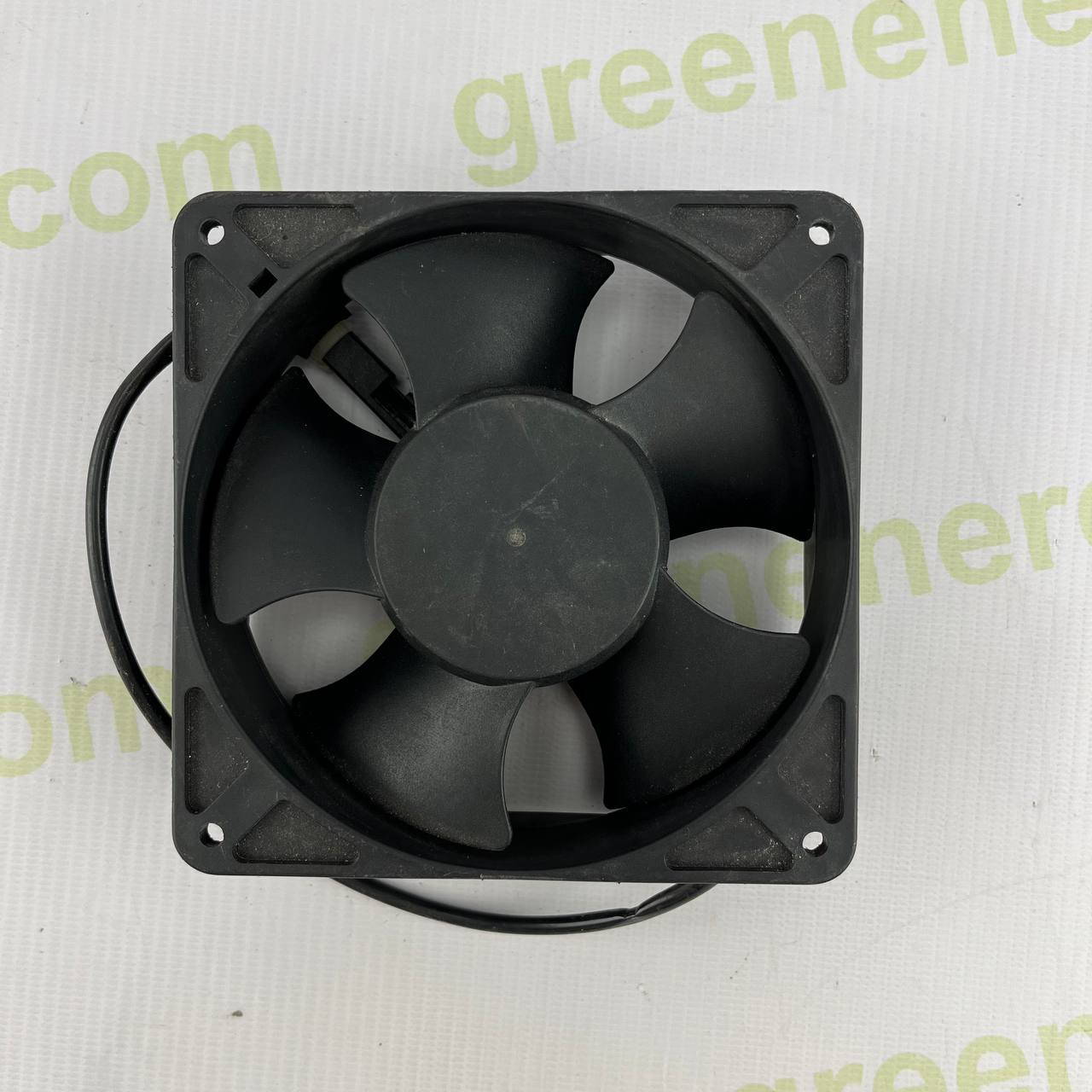

Used product, with normal cosmetic and usage marks visible in the photographs. Before installation, verify voltage, dimensions, connections and airflow direction.
📦 Package Contents
-
1 × SUNON KD2412PMS1-6A 24 V DC – 6.7 W fan, as shown in the photographs.
🟢 Summary
The SUNON KD2412PMS1-6A is an industrial 24 V DC / 6.7 W axial fan, 120 × 120 × 38 mm, with a rated speed of approximately 3000 rpm and airflow of approximately 107 CFM. It is intended for cooling electronic equipment and power systems and can be used as a replacement when voltage, dimensions and connections match.
⚠️ Note: The fan must be installed by qualified personnel when used inside inverters, power supplies or high-power electrical equipment.
