📝 Description
New product. The Steca Solsum 8.8F is a PWM solar charge controller for small OFF-GRID photovoltaic systems, designed for automatic charging management of 12 V or 24 V batteries. The device uses low-loss PWM regulation, with automatic system voltage detection and separate connections for the photovoltaic panel, battery and load. The nominal current of the 8.8F model is 8 A.
⚙️ Technical Specifications
-
Brand: Steca
-
Model: Solsum 8.8F
-
Type: PWM solar charge controller
-
System: 12 / 24 VDC, with automatic detection
-
Maximum PV-side current: 8 A
-
Maximum load-side current: 8 A
-
Maximum open-circuit voltage of PV module: <47 V
-
Self-consumption: <4 mA
-
End-of-charge voltage: 13.9 V / 27.8 V
-
Boost charging voltage: 14.4 V / 28.8 V
-
LVR reconnection voltage: 12.4–12.7 V / 24.8–25.4 V
-
LVD deep-discharge protection: 11.2–11.6 V / 22.4–23.2 V
-
Temperature compensation: integrated
-
Regulation: PWM with multi-stage charging technology
-
Indication: multifunction LED for operation, state of charge and faults
-
Terminals: up to 4 mm² for flexible cable / 6 mm² for rigid cable
-
Protection rating: IP32
-
Ambient temperature: −25…+50 °C
-
Certifications: CE, RoHS
-
Manufacturing: Made in EU / developed in Germany.
⚡ Function in the Electrical System
OFF-GRID / Stand-Alone photovoltaic system with battery.
The Steca Solsum 8.8F is installed between the photovoltaic module, battery and DC loads. The controller manages the energy coming from the PV panel and automatically controls the battery charging process, reducing the risk of overcharging.
When the battery reaches a voltage that is too low, the LVD function can disconnect the load to protect it from deep discharge. The load is subsequently reconnected when the specified reconnection voltage is reached.
🔋 Battery Management and Protections
The Solsum 8.8F integrates:
- Overcharge protection
- Deep-discharge protection
- Reverse-polarity protection
-
Short-circuit protection on the module and load
-
Overvoltage protection on the PV input
- Night-time reverse-current protection
- Overtemperature and overload protection
- Automatic electronic fuse
- Protection in case of battery overvoltage
- Temperature compensation
- Automatic load reconnection.
🏭 Construction and Installation

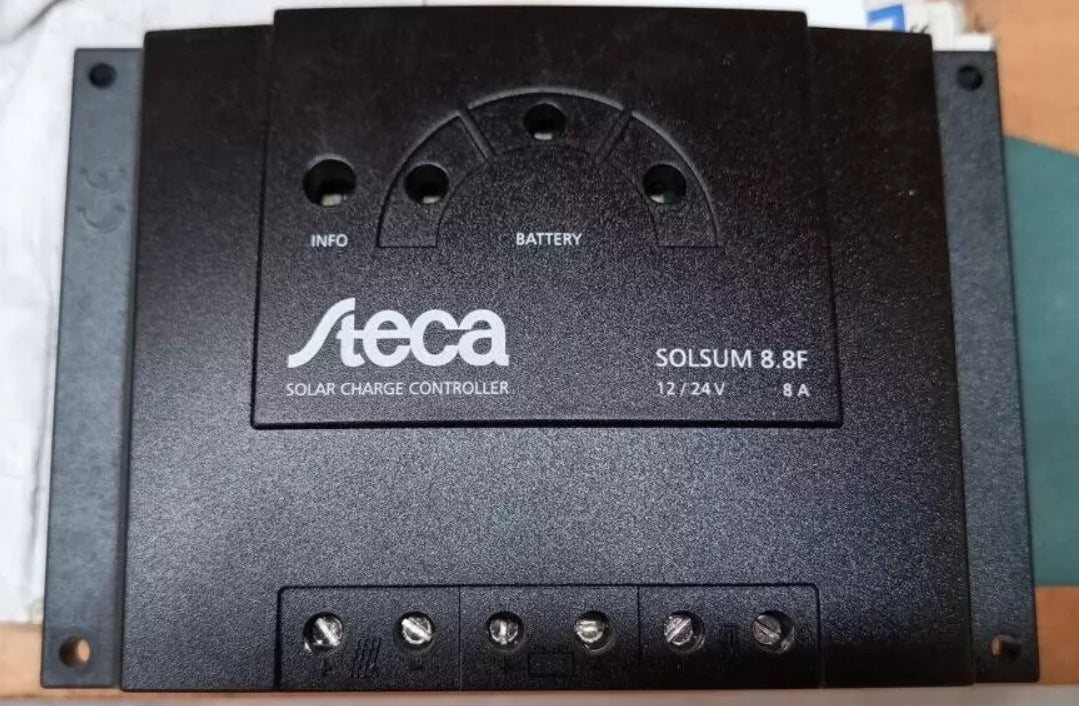

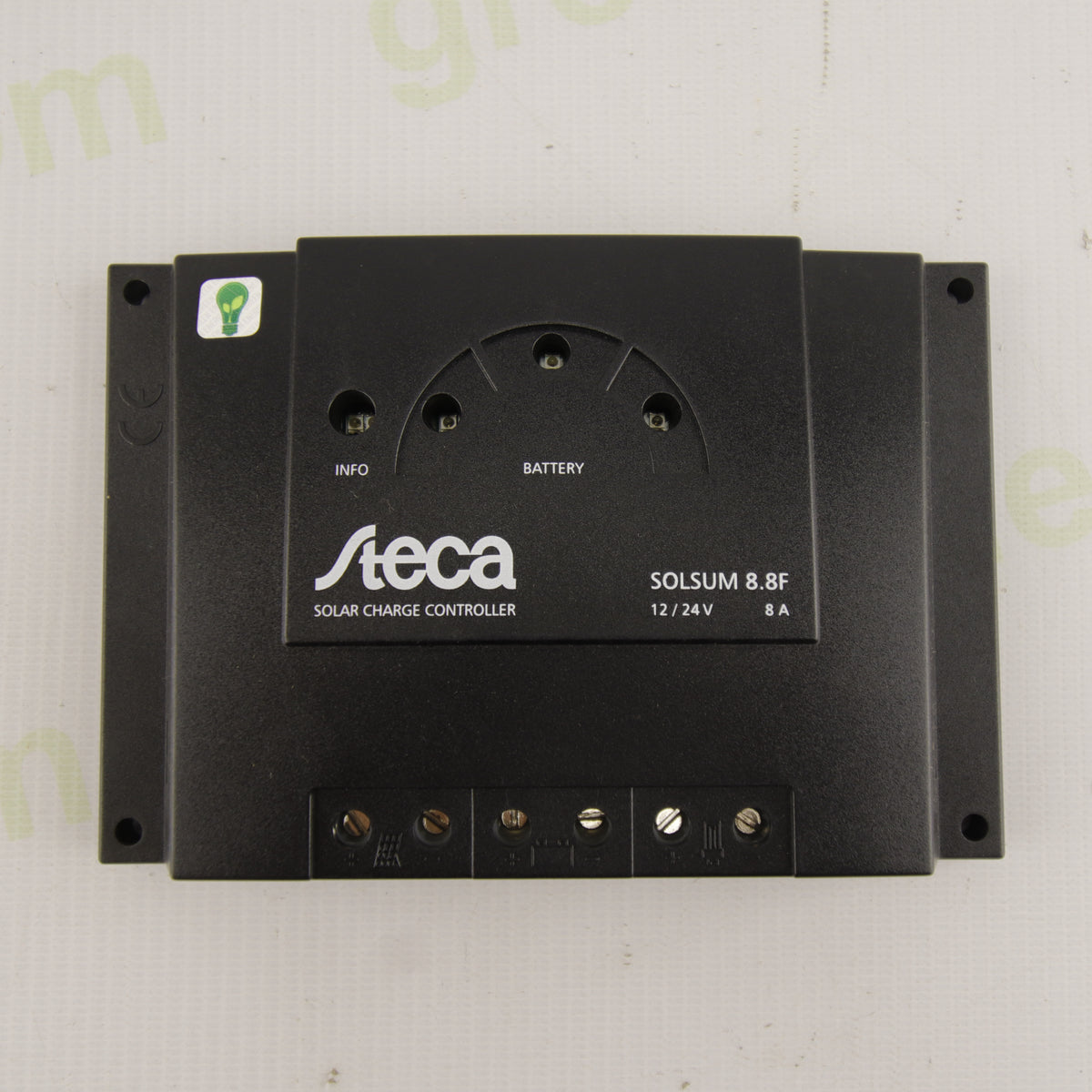

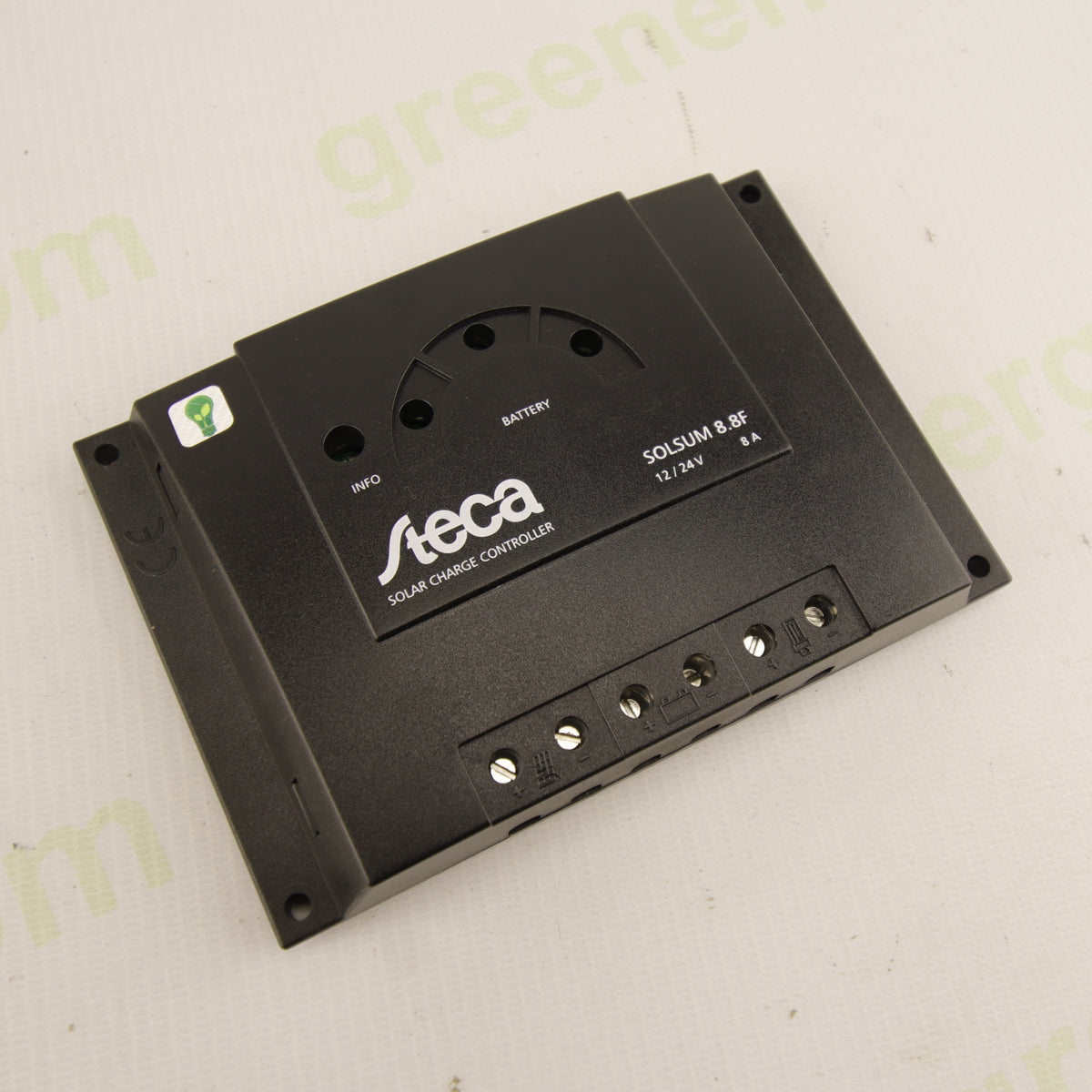

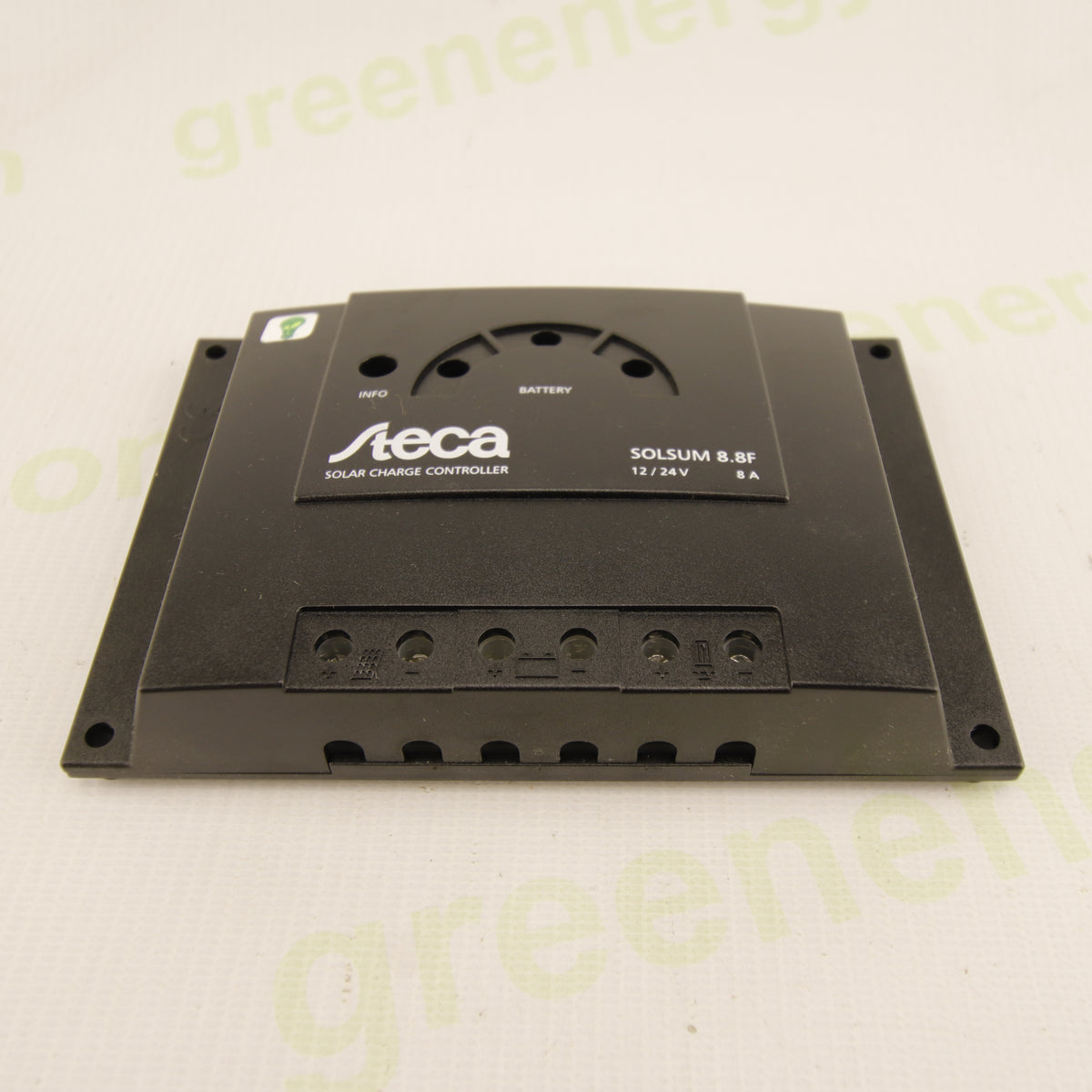

The controller is housed in a black plastic enclosure with four mounting points and a front six-connection terminal block, dedicated respectively to the photovoltaic module, battery and load.
The Solsum 8.8F must be installed in a vertical position, in a dry and protected environment, avoiding direct exposure to water and atmospheric agents. The IP32 protection rating does not identify the product as suitable for unprotected outdoor installation.
🛡️ Safety and Product Condition
Used product, in generally good cosmetic condition, with normal signs of use on the enclosure. The Steca Solsum 8.8F – 12/24 V – 8 A markings and terminals are clearly visible.
Before selling as a working unit, it is recommended to verify automatic 12/24 V detection, charging voltages, LVD protection activation, load output and correct operation of the LED indicators.
⚠️ The connection must respect the correct polarity and the sequence specified by the manufacturer. The controller must not be used to connect inverters directly to the load output; Steca documentation specifies that inverters must not be connected to the controller's load output.
📦 Package Contents
- 1 × Steca Solsum 8.8F
-
PWM 12/24 V – 8 A charge controller
- Integrated terminal block and components as visible in the photographs.
🚀 Final Description
The Steca Solsum 8.8F is an 8 A PWM photovoltaic charge controller for 12/24 V OFF-GRID systems, suitable for managing small battery-based installations. It integrates automatic voltage detection, multi-stage PWM charging, temperature compensation, overcharge and deep-discharge protection, reverse-polarity, short-circuit, overtemperature and night-time reverse-current protection. The maximum current is 8 A both on the PV module side and on the load side.
